In today's interconnected world, selecting the perfect RJ45 female connector—often called an Ethernet jack—is crucial for building reliable networks. Whether you're setting up a home office, industrial automation, or data center, the right choice ensures optimal performance, durability, and safety. This guide breaks down key factors like interface standards, shielding, and more, helping you make an informed decision. By the end, you'll know how to pick a connector that meets your needs, with tips on high-quality options like LINK-PP products. Let's dive in!
📝 Key Takeaways
Pick RJ45 connectors that fit your cable type. This helps stop slow speeds and problems with connections.
Use shielded connectors if your area is noisy. They keep your network safe from interference.
Find connectors made of metal or tough plastic. These materials help your connectors last longer.
Think about gold-plated contacts for better signals. They also make connections last longer.
Try pass-through connectors for easy setup. They help you make fewer mistakes when installing.
📝 Introduction to RJ45 Female Connectors
An RJ45 female connector is the socket component used in Ethernet cables to establish network connections. It's a staple in everything from routers and switches to IoT devices. With the rise of high-speed internet and Power over Ethernet (PoE), choosing the right RJ45 jack isn't just about compatibility—it's about future-proofing your setup. We'll also highlight how brands like LINK-PP excel in providing robust solutions for various applications.
📝 Key Factors to Consider When Choosing an RJ45 Female Connector
1. Interface Standards: Matching Your Network Speed
RJ45 connectors must align with Ethernet categories like Cat5e, Cat6, Cat6a, and Cat7, which define maximum speeds and frequencies. For instance, Cat6 supports up to 10Gbps over short distances, while Cat7 offers shielding for higher noise immunity. When searching for a high-speed RJ45 female connector, ensure it matches your cable's category to avoid bottlenecks. This is critical for Ethernet jack selection in data-intensive environments.
Table: Comparison of Common Ethernet Standards
Category | Max Speed | Max Frequency | Common Use Cases |
|---|---|---|---|
Cat5e | 1Gbps | 100MHz | Home networks, offices |
Cat6 | 10Gbps | 250MHz | Data centers, gaming |
Cat6a | 10Gbps | 500MHz | Industrial setups |
Cat7 | 10Gbps+ | 600MHz | High-interference areas |
Upgrade your network today by checking compatibility—explore our recommended LINK-PP RJ45 connectors for seamless integration! Source Now ››››
2. Shielding Design: Reducing Electromagnetic Interference
Shielding protects against EMI and crosstalk. Unshielded (UTP) connectors are cost-effective for low-noise environments, while shielded (FTP or STP) types suit industrial settings. For a shielded RJ45 jack, look for metal casings that ground interference. This is vital for choosing an RJ45 connector for industrial use, where reliability is paramount. Brands like LINK-PP often include advanced shielding in models like the LINK-PP LPJG0926HENL, ensuring stable performance in harsh conditions.
3. Contact Gold Plating Thickness: Enhancing Conductivity and Durability
Gold plating on contacts reduces resistance and prevents corrosion. Thickness is measured in microinches (µin)—standard plating is around 30µin, while high-end versions go up to 50µin or more for better longevity. A thicker plating is essential for durable RJ45 female socket applications, such as frequent plugging. When evaluating options, consider how LINK-PP RJ45 connectors often feature 50µin gold plating for superior conductivity.
4. Durability and Mating Cycles: Ensuring Long-Term Reliability
Mating cycles refer to how many times a connector can be plugged and unplugged before wear sets in. Commercial-grade jacks typically offer 1,000 cycles, while industrial ones exceed 10,000. For high-traffic areas, prioritize connectors rated for high cycles to avoid downtime. This ties into RJ45 jack lifespan tips, where products like LINK-PP's high-cycle models excel.
5. Material and Flame Retardancy: Prioritizing Safety
The housing material, often PC (polycarbonate) or ABS plastic, should meet flammability standards like UL94V-0 for fire resistance. This is non-negotiable for safety-critical installations. When selecting an RJ45 connector for PoE applications, flame-retardant materials prevent overheating risks. LINK-PP connectors are typically UL94V-0 certified, adding peace of mind.
6. Power over Ethernet (PoE) Support: Delivering Data and Power
PoE allows devices like IP cameras to receive power through the Ethernet cable. Connectors must handle higher currents without overheating. Look for PoE+ (IEEE 802.3at) or PoE++ (802.3bt) compatibility. This is key for PoE-ready RJ45 female connector searches. LINK-PP offers PoE-optimized jacks (like LPJG0926HENL) that ensure efficient power delivery.
7. Mounting Styles: Fitting Your Design Needs
Mounting options include through-hole, surface-mount, and panel-mount styles. Through-hole is common for PCBs, while panel-mount suits enclosures. Choose based on your assembly process. LINK-PP provides versatile mounting solutions.
8. IP Rating: Protecting Against Environmental Factors
Ingress Protection (IP) ratings indicate dust and water resistance. For outdoor or harsh environments, aim for IP67 or higher to ensure durability. This is crucial for weatherproof RJ45 connector selections. Many LINK-PP models boast IP67 ratings, making them suitable for industrial automation.
9. Brands and Certifications: Trusting Quality and Compliance
Reputable brands adhere to standards like ISO, RoHS, and FCC. LINK-PP is known for rigorous testing and certifications, ensuring products meet global safety norms. When comparing brands, read reviews and verify certifications to avoid subpar components. This aligns with best RJ45 female connector brands searches, where quality assurance matters.
📝 Spotlight on RJ45 Connectors: Why Details Matter

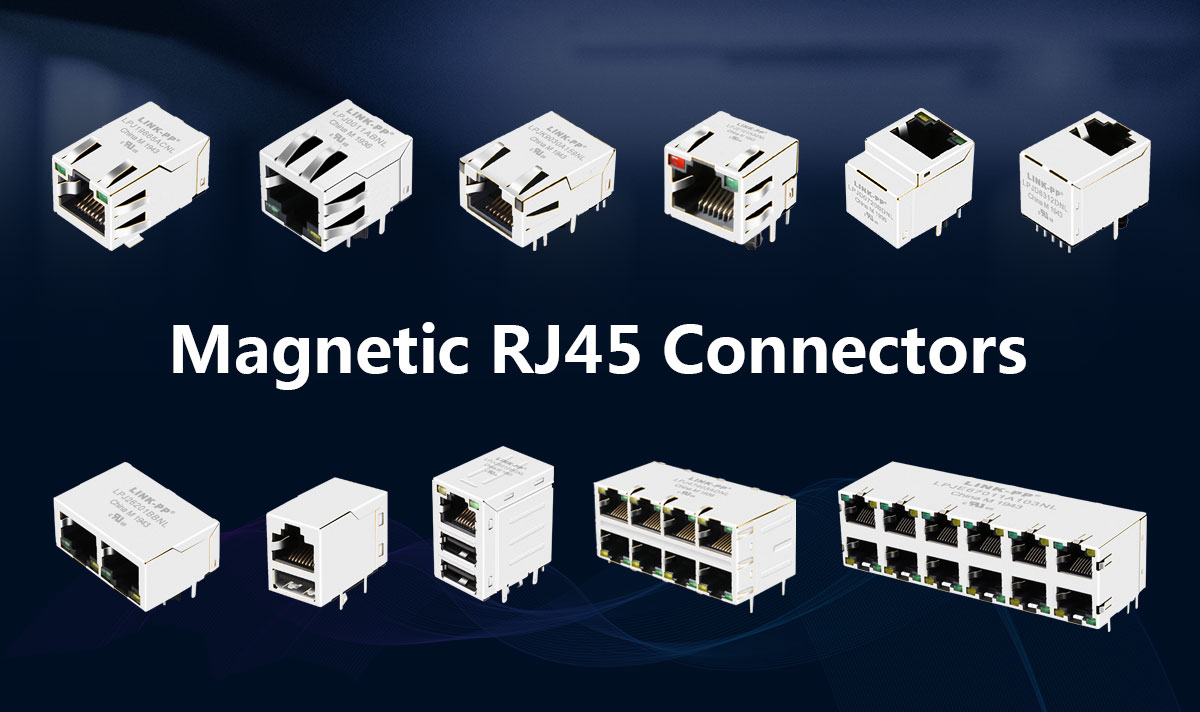

RJ45 connectors might seem simple, but their design impacts network efficiency. From the pin alignment to the locking tab, every detail affects performance. For instance, a well-designed jack minimizes signal loss, which is why professionals often recommend trusted names. In this context, LINK-PP RJ45 connectors stand out for their precision engineering—models like the LINK-PP LPJK9436AHNL offer Cat6a compliance with enhanced shielding, ideal for future-proof setups. When you're how to choose an RJ45 female connector for high-speed networks, such specifics ensure you get value for money.
📝 Conclusion: Make an Informed Choice
Choosing an RJ45 female connector involves balancing speed, durability, safety, and cost. By considering factors like interface standards, shielding, and brand reputation, you can avoid common pitfalls. Remember, investing in quality parts from brands like LINK-PP pays off in reduced maintenance and better performance. Whether you're a DIY enthusiast or a network engineer, this guide equips you with the knowledge to select the best connector for your needs.
📝 FAQ
What is the difference between shielded and unshielded RJ45 connectors?
Shielded connectors protect your network from electrical noise. You use them in places with lots of interference. Unshielded connectors work well in homes or offices with little interference.
How do you know if your RJ45 connector is compatible with your cable?
Check your cable type before you buy a connector. Look for Cat5e, Cat6, or other labels on your cable. Match the connector to your cable for the best fit.
Why do some RJ45 connectors have gold-plated contacts?
Gold-plated contacts help prevent rust and keep signals clear. You get better data transfer and longer-lasting connectors. Choose gold-plated contacts for important network links.
