✅ Introduction
In modern telecom infrastructure, the physical connection between network devices and Ethernet cabling is vital for performance and reliability. The RJ45 Magjack—an RJ45 modular connector with integrated magnetics—has become a key component in telecom and networking equipment. It combines an Ethernet interface with magnetic components such as isolation transformers and common-mode chokes to ensure robust signal integrity, electrical isolation, and EMI protection.
As telecom networks evolve toward 5G, edge computing, and intelligent access systems, selecting reliable RJ45 Magjack solutions is crucial to achieve high stability, safety, and data transmission quality.

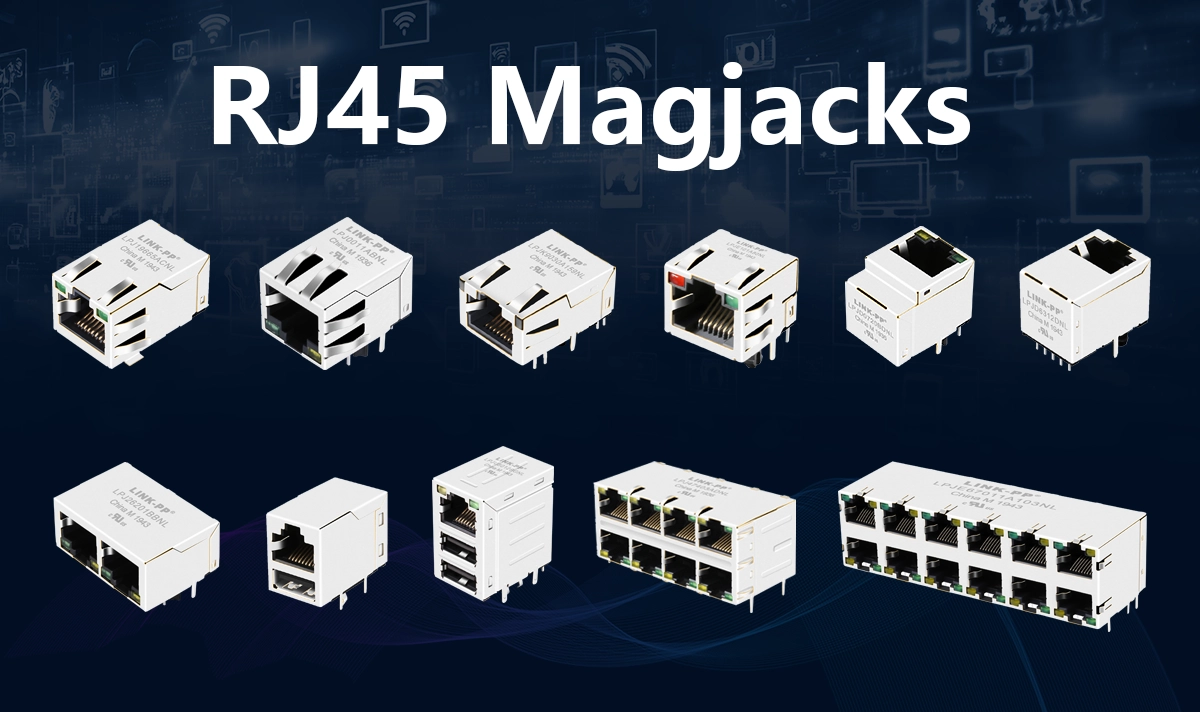

✅ What Is an RJ45 Magjack and Why It Matters
An RJ45 Magjack integrates both the physical connector and the signal conditioning circuitry inside one compact module. It includes:
RJ45 Interface: Standard eight-pin modular Ethernet connector.
Integrated Magnetics: Provide galvanic isolation and improve signal quality.
LED Indicators: Show link and activity status.
Shielded Housing: Reduces electromagnetic interference (EMI/RFI).
In telecom applications, the RJ45 Magjack ensures electrical isolation (typically 1500 Vrms) between the network interface and internal circuits, protecting sensitive PHY chips from voltage surges and grounding issues. It also supports PoE (Power over Ethernet), which simplifies network deployment by delivering data and power through one cable—ideal for small-cell base stations, remote radio units (RRUs), and outdoor gateways.
✅ Role of RJ45 Magjacks in Telecom Infrastructure
1. Stable Ethernet Connectivity
Telecom systems depend on reliable Ethernet interfaces for data transmission between routers, base stations, and switches. Integrated RJ45 Jacks provide consistent performance over long distances and across high-density deployments, ensuring continuous operation with minimal packet loss.
2. Enhanced Signal Integrity and EMI Immunity
Integrated magnetics filter out noise and reduce electromagnetic interference—critical in telecom environments where RF signals and power systems coexist. Shielded RJ45 Magjacks maintain clear data signals even in high-noise conditions.
3. Power over Ethernet (PoE) Capability
RJ45 Magjacks supporting IEEE 802.3af/at/bt PoE standards enable telecom devices to receive both data and power via a single cable. This simplifies network infrastructure and reduces installation costs.
4. Industrial Reliability
LINK-PP RJ45 Magnetic Connectors are designed for harsh telecom conditions—offering wide operating temperature ranges (-40 °C to +85 °C), corrosion-resistant contacts, and robust mechanical endurance (>750 mating cycles). These features make them suitable for outdoor base stations and industrial network nodes.

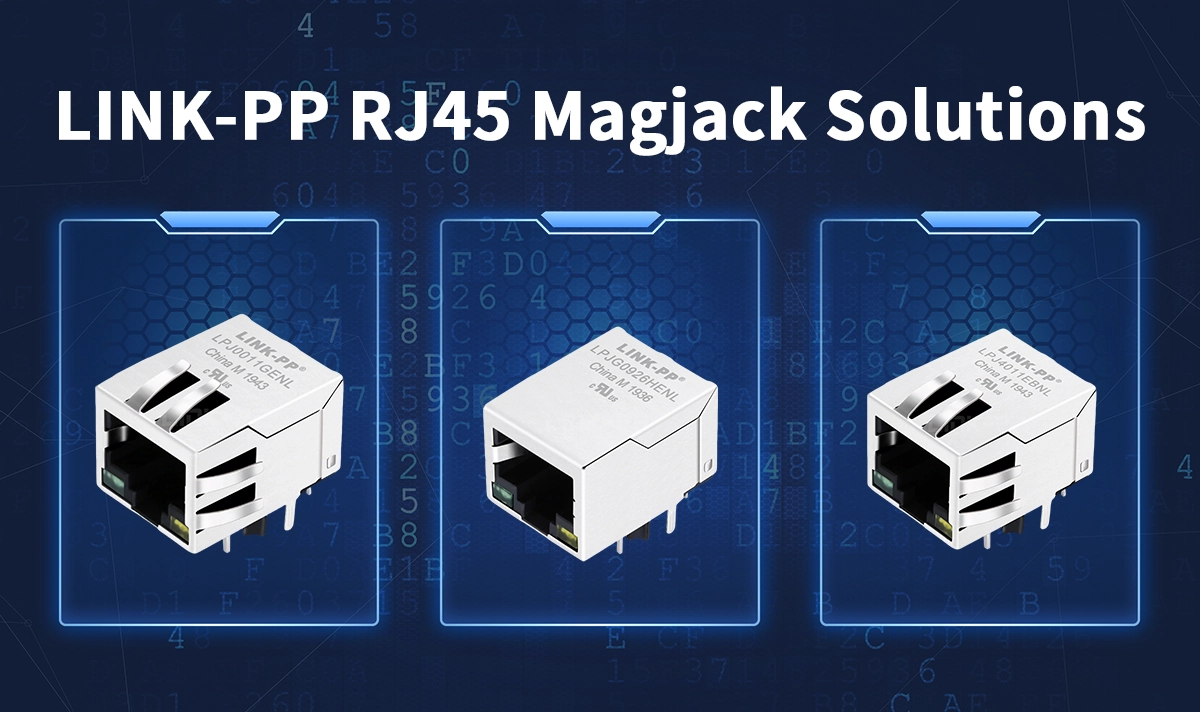

✅ LINK-PP RJ45 Magjack Solutions
LINK-PP provides a comprehensive range of integrated RJ45 Magjack connectors optimized for telecom and networking applications:
LPJ0011GENL: 10/100 Base-T single-port RJ45 Magjack with integrated magnetics and LED indicators.
LPJG0926HENL: Gigabit RJ45 Magjack supporting PoE and EMI shielding for telecom switches and routers.
LPJ4011EBNL: Industrial RJ45 Magjack for rugged network environments.
These products are available at l-p.com and meet IEEE 802.3, UL, RoHS, and Reach standards. LINK-PP’s integrated solutions reduce PCB space, improve manufacturing efficiency, and deliver proven long-term reliability for telecom deployments.
✅ Advantages for Telecom Network Design
1. Simplified Integration
Combining magnetics within the RJ45 module saves board space and reduces component count—simplifying OEM design and assembly.
2. Improved Network Safety
High-voltage isolation and EMI shielding enhance equipment safety, preventing circuit damage caused by surges or interference.
3. Optimized Cost Efficiency
Pre-tested integrated jacks lower manufacturing and maintenance costs while ensuring consistent performance across deployments.
4. Scalable for Future Networks
As 5G and next-generation telecom systems demand higher bandwidth, LINK-PP’s RJ45 Magjack solutions are ready to support evolving Ethernet standards and PoE requirements.
✅ Typical Telecom Applications
Application | Function |
|---|---|
5G Small-Cell Base Stations | Provides a PoE Ethernet interface for data and power. |
OLT / ONU Access Devices | Acts as the main Ethernet management or uplink port. |
Telecom Routers & Switches | Ensures reliable copper link in backhaul and aggregation layers. |
Edge Data Nodes | Supports high-speed, EMI-resistant network connectivity. |
✅ Why Choose LINK-PP
World-Leading Supplier of Integrated RJ45 Connectors and Magnetics.
Certified Quality: ISO 9001:2008, UL, Reach, and RoHS compliant.
OEM Compatibility: Fully compatible with major telecom brands like Cisco, Huawei, and Ericsson.
Global Availability: Fast delivery and stable long-term supply for telecom OEMs and integrators.
✅ Conclusion
In telecom infrastructure, RJ45 Magjacks are more than connectors—they are essential components that guarantee signal integrity, network reliability, and power efficiency. With integrated magnetics, EMI protection, and PoE support, they enable robust Ethernet communication across base stations, switches, and access networks.
LINK-PP’s RJ45 Magjack solutions provide telecom engineers and OEMs with trusted, high-quality components optimized for performance, safety, and scalability in next-generation networks.
