➡️ Introduction
The rapid growth of cloud computing, virtualization, and data-intensive applications has accelerated the need for faster Ethernet standards. While fiber optics dominates long-haul networks, copper cabling remains essential in enterprise LANs and data centers due to its cost efficiency and backward compatibility. This is where IEEE 802.3an, the standard for 10GBASE-T Ethernet, plays a pivotal role.
➡️ What Is IEEE 802.3an?
IEEE 802.3an is a 2006 amendment to the IEEE 802.3 Ethernet specification. It defines 10 Gigabit Ethernet transmission over twisted-pair copper cabling. This standard enabled the achievement of 10 Gbit/s full-duplex communication across structured cabling systems, extending the usability of copper far beyond its earlier gigabit limits.
➡️ Key Technical Specifications
Transmission Speed: 10 Gbit/s
Medium: Twisted pair copper (Cat 6a or Cat 7 recommended)
Reach: Up to 100 meters
Modulation Scheme: PAM-16 (16-level Pulse Amplitude Modulation) for high-density signaling
Error Handling: Forward Error Correction (FEC) to maintain data integrity
Compatibility: Backward-compatible with 1000BASE-T and 100BASE-TX, simplifying migration
These features allow organizations to leverage existing copper infrastructure while upgrading to multi-gigabit performance.
➡️ Advantages of 10GBASE-T Ethernet
Cost-Effective Deployment — Copper cabling is less expensive than optical fiber and easier to install.
Backward Compatibility — Enterprises can integrate 10GbE while maintaining legacy 1GbE systems.
Flexible Reach — With a supported reach of up to 100 meters, IEEE 802.3an is ideal for server rooms, wiring closets, and horizontal cabling in buildings.
Standardized Interface — Utilizes the familiar RJ45 connector, reducing complexity in equipment and patching.
➡️ Applications in Modern Networks
Data Centers: Server-to-switch connections that demand high throughput with lower cabling costs.
Enterprise LANs: Smooth transition from Gigabit to 10 Gigabit Ethernet across office floors.
Industrial and IoT Systems: Reliable, high-speed backbone for automation and connected devices.
➡️ IEEE 802.3an vs. IEEE 802.3ae
For quick reference:
IEEE 802.3ae = 10GbE over fiber (long-distance, high performance)
IEEE 802.3an = 10GbE over copper (short-distance, cost-effective, highly compatible)
This distinction highlights how fiber-based 10GbE is ideal for backbone and long-haul networks, while copper-based 10GbE is the practical choice for short-reach, budget-conscious deployments such as server rooms and enterprise LANs.
➡️ LINK-PP 10GBASE-T Solutions

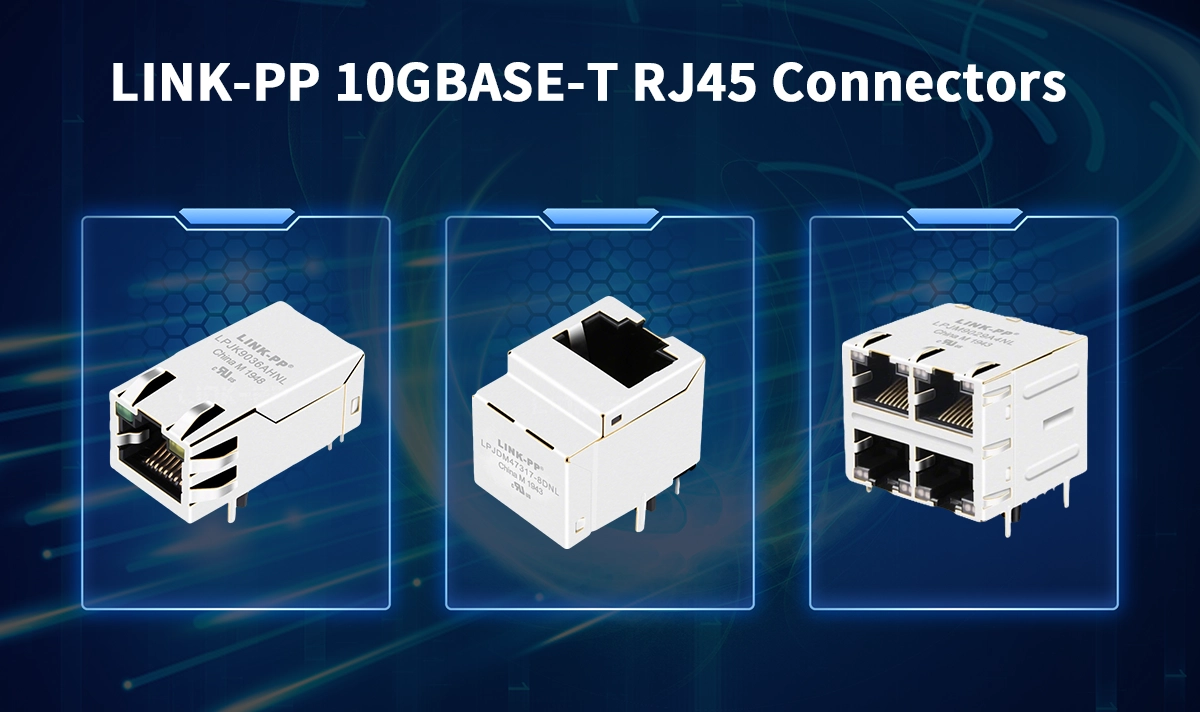

As a trusted supplier of Ethernet connectivity components, LINK-PP offers integrated RJ45 connectors and magnetics that meet the demanding requirements of IEEE 802.3an.
🔗 Explore our RJ45 connector product line designed for 10GBASE-T applications. These components ensure low insertion loss, excellent EMI suppression, and compliance with global Ethernet standards.
By combining robust design with cost-effective manufacturing, LINK-PP helps network engineers and OEMs deploy scalable 10GbE solutions without compromising reliability.
➡️ Conclusion
IEEE 802.3an was a breakthrough in extending Ethernet speeds to 10 Gigabits over copper, bridging the gap between cost-efficient cabling and high-performance networking. For enterprises, data centers, and industrial systems, 10GBASE-T remains a critical technology for scaling bandwidth without a complete infrastructure overhaul.
With LINK-PP’s comprehensive range of RJ45 connectors and integrated magnetics, your transition to 10GbE can be efficient, standards-compliant, and future-ready.
