♦ Introduction

When searching for broadband options, many people encounter terms such as ADSL and VDSL. Both are forms of DSL (Digital Subscriber Line) technology, which delivers internet access over traditional copper telephone lines. While they share the same basic principle, their performance, applications, and limitations are quite different. This article compares ADSL and VDSL to help you understand which technology better suits your needs.

♦ What is ADSL?

ADSL (Asymmetric Digital Subscriber Line) is one of the earliest and most widely used DSL technologies. The term “asymmetric” refers to its bandwidth allocation:

  • Download speeds are higher than upload speeds.

  • Typical download: 1–24Mbps

  • Typical upload: 128Kbps–3Mbps

This makes ADSL ideal for home users, where activities such as web browsing, video streaming, and file downloads are prevalent. However, ADSL struggles with tasks requiring strong upload performance, such as video conferencing or cloud backups.

♦ What is VDSL?

VDSL (Very-high-bit-rate Digital Subscriber Line) is a more advanced DSL technology designed to deliver significantly higher bandwidth, especially over shorter distances.

  • Much faster than ADSL due to improved modulation and the use of higher frequency ranges.

  • Typical download: 30–100Mbps (VDSL2 up to 300Mbps under optimal conditions)

  • Typical upload: 10–50 Mbps

VDSL is often deployed in FTTC (Fiber to the Curb/Cabinet) networks, where optical fiber runs to a nearby cabinet, and VDSL covers the last segment over copper.

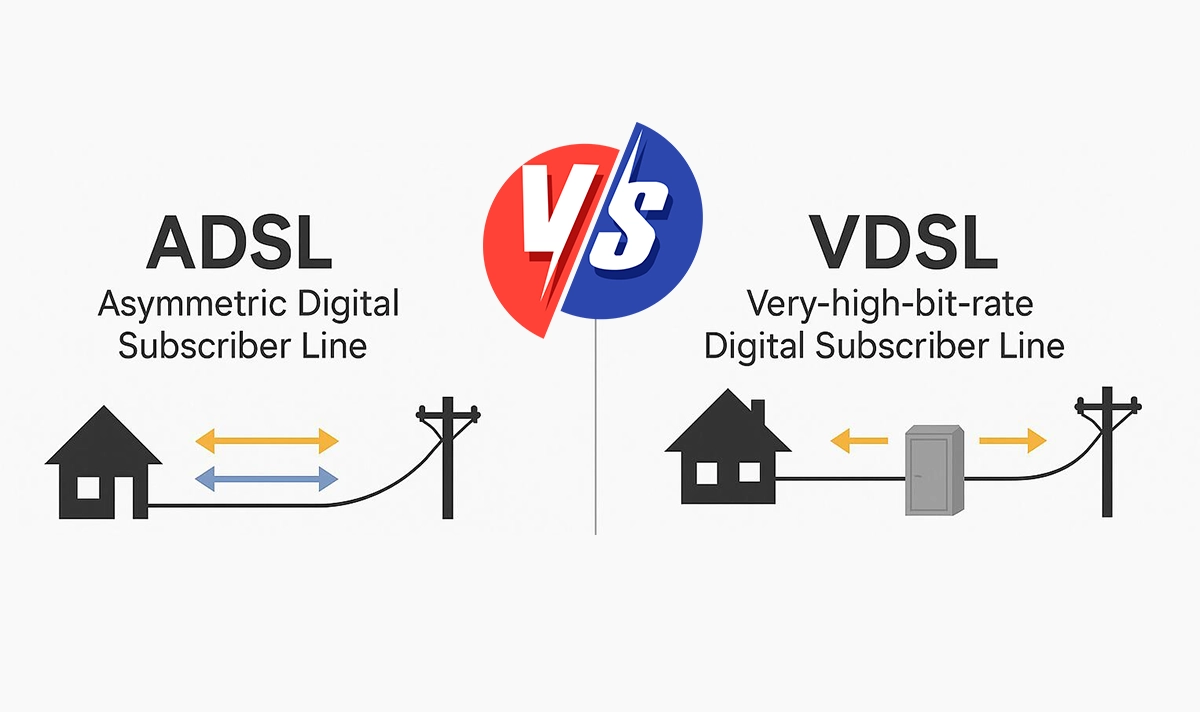

♦ ADSL vs VDSL: Key Differences

Feature

ADSL

VDSL

Full Name

Asymmetric Digital Subscriber Line

Very-high-bit-rate Digital Subscriber Line

Speed (Download/Upload)

1–24Mbps / up to 3Mbps

30–300Mbps / up to 50Mbps

Bandwidth Allocation

Asymmetric

More balanced

Best for

Home use (web, streaming, browsing)

High-demand apps (HD streaming, gaming, business)

Distance Sensitivity

Performs over longer distances but slower overall

Performs best at short distances from the cabinet

Common Deployment

Legacy DSL networks

FTTC / Hybrid fiber-copper networks

Advantages and Limitations

ADSL Advantages:

  • Widely available due to legacy infrastructure.

  • Cost-effective for basic internet needs.

  • Supports simultaneous voice and data.

ADSL Limitations:

  • Slower speeds compared to modern broadband.

  • Very limited upload bandwidth.

  • Being phased out in many countries.

VDSL Advantages:

  • Much faster download and upload speeds.

  • Supports modern applications like 4K streaming, gaming, and VoIP.

  • Scalable with technologies like vectoring and G.fast.

VDSL Limitations:

  • Performance drops sharply with distance from the cabinet.

  • Availability may be limited to areas with FTTC deployment.

  • Not as future-proof as full fiber (FTTH).

♦ Choosing Between ADSL and VDSL

  • Choose ADSL if: You need a budget-friendly option, live far from a street cabinet, or only require light internet usage (emails, browsing).

  • Choose VDSL if: You want higher performance, live close to a cabinet, or need to support bandwidth-intensive tasks such as gaming, remote work, or HD streaming.

♦ The Future: From DSL to Fiber

While VDSL offers significant improvements over ADSL, both technologies are gradually being replaced by fiber-based solutions (FTTH, FTTP) and Fixed Wireless Access (FWA). However, in many regions, VDSL remains an important transitional technology, delivering near-fiber speeds without requiring full fiber installation.

♦ Conclusion

ADSL and VDSL are both DSL technologies, but their performance and use cases differ significantly. ADSL remains a simple, low-cost solution for basic internet needs, while VDSL offers much higher speeds for modern digital lifestyles. Understanding their differences helps you make an informed choice—or prepare for the eventual shift to fiber broadband.
