A Complete Guide to DSL Internet (Digital Subscriber Line)

🔹 Introduction

For decades, DSL (Digital Subscriber Line) has been one of the most widely used broadband access technologies, connecting millions of homes and businesses worldwide. By transmitting high-speed data over ordinary copper telephone lines, DSL helped bridge the gap between dial-up internet and modern fiber optics. But what exactly is DSL, how does it work, and what are its strengths and weaknesses? This article explores DSL in detail, from its architecture and types to its role in today’s broadband landscape.

🔹 What is DSL?

DSL (Digital Subscriber Line) is a technology that provides internet access using standard copper telephone lines. Unlike dial-up connections, DSL uses higher frequency bands on the copper pair, allowing data transmission without interfering with voice calls.

DSL connections are “always on,” meaning users do not need to dial in each time, and speeds are significantly higher than legacy dial-up.

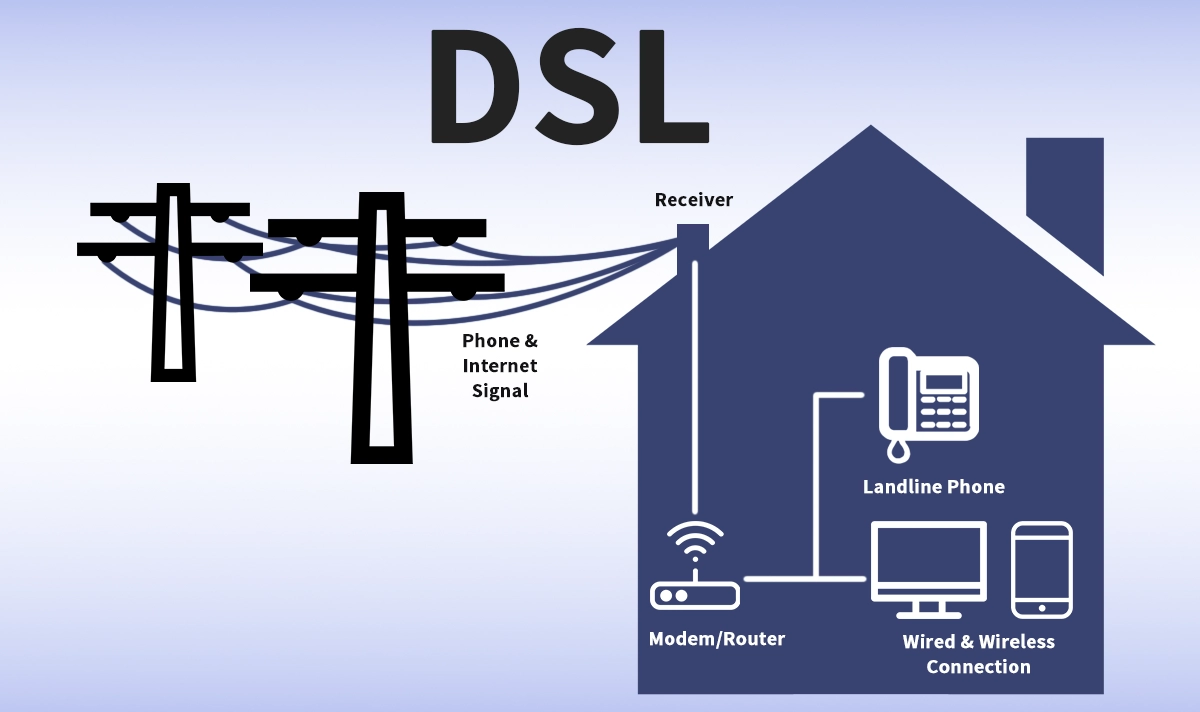

🔹 How DSL Works

1. Telephone Line Frequency Division: The copper line is divided into separate frequency bands—low frequencies for voice and higher frequencies for data.

2. DSL Modem: At the customer side, a DSL modem separates data and voice signals and connects the user to the internet.

3. DSLAM (Digital Subscriber Line Access Multiplexer): At the telecom operator’s exchange or street cabinet, a DSLAM aggregates multiple DSL connections and links them to the broadband backbone network.

4. Always-on Connectivity: Since voice and data use different frequency ranges, both can run simultaneously without conflict.

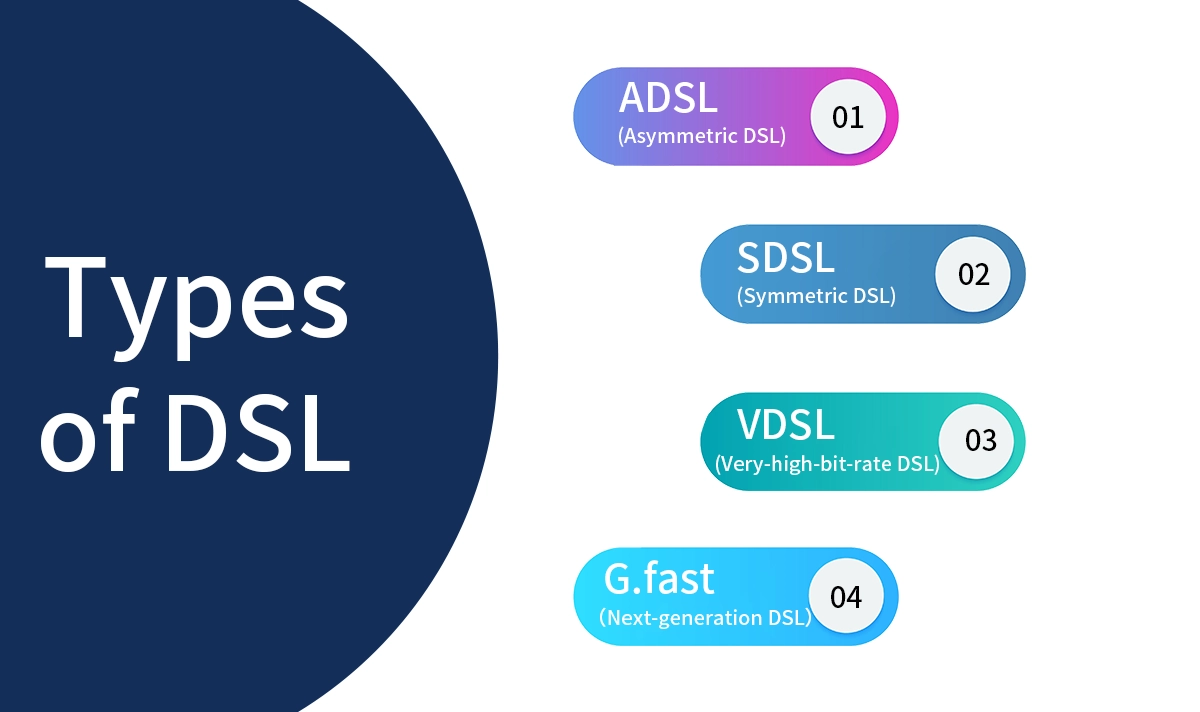

🔹 Types of DSL

DSL is a family of technologies, including multiple variations optimized for different use cases:

• ADSL (Asymmetric DSL):

  • Download speeds are higher than upload speeds.

  • Typical speed: 1–24 Mbps down / up to 3 Mbps up.

  • Best for households where downloading (streaming, browsing) outweighs uploading.

• SDSL (Symmetric DSL):

  • Equal upload and download speeds.

  • Used in business applications needing reliable two-way data transfer.

• VDSL (Very-high-bit-rate DSL):

  • Much faster than ADSL, especially at short distances.

  • VDSL2 can deliver 100–300 Mbps under ideal conditions.

  • Often deployed in FTTC (Fiber to the Curb) networks, where fiber runs to a cabinet and DSL covers the last mile.

• G.fast:

  • Next-generation DSL technology.

  • Can deliver up to 1 Gbps over short copper loops.

  • Seen as a transitional solution in regions not fully upgraded to fiber.

🔹 DSL vs Other Broadband Technologies

🔹 Advantages of DSL

• Widespread availability: Uses existing telephone infrastructure.

• Cost-effective: No need for new fiber installation in many cases.

• Always-on connectivity: No dialing in required, unlike dial-up.

• Better than legacy dial-up: Speeds are significantly higher.

🔹 Limitations of DSL

• Distance-sensitive: Speed decreases as the distance from the exchange or cabinet increases.

• Limited bandwidth: Cannot match cable or fiber in terms of capacity.

• Infrastructure-dependent: Performance depends on the quality of copper lines.

• Being phased out: Many regions are retiring DSL in favor of full fiber or wireless alternatives.

🔹 DSL in FTTC Deployments

In FTTC networks, fiber runs to a street cabinet, where a DSLAM or ONU distributes internet to end-users via VDSL or G.fast over copper. This hybrid model allows telecom operators to offer higher speeds while delaying the cost of full fiber rollouts.

🔹 Future of DSL

While DSL played a critical role in the evolution of broadband, its limitations are becoming more apparent in the gigabit era. Many countries are gradually replacing DSL with FTTH (Fiber to the Home) and Fixed Wireless Access (FWA). However, DSL remains important in regions where fiber deployment is not yet economically feasible, often serving as a transitional technology.

🔹 Conclusion

DSL (Digital Subscriber Line) was a key technology in expanding broadband access worldwide. By leveraging existing copper telephone infrastructure it enabled affordable, always-on internet service for millions of users. Though its future is limited compared to fiber and 5G, understanding DSL and its variants (ADSL, VDSL, G.fast) is essential for grasping the evolution of broadband technologies.
