☆ Introduction
Broadband networks today demand high bandwidth, low latency, and reliability. Optical transceivers are the essential hardware that let fiber-optic cables carry massive amounts of data over long distances. Without them, streaming, cloud computing, real-time applications, and large‐scale data centers couldn’t meet user expectations.
This article explains how optical transceivers power broadband networks: what they are, how they work, their key parameters, and why LINK-PP’s optics transceivers make a difference.
☆ What Are Optical Transceivers?
An optical transceiver is a device that both transmits and receives optical signals. It converts electrical signals (from switches, routers, servers) into optical/fiber signals, sends them through fiber, then converts incoming light back to electrical signals.
Key components include:
Laser transmitter for emitting light
Photodiode or avalanche photodiode (APD) for receiving light
Optical fiber connector (e.g. LC, SC)
Housing, cooling & diagnostic electronics
☆ How They Support Broadband Networks
Optical transceivers contribute to broadband networks in several ways:
High Data Rates & Capacity
Modern modules support from 1 Gbps (Gigabit) up to 100Gbps, 400Gbps, or more. These high rates are essential for backbone links, data centers, and long-haul communication.Long Reach Over Fiber
Depending on wavelength (e.g. 1310nm, 1550nm) and whether the fiber is single-mode or multimode, transceivers can span distances from a few meters (for multimode) to tens of kilometers (for single-mode), even up to 80-160km or more with DWDM/Coherent technologies.Low Latency & Signal Integrity
Transceivers with good signal-to-noise ratio, low jitter, and precise wavelength alignment ensure data arrives quickly and reliably. This is critical for applications like gaming, video conferencing, cloud services.Scalability & Modularity
Many network devices support “hot-swappable” transceiver slots (e.g. SFP, SFP+, QSFP, QSFP28), allowing upgrades in capacity or changing reach without replacing entire hardware units.Energy Efficiency
High-efficiency designs reduce power per bit. Features like digital diagnostics (DDM), improved optics design, and efficient driver electronics help lower energy consumption and cooling needs.
☆ Key Parameters That Matter
When selecting optical transceivers for a broadband network, you should consider:
Parameter | Why It Matters |
|---|---|
Data rate (e.g. 1G, 10G, 25G, 100G, 400G) | Must match network switch/router capacity; higher rates allow more throughput. |
Wavelength | Determines fiber type compatibility and how far signal will travel. For example 850nm for multimode fiber, 1310/1550nm for single-mode. |
Fiber Type & Connector | Single-mode (SMF) vs multimode (MMF); connector types such as LC, SC, MPO affect insertion loss and ease of use. |
Reach / Link Length | How far the signal must travel: intra-datacenter (meters) vs inter-city (tens of km) vs long haul (hundreds of km). |
Optical Budget / Loss Margin | The total allowable loss (from connectors, splices, fiber attenuation) plus system margin; must ensure end-to-end signal quality. |
Latency / Dispersion | Especially in high-speed or long-distance links, dispersion and latency can degrade performance unless properly managed. |
Standards & Interoperability | Modules following MSA (Multi-Source Agreement) such as SFP, SFP+, QSFP, QSFP28 etc. help ensure vendor interoperability. |
Diagnostics & DOM/DDM | Real-time monitoring of parameters like temperature, optical output power, receiver sensitivity, etc., helps manage network health proactively. |
☆ Case Study: LINK-PP Optics Transceivers

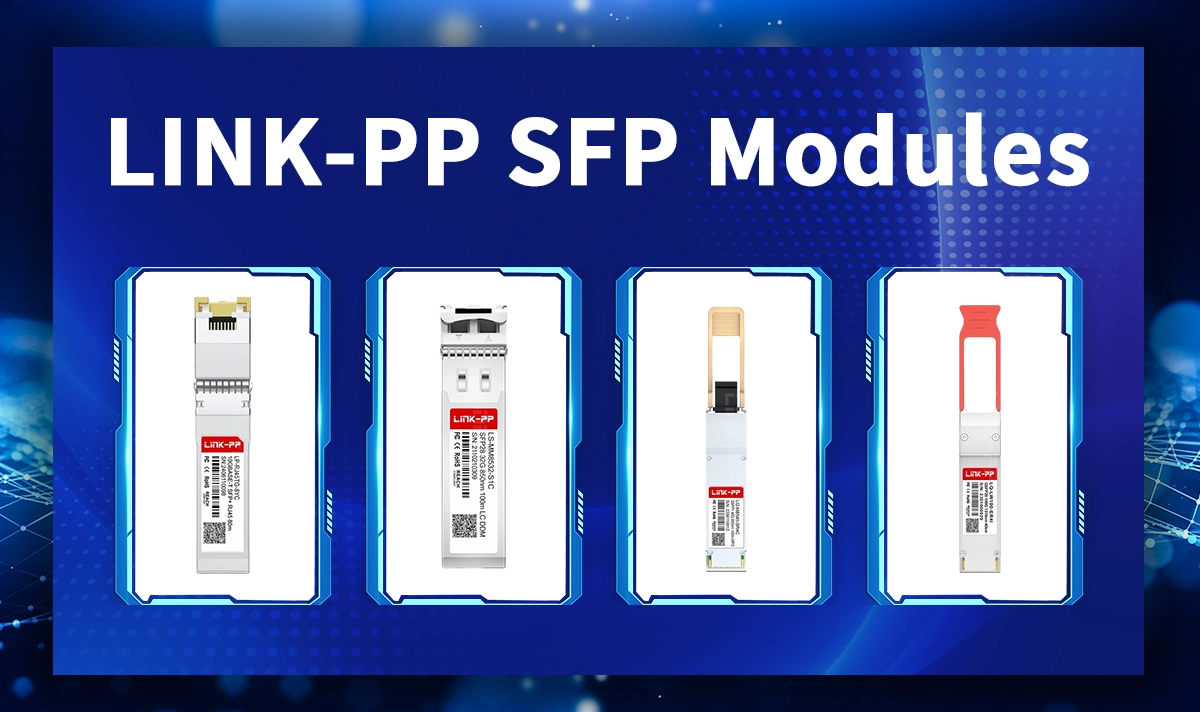

LINK-PP offers a wide range of optics transceivers / SFP modules. Some examples from their catalog to illustrate how product specs or features align with network needs:
Their DWDM-SFP10G modules for 10Gigabit over single-mode fiber, up to 40km reach, industrial temperature grade, with LC duplex connectors.
A 100GBASE-LR4 QSFP28 module (LINK-PP LQ-LW100-LR4C), designed for 10km reach over SMF, supporting 103.1 Gb/s signaling, with DOM (Digital Optical Monitoring) enabled.
These show how LINK-PP caters both to backbone / carrier-grade use (long reach, DWDM wavelengths) and to data center / campus networks (shorter reach, high density modules).
☆ Challenges & Considerations
Despite the power of optical transceivers, there are trade-offs and issues to manage:
Cost vs Performance: Higher speed and longer reach modules cost more; choosing the right module for the distance / required bandwidth is key.
Fiber Quality & Installation: Poor splices or bending can cause attenuation or dispersion; network performance suffers even if the transceiver is excellent.
Wavelength Interference / DWDM Channel Spacing: In DWDM systems, precise wavelength control is needed to avoid crosstalk.
Power Consumption & Heat: At high speeds, optics consume more power; cooling and energy efficiency matter.
Future Upgrades / Obsolescence: Pay attention to standard trends: moving from 10G → 25G/40G/100G/400G etc.; ensuring module compatibility helps in scaling.
☆ How Optical Transceivers Enable Key Broadband Applications
FTTx (Fiber to the Home / Premises): Transceivers at ends of fiber lines enable high speed internet to users; often using GPON, XGS-PON, or Ethernet over fiber.
Internet Backbone & Long-Haul Links: Using long reach optical modules and often DWDM or coherent optics, backbone networks span cities & continents.
Data Center Interconnects: Within and between data centers, optics provide low latency high bandwidth links (10G, 25G, 40G, 100G+).
Edge Computing & 5G Fronthaul / Backhaul: Edge sites need small, efficient optical modules to connect cell towers or edge clouds.
☆ Best Practices to Get the Most Out of Optical Transceivers
Match the Right Module to the Right Use Case — don’t over-spec or under-spec.
Maintain Clean Fiber Connections — dust, dust, dust. Insertion loss from dirty connectors kills performance.
Monitor via Diagnostics — using DOM or DDM to check power, temperature, etc. helps detect upcoming failure.
Plan for Growth — leave spare capacity and support future higher-speed modules.
Choose Reliable Suppliers — quality, warranty, standards compliance matter. LINK-PP offers many modules with industrial grades, domain-compatible optics, and experience.
☆ Conclusion
Optical transceivers are a foundational building block of any modern broadband network. They translate, amplify, and manage light signals so that huge amounts of data can move fast, reliably, over long distances. With correct specification, good installation, and high-quality modules (like those from LINK-PP), network operators can deliver high speeds, low latency, and strong reliability to end users.
If you are planning a network upgrade or new deployment, pay close attention to data rate, reach, wavelength, and module reliability. The right choice of optical transceivers makes all the difference.
