Digital Diagnostic Monitoring (DDM), also known as Digital Optical Monitoring (DOM), is a key feature in modern optical transceivers. It allows real-time monitoring of important operational parameters, helping maintain network performance, detect faults early, and simplify troubleshooting. Below are frequently asked questions about DDM and practical guidance for network administrators.
✅ Q1: What is Digital Diagnostic Monitoring (DDM)?

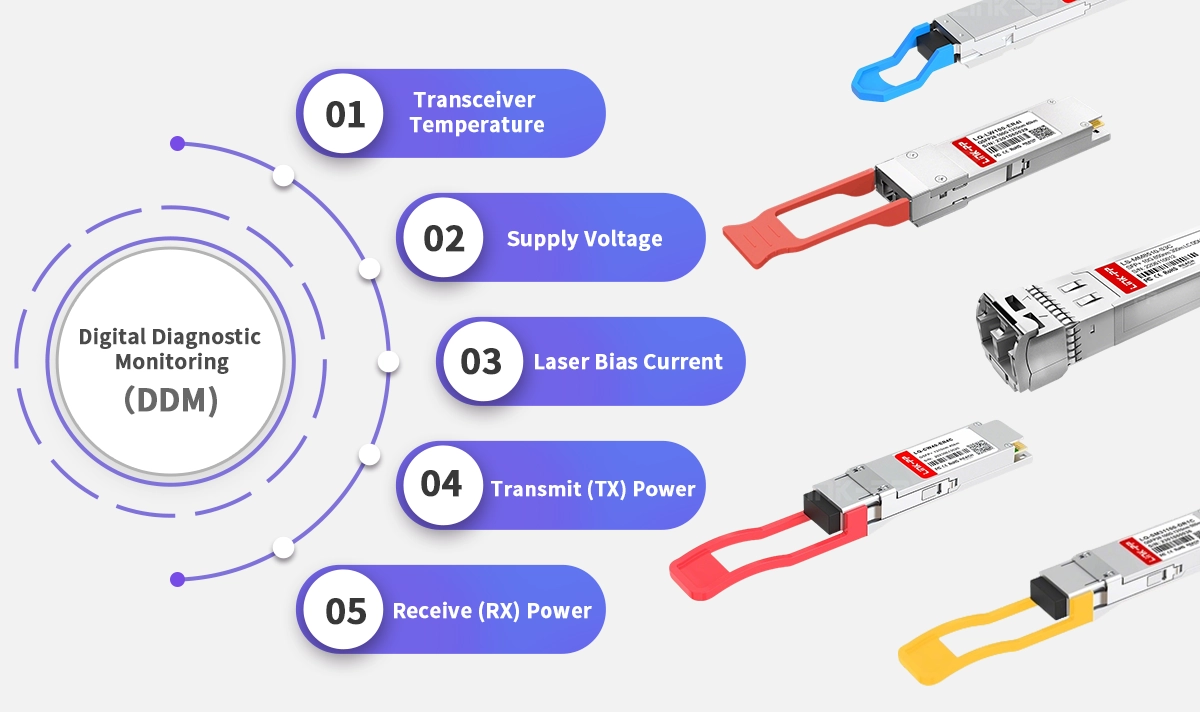

A: DDM is a standardized interface in optical transceivers (SFP, SFP+, QSFP, etc.) that provides real-time access to critical parameters, such as:
Transceiver Temperature – monitors device operating temperature.
Supply Voltage – tracks the power provided to the module.
Laser Bias Current – measures the driving current of the laser diode.
Transmit (TX) Power – monitors optical output power.
Receive (RX) Power – measures incoming optical signal strength.
DDM enables proactive network management and reduces downtime.
✅ Q2: Why is DDM important?
A: DDM enhances network reliability and operational efficiency by:
Proactive Fault Detection – Early warning of potential issues like overheating or signal degradation.
Simplified Troubleshooting – Quickly identify and isolate faulty transceivers.
Improved Network Performance – Continuous monitoring ensures optimal operation and reduces unexpected failures.
✅ Q3: What is the difference between DDM-enabled and standard optical modules?
A: Standard optical transceivers only transmit and receive optical signals without providing detailed status information. DDM-enabled transceivers, however, monitor and report key operational parameters in real time, such as temperature, voltage, laser bias current, TX power, and RX power. This allows proactive fault detection and network performance optimization.
✅ Q4: How can I confirm that a transceiver supports DDM before purchase?
A: To confirm DDM support:
Check the product datasheet for “DDM” or “DOM” support.
Verify SFF-8472 compliance.
Refer to vendor specifications, such as LINK-PP SFP modules, which explicitly indicate DDM capability.
✅ Q5: How can I read DDM data from SFP, SFP+, or QSFP modules?
A: DDM data is accessible via a 2-wire I²C interface compliant with the SFF-8472 standard. You can read this data using:
Command-line interfaces (CLI) on switches or routers.
Network Management Systems (NMS) for centralized monitoring.
Specialized monitoring software or diagnostic tools provided by transceiver vendors.
✅ Q6: What should I do if DDM parameters exceed thresholds?
A: If monitored values go beyond safe thresholds, consider:
Checking environmental conditions (temperature, airflow).
Ensuring stable power supply to the device.
Replacing the transceiver if it shows persistent faults.
Timely response prevents network downtime and potential hardware damage.
✅ Q7: Will abnormal DDM data cause network interruptions?
A: DDM itself does not cause network downtime. It only reports the status of the transceiver. However, persistent abnormal values may indicate hardware issues that, if unaddressed, could lead to performance degradation or network failure.
✅ Q8: Can DDM predict transceiver failure?
A: While DDM cannot predict failure with absolute certainty, it provides trends such as rising temperature, decreasing TX power, or abnormal laser current that indicate potential issues. Proactive maintenance based on DDM data improves network reliability.
✅ Q9: Can DDM data be monitored centrally via NMS?
A: Yes. DDM data from multiple transceivers can be collected and displayed in a network management system (NMS). This enables centralized monitoring, trend analysis, and early warning for potential failures across large-scale networks.
✅Q10: How does DDM help large-scale networks?
A: In large networks, manual inspection is impractical. DDM allows remote monitoring of hundreds or thousands of transceivers in real time, helping network operators maintain high performance and reduce maintenance costs.
✅ Q11: How does DDM work with monitoring software in practice?
A: Practical benefits include:
Continuous health monitoring of transceivers.
Predictive maintenance by identifying performance trends.
Rapid fault isolation and replacement of failing modules.
Improved network reliability and uptime.
Real-world cases show operators reducing troubleshooting time by up to 40% using DDM-enabled monitoring systems.
Conclusion:
Digital Diagnostic Monitoring (DDM) is a vital feature in modern optical transceivers, supporting real-time monitoring, proactive maintenance, and simplified troubleshooting. DDM enhances network reliability across SFP, SFP+, QSFP, and other high-speed modules. Explore LINK-PP’s DDM-enabled optical transceivers for high-quality, fully monitored modules.
