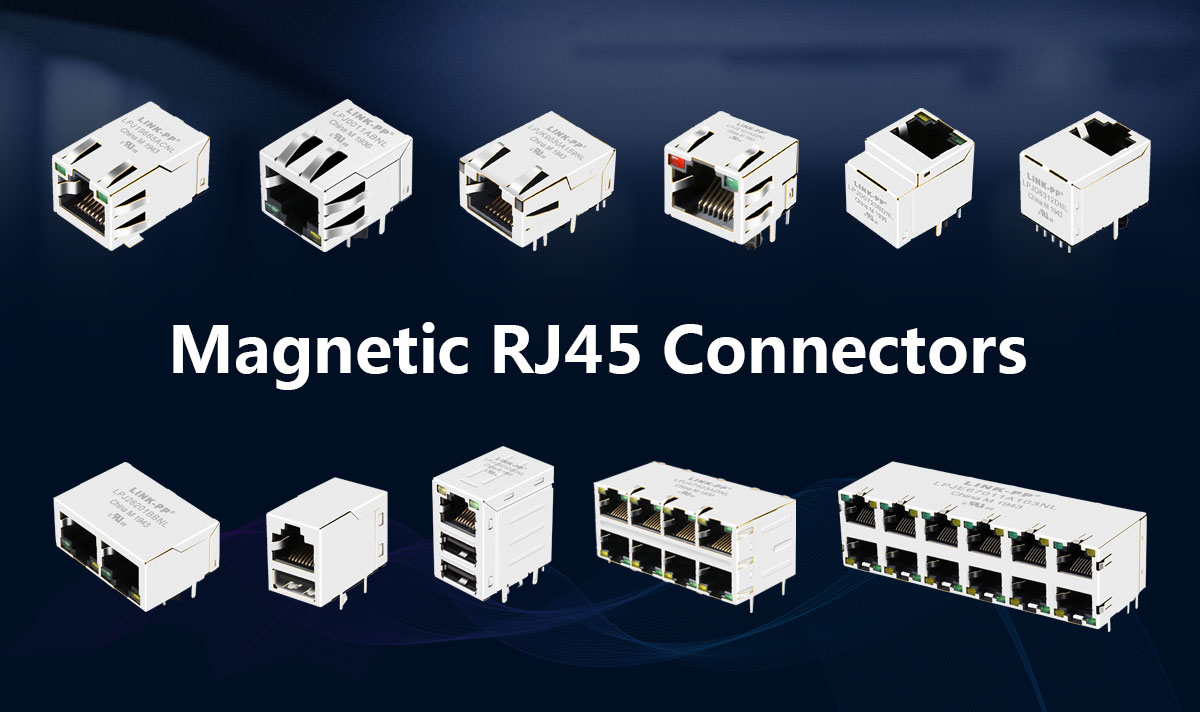

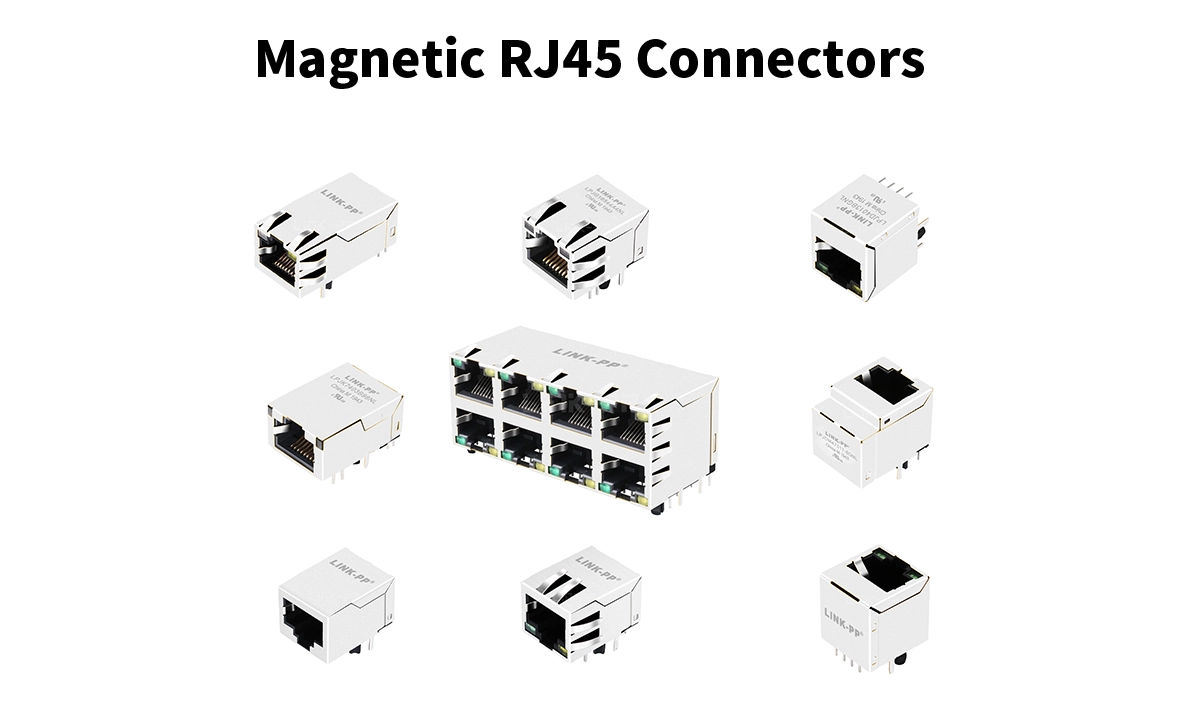

In today’s high-speed Ethernet environments, maintaining signal integrity is critical to achieving reliable data transmission and minimizing network downtime. One component that plays a central role in this effort is the magnetic RJ45 connector—a compact, integrated solution combining the Ethernet jack with magnetic circuitry such as transformers and chokes.
At LINK-PP, a trusted manufacturer of integrated RJ45 connectors and LAN magnetics, these magnetic components are carefully engineered to ensure compliance with IEEE standards and optimized for both consumer and industrial-grade applications.
Below, we explore how magnetic RJ45 connectors contribute to improved signal integrity and overall Ethernet performance.
1. Galvanic Isolation: Safeguarding Data and Equipment
One of the key functions of a Integrated RJ45 Connector is galvanic isolation. The integrated Ethernet transformer inside the connector isolates the PHY (physical layer chip) from external electrical disturbances. This isolation typically supports up to 1500Vrms, protecting internal circuits from voltage spikes, ground loops, or other high-voltage anomalies.
Why It Matters:
Prevents ground potential differences between networked devices.
Protects sensitive ICs from electrical surges.
Improves long-term device reliability and signal clarity.
2. Common Mode Noise Suppression: Ensuring Clean Transmission
In high-frequency environments, common mode noise can seriously degrade signal quality. Magnetic RJ45 connectors address this with built-in common mode chokes that filter out unwanted noise signals traveling along both lines of a differential pair.
These components are especially valuable in industrial or densely packed systems, where electromagnetic interference (EMI) and radio frequency interference (RFI) are more prevalent.
Benefit:
Enhanced EMI/EMC compliance.
Reduced bit error rate and retransmission.
More stable and predictable data links.
3. Impedance Matching and Return Loss Optimization
Signal reflections caused by impedance mismatches can lead to return loss, a phenomenon where part of the signal energy is reflected back toward the source. LINK-PP's magnetic RJ45 connectors are designed to match the impedance of transmission lines (typically 100 ohms), reducing reflection and maximizing signal efficiency.
Result:
Clearer signal paths.
Improved signal-to-noise ratio (SNR).
Support for higher data rates like 1G, 2.5G, or even 10G Ethernet.
4. Maintaining Balanced Differential Signal Transmission
Ethernet relies on differential signaling, where data is transmitted across paired wires with opposite polarity. Any imbalance in the signal can result in mode conversion or crosstalk. The transformer in a magnetic RJ45 helps maintain this balance by converting unbalanced signals to differential signals and vice versa.
Outcome:
Minimized crosstalk and signal skew.
Stable transmission across longer cable lengths.
Better compliance with IEEE 802.3 specifications.
5. Power over Ethernet (PoE) Compatibility
LINK-PP’s RJ45 with magnetics also support PoE and PoE+, where both data and power share the same cable. The magnetic components isolate and filter the DC power and high-frequency signals, enabling safe and interference-free operation.
Advantage:
Simplified installation with fewer cables.
Electrical isolation for powered devices (PD).
Reliable performance in PoE-enabled systems like IP cameras, VoIP phones, and access points.
Why Choose LINK-PP Magnetic RJ45 Connectors?
LINK-PP has over 20 years of experience in the development and manufacturing of magnetic networking components. Our integrated RJ45 connectors are trusted by global brands and fully compliant with RoHS, REACH, and IEEE 802.3 standards.
Browse our selection of magnetic RJ45 connectors here:
🔗 LINK-PP Integrated RJ45 Connector Product Page
Key features include:
Integrated magnetics for 10/100/1000Base-T applications.
Excellent insertion and return loss performance.
Compact, surface-mountable and through-hole options.
Models available for both commercial and industrial temperature ranges.
Final Thoughts
The role of RJ45 Connector With Transformer goes far beyond just providing a physical interface. With integrated magnetics, these connectors significantly improve signal integrity, enhance system robustness, and support higher-speed and PoE applications.
By choosing a reputable supplier like LINK-PP, design engineers and network integrators can be confident they’re working with components that are both technically sound and performance-optimized.
