Network Processing Units (NPUs) are at the core of modern routers, firewalls, SD-WAN gateways, and edge AI appliances. They deliver deterministic, line-rate packet processing for tasks such as routing, tunneling, QoS enforcement, and deep packet inspection.
While NPUs handle the data-plane intelligence, RJ45 MagJacks serve as the physical interface that brings real-world Ethernet traffic into the system. The quality and design of these connectors directly affect signal integrity, stability, and EMI performance—critical for high-throughput packet engines.
This article explains why RJ45 MagJack modules are essential in NPU platforms, how they work with Ethernet PHYs, and what engineers should consider when selecting magnetic-integrated connectors.
➡️ What Role Does RJ45 MagJack Play in NPU Hardware Architecture?
In NPU-based devices, an RJ45 MagJack with integrated magnetics provides:
Function | Value to NPU Systems |
|---|---|
Ethernet physical interface | Stable copper connectivity to LAN/WAN |
Signal isolation | Protects PHYs and packet engines from surges |
Common-mode noise suppression | Ensures clean signal, critical for GbE/2.5G/10G lines |
EMI control | Prevents packet loss & RF interference |
PoE delivery (if supported) | Power + Data for edge NPU nodes |
In short:
NPUs process packets, but RJ45 MagJacks ensure those packets arrive clean, stable, and protected.
➡️ Typical NPU System Blocks Using RJ45 MagJack
1. NPU-Based Enterprise Routers
Multi-WAN RJ45 ports
Stateful flow processing
IPSec/VPN acceleration
2. Next-Generation Firewalls (NGFW) & IDS/IPS
DPI & threat inspection
Zero-packet-loss requirements
3. SD-WAN & SASE Edge Platforms
Hybrid WAN copper ports
Low-latency packet forwarding
Secure tunneling (IPsec, GRE)
4. PoE Edge-AI Gateways & Smart Building Controllers
PoE-enabled RJ45 for IoT/Camera feeds
Local NPU accelerates analytics/AI inference
➡️ Why Magnetics Matter for NPU Packet Performance
Integrated magnetics ensure:
Signal isolation between PHY and line
Common-mode noise filtering to avoid false packet triggers
Better EMI shielding in dense networking chassis
Reliability at industrial temperatures

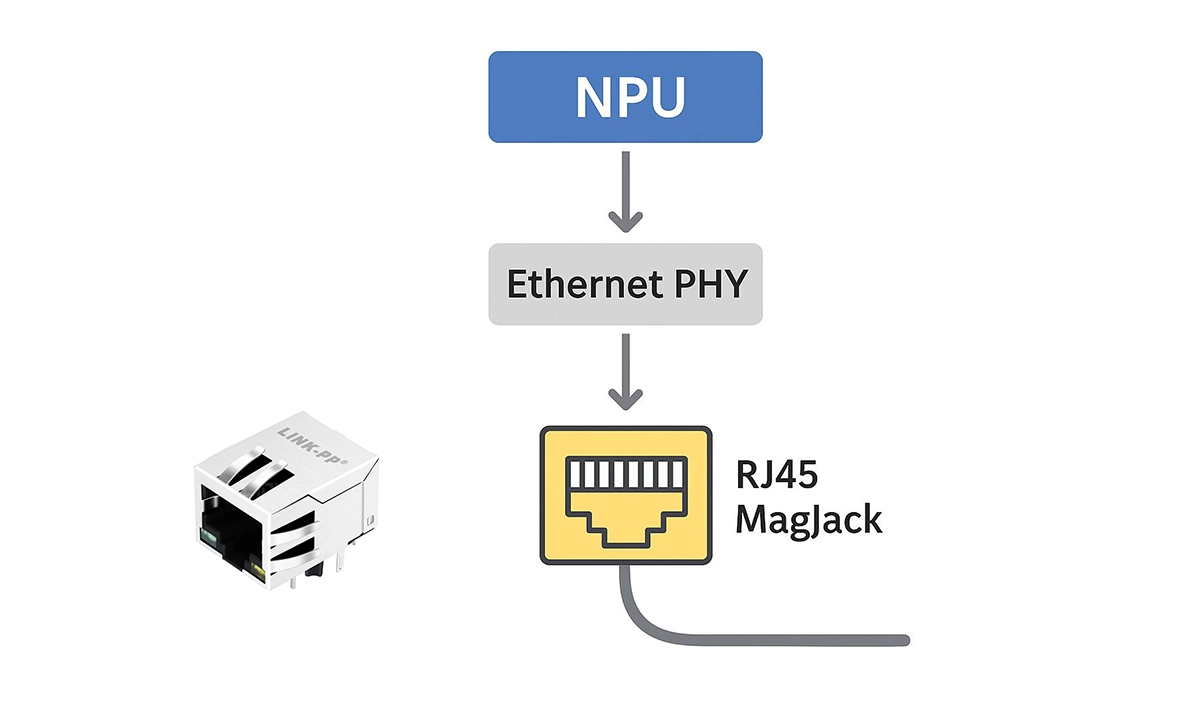

NPU + PHY + MagJack Interaction
Ethernet Cable
↓
RJ45 MagJack (Magnetic Transformer + Chokes)
↓
Ethernet PHY
↓
NPU Packet Processing Engine
Poor-quality magnetics cause link drops, CRC errors, jitter — unacceptable in carrier-grade NPU systems.
➡️ PoE MagJack for Edge NPU Systems
Edge NPU devices (AI camera gateways, MEC controllers, industrial routers) increasingly require Power over Ethernet.
PoE MagJack adds:
15W/30W/60W PoE coupling
Surge protection
Stable powered networking where DC supplies aren't available
Ideal for:
AI edge surveillance
Industrial IoT NPU nodes
Remote micro-data hubs
➡️ Key Engineering Considerations
Parameter | Why it Matters |
|---|---|
Return loss & insertion loss | Ensures clean Ethernet signaling |
High-frequency EMI shielding | Avoids packet jitter and link errors |
PoE power rating | Avoids heat & power failure in PoE AI gateways |
Operating temperature | Industrial NPUs demand –40°C to +85°C |
Port density & footprint | Multi-port NPU boards = compact form factors |
➡️ Recommended LINK-PP Solutions for NPU Systems
Category | Sample Use Case | Available Options |
|---|---|---|
Firewall / router line ports | 1G/2.5G/5G/10G | |
Edge-AI & IoT controllers | IEEE 802.3af/at/bt | |
PHY front-end filtering | Multi-speed | |
SD-WAN / industrial gateway | Compact boards | |
Data center NPU uplinks | 1G/10G/25G |
➡️ Conclusion
RJ45 MagJack connectors are not simply mechanical ports. They are a critical electrical interface that ensures:
Stable packet ingress to NPUs
Low-noise PHY communication
EMI suppression
Surge & isolation protection
PoE power delivery for edge units
For NPUs to operate at peak packet-processing efficiency, the physical-layer interface must be equally robust. LINK-PP’s magnetic-integrated RJ45 portfolio is designed for:
Carrier-grade routers
NPU firewalls & secure gateways
SD-WAN & industrial edge computing
AI & smart-building infrastructure
