In the world of Fiber-to-the-Home (FTTH) technology, the humble device that brings blazing-fast internet to your doorstep is often called an ONU or ONT. But did you know this little box can operate in two fundamentally different ways? While many users simply plug and play, understanding the Router Mode ONU can empower you to optimize your network for performance, security, and convenience.
Simply put, a Router Mode ONU is an all-in-one fiber gateway. It combines the functionality of a fiber optic modem with a powerful wireless router. This means it performs multiple critical tasks in a single, sleek device.
📝 Key Takeaways
A router ONU does two jobs. It changes optical signals into digital data. It also controls your home network. You can use one device for internet, TV, and phone. You can connect many devices at once.
When you pick a router ONU, look at speed ratings. Check how many ports it has. More ports let you connect more devices. Faster speeds help with streaming and gaming.
Make sure your router ONU works with your internet provider. Providers use different systems. The device must match your provider’s system.
Find features like dual-band Wi-Fi and software updates. These features make your device work better. They also keep your device current with new technology.
Pick a router ONU that uses the newest standards. Choose one that lets you upgrade later. This helps you keep your device longer as technology changes.
📝 What Exactly is a Router Mode ONU?
An Optical Network Unit (ONU) is the customer-premises equipment in a GPON or EPON network. Its primary job is to convert the fiber optic light signal into electrical data (Ethernet) that your devices can use.
When configured in Router Mode, the ONU takes on several additional roles:
Signal Conversion: Translates the optical signal from your ISP's fiber line.
Routing: Manages data traffic between your local network (home devices) and the wider internet, assigning IP addresses via DHCP.
Firewall & Security: Provides a layer of Network Address Translation (NAT) to protect your devices from unsolicited external access.
Wi-Fi Access Point: Broadcasts a wireless network for your phones, laptops, and smart home gadgets.
Port Forwarding & Management: Allows for advanced network controls.
This integrated approach is perfect for most residential and small business users who want a simple, hassle-free setup.

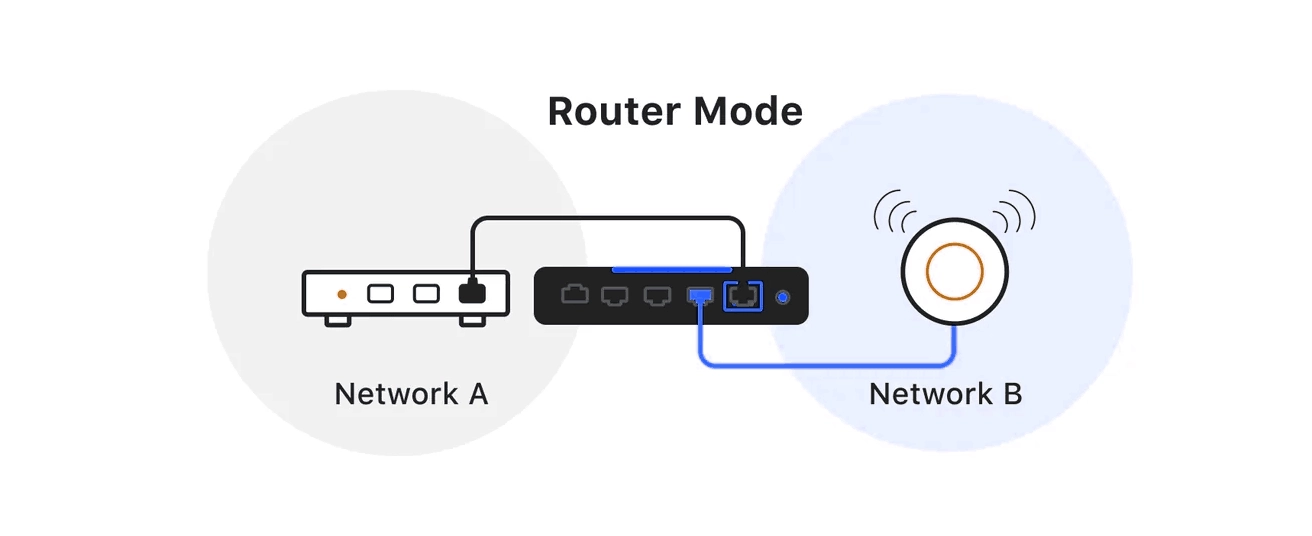

📝 Router Mode vs. Bridge Mode: A Quick Comparison
To truly appreciate Router Mode, it's essential to contrast it with its alternative: Bridge Mode. The choice between them depends on your technical needs and network setup.
The table below highlights the key differences:
Feature | Router Mode ONU | |
|---|---|---|
Primary Function | All-in-one gateway (Modem + Router + Wi-Fi) | Pure modem; passes the internet signal through |
Network Management | Creates its own local network (LAN) with DHCP | Transparently bridges the ISP network to your router |
NAT/Firewall | Enabled by default, providing security | Disabled, relying on your external router's firewall |
Best For | Most users, simplified setups, direct connection | Power users, advanced custom routers, complex networks |
Setup Complexity | ✅ Simple, plug-and-play | ⚠️ Requires technical configuration |
When to choose Router Mode? If you want an easy, single-device solution that "just works" for everyday browsing, streaming, and gaming.
When to choose Bridge Mode? If you have a high-end third-party router (e.g., ASUS, Netgear, TP-Link) and want to use its advanced features, such as more robust QoS or custom firmware.
Top 3 Benefits of Using a Router Mode ONU
Simplicity & Space-Saving: One device does it all. This reduces cable clutter and power outlets, leading to a cleaner setup. It's the ideal choice for avoiding the "router behind a router" confusion.
Enhanced Security for Average Users: The built-in NAT firewall offers a crucial security layer that protects your devices from direct exposure to the internet. For non-technical users, this default protection is a significant advantage.
Cost-Effectiveness: Since you don't need to purchase a separate router, a Router Mode ONU is often the most economical solution provided by ISPs or purchased separately.
📝 The Heart of the ONU: Understanding the Optical Module
No discussion about ONU performance is complete without mentioning its core component: the optical module. This small, removable transceiver is the critical interface between the fiber optic cable and the ONU's electronics. It's responsible for the high-speed, long-distance data transmission that fiber is famous for.
The quality and specifications of the optical module directly impact your connection's stability, maximum speed, and temperature tolerance. A high-quality module ensures minimal signal loss and greater reliability. For businesses or users with demanding uptime requirements, opting for an ONU with a reputable, industrial-grade optical module is a wise investment. When considering an upgrade, looking for a compatible SFP GPON module for your device is a key step.
For instance, the LINK-PP SFP GPON Module is an excellent example of a reliable, high-performance transceiver designed for stable, high-bandwidth applications, ensuring your Router Mode ONU operates at its peak.
📝 FAQ
What does a router ONU do?
A router ONU changes fiber-optic signals into digital data. You use it to manage your home network. It lets you connect devices to the internet, TV, and phone services.
What is the difference between a router ONU and a regular router?
A router ONU converts optical signals and routes data. A regular router only manages network traffic. You need a router ONU for fiber-optic connections.
What should you check before buying a router ONU?
You should check compatibility with your internet provider. Look at speed ratings, number of ports, and Wi-Fi support. Make sure the device supports all services you need.
What types of ONU models can you find?
You can find ONU Wi-Fi models, VoIP models, and basic ONUs. Some have more ports or stronger Wi-Fi. You pick a model based on your home or office needs.
