Navigating the world of legacy fiber optic infrastructure can be a complex task. Among the various components, two soldered transceiver form factors often cause confusion: the SFF (Small Form-Factor) and the 1x9 transceiver.
While modern hot-pluggable optics like SFP and QSFP dominate today's data centers, understanding these older, board-mounted technologies is crucial for maintaining and upgrading existing network equipment. This guide will clearly distinguish between SFF and 1x9 modules, highlighting their key differences to help you make informed decisions about your legacy network needs.
➤ The Classic Workhorse: The 1x9 Transceiver
The 1x9 transceiver is one of the earliest standardized optical module form factors. Its name comes from its physical interface: a single row of 9 pins for soldering directly onto a system's motherboard (PCB).
Key Characteristics of 1x9:
Board-Mounted Design: It is a solder-down module, permanently attached to the host board. It is not pluggable or hot-swappable.
Larger Footprint: It is relatively bulky by modern standards, resulting in lower port density on a line card.
Simple Functionality: It typically supports essential functions with limited diagnostics, often only a Loss of Signal (LOS) output.
Primary Applications: Predominantly found in very old networking gear like hubs, switches, and routers, supporting Fast Ethernet (100BASE-FX) and 1G/2G Fiber Channel.
➤ The Density Innovator: The SFF Transceiver
The SFF (Small Form-Factor) transceiver was developed as a successor to the 1x9 to address its size and density limitations. It is crucial to note that the SFF is also a solder-down module. It was designed to be smaller and pave the way for more advanced features, later leading to the creation of the pluggable SFP (Small Form-factor Pluggable) standard.
Key Characteristics of SFF:
Soldered, but Smaller: Like the 1x9, the SFF is soldered to the PCB, but its physical footprint is significantly smaller (e.g., with 2x5, 2x7, or 2x10 pin configurations), enabling higher port density.
Advanced Capabilities: Many SFF modules integrated support for Digital Diagnostic Monitoring (DDM or DOM) as per the SFF-8472 MSA, providing vital real-time data on temperature, optical power, and laser bias current.
Primary Applications: Became the standard for board-mounted Gigabit Ethernet (1000BASE-SX/LX/ZX) applications in switches, routers, and network interface cards (NICs) before the SFP took over.

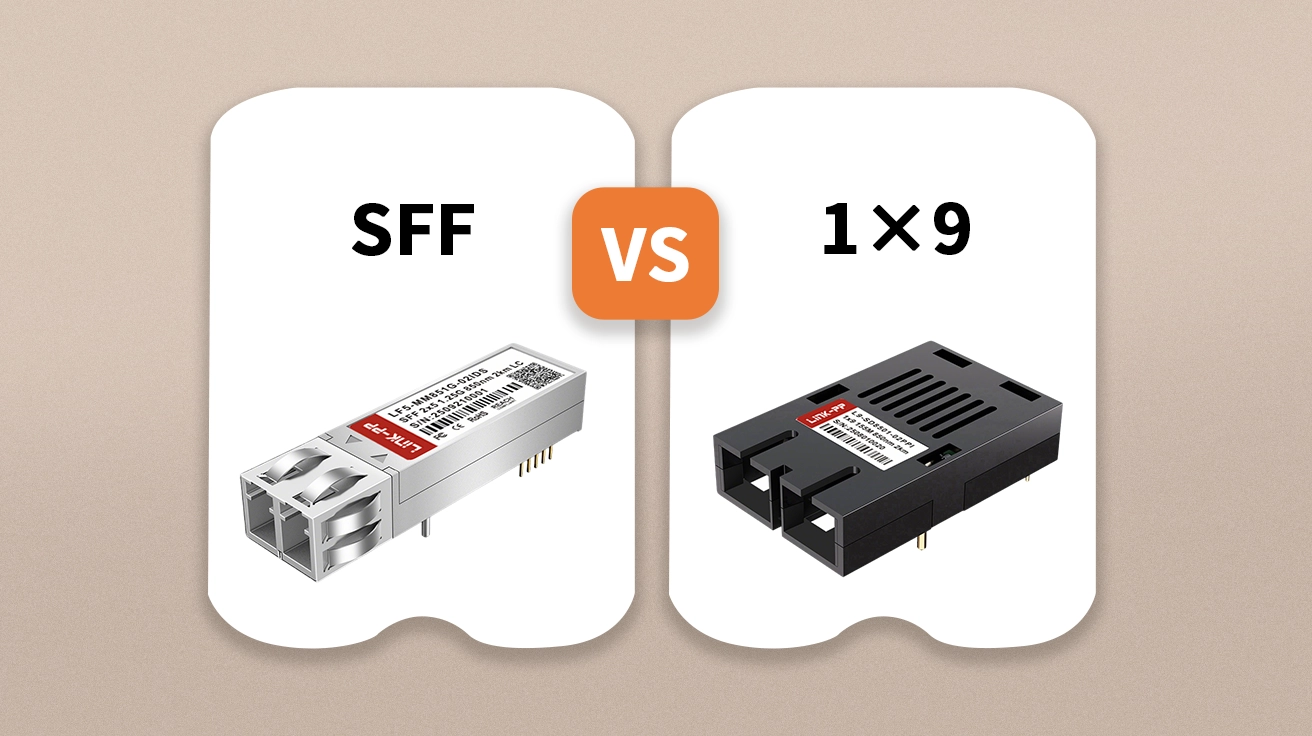

➤ SFF vs 1x9: A Detailed Comparison
The following table provides a clear, side-by-side comparison of these two legacy form factors.
Feature | SFF Transceiver | 1x9 Transceiver |
|---|---|---|
Form Factor | Small Form-Factor (e.g., 2x5, 2x7 pins) | Single Row of 9 pins |
Connection Type | Soldered to PCB | Soldered to PCB |
Hot-Pluggable | ❌ No | ❌ No |
Port Density | ✅ High (Due to smaller size) | ❌ Low |
Typical Data Rates | Fast Ethernet, Gigabit Ethernet | Fast Ethernet, Fiber Channel |
Digital Diagnostics (DDM/DOM) | ✅ Often Supported | ❌ Rarely Supported |
Modern Relevance | Found in later legacy gear | Found in older legacy gear |
➤ Choosing the Right Module for Your Application
Your choice is almost entirely determined by the hardware you are working with.
You need a 1x9 Transceiver if: You are repairing or maintaining very old legacy equipment that was originally designed with 1x9 pins soldered onto the motherboard.
You need an SFF Transceiver if: Your device's motherboard has footprints for the specific SFF pin configuration (e.g., 2x5 or 2x7). For instance, a LINK-PP LF5-MM851G-S5IDS would be a perfect, reliable choice for a Gigabit multi-mode application requiring a 2x5 pin solder-down module.
➤ Maintaining Legacy Systems with Confidence
Understanding the distinction between these soldered form factors is key to effective network maintenance. Sourcing high-quality, compatible modules is essential for reliability.
LINK-PP provides MSA-compliant optical components, including legacy form factors like SFF modules. With a commitment to quality and performance, LINK-PP ensures your legacy infrastructure remains operational and efficient.
👉 Need a reliable source for legacy SFF or 1x9 transceivers? Contact the LINK-PP experts today for a compatibility check and technical support. Let us help you keep your network running smoothly.
