You might ask, what is Ethernet? Ethernet links your computer, gaming console, or smart TV to the internet with a cable. You use ethernet at home or work when you want fast and steady internet. Many people like ethernet because it is faster and more reliable than wireless. Your data moves safely through ethernet cables, so your online actions are more secure. If you need a strong connection for streaming, online classes, or video calls, ethernet gives you the best results.
Tip: Try ethernet if your Wi-Fi is slow or keeps cutting out. It often fixes the problem!
📄 What is Ethernet? More Than Just a Cable
In our wirelessly connected world, you might think cables are a thing of the past. But when it comes to stable, high-speed, and secure internet connectivity, nothing beats a good old wired connection. At the heart of this wired magic is a technology called Ethernet.
Simply put, Ethernet is a traditional technology that connects devices in a Local Area Network (LAN) or Wide Area Network (WAN). It uses physical cables—like the familiar blue cable snaking from your router to your computer—to transmit data. It's the fundamental standard that defines how data is formatted and sent across these cables, ensuring devices from different manufacturers can communicate seamlessly.
While Wi-Fi gives us freedom, Ethernet provides reliability. Whether you're a hardcore gamer, a streaming enthusiast, or running a business server, understanding Ethernet is key to optimizing your network.
📄 How Does Ethernet Work? The Nuts and Bolts
Ethernet operates on a principle called Carrier Sense Multiple Access with Collision Detection (CSMA/CD). Think of it like a polite conversation in a room:
Listen First: A device "listens" to the network cable to see if it's clear before sending data.
Send Data: If the line is clear, it transmits the data packet.
Collision Detection: If two devices send data at the exact same time, a "collision" occurs. Both devices detect this, wait for a random tiny amount of time, and then retry.
This system, governed by the IEEE 802.3 standard, creates an orderly flow of information. Each device has a unique physical address called a MAC Address (Media Access Control Address), which acts like a home address for your network card, ensuring data reaches the correct destination.
📄 Ethernet Cables & Speeds: Choosing the Right One
Not all Ethernet cables are created equal. They are categorized by "Cat" numbers, which indicate their performance capabilities. Here’s a quick guide to the most common types:
Cable Category | Max Supported Speed | Bandwidth (Frequency) | Common Use Case |
|---|---|---|---|
Cat 5 | 100Mbps | 100MHz | Outdated, not recommended for new installations. |
Cat 5e | 1Gbps (1000 Mbps) | 100MHz | Standard for most home and office networks. |
Cat 6 | 1Gbps (up to 10 Gbps at shorter distances) | 250MHz | Better for gaming, 4K streaming, and larger homes. |
Cat 6a | 10Gbps | 500MHz | Professional use, data centers, high-performance networks. |
Cat 7/8 | 10/40Gbps | 600/2000MHz | Specialized high-frequency applications, data centers. |
For most users, a Cat 5e or Cat 6 cable is perfectly sufficient. If you have a multi-gigabit internet plan or transfer large files internally, consider Cat 6a or higher.
📄 Ethernet vs. Wi-Fi: Why Go Wired?
Why bother with a cable when Wi-Fi is so convenient? Here are the key advantages of Ethernet:
Lower Latency (Ping): Crucial for online gaming and video conferencing. Wired connections have minimal delay.
Higher Reliability: Not susceptible to physical obstructions, radio interference from neighbors, or signal drops.
Enhanced Security: A physical connection is much harder to intercept than a wireless broadcast.
Faster Speeds: Even the best Wi-Fi can't always match the consistent, top-speed throughput of a direct cable link.
📄 The Future is Fast: Ethernet and the Role of Optical Modules
As data demands explode, traditional copper cables (like the Cat 6 above) have limitations, especially over long distances. This is where fiber optics and optical modules take center stage.

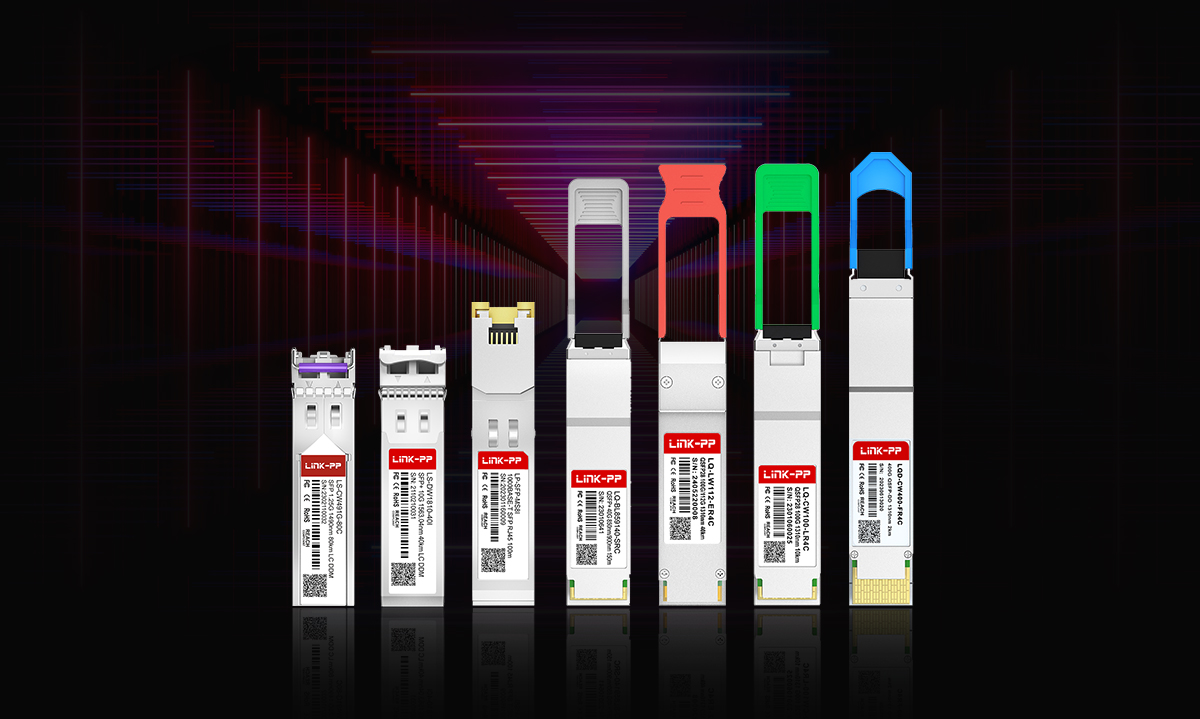

In modern high-speed networks, such as data centers and enterprise backbones, Ethernet frames are transmitted over beams of light through fiber optic cables. The device that converts electrical signals from the network equipment into light signals (and vice versa) is called a transceiver module, commonly known as an optical module or SFP.
These small, hot-pluggable modules are essential for achieving speeds of 10G, 40G, 100G, and beyond. When selecting an optical module, compatibility and quality are paramount. For instance, a high-performance, reliable solution for a 10 Gigabit connection would be a LINK-PP SFP-10G-SR module. This specific LINK-PP model is designed for short-range multi-mode fiber connections, offering a perfect balance of performance and value for growing business networks. Understanding the role of these compatible SFP+ modules is key for anyone managing a high-capacity network infrastructure.
📄 Conclusion: Ethernet is Here to Stay
Ethernet has proven to be one of the most resilient and critical technologies in the history of computing. It forms the reliable, high-speed backbone that our wireless world depends on. From connecting your smart TV to streaming 4K content to forming the core of global internet infrastructure, its importance cannot be overstated.
Ready to upgrade your network's reliability and speed? Start by checking your router and devices for available Ethernet ports. For high-performance needs, especially in a business environment, consider the advantages of fiber optics and high-quality components.
📄 FAQ
What devices can use Ethernet?
You can use Ethernet with computers and gaming consoles. Smart TVs, printers, and network switches also use Ethernet. Most new devices have Ethernet ports. If your device does not have a port, you can use an Ethernet adapter.
What cables do you need for Ethernet?
You need Ethernet cables like Cat5e, Cat6, or Cat7. These cables connect your device to a router or switch. Each cable type works for different speeds and distances.
What makes Ethernet more secure than Wi-Fi?
Ethernet uses real cables to connect devices. Only plugged-in devices can join the network. This makes it harder for outsiders to get your data than with wireless.
What should you do if your Ethernet is not working?
Check if the cable is broken. Make sure both ends are plugged in tight. Restart your device and router. If it still does not work, try another cable or port.
What is the difference between Fast Ethernet and Gigabit Ethernet?
Fast Ethernet goes up to 100 Mbps. Gigabit Ethernet goes up to 1,000 Mbps. Gigabit Ethernet is much faster for today’s needs.
