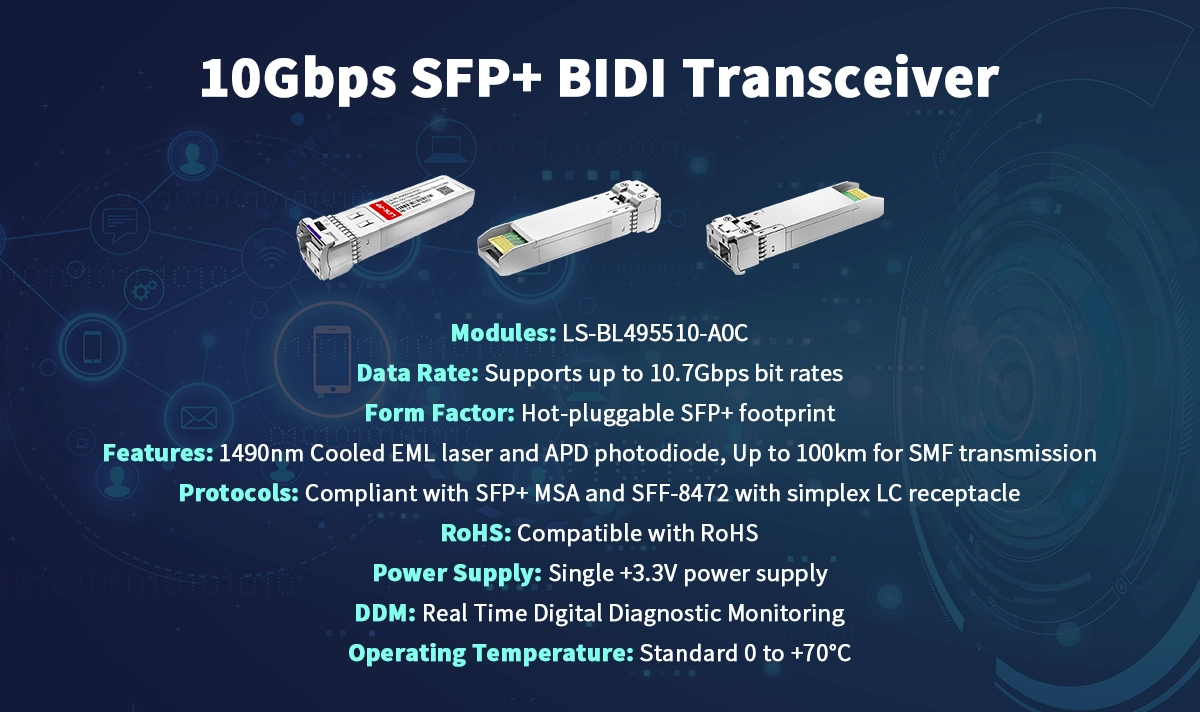

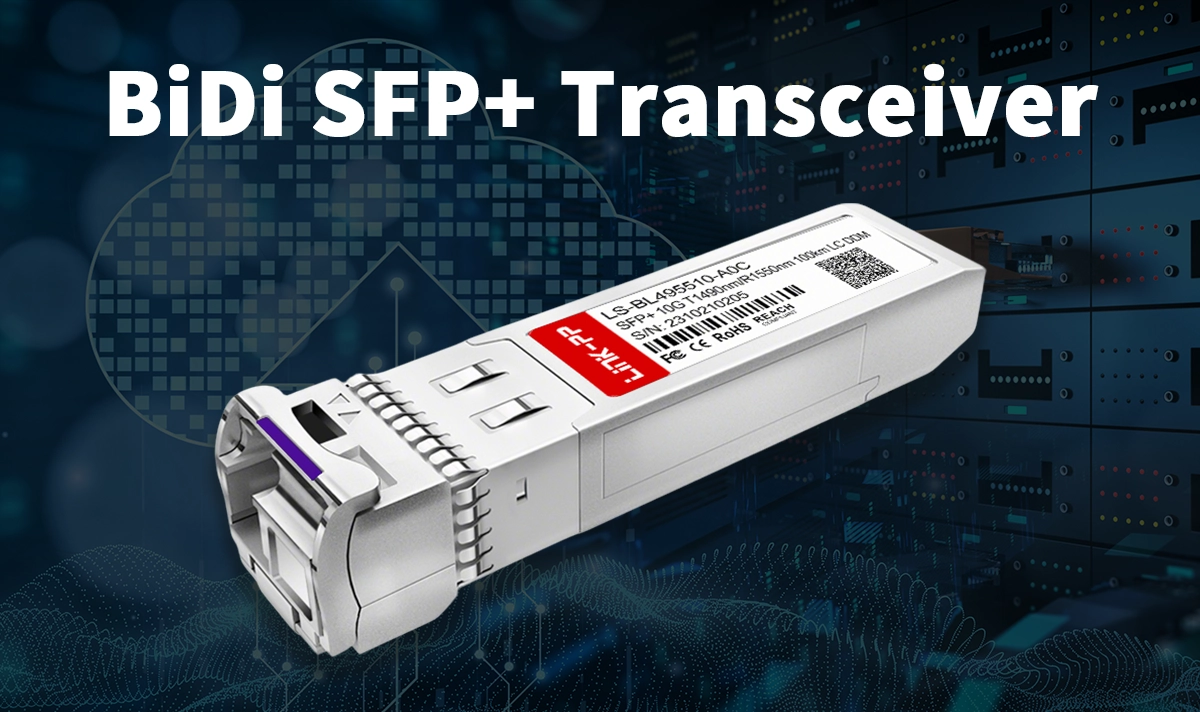

You can boost your network’s reach with the LS-BL495510-A0C. This BiDi SFP+ Transceiver utilizes single-fiber bidirectional technology for fast and stable data transmission up to 100km. The shows a Simplex LC connector. The LS-BL495510-A0C SFP+ BIDI Transceiver Drawing provides a comprehensive overview of the module's dimensions, specifications, features, and testing data, serving as a professional reference for network engineers and system integrators. You enjoy easy integration when you choose a BiDi SFP+ Module for reliable connections.
Key Features of LS-BL495510-A0C 10G BiDi Module
Here is a quick overview of how single-fiber bidirectional transmission works in this module:
Feature | Description |
|---|---|
Transmission Wavelength | 1490nm (TX) |
Reception Wavelength | 1550nm (RX) |
Data Rate | 10Gbps |
Transmission Distance | 100km |
Fiber Type | Single-Mode Fiber (SMF) |
Components | Cooled EML laser transmitter, APD photodiode with TIA, MCU control unit |
Compliance | Class I laser safety requirements |
Compatibility | SFP Multi-Source Agreement, SFF-8472 digital diagnostics functions |
1. High-Performance BiDi SFP+ Transceiver Technology
The LS-BL495510-A0C uses advanced single-fiber bidirectional (BiDi) SFP+ technology, simplifying network setups by transmitting and receiving data over a single strand of single-mode fiber. Equipped with Wavelength Division Multiplexing (WDM) diplexers, it separates signals using two distinct wavelengths for efficient bidirectional data transmission, reducing fiber usage and network complexity.
2. Fast 10.7 Gbps Data Rate
Designed for high-speed optical networking, this BiDi SFP+ module supports a maximum data rate of 10.7 Gbps, ideal for cloud computing, large file transfers, streaming, and data center applications. Its high bandwidth ensures smooth network performance even during peak usage.
3. Digital Optical Monitoring (DOM) for Real-Time Diagnostics
With SFF-8472 compliant DOM support, the module allows real-time monitoring of optical parameters including temperature, voltage, and optical power. This feature helps maintain reliable transmission, detect performance issues early, and improve network uptime.
4. Broad Compatibility with Major Network Vendors
The LS-BL495510-A0C adheres to the SFP Multi-Source Agreement (MSA) and works with top networking brands like Cisco, Dell, Juniper, Brocade, and Extreme Networks. This broad compatibility simplifies integration for network upgrades, expansions, and new deployments.
5. Simplex LC Connector for Easy Installation
Featuring a Simplex LC connector, the transceiver ensures quick and easy installation. Its compact design reduces fiber requirements, saving space and infrastructure costs in data centers, enterprise networks, and metropolitan networks.
6. Long-Distance Transmission up to 100 km
Thanks to a cooled EML laser transmitter and APD photodiode with trans-impedance amplifier, this BiDi SFP+ transceiver can reliably transmit data up to 100 kilometers over single-mode fiber. It is perfect for large campuses, long-reach data centers, and metro networks, ensuring stable, high-quality signal performance over extended distances.
Explore the LS-BL495510-A0C
Discover how this transceiver can enhance your network performance and efficiency.
Tip: When you select a BiDi 10G Transceiver, you reduce fiber usage and simplify your network design. This choice helps you save on installation costs and future upgrades.
Performance Benefits of SFP+ BiDi Transceiver
1. Maximized Fiber Efficiency with Single-Fiber BiDi Technology
The LS-BL495510-A0C BiDi SFP+ Transceiver enables single-fiber bidirectional transmission, allowing both sending and receiving data on a single fiber strand. This design offers multiple practical advantages for enterprise networks, data centers, and metro networks:
Reduced Fiber Footprint: Minimize space needed for fiber management and routing.
Fewer Fiber Cables: Cut fiber usage and associated costs, saving both installation and maintenance resources.
Increased Network Capacity: Utilize both directions on one fiber to effectively double your data throughput.
Simplified Infrastructure: Fewer patch cords and patch panel ports lead to a cleaner, more organized network setup.
This fiber-efficient design helps you build high-capacity, easy-to-manage networks without overcomplicating infrastructure.
2. Significant Cost Savings
Choosing the LS-BL495510-A0C can reduce network deployment costs significantly:
Up to 50% Reduction in Fiber Consumption: Single-fiber operation reduces cabling requirements.
Lower Installation Costs: Ideal for environments where laying new fiber is difficult or expensive.
Reduced Maintenance Expenses: Fewer cables and connectors mean less ongoing upkeep.
By using a single fiber for bidirectional transmission, you can expand your network without doubling infrastructure costs, making it a smart choice for long-distance, high-performance network applications.
3. Reliable High-Speed Performance
This 10G SFP+ transceiver delivers up to 10.7 Gbps data rate over distances up to 100km. The cooled EML laser transmitter enhances optical signal efficiency, while the APD photodiode with trans-impedance amplifier ensures high-quality signal reception. These features guarantee stable, high-speed data transmission even in long-reach optical networks.
Here is a quick look at the reliability metrics:
Metric | Value |
|---|---|
Max Data Rate | 10.7Gbps |
Max Cable Distance | 100km |
TX Power | -1 to +5dBm |
RX Power | -23 to -6dBm |
Receiver Sensitivity | -25dBm |
Receiver Overload | -7dBm |
Operating Case Temperature | 0 to 70°C |
You can rely on these strong performance numbers for your most demanding applications. This 10G SFP+ transceiver keeps your network stable and fast, so you can focus on your business or projects without worry.
Practical Advantages
Easy Installation
You can install the LS-BL495510-A0C 10G SMF Transceiver with confidence. The process is straightforward, and you can avoid common mistakes by following these steps:
Power down your equipment before starting.
Handle the module carefully to protect the optical connectors.
Inspect the module for any visible defects.
Locate the correct SFP slot on your network device.
Insert the module until it clicks into place.
Connect the fiber optic cable securely.
Power on your equipment to initialize the module.
Validate the installation using network management software.
Monitor performance after installation.
Tip: Always check compatibility with your network equipment and position transceivers for proper ventilation. Clean the ports and connectors regularly to prevent signal loss.
Interoperability
You can use the LS-BL495510-A0C with many types of network equipment. The module supports the SFP Multi-Source Agreement, so you do not need to worry about brand restrictions. You can connect it to devices from Cisco, Brocade, DELL, Extreme, and Juniper. This flexibility makes upgrades and expansions easier for you.
Compatibility issues rarely occur, but you should always confirm that your transceiver matches your hardware.
Proper ventilation helps prevent overheating and keeps your network running smoothly.
Maintenance
You can keep your network in top shape with proactive maintenance. The LS-BL495510-A0C features Digital Optical Monitoring (DOM), which lets you track important parameters in real time. You can monitor temperature, optical power levels, voltage, and laser bias current. This information helps you spot problems early and maintain high uptime.
Note: Regular monitoring with DOM allows you to detect issues before they affect your network. You can schedule maintenance and avoid unexpected downtime.
