In the high-stakes world of data centers, two networks have traditionally reigned supreme: one for storage (Fibre Channel) and one for general data (Ethernet). Managing these separate infrastructures is complex, costly, and cumbersome. What if you could consolidate them?
Enter Fibre Channel over Ethernet (FCoE), a pivotal network technology that enables the transmission of Fibre Channel frames directly over Ethernet networks. This convergence simplifies cabling, reduces hardware costs, and maintains the high performance and reliability that storage area networks (SANs) demand. For organizations looking to streamline operations without sacrificing performance, understanding FCoE implementation is a critical step. In this deep dive, we'll explore what FCoE is, how it works, and why it remains a relevant solution in an era of cloud and hyper-convergence.
📖 Key Takeaways
FCoE lets you send storage and network data together. You use the same Ethernet cables for both. This makes your data center setup easier.
Using FCoE can save a lot of money. You do not need as much extra hardware or cables. This helps your data center work better.
FCoE keeps the fast speed and dependability of Fibre Channel. It uses normal Ethernet equipment. This gives you more choices for your network design.
To use FCoE well, check if your Ethernet switches support data center bridging. Set up your network to work its best.
FCoE is great for new data centers that want to improve. You do not have to get rid of your old Fibre Channel systems.
📖 What Exactly is Fibre Channel over Ethernet (FCoE)?

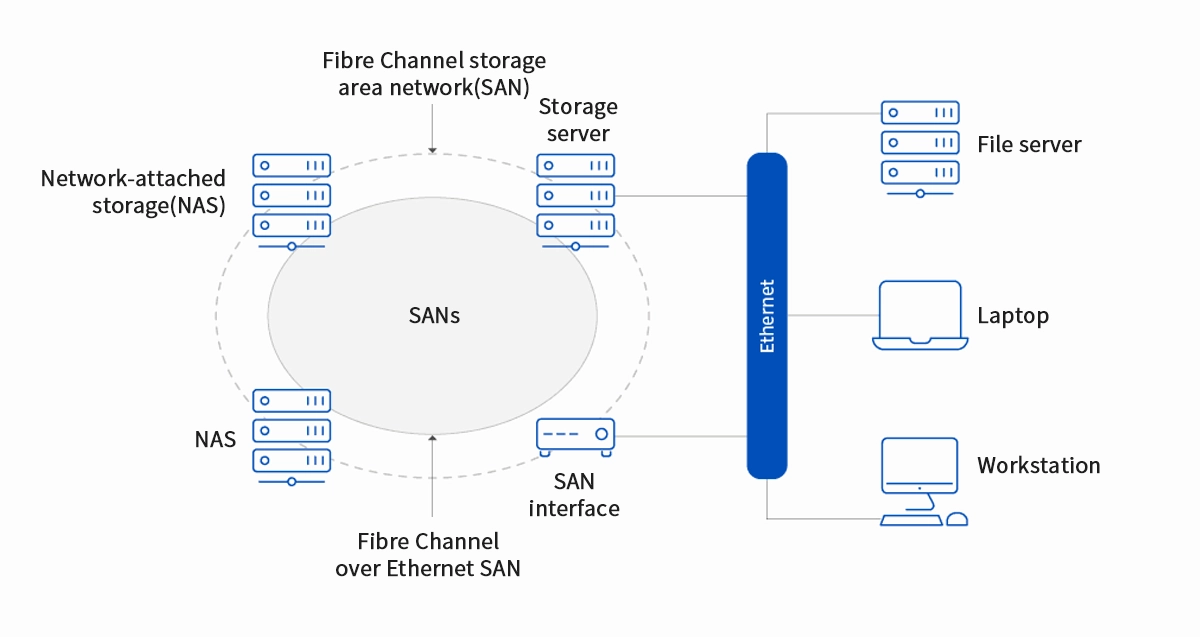

Fibre Channel over Ethernet (FCoE) is a storage networking protocol that encapsulates Fibre Channel frames within Ethernet packets. This allows block-level storage traffic to travel over a single, unified Ethernet network infrastructure alongside standard IP traffic.
The key standard behind this technology is the IEEE DCB (Data Center Bridging) suite, which enhances standard Ethernet to make it lossless and reliable enough for storage traffic. FCoE doesn't replace the Fibre Channel protocol; it simply changes its transport medium, preserving the core SCSI commands and operational semantics that applications rely on.
📖 How Does FCoE Work? The Magic of Encapsulation
The core mechanism of FCoE is encapsulation. Here's a simplified breakdown of the process:
Initiation: A server equipped with a Converged Network Adapter (CNA) initiates a storage request.
Encapsulation: The CNA takes the native Fibre Channel frame and wraps it inside a standard Ethernet frame. A dedicated EtherType (0x8906) identifies this packet as FCoE traffic.
Transport: The encapsulated frame travels through a lossless Ethernet network, which is enabled by DCB features like Priority Flow Control (PFC). This prevents packet drops that would be catastrophic for storage operations.
De-encapsulation: Once the frame reaches the FCoE switch or router at the edge of the storage network, the Ethernet header is stripped away, revealing the original Fibre Channel frame.
Delivery: The pure Fibre Channel frame is then forwarded to the target storage device, like a SAN array.
This entire process is transparent to the operating system and applications, which continue to communicate as if they were on a pure Fibre Channel SAN.
📖 The Pros and Cons of Adopting FCoE
Like any technology, FCoE comes with a distinct set of advantages and challenges.
Advantages of FCoE:
Infrastructure Consolidation: Reduces the number of network adapters, switches, and cables needed by converging LAN and SAN traffic.
Cost Reduction: Lower capital expenditure (CAPEX) on hardware and reduced operational expenditure (OPEX) from managing a single network.
Preserved Investment: Leverages existing Fibre Channel expertise and storage investments while migrating to a converged network.
High Performance: Maintains the low-latency, high-throughput characteristics of Fibre Channel.
Challenges of FCoE:
Network Complexity: Requires a deep understanding of both Fibre Channel and enhanced Ethernet (DCB), increasing configuration complexity.
Limited Distance: Typically confined to the data center fabric, as it relies on a lossless Ethernet domain.
Market Shift: The rise of alternative technologies like NVMe over Fabrics (NVMe-oF) has shifted some industry focus away from FCoE.
📖 FCoE vs. iSCSI vs. Native Fibre Channel: A Quick Comparison
Choosing the right storage protocol depends on your specific needs. The table below provides a high-level comparison to guide your decision.
Feature | FCoE | iSCSI | Native Fibre Channel |
|---|---|---|---|
Underlying Transport | Lossless Ethernet (DCB) | Standard TCP/IP Ethernet | Fibre Channel Protocol |
Network Infrastructure | Converged Ethernet | Standard Ethernet | Dedicated Fibre Channel SAN |
Performance | Very High, Low Latency | Good (can be CPU-intensive) | Highest, Ultra-Low Latency |
Cost | Moderate (CAPEX savings) | Low (uses commodity hardware) | High (dedicated hardware) |
Complexity | Moderate to High | Low to Moderate | High |
Best For | Data centers seeking convergence on a budget | Cost-sensitive environments, IP-based networks | Performance-critical, mission-critical applications |
For many, the choice between FCoE and iSCSI for high-performance storage is a key consideration. iSCSI is often simpler to implement, but FCoE can offer better performance within a controlled data center environment.
📖 The Role of Optical Modules in an FCoE Network
A robust FCoE deployment relies heavily on high-speed, reliable physical connectivity. This is where optical transceivers become critical. These small, hot-pluggable devices convert electrical signals from switches and CNAs into optical light for transmission over fiber optic cables, enabling high-bandwidth, long-distance links with low latency and immunity to electromagnetic interference.
In a high-performance FCoE fabric, you need optical modules that can handle the sustained, high-throughput traffic of converged storage and data. Key factors include:
Data Rate: Must match the network speed (e.g., 10G, 25G, 40G, 100G).
Reliability: Lossless Ethernet demands zero packet loss, which starts with a reliable physical layer.
Low Latency: Any delay in signal conversion can impact storage performance.
Compatibility: Must be fully compatible with your DCB-enabled switches and CNAs.
This is where choosing a trusted supplier like LINK-PP makes all the difference. LINK-PP's optical modules are engineered for maximum performance and reliability in demanding environments like FCoE networks.
For example, the LINK-PP SFP28-25G-SR optical transceiver is an ideal choice for 25GbE FCoE topologies. It supports the high data rates required for modern converged storage, offers ultra-low latency, and is rigorously tested to ensure seamless interoperability with major switch vendors. Deploying high-quality LINK-PP optical modules helps eliminate the physical layer as a point of failure, ensuring your FCoE network runs smoothly and efficiently.
📖 Conclusion: Streamlining Your Data Center with Confidence
Fibre Channel over Ethernet (FCoE) represents a significant milestone in the evolution of data center networking. By enabling a unified fabric for storage and data, it delivers tangible benefits in cost, simplicity, and performance. While it requires careful planning and a solid understanding of both networking domains, the payoff can be substantial.
A successful deployment hinges on every component, from the core switches down to the physical optical transceivers. Partnering with reliable technology providers ensures your infrastructure is built on a foundation of quality and performance.
📖 FAQ
What is the main purpose of FCoE?
FCoE lets you send storage and network data on the same Ethernet cables. You use it to make your data center simpler and save money on hardware.
What hardware do you need for FCoE?
You need FCoE-capable Ethernet switches, converged network adapters (CNAs), and storage arrays that support FCoE. Always check your equipment before you start.
What makes FCoE different from iSCSI?
FCoE sends Fibre Channel frames over Ethernet. iSCSI sends SCSI commands over IP networks. You use FCoE for low latency and high performance. iSCSI works well for simple setups.
What are the main benefits of using FCoE?
You get lower costs, easier management, and high performance. FCoE lets you use one network for both storage and data traffic. This helps you run your data center more efficiently.
What challenges should you expect with FCoE?
You may face hardware needs, network design changes, and scalability limits. You must plan your network and test it to make sure FCoE works well for your needs.
