In the vast, invisible world of wireless and optical communication, data doesn't just magically float through the air. It's meticulously encoded onto waves, a process known as modulation. Among the various techniques, Frequency Shift Keying (FSK) stands out for its robustness and simplicity. Whether you're using a garage door opener, a satellite modem, or a high-speed fiber optic network, FSK likely plays a role.
This guide will break down what FSK modulation is, how it works, its key advantages, and its critical application in the world of optical modules. Let's dive in!
➣ Key Takeaways
FSK Modulation sends digital data by changing frequencies for binary 0 and 1. This helps keep messages clear, even when there is noise.
This method works well and is simple to design. Many devices use it, like walkie-talkies, modems, and wireless keyboards.
FSK Modulation uses separate signals for each bit. This means each bit is sent on its own. It helps stop data from getting mixed up.
To demodulate an FSK signal, devices like Phase-Locked Loops (PLLs) watch for frequency changes. They turn these changes back into binary data.
Pick FSK Modulation if you want strong noise resistance and easy use. It is good for sending basic digital messages.
➣ What is Frequency Shift Keying (FSK)? The Core Concept
At its heart, Frequency Shift Keying (FSK) is a digital modulation scheme where the frequency of a carrier signal is varied to represent digital data (binary 1s and 0s).
A binary '1' is represented by one specific frequency (e.g., a high frequency, f1).
A binary '0' is represented by a different specific frequency (e.g., a low frequency, f2).
This "shifting" between two frequencies is what gives FSK its name. It's incredibly resistant to amplitude-based noise, making it perfect for environments where signal strength might vary.
➣ How Does FSK Work? A Simple Breakdown

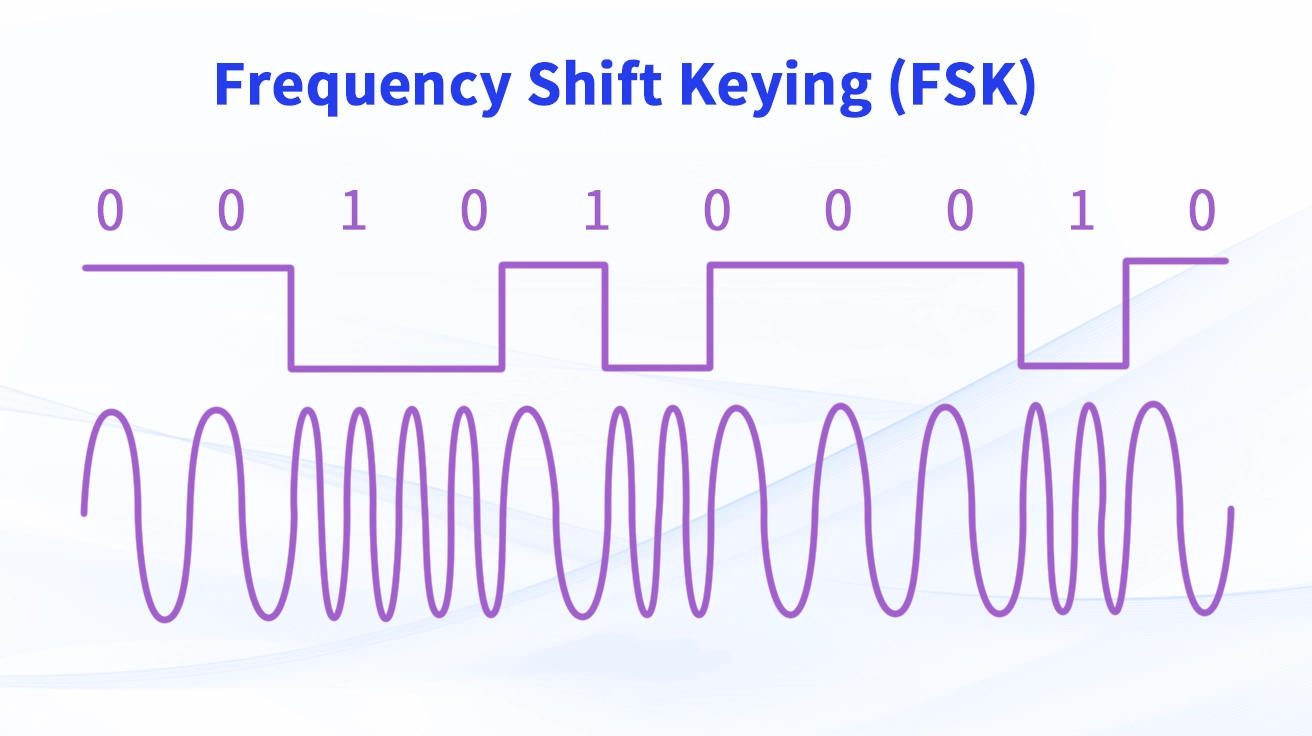

Imagine two different musical notes. One note (say, a high C) signifies a "1," and another note (a low C) signifies a "0." To send the binary sequence 1, 0, 1, 1, you would play: High C, Low C, High C, High C.
That's essentially how an FSK modulator works electronically. A voltage-controlled oscillator (VCO) rapidly switches its output frequency based on the incoming binary data stream.
Key Types of FSK
While basic FSK is powerful, two evolved versions are more common in modern systems:
Type | Acronym | Description | Key Advantage | Common Use Case |
|---|---|---|---|---|
Frequency Shift Keying | FSK | The basic form with an instantaneous shift between two frequencies. | Simplicity | Simple RF remote controls |
Minimum Shift Keying | MSK | A special, efficient type of FSK where the frequency shift is precisely minimized. | Spectrally efficient, has a constant envelope | Mobile communications (GSM) |
Gaussian FSK | GFSK | MSK filtered with a Gaussian filter to make the frequency transitions even smoother. | Reduces sideband power, minimizes interference | Bluetooth® (BT) communication |
➣ Why Use FSK? Key Advantages & Applications
FSK remains popular for several compelling reasons:
High Noise Immunity: Since data is encoded in frequency changes and not amplitude, it's largely unaffected by static, signal strength fluctuations, and other common forms of interference.
Simplicity: Easy to generate and decode, leading to cost-effective hardware implementations.
Reliability: This noise immunity makes it highly reliable for critical low-to-medium-speed data links.
Applications are everywhere:
Telemetry and SCADA systems (e.g., smart meters)
Bluetooth® and other short-range wireless protocols
Low-speed modems (e.g., for credit card terminals)
Radio Frequency Identification (RFID) tags
Optical Communication systems
➣ FSK in the World of Optical Modules & LINK-PP's Expertise
This is where the digital signal meets the photon. In optical networking, monitoring and managing the vast infrastructure is crucial. This is often done via a dedicated, low-speed optical data channel.
This channel needs to be super robust, as it carries vital diagnostic and management data (like temperature, voltage, and TX/RX power) even when the main high-speed data channel is down. This is where FSK shines.
An optical transceiver with an integrated FSK modulator can superimpose this management data onto the optical carrier wave. A receiver at the other end demodulates the FSK signal to retrieve the vital health information of the link, all without interrupting the primary data stream.
This is a key feature in modern network management and optical performance monitoring.
For professionals seeking reliable and intelligent optical components, choosing the right supplier is paramount. LINK-PP integrates advanced FSK modulation capabilities into its optical modules, ensuring superior network manageability and remote diagnostics.
For instance, the LINK-PP SFP-10G-ZR 10G SFP+ optical module utilizes an integrated FSK carrier to transmit its unique digital diagnostics monitoring (DDM) data. This allows network administrators to monitor the health and performance of the module in real-time, enabling proactive maintenance and minimizing downtime—a critical feature for data center connectivity (DCI) and 5G infrastructure.
➣ Conclusion: The Silent, Steady Workhorse
FSK modulation may not be the fastest or the most complex scheme, but its robustness and simplicity have secured its place as a fundamental technology in both RF and optical communications. From your wireless keyboard to the transoceanic fiber cables powering the internet, FSK is often the silent, steady workhorse ensuring data gets where it needs to go, reliably.
➣ FAQ
What does FSK stand for?
FSK stands for Frequency Shift Keying. You use this method to send digital data by changing the frequency of a signal.
What devices use FSK modulation?
You find FSK modulation in walkie-talkies, modems, wireless keyboards, and pagers. Many remote controls also use FSK to send signals.
What makes FSK strong against noise?
FSK uses different frequencies for each bit. You can easily spot these changes, so your message stays clear even when there is interference.
Tip: FSK works well in places with lots of electronic noise.
What do you need to demodulate an FSK signal?
You need a device like a Phase-Locked Loop (PLL) or a filter bank. These tools help you read the frequency changes and turn them back into digital data.
