Ever deployed a Gigabit LX or 10G LR optical transceiver and been plagued by unexpected errors, high loss, or unstable links? The culprit might not be your equipment, but a fundamental mismatch in your fiber optic cable types. This is where a small but mighty hero comes into play: the Mode Conditioning Patch Cable (MCP).
In this guide, we'll demystify what a mode conditioning patch cable is, why it's essential in specific network scenarios, and how it can save you from a world of connectivity headaches. We'll also explore how it interacts with high-performance components like LINK-PP optical transceivers.
➤ Key Takeaways
Mode conditioning patch cables help single-mode devices use multimode fiber. They fix signal problems like differential mode delay.
These cables make the signal better and lower errors. This helps networks work faster and more reliably, especially for Gigabit Ethernet.
The cables have a special part with a singlemode section. This part moves the light signal to lower distortion and help data move better.
Always connect the single-mode end to the transceiver. Connect the multimode end to the fiber plant to stop network problems.
Clean connectors before you use them. Do not bend cables sharply. Test the connection after you install it to keep the network strong.
➤ Why Do We Need a "Special" Cable? The Multimode vs. Single-mode Problem
To understand the solution, we must first grasp the problem. Fiber optic cables primarily come in two types:
Multimode Fiber (MMF): Has a larger core, allowing multiple light modes (paths) to travel. It's designed for short-distance, high-bandwidth applications within buildings or campuses. Common types are OM1, OM2, OM3, and OM4.
Single-mode Fiber (SMF): Has a much smaller core, allowing only one mode of light to travel straight through. It's designed for long-distance communication, like between cities.
The issue arises when you try to connect a Long-Reach (LX/LR) transceiver (designed for SMF) to a Multimode Fiber (MMF) cable plant. This is common in legacy buildings wired with MMF that need to connect to a new SMF backbone.
The laser light from the LX/LR transceiver launches into the large MMF core. This can cause a phenomenon called Differential Mode Delay (DMD), where light pulses spread out and become distorted as they travel, leading to jitter, errors, and complete link failure. This is especially problematic with OM3 and OM4 fiber and 10G LR modules.
➤ How Does a Mode Conditioning Patch Cable Work?

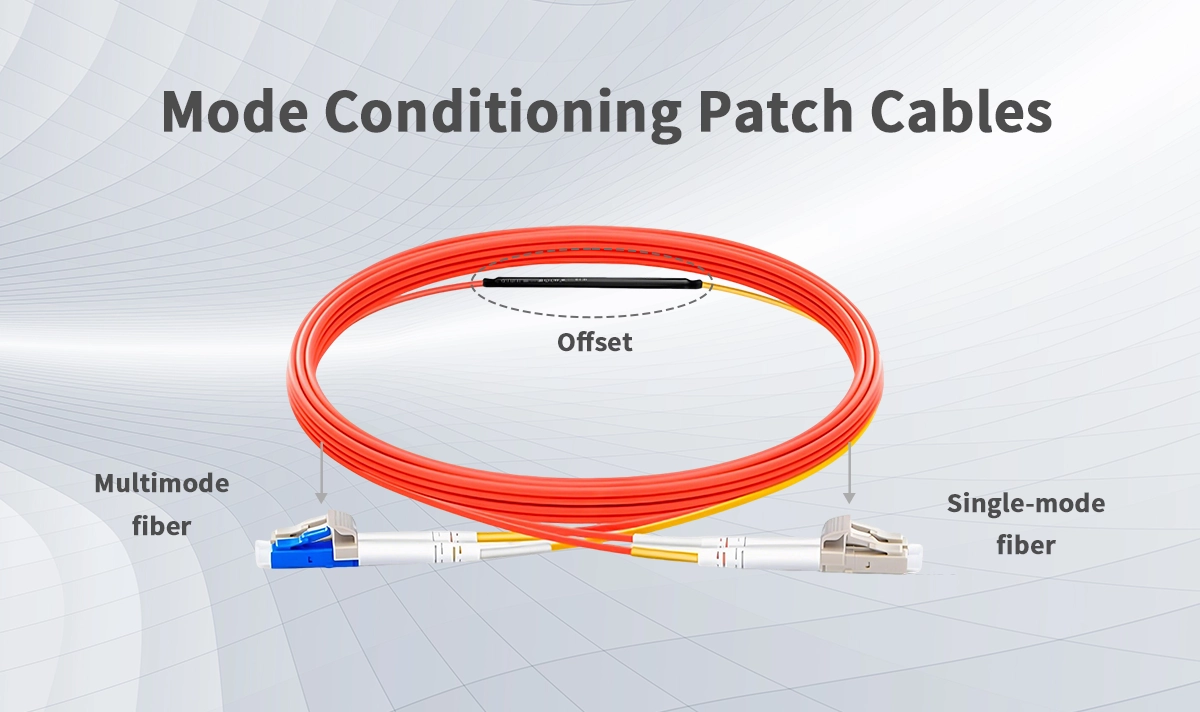

A Mode Conditioning Patch Cable is a cleverly engineered duplex fiber jumpers that solves this physical layer incompatibility. It's sometimes called a mode conditioning jumper.

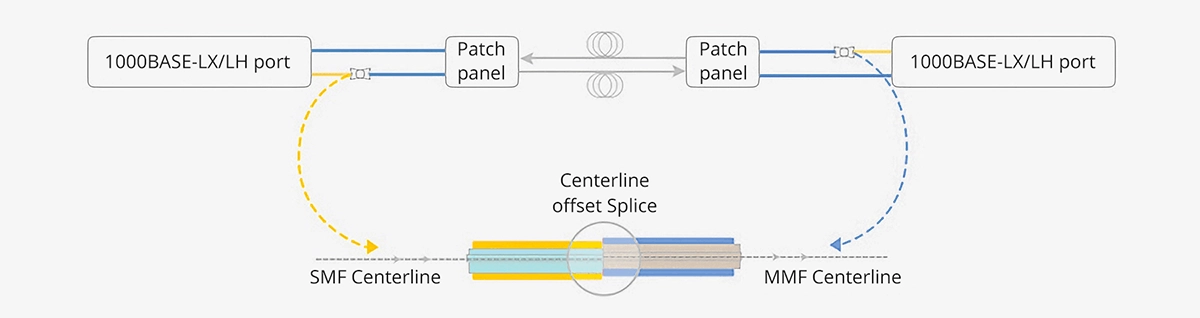

Its magic lies in its construction on the transmit side (Tx):
One leg of the cable is a standard single-mode connector that plugs into your transceiver.
The other leg is a multimode connector with a precise, offset fusion splice a few meters from the end.
This design forces the laser light to first travel a short distance on single-mode fiber. It then gets strategically injected into the center of the multimode fiber's core at the splice point. By the time the signal enters your legacy MMF cable plant, it has stabilized, effectively eliminating the DMD effect and allowing for a clean, reliable data transmission.
Key Applications & Use Cases:
Connecting 1000BASE-LX SFP module to OM1/OM2/OM3 multimode fiber.
Connecting 10GBASE-LR SFP+ modules to OM3/OM4 multimode fiber.
Extending the reach of LX/LR transceivers on MMF beyond their typical DMD-limited distance.
➤ Mode Conditioning vs. Standard Patch Cable: A Quick Comparison
Feature | Standard Patch Cable | Mode Conditioning Patch Cable |
|---|---|---|
Primary Function | Connect like fiber types (SMF-SMF or MMF-MMF) | Connect dissimilar fiber types (SMF transceiver to MMF cable) |
Internal Design | Consistent fiber type throughout | Features a precise offset fusion splice |
Use Case | Standard, in-type connections | Legacy network upgrades, specific transceiver requirements |
Prevents DMD? | No | Yes |
Cost | Lower | Slightly Higher |
➤ Integrating with LINK-PP Optical Transceivers for Optimal Performance
When building a reliable and high-performance network, every component must work in harmony. Using a quality mode conditioning cable is crucial to unlocking the full potential of your fiber optic transceivers.
For instance, if you are using a LINK-PP SFP-10G-LR module to connect to an existing OM3 multimode backbone, a mode conditioning patch cable is not just recommended; it's often mandatory for a stable link. The same applies for a SFP-1G-LX module on older OM1 cable.
Pro Tip: Always check the datasheet of your LINK-PP compatible transceivers. It will specify the required fiber type and often explicitly mention the need for a mode conditioning patch cable when connecting to MMF. Properly deploying this setup is a best practice for network reliability and minimizing bit error rates (BER)
➤ Do You Need One? Key Takeaways
You need a mode conditioning patch cable if: You are connecting a Long-Reach (LX, LR, ER) SFP, SFP+, or GBIC transceiver to a Multimode Fiber (MMF) cable run.
You do NOT need one if: You are connecting a transceiver to the same fiber type it was designed for (e.g., LX to SMF, or SX to MMF).
Investing in the correct cable infrastructure ensures your network runs efficiently, reduces downtime, and protects your investment in quality hardware like LINK-PP optical modules.
➤ FAQ
What is the main purpose of a mode conditioning patch cable?
A mode conditioning patch cable lets single-mode transceivers work with multimode fiber. It helps reduce signal problems like differential mode delay. This keeps data moving smoothly in mixed fiber networks.
Can you use a mode conditioning patch cable with any fiber optic system?
No, these cables work best when connecting single-mode devices to multimode fiber. They do not help in systems that use only single-mode or only multimode fiber.
How can someone tell which end of the cable is single-mode?
Most cables have a yellow boot or a label on the single-mode end. Users should always check these markings before connecting the cable.
What happens if the cable is installed backwards?
If someone connects the cable backwards, the network may not work. The signal can become weak or lost. Always connect the single-mode end to the transceiver.
Do mode conditioning patch cables support high-speed networks?
Yes, these cables support high-speed links like Gigabit Ethernet and 10 Gigabit Ethernet. They help keep signals clear and strong in fast networks.
Tip: Always test the link after installing a mode conditioning patch cable to make sure the connection works well.
