In the relentless pursuit of faster data rates—from 100G and 400G to the emerging 800G—network engineers face a multitude of challenges. While attenuation and chromatic dispersion are well-known and easily managed, a more subtle and pernicious effect lurks within fiber optic cables: Polarization Mode Dispersion (PMD).
This guide will demystify PMD, explain why it's a critical factor in modern optical networks, and showcase how to mitigate its effects for flawless performance.
➤ Key Takeaways
Polarization mode dispersion happens when light moves at different speeds in a fiber. This can make the signal unclear and cause mistakes in data.
Using polarization-maintaining fibers can lower PMD a lot. This helps keep signals strong and easy to understand.
Checking PMD often by testing the fiber is very important. It helps keep the network working well and stops data from being lost.
Things like the shape of the fiber, stress, changes in temperature, and getting older can make PMD worse. So, it is important to watch these things closely.
Using good fiber design and special fixes can help control PMD. This makes data move faster and keeps it more reliable.
➤ What Exactly is Polarization Mode Dispersion (PMD)?
Light signals traveling through an optical fiber consist of an electromagnetic wave with a specific polarization state—essentially, the orientation of its wave's oscillation.
In a perfect, perfectly circular fiber, light with different polarization states would travel at the same speed. However, real-world fibers are imperfect. They exhibit microscopic asymmetries, bends, and stresses. These imperfections cause the fiber to be birefringent, meaning light traveling in one polarization state (or mode) moves slightly faster than the other.

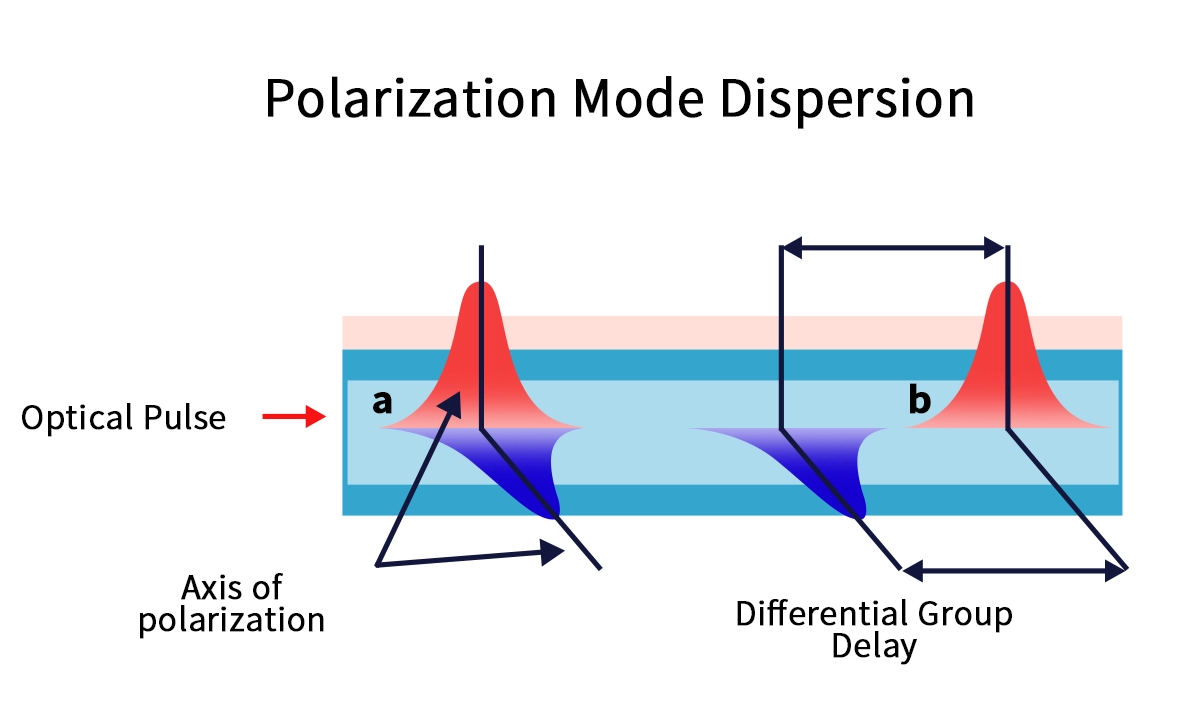

PMD is the differential delay between these two polarization modes. This delay causes pulses of light to spread out as they travel over distance, potentially overlapping with neighboring pulses. This inter-symbol interference (ISI) leads to errors and ultimately, a complete failure of the link.
➤ Why is PMD a Major Concern for Modern Networks?
PMD's impact was negligible in older, low-data-rate systems. However, it has become a primary design constraint for several reasons:
Higher Data Rates: As bit rates increase (e.g., moving from 10G to 400G), the time between pulses (bit period) shrinks. A fixed PMD delay becomes a larger fraction of this bit period, drastically increasing the chance of errors.
Long-Haul Transmission: The PMD effect is statistical and accumulates with the square root of the distance. A problem barely noticeable over 10 km can be catastrophic over 1000km.
Dynamic Environmental Changes: PMD isn't static. It varies with temperature fluctuations, physical vibrations, and mechanical stresses on the cable. This makes it a moving target, difficult to compensate for with simple, fixed solutions.
➤ Key PMD Metrics and Parameters
To understand PMD specifications, you'll encounter these key terms:
Term | Acronym | Definition | Why It Matters |
|---|---|---|---|
Differential Group Delay | DGD | The instantaneous time delay between the two polarization modes. | The fundamental building block of PMD; it varies randomly over time. |
PMD Coefficient | - | A fiber quality rating expressed in ps/√km. | Predicts how much PMD will accumulate over a length of fiber. Lower is better. |
Link PMD | - | The total PMD for a specific fiber span. | The key value engineers use to determine if a link will support a desired data rate. |
Mean DGD | - | The average value of the DGD over time. | Used to estimate the outage probability of a system due to PMD. |
➤ How to Combat PMD: Strategies and Solutions
Mitigating PMD requires a multi-faceted approach:
Using Low-PMD Fiber: Newer fibers are manufactured to much tighter standards, with PMD coefficients below 0.1 ps/√km or even 0.05 ps/√km.
Optical PMD Compensators (PMDC): These are specialized devices placed in-line that introduce an equal but opposite DGD to cancel out the fiber's PMD. They are effective but can be complex and expensive.
Advanced Modulation Formats & DSP: The most powerful and modern solution lies within the transceiver itself. Coherent optics using advanced modulation (e.g., DP-QPSK, DP-16QAM) and powerful Digital Signal Processing (DSP) algorithms can electronically compensate for significant amounts of PMD, making them inherently resilient.
This is where choosing the right optical module becomes the most critical factor for overcoming PMD challenges in high-speed data centers and 5G transport networks.
➤ Conclusion: Don't Let PMD Slow Your Network Down
Polarization Mode Dispersion is a fundamental physical effect that can no longer be ignored. As we push the boundaries of speed and distance, understanding and mitigating PMD is paramount to achieving reliable network performance.
By investing in high-quality fiber and, more importantly, selecting intelligent optical transceivers with robust PMD compensation built-in, you can ensure your infrastructure is ready for the demands of tomorrow.
➤ FAQ
What is polarization mode dispersion in simple terms?
Polarization mode dispersion happens when light moves at different speeds. Each polarization travels in its own way. This makes signals blur and reach the end at different times.
What problems does PMD cause in fiber optic networks?
PMD can make your data hard to read. Signals might mix together or overlap. You could see more mistakes or slower network speeds.
What can you do to reduce PMD?
You can pick fibers with better designs. Polarization-maintaining fibers help lower PMD. Testing often and using special devices also keeps PMD down.
What tools measure PMD in a fiber?
You use testers like interferometers or phase shift analyzers. These tools show how much delay PMD causes in your fiber.
What does a low PMD value mean for your network?
A low PMD value keeps signals clear. You can send data faster and make fewer mistakes. Your network stays strong and works well.
