Ever wondered how you can stream a 4K movie, join a HD video call, and download large files in seconds? Behind this modern miracle of connectivity lies a sophisticated engineering technique: Quadrature Amplitude Modulation (QAM).
It's the unsung hero of the digital age, silently working in your Wi-Fi router, your 5G phone, and the vast fiber-optic networks that form the internet's backbone. In this guide, we'll demystify QAM modulation, explain why it's so crucial for speed, and show how it enables cutting-edge optical transceivers to push data boundaries.
➤ Key Takeaways
QAM lets more data move through the same channel. It does this by changing the signal’s strength and angle.
QAM helps send data faster without using more bandwidth. This makes it great for fast internet and cable TV.
There are different QAM orders, like 16QAM, 64QAM, and 256QAM. These show how many symbols can be sent. Higher orders mean data moves faster.
Higher QAM orders give more speed but need a cleaner signal. Lower orders work better if the signal is weak or noisy.
QAM is very important in today’s communication systems. It helps Wi-Fi work better and makes cable TV and broadband more efficient.
➤ What is QAM Modulation? A Simple Analogy
At its core, QAM is a method of combining two amplitude modulation signals into a single channel. Think of it like a constellation of stars. Each star's position is defined by two values: its distance on the X-axis and its distance on the Y-axis.
QAM does the same with data. It takes two carrier waves, shifted by 90 degrees (in quadrature), known as the In-phase (I) and Quadrature (Q) components. By varying the amplitude of each wave, it creates a unique symbol that represents a specific pattern of digital bits.
➤ How Does QAM Work? The Technical Heart
The magic of QAM is its efficiency. A simple QAM scheme might transmit 2 bits per symbol. But by using more amplitude levels, we can pack exponentially more data into each symbol. This is defined by the QAM order (e.g., 16-QAM, 64-QAM, 256-QAM).
16-QAM: Uses 4 amplitude levels per wave, creating 16 possible symbols (4x4). Each symbol represents 4 bits.
64-QAM: Uses 8 amplitude levels, creating 64 symbols, representing 6 bits.
256-QAM: Uses 16 amplitude levels, creating 256 symbols, representing 8 bits.
Higher order QAM = more bits per symbol = higher data rates. It's the digital equivalent of a bigger truck hauling more cargo in a single trip.
➤ QAM Order Comparison Table
QAM Order | Symbols | Bits per Symbol | Data Efficiency | Robustness to Noise |
|---|---|---|---|---|
QPSK (4-QAM) | 4 | 2 | Low | Very High |
16-QAM | 16 | 4 | Medium | High |
64-QAM | 64 | 6 | High | Medium |
256-QAM | 256 | 8 | Very High | Low |
1024-QAM | 1024 | 10 | Extreme | Very Low |
➤ The Trade-Off: Higher Order QAM vs. Signal Integrity
There's no free lunch in engineering. While higher-order QAM boosts speed, it makes the "constellation points" closer together. This makes the signal more vulnerable to noise and interference, like Signal-to-Noise Ratio (SNR) degradation. A little bit of noise can easily cause a receiver to misinterpret one symbol for another, leading to errors.
This is why your Wi-Fi speed fluctuates. Your router dynamically shifts between 256-QAM (close to the router) and lower orders like 16-QAM (further away) to maintain a stable connection despite obstacles and interference.
➤ Where is QAM Used? Real-World Applications
You interact with QAM every single day:
Wi-Fi (802.11ac/ax): Uses 256-QAM and 1024-QAM to deliver gigabit speeds.
5G Networks: Relies on high-order QAM (e.g., 256-QAM) to achieve its massive capacity and multi-gigabit throughput.
Digital Television (DVB-C): Cable TV uses QAM to transmit multiple HD channels over a single coaxial cable.
Fiber-Optic Communications: This is where QAM truly shines for long-haul, high-capacity data links.
➤ QAM in Optical Transceivers: Powering the Cloud
In the world of optical modules, higher-order QAM is the key to meeting the insatiable global demand for bandwidth. Coherent optical transceivers use sophisticated versions like DP-16QAM (Dual-Polarization 16QAM) to transmit immense amounts of data over long distances.
For instance, the QSFP-DD 400G-ZR coherent pluggable transceiver leverages advanced modulation to deliver 400G rates over hundreds of kilometers. This makes it an ideal solution for data center interconnects (DCI) and telecommunications networks, providing a perfect balance of high performance, reach, and power efficiency. When you're evaluating 400G optical transceivers, understanding the underlying modulation scheme is key to selecting the right solution for your network's needs.
Looking for a reliable partner for your high-speed connectivity solutions? Explore LINK-PP's full range of cutting-edge coherent optics and QAM-enabled transceivers designed for next-generation networks. Visit LINK-PP Website ➞
➤ Conclusion & Key Takeaways
QAM modulation is a foundational technology for efficient data transmission. By cleverly manipulating the amplitude of two waves, it allows us to pack more bits into every second, fueling everything from home Wi-Fi to global internet infrastructure.
Key Takeaways:
✅ QAM stands for Quadrature Amplitude Modulation.
✅ It increases spectral efficiency by transmitting more bits per symbol.
✅ Higher orders (e.g., 256-QAM) mean higher speeds but require a cleaner signal.
✅ It is essential for 5G, Wi-Fi 6/6E, and high-speed coherent optical modules.
As we march towards 800G and 1.6T, even more advanced forms of QAM will continue to be at the heart of the innovation, ensuring our digital world keeps getting faster and more connected.
➤ FAQ
What does QAM stand for?
QAM means Quadrature Amplitude Modulation. You see this word in Wi-Fi, cable TV, and other digital systems.
What makes QAM different from other modulation types?
QAM changes the amplitude and phase of a signal. Other types, like AM or FM, only change one thing. This helps you send more data at the same time.

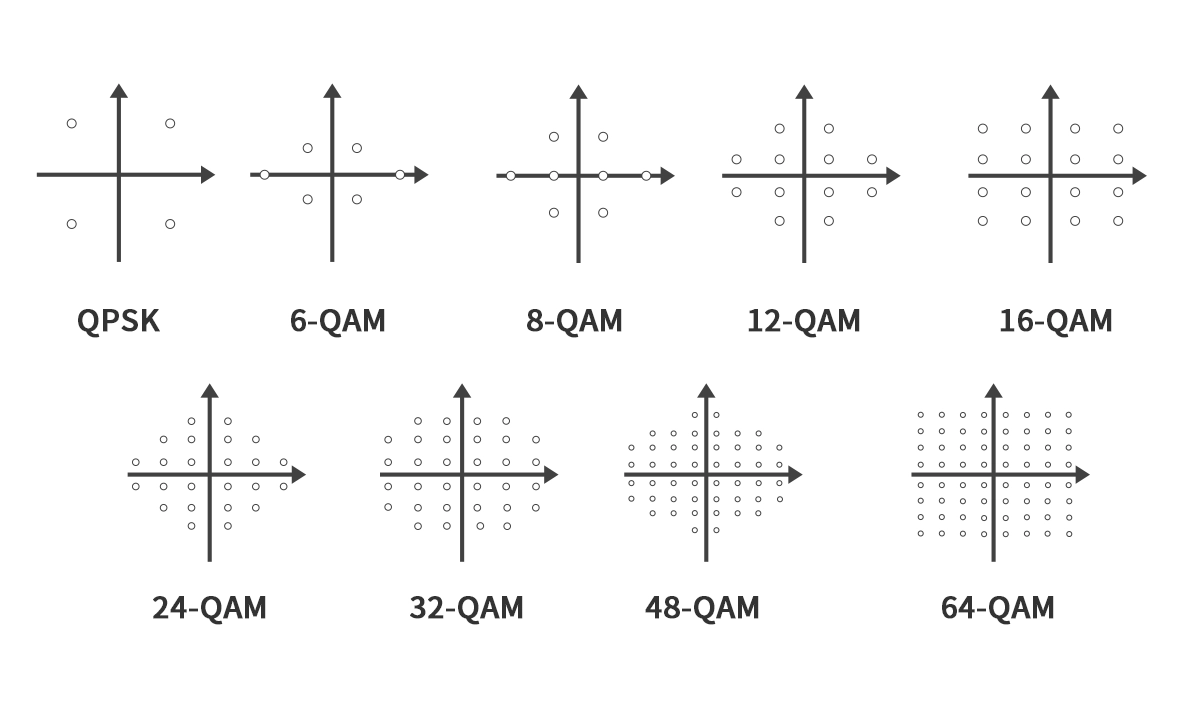

What is a QAM constellation diagram?
