In the vast, invisible world of data transmission, every bit of information—every email, video stream, and website—travels as a carefully crafted signal. The method of imprinting this digital data onto a carrier wave is called digital modulation, and it's the fundamental language machines use to communicate. Among the various modulation techniques, two foundational schemes stand out: BPSK (Binary Phase Shift Keying) and QPSK (Quadrature Phase Shift Keying).
Understanding the difference between BPSK and QPSK is crucial for anyone in telecommunications, networking, or RF engineering. This article will demystify these two powerhouses, compare their strengths and weaknesses, and explain their critical role in technologies like coherent optics and high-speed optical transceivers.
⚔️ Key Takeaways
BPSK works well in places with a lot of noise. It can handle noise and needs simple hardware.
QPSK sends two bits with each symbol. This helps send more data. It is good when there is not much bandwidth.
Pick BPSK if you want it to work well and be easy to set up. Use it when sending data fast is not the most important thing.
Pick QPSK if you want to send data quickly. It does not use more bandwidth.
⚔️ What is BPSK (Binary Phase Shift Keying)? The Digital On-Ramp

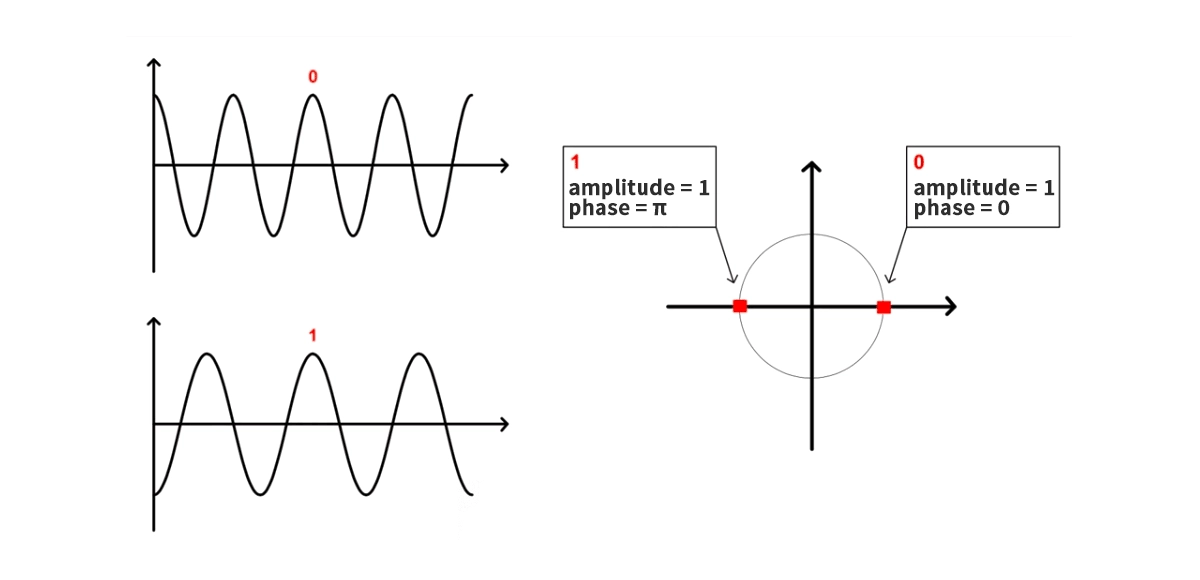

BPSK is the simplest form of phase-shift keying. It uses two distinct phase states, separated by 180 degrees, to represent binary data.
Phase 0°: Represents a binary 0
Phase 180°: Represents a binary 1
This robust, no-frills modulation is incredibly resistant to noise and signal degradation (a property known as a high constellation diagram resilience). Because of its simplicity, it's often used in scenarios where signal integrity is more important than raw speed, such as in deep-space communications and some wireless communication standards.
⚔️ What is QPSK (Quadrature Phase Shift Keying)? Doubling the Data Highway
QPSK is an evolution of BPSK that doubles the spectral efficiency. It does this by using four distinct phase states (45, 135°, 225°, and 315°) to represent two bits of data per symbol, instead of one.
00: Phase 45°
01: Phase 135°
11: Phase 225°
10: Phase 315°

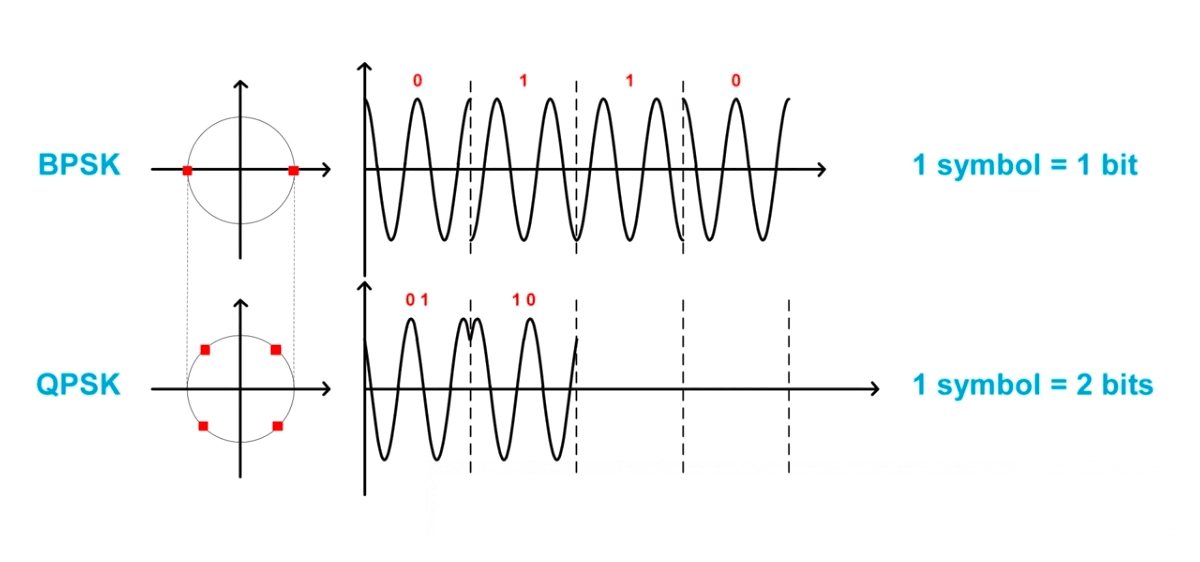

By transmitting two bits at a time, QPSK effectively doubles the data rate within the same bandwidth as BPSK. This makes it a popular choice for modern applications like satellite communications, Wi-Fi, and digital video broadcasting.
⚔️ Head-to-Head: BPSK vs QPSK Showdown
The core trade-off between these two schemes is a classic engineering dilemma: Robustness vs. Efficiency.
Feature | BPSK (Binary Phase Shift Keying) | QPSK (Quadrature Phase Shift Keying) |
|---|---|---|
Bits per Symbol | 1 | 2 |
Phase Shifts | 2 (0°, 180°) | 4 (45°, 135°, 225°, 315°) |
Bandwidth Efficiency | Lower | Higher (Double that of BPSK) |
Robustness (BER) | Higher (More noise-resistant) | Lower (More susceptible to noise) |
Complexity | Low | Moderate |
Common Applications | Deep-space comms, RFID, OFDM pilots | Satellite TV, Wi-Fi, CDMA, 4G/5G networks |
Key Takeaway: Choose BPSK for challenging, low-SNR environments where the link must not fail. Choose QPSK for high-capacity systems where bandwidth is limited and you need to maximize data throughput.
⚔️ The Optical Connection: BPSK, QPSK, and Coherent Optics
The principles of BPSK and QPSK are not limited to wireless; they are the bedrock of modern coherent optical transmission. Coherent DSP technology uses these modulation formats to push enormous amounts of data through fiber optic cables over incredible distances.
In Dense Wavelength Division Multiplexing (DWDM) systems, QPSK modulation is a fundamental building block for 100G coherent transceivers. More advanced schemes like DP-QPSK (Dual-Polarization QPSK) are used to achieve even higher rates by transmitting two independent QPSK signals on orthogonal polarizations of light.
This is where high-performance hardware is non-negotiable. For instance, the 100G CFP2-DCO coherent optical module leverages advanced QPSK modulation to deliver exceptional performance and low power consumption for metro and long-haul networks. When evaluating optical transceiver performance, understanding the underlying modulation scheme is key to selecting the right product for your network infrastructure.
⚔️ Conclusion: Choosing the Right Tool for the Job
There is no "winner" in the BPSK vs QPSK debate. Each modulation scheme is a precision tool designed for a specific task. BPSK is the rugged, reliable workhorse for tough jobs. QPSK is the efficient, high-capacity engine that powers our bandwidth-hungry world. Together, and in their more complex derivatives (like 8-QAM, 16-QAM, etc.), they form the invisible backbone of our connected digital lives.
As data demands explode, the role of sophisticated modulation in optical networking solutions will only grow. Choosing the right technology partner is crucial.
Ready to optimize your network's performance with the right modulation technology? 🔗
Explore LINK-PP's full range of high-performance, reliable coherent optical modules, including our 200G QPSK and 400G 16-QAM variants, designed for the most demanding data center interconnects (DCI) and service provider networks.
⚔️ FAQ
What is the main difference between BPSK and QPSK?
BPSK sends one bit with two phases. QPSK sends two bits using four phases. QPSK lets you send more data in the same space.
Which modulation is better for noisy environments?
BPSK is better if there is a lot of noise. Its symbols are farther apart, so you can tell them apart more easily. This helps when there is interference.
When should I use QPSK instead of BPSK?
Use QPSK if you need to send lots of data. QPSK works well for fast wireless networks and digital TV. It uses the channel space better than BPSK.
Does QPSK require more complex hardware than BPSK?
Yes, QPSK needs hardware for four phases. BPSK hardware is simpler because it only uses two phases. You might need better equipment for QPSK.
Can I switch from BPSK to QPSK easily?
It depends on your system. You may have to upgrade your transmitter and receiver for QPSK. Make sure your hardware can use both before you change.
