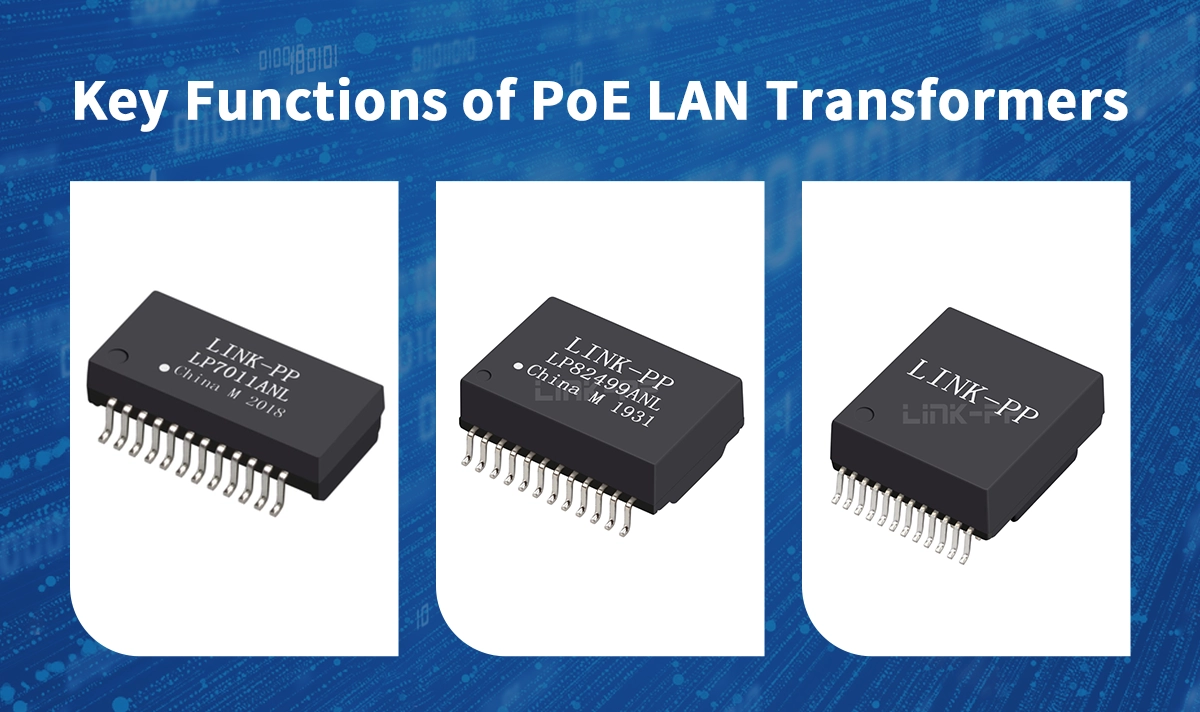

🔹 Key Functions of PoE LAN Transformers
In modern Ethernet systems, Power over Ethernet (PoE) technology allows both power and data to be transmitted through a single Cat5e or Cat6 cable. The component that makes this seamless integration possible is the PoE LAN transformer—a critical magnetic element that ensures electrical isolation, signal integrity, and efficient power coupling.
As IoT devices, IP cameras, and wireless access points demand higher power and faster data rates, the performance of LAN magnetics has become even more important. LINK-PP, a leading global manufacturer of magnetic RJ45 connectors and PoE transformers, provides high-reliability components designed to meet IEEE 802.3af/at/bt standards.
🔹1. Electrical Isolation for System Protection
One of the primary functions of a PoE LAN transformer is to provide galvanic isolation between the Ethernet PHY and the network cable. This prevents ground potential differences and electrical surges from damaging sensitive transceiver circuits.
Typical isolation voltage ratings range from 1500 Vrms to 2250 Vrms, fully compliant with IEEE 802.3 and IEC safety standards.
This isolation also enhances network stability by reducing the risk of signal distortion and noise coupling.
🔹2. Common-Mode Noise Suppression
In high-speed networks, electromagnetic interference (EMI) can severely degrade data performance. The PoE LAN transformer acts as a common-mode choke, filtering out unwanted noise and ensuring that only clean differential signals reach the PHY.
This function is essential in Gigabit and 10GBase-T systems, where even minor EMI can lead to packet loss or link instability. LINK-PP ethernet transformers are optimized with precise core materials and winding structures to achieve superior EMI suppression.
🔹3. Impedance Matching and Signal Conditioning
PoE transformers are also responsible for matching the impedance between the Ethernet PHY and the twisted-pair cable, typically 100 Ω. Proper impedance matching minimizes reflection and signal loss, ensuring compliance with IEEE 802.3 standards and maintaining signal integrity over long cable distances.
This function directly impacts network reliability, especially in applications like industrial automation and outdoor IP surveillance, where cable runs can exceed 100 meters.
🔹4. Power Coupling in PoE Systems

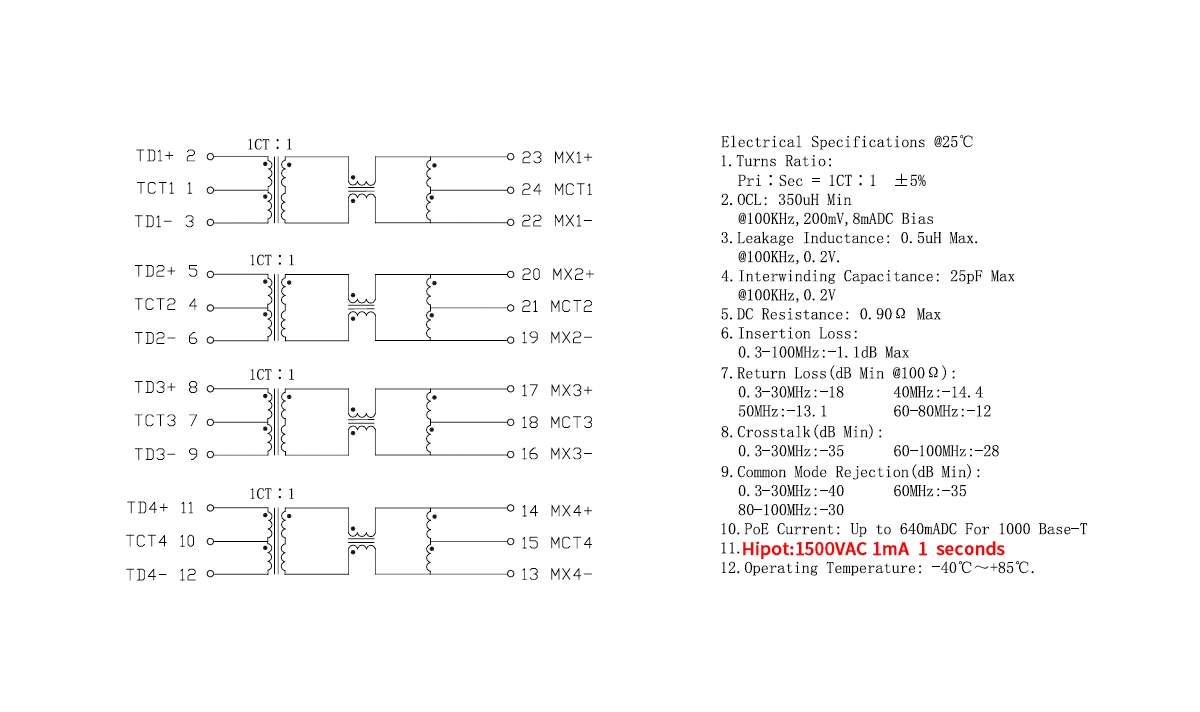

Unlike standard LAN transformers, PoE versions integrate power coupling functionality through center taps on the transformer windings.
On the PSE (Power Sourcing Equipment) side, the transformer injects DC power onto the data pairs.
On the PD (Powered Device) side, it extracts power while maintaining full data signal integrity.
This dual-function design enables seamless operation for PoE (15.4W), PoE+ (30W), and PoE++ (up to 90W) applications without additional wiring.
🔹5. Protection and Reliability Enhancement
PoE LAN transformers safeguard Ethernet ports from:
Voltage surges and lightning strikes
ESD (Electrostatic Discharge)
Current overloads during PoE negotiation or power-up
Magnetic saturation under high PoE++ power levels
High-quality designs like LINK-PP’s LP82499ANL SMT Transformer Modules ensure long-term reliability even in harsh industrial or outdoor environments.
🔹6. Compliance with Global Standards
To ensure full interoperability and long service life, PoE LAN transformers are designed to meet:
IEEE 802.3af / 802.3at / 802.3bt (PoE, PoE+, PoE++)
UL and IEC isolation requirements

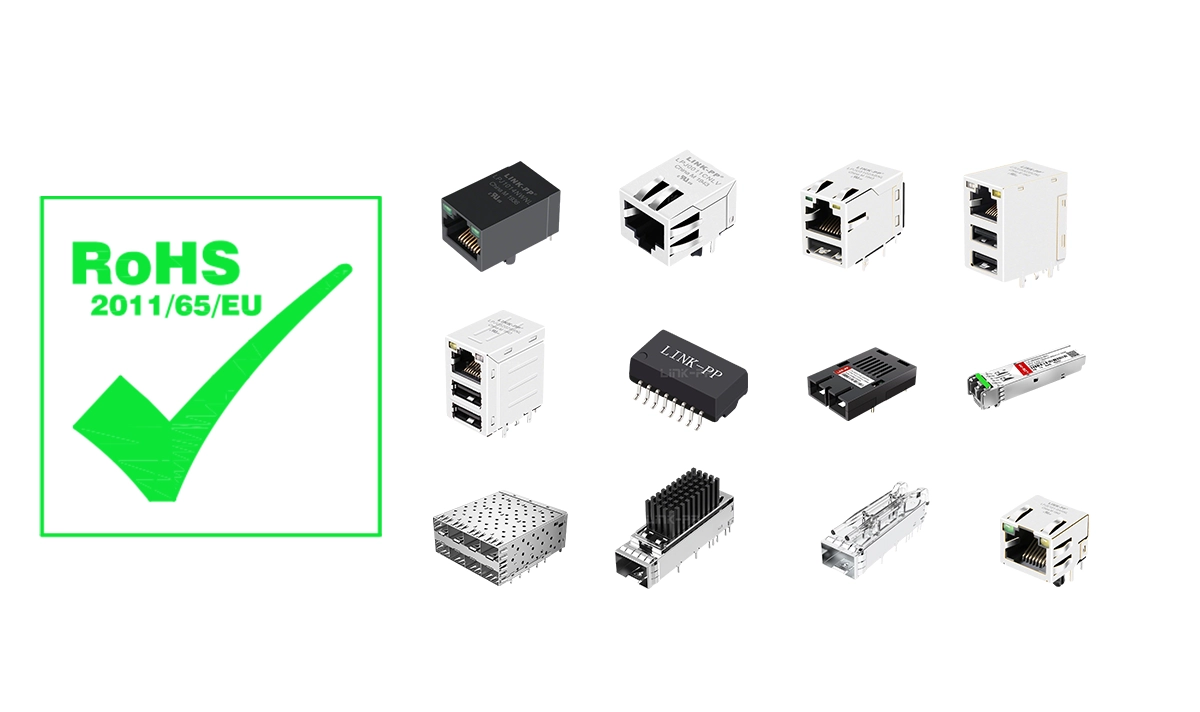

RoHS / REACH environmental standards
These compliance guarantees make LINK-PP transformers fully compatible with leading PHY brands such as Broadcom, Intel, and Marvell.
🔹 Summary Table: Core Functions
Function | Description | Key Benefit |
|---|---|---|
Electrical Isolation | Separates PHY from cable to prevent surges | Protects circuit and improves stability |
Noise Suppression | Filters EMI and common-mode noise | Ensures clean, stable data transmission |
Impedance Matching | Aligns PHY and cable impedance | Minimizes signal reflection and loss |
Power Coupling | Combines power and data on the same pair | Enables PoE power delivery |
Protection | Prevents ESD, surges, and overheating | Extends equipment lifespan |
Standards Compliance | Meets IEEE and safety standards | Ensures interoperability and reliability |
Conclusion
PoE LAN transformers are the unseen enablers of efficient, reliable, and safe Ethernet communication.
By integrating isolation, signal filtering, and power coupling in a compact design, they allow network devices to deliver both data and power without compromise.
LINK-PP, with decades of expertise in magnetic components, provides customized PoE LAN transformers and RJ45 integrated connectors that meet the strictest performance and compliance requirements—empowering your Ethernet systems for the next generation of connected devices.
