In the realm of high-speed networking, 10G SFP+ transceivers are the backbone for critical infrastructure. When distances exceed the capabilities of standard SR or LR modules, long-reach optics like the SFP-10G-ER and SFP-10G-ZR become essential. Choosing between these two dominant 10G transceiver types is crucial for performance, cost, and network longevity. This guide dives deep into their specifications, differences, and ideal use cases, helping you make an informed decision. We'll also explore how compatible optics from reputable manufacturers like LINK-PP offer reliable, cost-effective solutions.
➢ Key Takeaways
SFP-10G-ER can send 10G data up to 40km. This is good for city or campus networks.
SFP-10G-ZR can reach up to 80km. It works well for long-distance links, like between cities or in telecom networks.
Both modules use single mode fiber and a 1550nm wavelength. This helps give fast and steady 10G connections.
Make sure your device works with the module. Use the right fiber cables and connectors to keep your network working well.
Pick the module that fits your network distance and budget. This helps you avoid extra costs and signal problems.
➢ Understanding Long-Reach 10G Requirements
Applications demanding long-distance fiber optic transmission—such as connecting data centers across campuses (DCI), linking remote facilities, or serving expansive metropolitan networks—require transceivers engineered for signal integrity over kilometers of fiber. Both ER and ZR modules tackle this challenge using 1550nm wavelength optics, but their approaches and capabilities differ significantly.
SFP-10G-ER: The 40km Workhorse
Standard: IEEE 802.3aq (Often referred to under Clause 60)
Reach: Up to 40 kilometers over single-mode fiber (SMF).
Wavelength: 1550nm laser.
Key Features: Designed as the standardized solution for 40km reach. Offers a good balance between reach, power consumption, and cost. Widely supported across networking equipment from vendors like Cisco, Juniper, HPE, etc.
Typical Applications: Metro Ethernet, campus backbones, medium-distance DCI, connecting geographically separated buildings within a city.
SFP-10G-ZR: Pushing to 80km
Standard: MSA (Multi-Source Agreement) based. Not defined by an IEEE standard.
Reach: Up to 80 kilometers over single-mode fiber (SMF).
Wavelength: 1550nm laser (often utilizing more sophisticated modulation or higher-power lasers).
Key Features: Doubles the reach of the ER module. Achieves this through higher transmit power and more sensitive receivers. Higher power consumption and cost are trade-offs. Compatibility must be verified with specific switch/router models.
Typical Applications: Very long-haul connections, inter-city DCI, connecting extremely remote facilities, scenarios where laying intermediate repeaters is impractical or expensive.

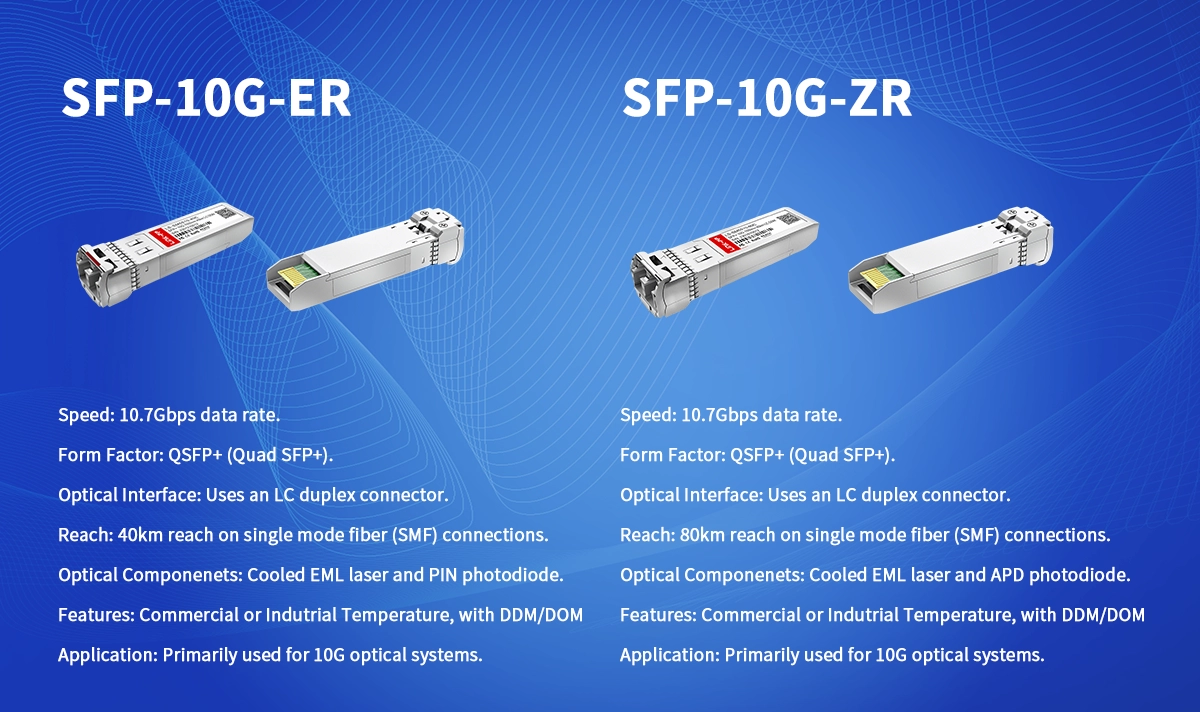

➢ Head-to-Head Comparison: SFP-10-ER vs SFP-10G-ZR
Feature | ||
|---|---|---|
Standard | IEEE 802.3aq (Clause 60) | MSA (e.g., SFF-8472) |
Max Reach | 40km | 80km |
Wavelength | 1550nm | 1550nm |
Fiber Type | Single-Mode Fiber (SMF) (OS2) | Single-Mode Fiber (SMF) (OS2) |
Transmit Power | Higher (Approx. -1 to +4 dBm) | Highest (Approx. 0 to +5 dBm) |
Receiver Sensitivity | Approx. -24dBm | Better (Approx. -28 dBm) |
Power Consumption | Moderate (Approx. < 1.5W) | Higher (Approx. 1.5W - 2.0W+) |
Cost | Lower | Higher |
Interoperability | High (Widely standardized & supported) | Varies (Requires careful compatibility checks) |
Primary Use Case | Metro/Campus (Up to 40km) | Long-Haul/Inter-City (Up to 80km) |
Key Differences Explained
Reach & Performance: The ZR's 80km optical reach is its defining advantage, enabled by higher transmit power and superior receiver sensitivity. This makes it essential for truly long-haul deployments where 40km isn't enough. However, this performance impacts other factors.
Power Consumption & Heat: ZR modules inherently consume more power for SFP+ due to the powerful laser and receiver circuitry required for 80km. This translates to higher heat generation. Ensure your switch/router chassis has adequate cooling, especially in dense configurations. Higher power consumption also impacts data center power efficiency metrics.
Cost Considerations: The increased complexity and components of ZR modules result in a significantly higher price point compared to ER modules. When budget planning for network upgrades, factor in this cost difference, especially for multiple links.
Compatibility & Standards: ER modules benefit from a clear IEEE standard, leading to excellent cross-vendor compatibility. ZR modules rely on MSAs, meaning compatibility is less guaranteed. Always verify ZR compatibility with your specific switch/router model and firmware version before purchase. Using third-party optics like LINK-PP requires ensuring they are programmed correctly for your target device.
Link Budget & Fiber Health: Both modules require a healthy fiber optic link budget. The ZR's higher transmit power can sometimes help overcome slightly degraded fiber or older splices on very long runs, but this shouldn't be relied upon as a fix for poor infrastructure. Conversely, its higher power can also risk receiver saturation if the link is shorter than expected or has too low loss.
➢ How to Choose Between SFP 10G ER and SFP 10G ZR?
When to Choose SFP-10G-ER
Your required distance is 40km or less.
Cost-effectiveness is a primary concern.
You need maximum vendor compatibility with minimal fuss.
Your equipment has standard power and cooling capabilities.
Typical applications: Metro network deployment, large campus backbones, enterprise WAN links under 40km.
When to Choose SFP-10G-ER
Your required distance is between 40km and 80km.
Distance is the absolute critical factor, outweighing cost and power concerns.
You have verified compatibility with your specific networking hardware.
Your chassis can handle the higher power consumption and heat output.
Typical applications: Long-haul data center interconnect (DCI), connecting facilities across cities, very remote site connections.
➢ The Role of High-Quality Compatible Optics (Like LINK-PP)
OEM transceivers often come with a steep price premium. High-quality compatible SFP+ modules from reputable MSA-compliant manufacturers like LINK-PP offer a compelling alternative. LINK-PP transceivers, such as the LINK-PP SFP-10G-ER module LS-SM5510-40C (for 40km) and LINK-PP-SFP-10G-ZR module LS-SM5510-80C (for 80km), undergo rigorous testing to ensure performance matching OEM specs and broad compatibility. They provide significant cost savings on optics without sacrificing reliability or network performance, backed by warranties and support. When selecting compatible modules, prioritize vendors known for quality control and technical expertise.
➢ Conclusion: Making the Smart Choice
The decision between SFP-10G-ER and SFP-10G-ZR boils down to one fundamental question: How far do you genuinely need to transmit your 10G signal?
For robust 40km performance with lower cost, lower power, and wider compatibility: The SFP-10G-ER is the proven, standardized choice.
For essential 80km reach where distance is non-negotiable: The SFP-10G-ZR is necessary, accepting its higher cost, power draw, and need for careful compatibility checks.
Avoid over-provisioning (using ZR for a 25km link) as it wastes money and increases power/heat unnecessarily. Conversely, under-provisioning (using ER for a 45km link) will lead to link failures. Accurately measure your fiber distance and loss budget.
Ready to Optimize Your Long-Reach 10G Links?
Choosing the right 10G SFP+ module is critical for network reliability and performance. Whether you need cost-effective SFP-10G-ER optics for metro applications or powerful SFP-10G-ZR transceivers for inter-city DCI, LINK-PP offers a comprehensive range of high-quality, compatible solutions.
Explore our range of reliable and affordable long-reach 10G transceivers today!
☛ Visit LINK-PP 10G SFP+ Transceivers Page
Need expert advice on selecting the perfect module for your specific distance and equipment?
☛ Contact Our Optical Networking Specialists Now!
➢ FAQ
What is the main similarity and difference between sfp-10g-er and sfp-10g-zr?
Both modules work with 10 gigabit ethernet. They use single-mode fiber for sending data. The biggest difference is how far they can go. Sfp-10g-er can send data up to 40 km. Sfp-10g-zr can reach up to 80 km. This specs comparison helps you pick the right one.
Can you use sfp-10g-er and sfp-10g-zr in the same ethernet network?
Yes, you can use both modules in one ethernet network. Your devices must support both types. Always check the specs comparison before you decide. Make sure your 10g network needs match the module’s range. This helps your network stay fast and reliable.
How do you decide which sfp module fits your 10g needs?
First, measure the distance between your network points. If your link is less than 40 km, use sfp-10g-er. If you need more distance, pick sfp-10g-zr for up to 80 km. Always look at the similarity and differences before you choose.
Are there any compatibility issues when mixing sfp-10g-er and sfp-10g-zr?
You might have problems if your devices do not support both modules. Always check the specs comparison and read the vendor’s guide. This step helps your 10 gigabit ethernet work well and stops network issues.
Why is a specs comparison important for 10g ethernet modules?
A specs comparison shows what is the same and what is different. You can match the right module to your 10g network’s distance and speed needs. This helps you get the best results for your 10 gigabit ethernet.
