LP-RJ45TG-8YC SFP+ RJ45 Transceiver – High-Performance 10G Ethernet over Copper

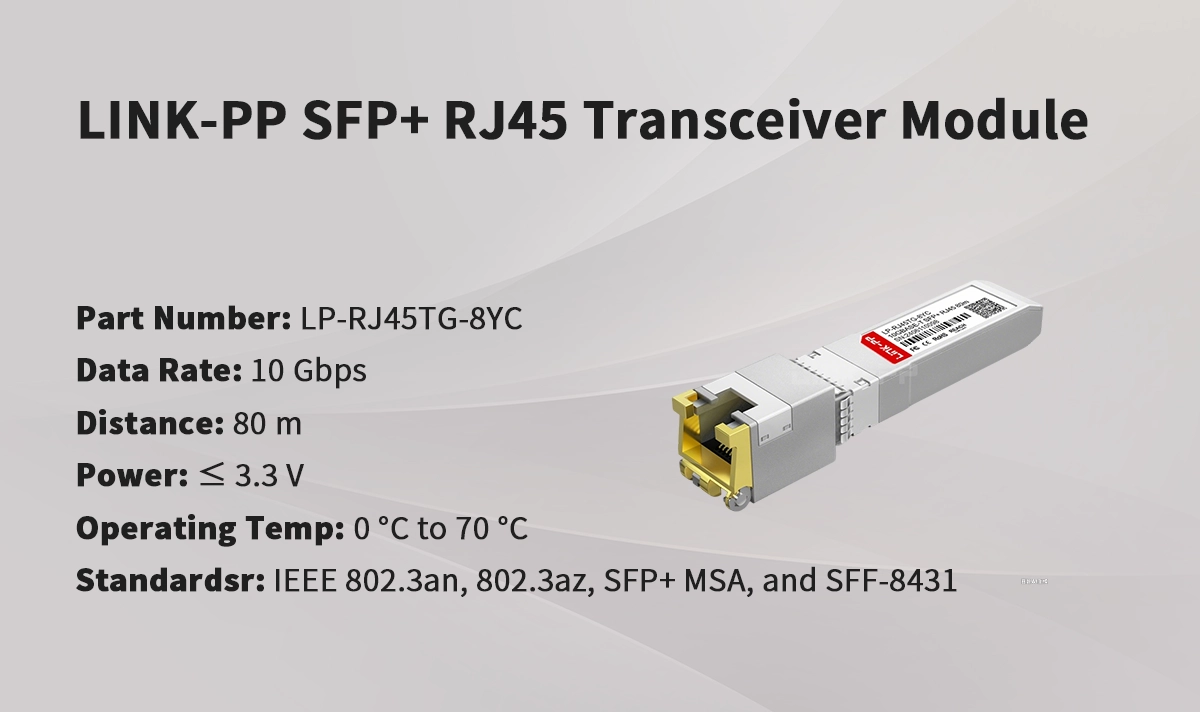

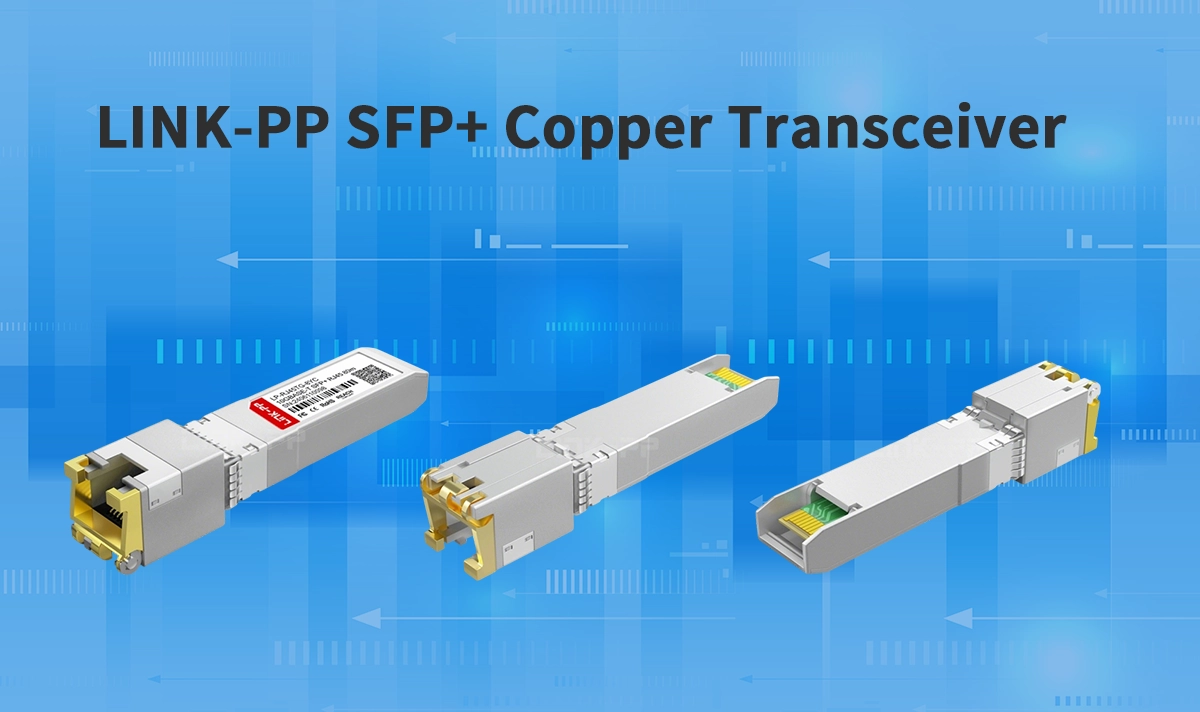

▲ LP-RJ45TG-8YC 10GBase-T Copper SFP+ Transceiver Overview

The LINK-PP LP-RJ45TG-8YC 10GBase-T Copper SFP+ Transceiver is a high-performance, cost-effective networking module designed for 10 Gigabit Ethernet applications over copper cabling. Engineered in compliance with IEEE 802.3an, IEEE 802.3az, SFF-8431, and SFP+ MSA standards, this module delivers 10Gbps bi-directional data transmission over unshielded twisted-pair (UTP) Category 6a/7 cables for distances of up to 80 meters.

Housed in a fully metallic enclosure to minimize EMI and featuring a compact RJ45 connector assembly, the LP-RJ45TG-8YC ensures low power consumption, hot-pluggable flexibility, and reliable operation for modern high-speed networks.

▲ Key Features

Main Specifications include:

• 10Gbps Full-Duplex data links

• Hot-Pluggable SFP+ Form Factor for easy installation and replacement

• Fully Metallic Housing for reduced electromagnetic interference (EMI)

• Low Power Dissipation for energy-efficient operation

• Integrated Compact RJ-45 Connector

• Physical Layer IC Access via 2-wire serial bus

• Supports up to 80m reach using Cat6a/7 copper cables

• RoHS Compliant for environmental sustainability

• Operating Temperature: 0°C to 70°C

▲ Compatibility

The LP-RJ45TG-8YC is tested and proven to work seamlessly with networking equipment from leading brands, including:

• Cisco: SFP-10G-T-80

• Dell: GP-10GSFP-T80

• H3C: SFP-XG-T80

• Juniper Networks: EX-SFP-10GE-T

• Arista Networks: SFP-10GE-T80

This ensures easy integration into existing data center and enterprise network infrastructures without compatibility issues.

▲ Applications

The LP-RJ45TG-8YC is ideal for:

• Intra-rack & Inter-rack Connections in data centers

• Enterprise LAN Upgrades to 10GbE

• Server-to-Switch Links

• Telecommunication Networks

• High-Performance Computing (HPC) Environments

By leveraging existing copper cabling, organizations can reduce deployment costs while still benefiting from 10 Gigabit Ethernet speeds.

▲ Installation & Setup

The LP-RJ45TG-8YC SFP+ RJ45 transceiver is hot-swappable and fits directly into any standard SFP+ port. Installation is straightforward:

1. Insert the module into the SFP+ slot until it clicks into place.

2. Connect a Cat6a or Cat7 cable to the RJ-45 port.

3. Check the link LED to confirm a successful connection.

4. Verify 10Gbps network performance via device management software.

Tip: Use high-quality Cat6a/7 cables to ensure stable performance.

The transceiver supports true plug-and-play operation, making it ideal for quick upgrades and seamless network expansion.

Troubleshooting

Most issues are resolved with basic checks such as swapping cables, reseating the module, or updating firmware. For persistent problems, consult device documentation or technical support.

▲ Why Choose LINK-PP?

As a trusted global supplier of network connectivity solutions, LINK-PP delivers OEM-quality transceivers with rigorous testing for compatibility and performance. The LP-RJ45TG-8YC represents LINK-PP’s commitment to providing cost-effective, high-reliability networking modules that meet or exceed industry standards.

For detailed specifications, refer to the LP-RJ45TG-8YC Datasheet (PDF) or visit the Official Product Page.

▲ FAQ

What devices support the LP-RJ45TG-8YC SFP+ RJ45 transceiver?

Network switches, routers, and NICs from brands like Cisco, Ubiquiti, D-Link, and Netgear support this module. Compatibility depends on the device’s SFP+ port and firmware version.

How far can the LP-RJ45TG-8YC transmit 10G data over copper?

The LP-RJ45TG-8YC transmits 10Gbps data up to 80 meters using Cat6a or Cat7 cables. This distance suits most intra-rack and inter-rack connections in enterprise environments.

Is the LP-RJ45TG-8YC hot-swappable?

Yes, engineers can install or replace the LP-RJ45TG-8YC without shutting down network equipment. The hot-swappable design simplifies maintenance and upgrades.

Tip: Always verify the link status after inserting the module to ensure proper operation.

Does the LP-RJ45TG-8YC support energy-efficient networking?

The module complies with IEEE 802.3az, which enables Energy Efficient Ethernet. This feature helps reduce power consumption during low network activity.
