In the vast, invisible world of wireless and optical communication, data doesn't just magically float through the air or zip through fiber cables. It’s carefully encoded onto carrier waves using techniques called modulation. Among the most straightforward and foundational of these techniques is Amplitude Shift Keying (ASK).
While newer, more complex schemes exist, ASK remains a critical concept for engineers and a practical solution in many applications, especially in cost-effective optical communication systems. Understanding ASK is your first step into the fascinating realm of data transmission. Let's break it down!
➽ What Exactly is ASK Modulation?
Amplitude Shift Keying (ASK) is a form of digital modulation where the amplitude of a high-frequency carrier wave is varied in accordance with the digital signal (0s and 1s) being transmitted. One amplitude represents a binary '1', and another (often zero) represents a binary '0'.
Think of it like a simple light switch:
Binary '1' (ON): The carrier wave is transmitted at a constant amplitude.
Binary '0' (OFF): The carrier wave is suppressed, transmitting no signal.
This on-off nature is why it's also famously known as On-Off Keying (OOK), the simplest implementation of ASK.
➽ How Does ASK Work? A Technical Glance
The process is elegantly simple:
A carrier wave is generated at a specific frequency.
A digital message signal (your data stream of 0s and 1s) is prepared.
A modulator (e.g., a balanced mixer) multiplies the two signals together. The digital signal acts as a gate, turning the carrier on and off.

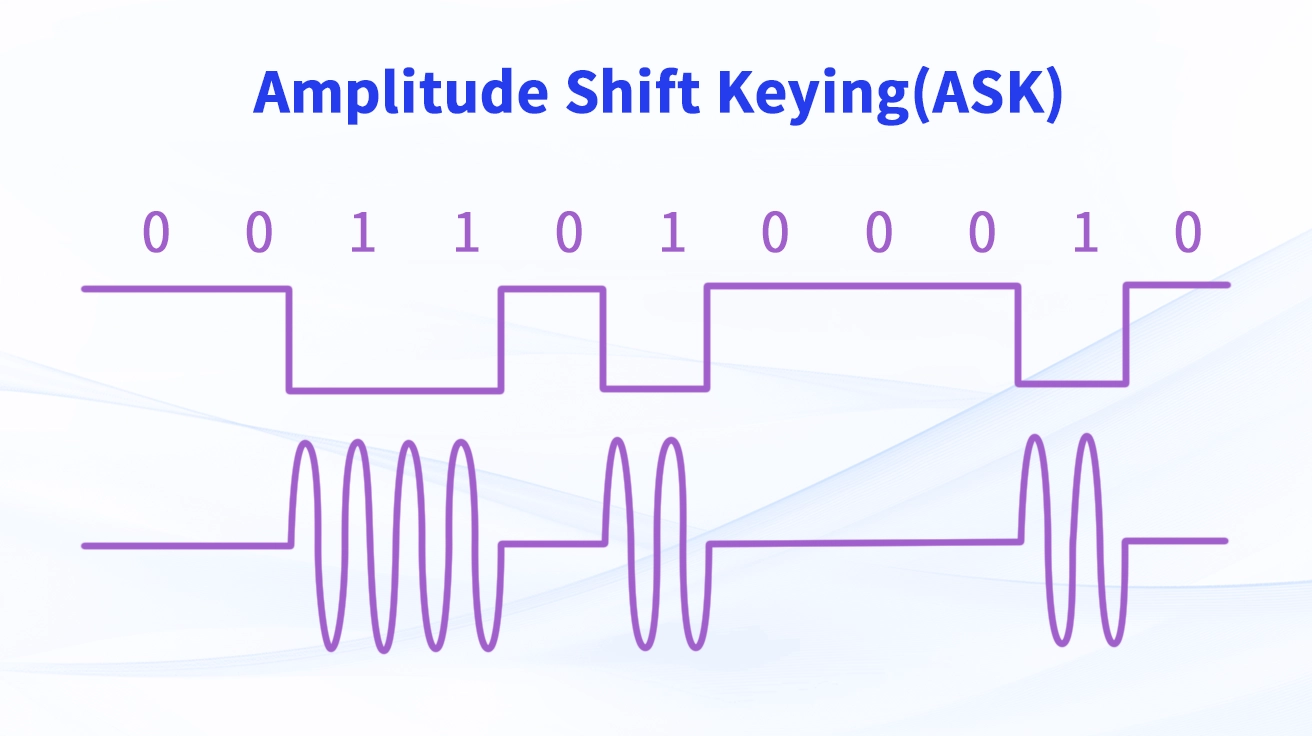

The resulting waveform is a series of bursts of the carrier frequency, perfectly mapping the original binary sequence.
Comparison of Key Digital Modulation Techniques
Modulation Type | Parameter Varied | Key Advantage | Key Disadvantage | Common Use Case |
|---|---|---|---|---|
ASK (Amplitude Shift Keying) | Amplitude | Simplicity, Low Cost | Susceptible to noise | Fiber Optic Comms, RFID, cheap transmitters |
Frequency | High noise immunity | Requires more bandwidth | Bluetooth, MRFI, wireless keyboards | |
Phase | High data rate, efficient | More complex receiver | Wi-Fi, RFID, satellite communication |
➽ Where is ASK Modulation Used?
Despite its simplicity, ASK is everywhere:
Optical Communication Systems: This is a prime application! The LEDs or lasers in many optical transceivers are easily turned on and off, making ASK/OOK a highly efficient modulation scheme for fiber optics. It's a cornerstone for short-range data links.
RFID Tags: Many passive RFID tags use backscatter modulation, a form of ASK, to communicate due to their extremely low power consumption.
Home Automation: Remote controls for garages, car key fobs, and older wireless devices often use ASK for its simplicity and cost-effectiveness.
Amateur Radio: Used for low-bandwidth data transmission like Morse code over radio waves.
➽ The Pros and Cons of Choosing ASK
Pros | Cons |
|---|---|
✅ Simple to design and implement | ❌ Highly susceptible to noise and interference |
✅ Very cost-effective | ❌ Inefficient use of bandwidth |
✅ Low power consumption (especially OOK) | ❌ Not suitable for high-data-rate applications |
✅ Ideal for ON-OFF systems like fiber optics |
➽ Optimizing Modern Optical Networks with LINK-PP
While basic ASK is simple, modern optical transceivers must be robust, reliable, and efficient. This is where the implementation of the modulation scheme becomes critical. For superior performance in your optical network, choosing the right hardware is paramount.
LINK-PP engineering excels at integrating fundamental techniques like ASK into high-performance, reliable products. For instance, our LINK-PP SFP-10G-SR optical transceiver utilizes advanced modulation to deliver stable, low-latency, and power-efficient 10Gbps data transmission over multimode fiber, perfect for data center and enterprise network applications.
When you're looking for a high-speed optical transceiver that offers a perfect balance of performance and value, looking for best optical modules for data centers or a reliable SFP+ transceiver, the LINK-PP portfolio provides the solution.
➽ Conclusion: The Lasting Legacy of ASK
ASK modulation may not be the flashiest or most advanced technique available today, but its simplicity and effectiveness ensure its continued relevance. It serves as the building block for understanding more complex modulations and remains the go-to choice for numerous low-cost optical communication and short-range wireless applications. Its role in enabling efficient fiber optic data transmission is particularly significant.
Ready to build a efficient and reliable network with high-quality optical transceivers?
➽ FAQ
What does ASK stand for in digital communication?
ASK means Amplitude Shift Keying. It sends digital data by changing the carrier wave’s amplitude.
What makes ASK modulation different from other types?
ASK only changes amplitude. Other types, like FSK, change frequency. This makes ASK simple and easy to use.
What devices use ASK modulation?
Remote controls, RFID tags, and some optical fiber systems use ASK. These devices use ASK because it is cheap and works well.
What problems can you face with ASK modulation?
Noise can cause errors with ASK. The signal can get weak if it travels far. This limits where you can use ASK.
What is the main benefit of learning about ASK modulation?
Learning ASK gives you a good start in digital communication. It helps you see how simple systems send and get data.
