In the relentless pursuit of faster data centers and enterprise networks, multimode fiber (MMF) has been a workhorse. Its cost-effectiveness and ease of use make it a go-to solution for short-reach applications. However, as we push for higher speeds—from 10G to 40G, 100G, and beyond—a subtle but critical phenomenon rears its head: Differential Mode Delay (DMD).
Ignoring DMD can lead to mysterious bit errors, reduced link reach, and frustrating network performance issues. This guide will break down this complex topic, explain its impact on your network, and show you how choosing the right components, like LINK-PP's premium optical modules, is the key to overcoming it.
📝 Key Takeaways
Differential mode delay (DMD) makes data move slower in fiber optics. Knowing about DMD helps you pick the best fiber for fast speeds.
Using few-mode fiber lowers DMD. This keeps light pulses close together and easy to read. It gives better signal quality and less mistakes.
Test your fiber often for DMD. This lets you find problems early and keep your network quick and steady.
Good ways to install fiber are very important. Do not bend the fiber sharply and keep it clean. This lowers DMD and helps the fiber work well.
📝 What is Differential Mode Delay (DMD)? A Simple Analogy
Imagine a stadium wave. If everyone stands up at exactly the same time, the wave travels around the arena perfectly. But if groups of people stand up at slightly different times, the wave becomes blurry, distorted, and eventually collapses.

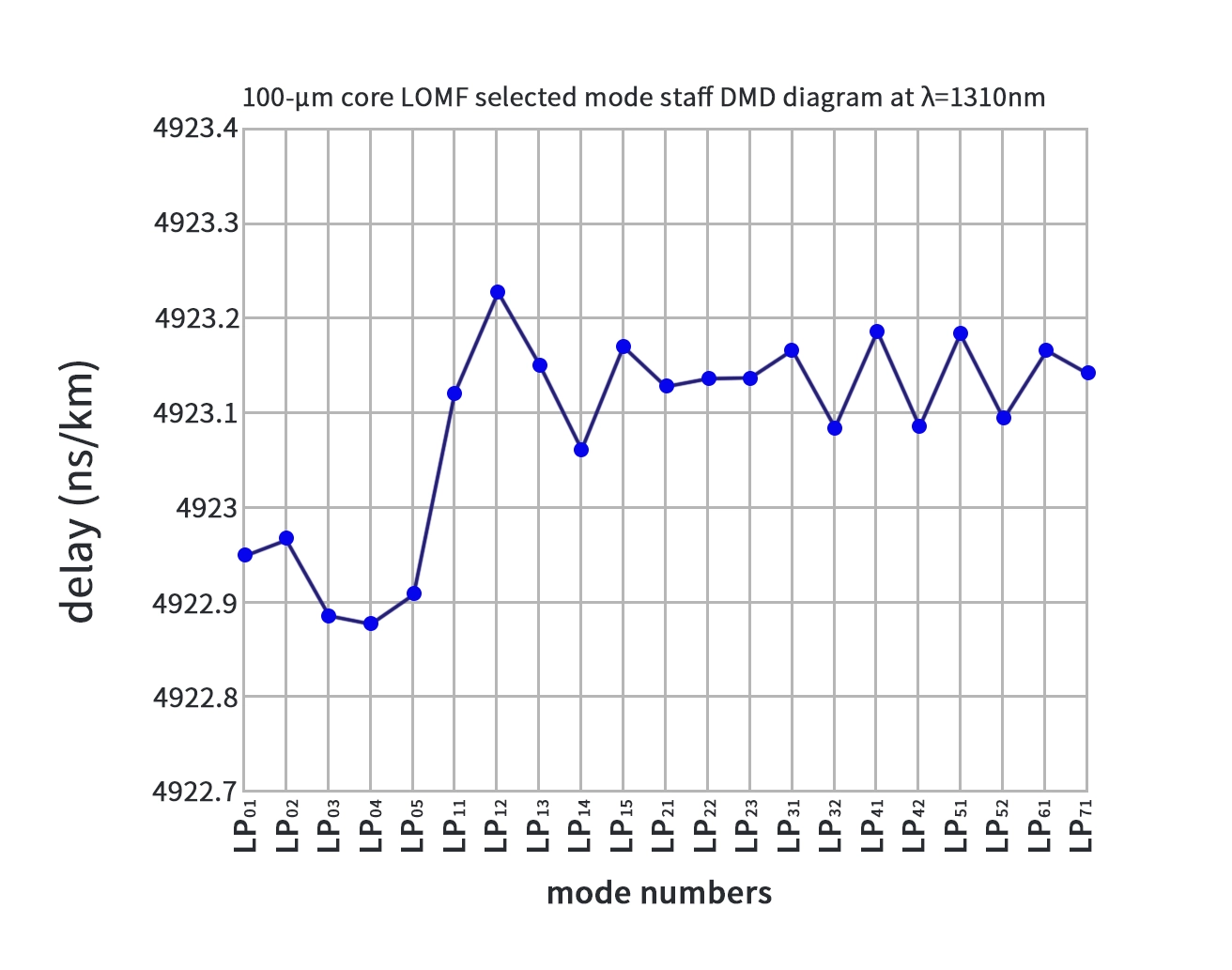

This is essentially what happens inside a multimode fiber. Light travels in multiple paths, or "modes." Differential Mode Delay is the variation in the propagation delay (travel time) between these different modes. Ideally, all light pulses would arrive at the end simultaneously. In reality, due to imperfections in the fiber's core, some modes travel faster than others, causing the initial sharp pulse to spread out in time.
This spreading is a form of modal dispersion, and DMD is its specific, measured characteristic.
📝 Why is DMD a Major Problem for Modern Networks?
DMD becomes a critical performance limiter as data rates increase. The pulses representing data bits are transmitted closer and closer together at higher speeds. If pulse spreading (due to DMD) is significant, the energy from one pulse spills into the time slot of the next pulse.
This effect, known as Inter-Symbol Interference (ISI), makes it incredibly difficult for the receiver to distinguish between a '1' and a '0'. The result? Increased Bit Error Rate (BER), link instability, and ultimately, network failure.
This is especially crucial for applications using Vertical-Cavity Surface-Emitting Lasers (VCSELs), the standard light source for high-speed MMF links. Unlike LEDs, which flood the fiber core with light, lasers inject a small, concentrated spot. This spot can excite a limited set of modes, making the link highly susceptible to DMD-induced distortion.
📝 Combating DMD: The Rise of Optimized Fiber and Optics
The industry's solution to this challenge is two-fold:
DMD-Optimized Multimode Fiber (OM3/OM4/OM5): Modern fiber is manufactured with stringent DMD specifications. This "laser-optimized" fiber is designed to minimize the delay differences between modes, ensuring cleaner signal transmission at 10G, 40G, and 100G speeds.
DMD-Tested and Compliant Optical Transceivers: Not all transceivers are created equal. High-quality modules are engineered and tested to work in harmony with DMD-optimized fiber. This is where the selection of your vendor becomes paramount.
📝 How LINK-PP Ensures Flawless Performance in DMD-Sensitive Applications
At LINK-PP, we engineer our optical transceivers to not only meet but exceed industry standards, proactively designing against challenges like Differential Mode Delay.
Our modules undergo rigorous testing to ensure optimal modal performance and low BER even at the extreme limits of their specified reach. We achieve this through precise control over the laser's characteristics and advanced signal processing algorithms.
For instance, our LINK-PP SFP-10G-SR and LINK-PP QSFP-100G-SR4 transceivers are meticulously designed to launch light in a way that minimizes the excitation of problematic mode groups that contribute to DMD. This results in a cleaner signal, a larger power budget, and a more stable link for your critical data center infrastructure.
Key Specifications of DMD-Compliant Transceivers:
Feature | Standard Transceiver | LINK-PP DMD-Optimized Transceiver | Benefit |
|---|---|---|---|
Laser Launch Profile | Uncontrolled, can overfill fiber core | Precisely controlled, center-launched | Minimizes excitation of delay-sensitive modes |
DMD Testing | Not always performed | Rigorously tested on DMD-challenging fiber | Guaranteed performance in real-world conditions |
Supported Data Rates | May struggle at max rated speed | Stable performance at 10G, 40G, 100G, 400G | Future-proofs your network investment |
Effective Reach | May experience reduced reach | Achieves maximum specified reach (e.g., 400m on OM4) | Provides design flexibility and margin |
📝 Conclusion: Don't Let DMD Undermine Your Network
Understanding Differential Mode Delay is no longer just for fiber physicists. For network architects and data center managers, it's a crucial factor in ensuring reliability and achieving the desired return on investment in high-speed infrastructure.
The simplest way to mitigate DMD risk is to use laser-optimized OM4/OM5 fiber and partner with an optical transceiver vendor that prioritizes performance engineering.
📝 FAQ
What is differential mode delay in fiber optics?
Differential mode delay happens when light pulses move at different speeds inside the fiber. You notice this in multimode fibers. The pulses do not arrive together. This can make your data move slower.
What does DMD slope show in fiber testing?
DMD slope tells you how much the delay changes for different modes. You use it to see if your fiber is good quality. If the DMD slope is low, your fiber can send signals faster and clearer.
What makes graded-index glass-core multimode fiber better for data?
Graded-index glass-core multimode fiber has a special core shape. This shape gives smoother paths for the light. It helps stop the pulses from spreading out too much. You can send data faster and make fewer mistakes.
What problems can high differential mode delay cause in telecommunication?
High differential mode delay can slow down your network. You might get more mistakes and lose connections. Telecommunication needs low delay to keep signals strong and steady.
What steps help you reduce differential mode delay?
You can pick few-mode fiber and install it with care. Do not bend the fiber too much and keep it clean. Test your fiber often to find and fix problems early.
