📡 What is eCPRI (Enhanced Common Public Radio Interface)?
eCPRI stands for Enhanced Common Public Radio Interface, a key fronthaul communication protocol that connects the Distributed Unit (DU) and Radio Unit (RU) in modern 5G networks. It was introduced in 2017 as an evolution of the legacy CPRI standard to address the bandwidth, latency, and scalability challenges of next-generation wireless systems.
Unlike the traditional CPRI, which relies on dedicated point-to-point links to transport raw I/Q samples, eCPRI is based on packet-switched Ethernet or IP/UDP networks. This shift allows operators to reuse standard Ethernet infrastructure, reduce cost, and increase flexibility.
📡 Why the Industry Moved from CPRI to eCPRI
Limitations of CPRI
The CPRI interface, widely used in 4G networks, consumes enormous bandwidth because it transmits raw baseband I/Q data continuously between the baseband unit and the remote radio head. As 5G introduced higher channel bandwidths and massive MIMO antennas, the required fronthaul data rate became unsustainable.
Benefits of eCPRI
To overcome these limitations, telecom vendors developed eCPRI, which:
Uses packet-based Ethernet transport instead of dedicated fiber links.
Reduces fronthaul bandwidth requirements by up to 10× compared with CPRI.
Supports flexible functional splits between DU and RU.
Enables multi-vendor interoperability and aligns with Open RAN initiatives.
Lowers deployment and operational costs through standard Ethernet hardware.
In essence, eCPRI transforms fronthaul from a rigid, hardware-defined link into a software-driven, IP-based network that scales with 5G demand.
📡 How eCPRI Works

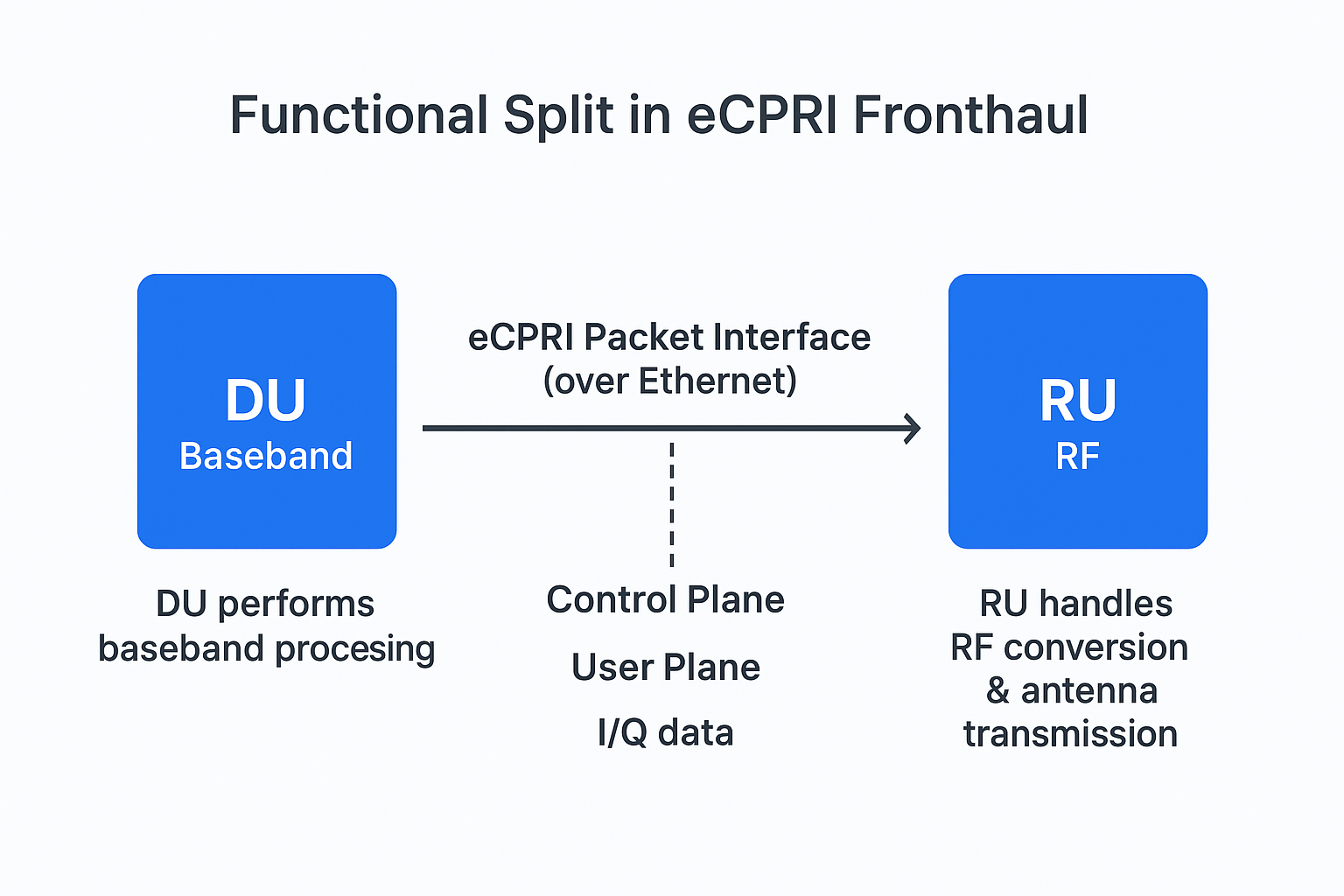

Functional Split in 5G RAN
In a 5G Radio Access Network (RAN), processing is distributed among:
CU (Central Unit) – handles high-layer functions like PDCP and RLC.
DU (Distributed Unit) – processes lower physical layer functions.
RU (Radio Unit) – manages radio frequency transmission and reception.
The DU-to-RU link—known as the fronthaul—uses eCPRI to transport user data, control information, and synchronization signals.
Protocol and Transmission
Transport layers: eCPRI supports transmission over Ethernet or IP/UDP.
EtherType: 0xAEFE identifies eCPRI frames in Ethernet packets.
Message types: IQ Data, Real-Time Control, One-Way Delay Measurement, Remote Reset, and others.
Synchronization: Supports IEEE 1588v2 Precision Time Protocol (PTP) for sub-microsecond timing accuracy.
Bandwidth and Performance
eCPRI operates over 10G, 25G, 50G or 100G Ethernet links.
It offers:
Lower latency (sub-100 µs fronthaul delay).
Reduced jitter for real-time applications.
Significantly smaller data payloads by transferring partially processed baseband data instead of raw samples.
📡 Advantages of eCPRI
1. Bandwidth Efficiency
By offloading certain baseband functions to the RU, eCPRI reduces fronthaul bandwidth consumption by up to 90% compared with CPRI.
2. Cost Reduction
Since it runs on standard Ethernet, operators can use commercial off-the-shelf (COTS) switches, routers, and optical modules instead of proprietary fiber links.
3. Open Architecture and Vendor Interoperability
eCPRI supports multi-vendor RAN environments and complements the O-RAN Alliance specifications, fostering interoperability and innovation.
4. Flexible Network Design
eCPRI enables operators to deploy Centralized RAN (C-RAN), Distributed RAN (D-RAN), or Cloud RAN (vRAN) architectures depending on latency and capacity requirements.
5. Future-Proof for 6G
The packet-based and software-configurable nature of eCPRI makes it adaptable for upcoming 6G networks, which will require even tighter synchronization and higher bandwidth.
📡 eCPRI in LINK-PP Optical Modules
For eCPRI-based 5G fronthaul networks, high-speed optical transceivers are essential to ensure signal integrity and low latency.

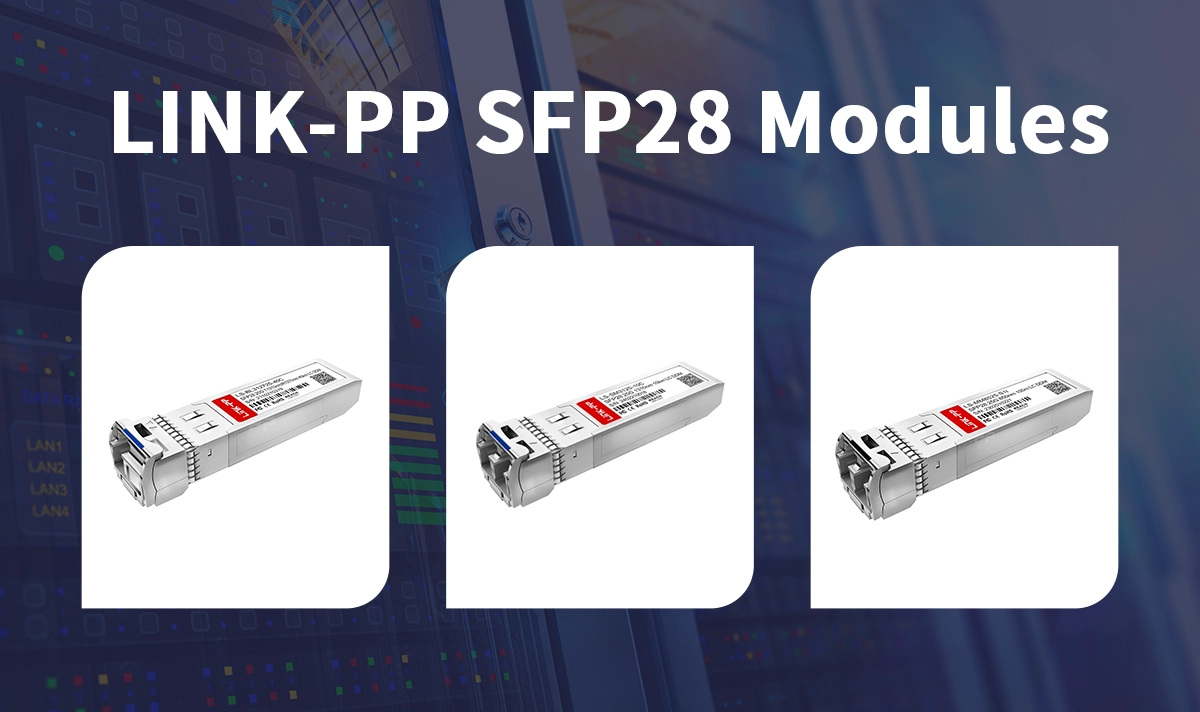

LINK-PP’s 25G SFP28 optical module is engineered for such environments, supporting:
25 Gbps Ethernet transmission, ideal for eCPRI links between DU and RU.
Compatibility with CPRI/eCPRI standards, ensuring interoperability across telecom vendors.
Low power consumption and industrial-grade temperature tolerance, suitable for outdoor base station deployments.
By combining LINK-PP’s reliable optical modules with Ethernet-based eCPRI architecture, operators can achieve high-speed, cost-efficient, and flexible 5G fronthaul connectivity.
📡 The Future of eCPRI and Open RAN
As Open RAN and virtualized RAN (vRAN) architectures expand globally, eCPRI’s importance will continue to grow. Its compatibility with packet transport, edge computing, and AI-driven network orchestration makes it an indispensable part of 5G and future 6G systems.
Emerging trends include:
Wider deployment of 25G/50G/100G optical links for fronthaul.
Integration with Time-Sensitive Networking (TSN) for deterministic Ethernet.
Enhanced security and encryption mechanisms for packet-based fronthaul traffic.
📡 Summary
eCPRI (Enhanced Common Public Radio Interface) is the backbone of modern 5G fronthaul communication. By replacing legacy CPRI’s point-to-point architecture with a flexible, Ethernet-based design, it achieves massive bandwidth savings, cost efficiency, and scalability.
In the 5G era, eCPRI enables efficient DU-RU communication, supports network virtualization, and paves the way for Open RAN and future 6G innovations.
LINK-PP’s high-performance optical transceivers and RJ45 connectors are fully compatible with eCPRI/Ethernet infrastructures—providing robust, reliable connectivity solutions for next-generation telecom systems.
