In our data-hungry world, networks are constantly juggling multiple conversations—streaming video, phone calls, emails—all at once. For this to work without chaos, we need a traffic management system for signals. One of the most pioneering and enduring techniques for this is Frequency-Division Multiplexing, or FDM.
This post will serve as your beginner-friendly guide to understanding this crucial telecommunications concept.
💡 What is Frequency-Division Multiplexing (FDM)?
Frequency-Division Multiplexing (FDM) is an analog multiplexing technique that combines multiple signals over a single communication channel by allocating to each signal a distinct frequency band within the total bandwidth available.

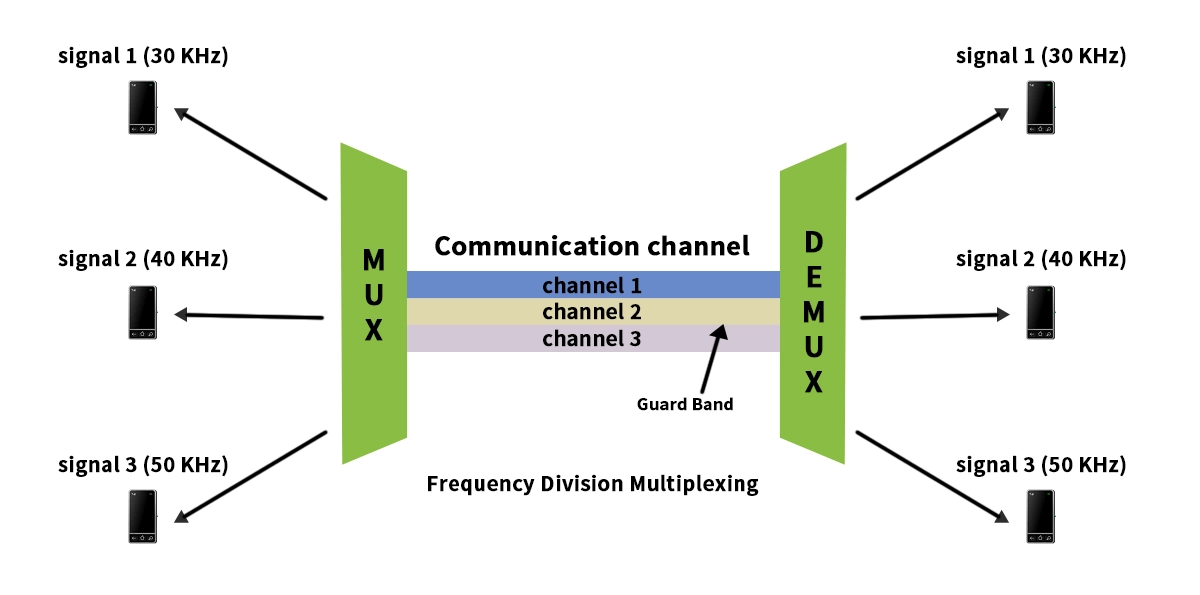

Think of it like a multi-lane highway. The entire road is the total bandwidth. Each car (data signal) travels in its own dedicated lane (frequency band). They all share the same road but never interfere with each other because they are separated by space (frequency). A guard band (like the median strip) between lanes prevents overlapping and crosstalk.
💡 How Does FDM Work? A Step-by-Step Breakdown
The process of FDM involves a few key stages at both the transmitting and receiving ends.
Generation & Modulation: Each individual signal (like a voice or data stream) is generated. These low-frequency signals are not suitable for long-distance transmission. Each signal is used to modulate a separate carrier wave. Modulation techniques like AM (Amplitude Modulation) or FM (Frequency Modulation) impress the original signal onto the carrier wave, shifting it to a higher, specific frequency.
Combining (Multiplexing): All these modulated carrier waves, each at its own unique frequency, are combined into a single, complex signal by a multiplexer (MUX). This composite signal is then sent over the shared communication medium (e.g., a coaxial cable, fiber optic line, or through the air).
Transmission: The composite signal travels through the channel.
Separation (Demultiplexing): At the receiving end, a demultiplexer (DEMUX) performs the reverse operation. It uses band-pass filters to isolate each individual carrier frequency based on its assigned band.
Demodulation: Each isolated signal is then demodulated, stripping away the carrier wave to extract the original baseband signal, which is then passed to its intended destination.
💡 Key Applications of FDM: Where is it Used?
FDM is a classic technology that paved the way for modern communications. Its applications are widespread:
Radio & Television Broadcasting: This is the most classic example. Every AM/FM radio station and broadcast TV channel is assigned its own specific frequency band to transmit its content. Your radio tuner acts as the demultiplexer, selecting the frequency you want to listen to.
First-Generation Cellular Networks: The 1G systems used FDM to separate voice calls between different users.
Fiber Optic Communications (WDM): While strictly not FDM, the principle is directly analogous. Dense Wavelength Division Multiplexing (DWDM) is the optical equivalent, where different data signals are carried on different wavelengths (colors) of light over a single fiber strand. This is a critical fiber optic technology for maximizing backbone network capacity.
Traditional Telephone Systems (POTS): FDM was used in early trunk lines to carry thousands of voice calls over a single physical cable.
💡 FDM vs. Other Multiplexing Techniques
While FDM separates signals by frequency, other methods use different principles. Here’s a quick comparison:
Feature | Frequency-Division Multiplexing (FDM) | Time-Division Multiplexing (TDM) | Wavelength-Division Multiplexing (WDM) |
|---|---|---|---|
Basis of Separation | Frequency | Time | Wavelength of Light |
Signal Type | Analog | Digital | Analog/Digital (Optical) |
Primary Use Case | Radio Broadcast, Analog TV | Digital Telephony (T1/E1 lines) | High-Speed Fiber Optic Networks |
Efficiency | Lower (due to guard bands) | Higher | Very High |
For maximizing the potential of both FDM and its modern counterparts, high-quality hardware is non-negotiable. This is where choosing the right optical transceiver becomes critical for network engineers.
💡 Maximizing Multiplexing Efficiency with LINK-PP Optical Transceivers
The theoretical principles of FDM and WDM are only as good as the hardware that implements them. To achieve low latency, high bandwidth, and exceptional signal integrity, you need reliable and high-performance transceivers.

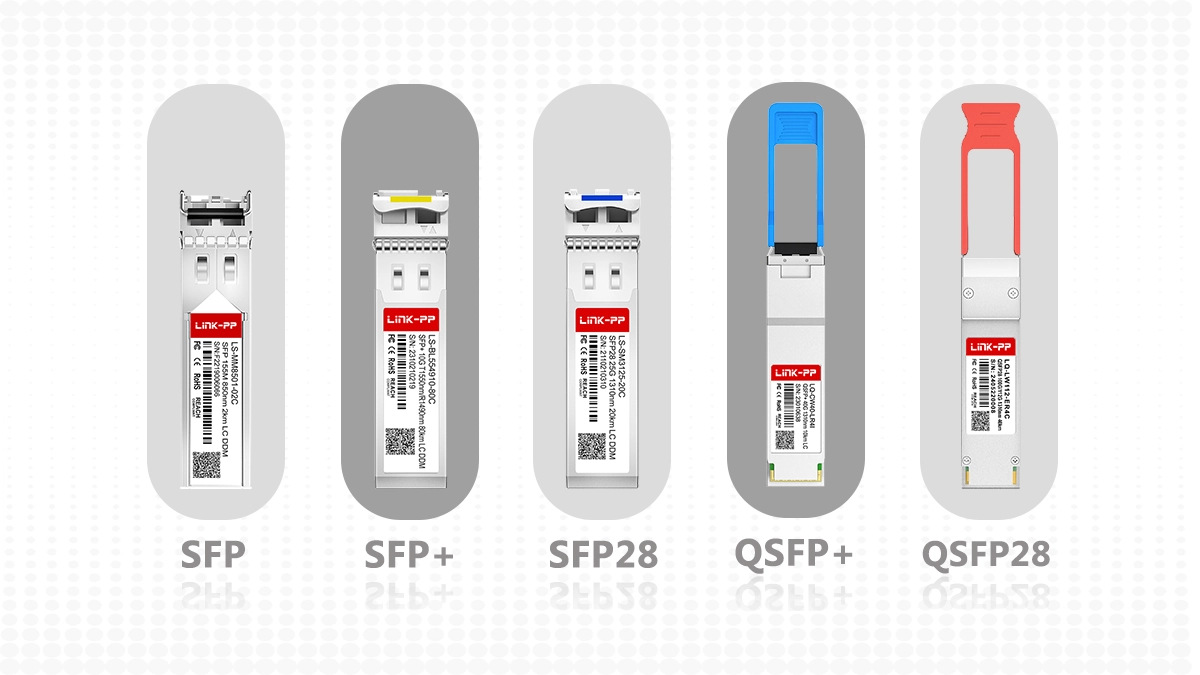

LINK-PP specializes in cutting-edge fiber optic transceivers designed to handle the demanding requirements of modern multiplexed networks. For instance, in a DWDM system, the LINK-PP DWDM 10G SFP+ transceiver is engineered for precision. It operates on specific ITU-grid wavelengths with extremely high stability, ensuring that your data streams remain isolated and clear, minimizing errors and maximizing throughput.
Whether you are managing a legacy system leveraging FDM or a state-of-the-art DWDM network architecture, using a quality optical transceiver module from a trusted brand like LINK-PP is a fundamental step in optimizing network performance and reducing bit error rates.
💡 Conclusion: The Enduring Legacy of FDM
Frequency-Division Multiplexing is a testament to a powerful and elegant idea. While pure analog FDM is less common in new digital systems, its core concept of dividing a spectrum into channels is more relevant than ever. It directly inspired the WDM technology that forms the backbone of the global internet, allowing us to push staggering amounts of data through a single fiber optic cable.
Understanding FDM provides a crucial window into the history and fundamental principles that make our interconnected world possible.
