✅ Introduction
In fiber-optic communication, designers and system engineers confront many performance metrics—optical power, extinction ratio, receiver sensitivity, jitter, etc. Among them, Optical Modulation Amplitude (OMA) is a central figure of merit for digital (on-off) modulation schemes. This article explains OMA from first principles, shows how to compute it, relates it to other metrics like extinction ratio, and discusses its role in real optical transceivers (e.g., LINK-PP SFP modules).
✅ What Is OMA (Optical Modulation Amplitude)?
Definition
OMA is defined as the difference between the optical power corresponding to a logic “1” (P₁) and that for logic “0” (P₀):
where both P₁ and P₀ are average power levels (in watts or milliwatts) during the “on” and “off” states, respectively.
Interpretation
In practice, OMA indicates the effective usable optical swing for signaling. If P₁ and P₀ are too close, the receiver may not reliably discriminate between “1” and “0.” A higher OMA typically leads to a lower bit error rate (BER), assuming noise and distortion are held constant.Peak-to-peak vs. average
OMA is often expressed as a peak-to-peak value, particularly when measured from eye diagrams (the difference between the top and bottom optical amplitude levels).
✅ Relationship with Average Power and Extinction Ratio
OMA does not exist in isolation. Two commonly used companion metrics are:
Average optical power
Combining these, one can express OMA in terms of Pavg and ER:
This formula arises from substituting P₁=ER⋅P₀ and solving the system of equations.
A few observations:
If the extinction ratio is very high (i.e., ER≫1, then ER−1/ER+1≈1, and OMA≈2Pavg.
In practice, the extinction ratio is limited by laser/device physics, so you seldom reach that ideal limit.
Because OMA depends both on the swing and on the baseline level P₀, it is a more realistic indicator of modulation strength than simply quoting P₁ alone.
✅ Why OMA Matters: Link Budget, Receiver Sensitivity, and Eye Diagrams
Here are key practical reasons OMA is a critical metric:
Receiver Sensitivity & BER
A receiver must reliably distinguish between high and low levels in the presence of noise, distortion, dispersion, and other factors. The margin between P₁ and P₀ (i.e., OMA) directly affects how much impairment the link can tolerate.Specification in Optical Modules
In datasheets for optical transceivers (such as SFP, SFP+, etc.), OMA (often as “OMA minimum” or “OMA typical”) is part of the optical budget constraints. System designers must ensure that the launched OMA, after accounting for all losses, remains sufficient at the receiver.Eye Diagram Interpretation

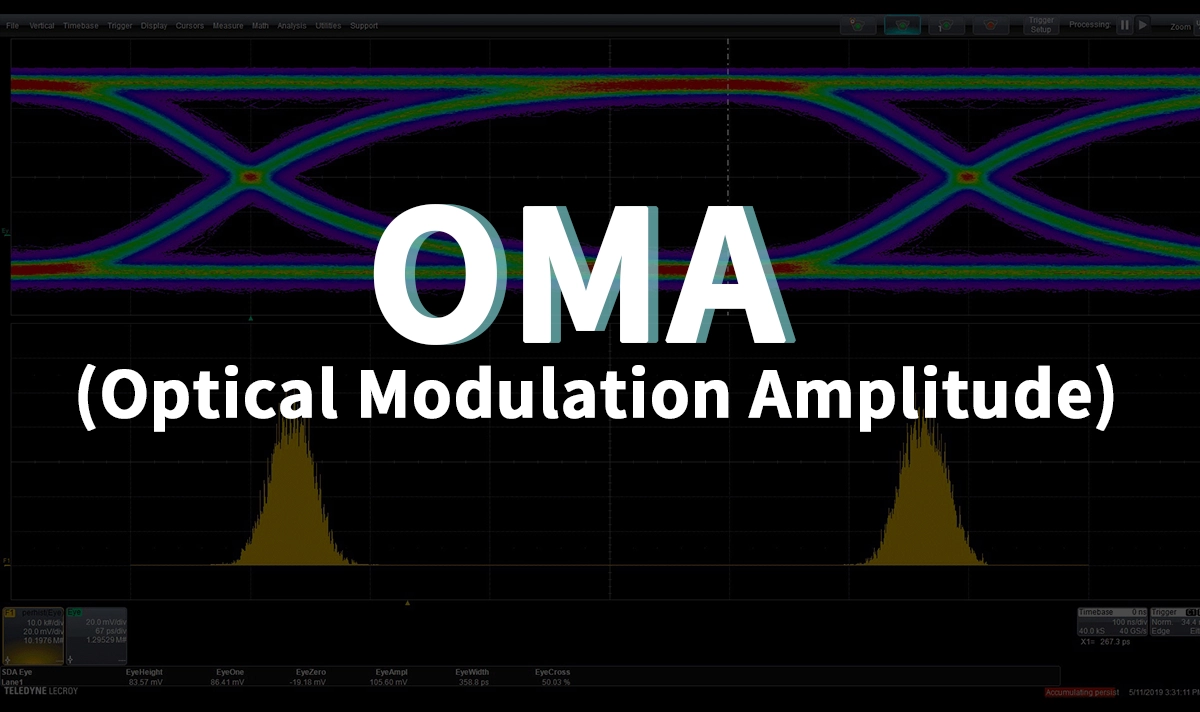

In an eye diagram, the vertical opening is closely related to OMA. Engineers often refer to the eye height or optical swing, which is a manifestation of OMA (minus distortions, noise margin, etc.).
Trade-offs and Limitations
Boosting OMA (e.g., by increasing drive current) can lead to higher nonlinearities, device heating, or degradation.
Pushing for a high extinction ratio also helps increase effective OMA, but extreme ER values may be impractical in certain lasers.
Over a long fiber or with high dispersion, the effective optical swing is reduced by impairments, so the delivered OMA is what matters more than the emitted OMA.
Optica / Optics Letters has published research about trade-offs between OMA, modulation efficiency, and impairments in advanced optical links.
✅ Best Practices & Design Tips
When choosing or specifying an optical transceiver, always check both minimum OMA and maximum OMA (to avoid receiver saturation).
Prefer modules whose specs include worst-case OMA under temperature, aging, and voltage variation.
In system design, budget for margin: the delivered OMA at the receiver will be less than the emitted OMA due to fiber attenuation, connector losses, dispersion, and other impairments.
Monitor the extinction ratio alongside OMA — a module with high OMA but poor extinction ratio may still perform worse than one with more balanced parameters.
Use high-quality test equipment (e.g., optical oscilloscopes with eye-measurement capability) to verify OMA in situ, especially under worst-case conditions.
✅ Conclusion
OMA (Optical Modulation Amplitude) is a fundamental metric in optical digital links. It quantifies the usable optical swing between “1” and “0” states, and it ties directly into BER, receiver sensitivity, and overall link budget. While simplified metrics like P₁ or average power are helpful, OMA — when viewed together with extinction ratio and system losses — gives engineers a deeper, practical understanding of signal margins in real-world fiber links.
If you are evaluating or comparing LINK-PP optical modules, always check their OMA and extinction ratio among the specification lines to ensure they will meet your link budget requirements.
