In the vast world of telecommunications, efficiently moving massive amounts of data is the ultimate goal. Imagine a single road needing to carry endless streams of cars without a traffic jam. This is the core challenge of networking. One of the most revolutionary solutions to this problem is Time-Division Multiplexing (TDM). Even in our era of packet switching, understanding TDM is key to grasping the foundation of modern digital communication.
This guide will demystify TDM, explaining how it works, where it's used, and its evolving role alongside today's technologies.
📝 What is Time-Division Multiplexing (TDM)? The Core Concept
Time-Division Multiplexing (TDM) is a method of transmitting multiple digital signals or data streams over a single communication channel by dividing the channel's time into distinct, recurring time slots. Each input signal is allotted a specific time interval, and during that interval, a piece of that signal is transmitted.
Think of it like a busy professor holding office hours for multiple students. Instead of having separate conversations in different rooms (multiple channels), each student is given a specific, repeating 5-minute slot to talk. The professor (the channel) dedicates their full attention to one student at a time, cycling through them all seamlessly.
📝 How Does TDM Work? A Step-by-Step Breakdown
The process involves a multiplexer (MUX) at the transmitting end and a demultiplexer (DEMUX) at the receiving end.
Multiple Input Signals: Several low-speed data streams (e.g., voice calls from different users) are fed into the multiplexer.
Time Slot Allocation: The MUX assigns a fixed, repeating time slot to each input stream. This is governed by a precise clock signal.

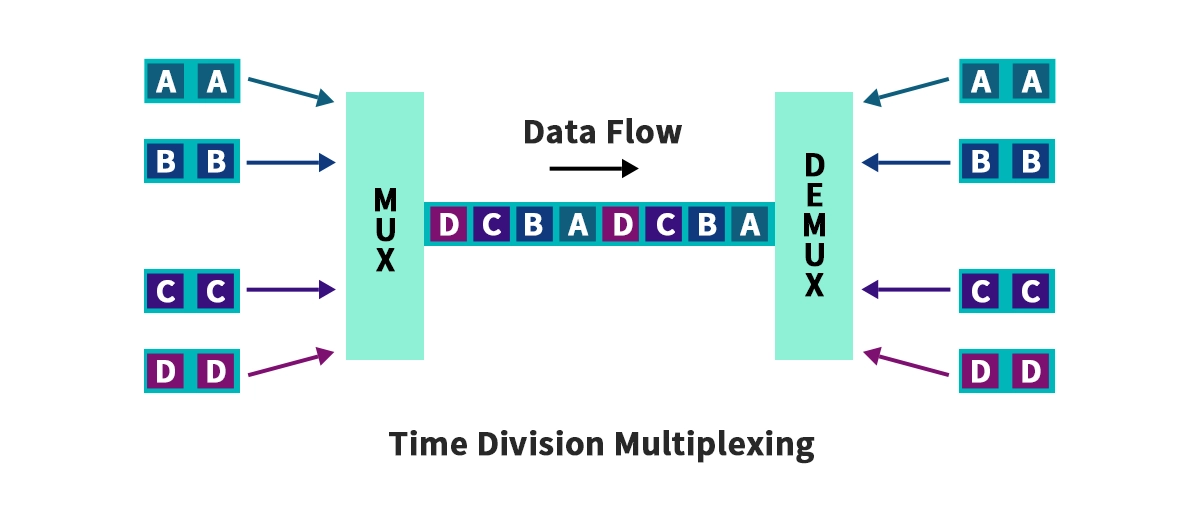

Transmission: The MUX rapidly switches between these inputs, taking a small sample or a "byte" of data from each stream in sequence and combining them into a single, high-speed digital transmission stream.
Reception: The combined signal travels over the medium (e.g., a fiber optic cable).
Synchronization & Demultiplexing: The DEMUX, perfectly synchronized with the MUX, receives the composite signal. It reads the frame, identifies the time slots, and directs the data from each slot to the correct output channel.
Reconstruction: The original low-speed signals are reconstructed and delivered to their intended destinations.
This entire process happens millions of times per second, making it incredibly efficient.
📝 TDM vs. FDM: What's the Difference?

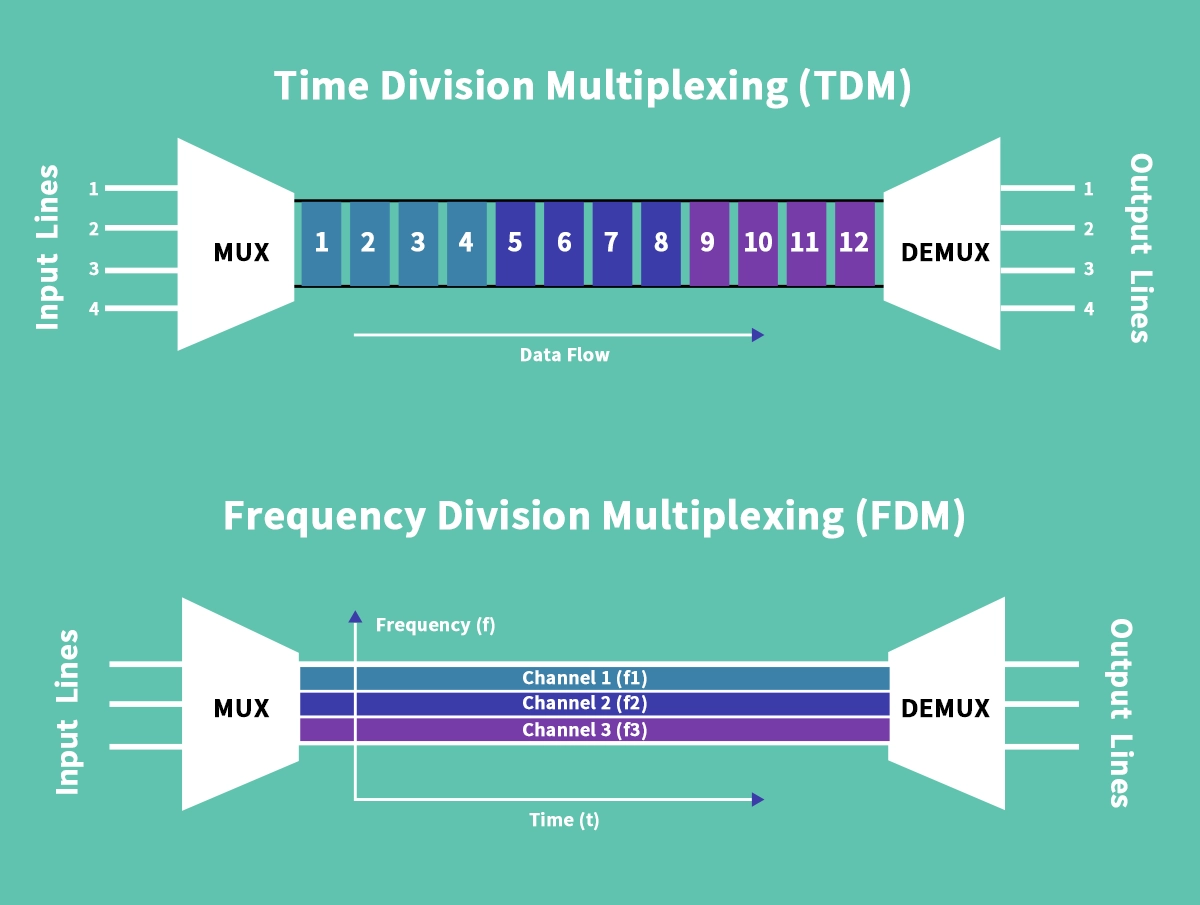

TDM is often compared to Frequency-Division Multiplexing (FDM). While both combine signals, they do it in fundamentally different ways. This table breaks down the key differences:
Feature | Time-Division Multiplexing (TDM) | Frequency-Division Multiplexing (FDM) |
|---|---|---|
Core Principle | Shares a single channel by allocating time slots. | Shares a single channel by allocating frequency bands. |
Nature of Signals | Digital | Analog |
Synchronization | Requires precise clock synchronization. | Does not require synchronization. |
Efficiency | Highly efficient; no guard bands needed. | Less efficient due to required guard bands between frequencies. |
Primary Use Case | Digital telephony (T1/E1 lines), SONET/SDH. | Radio broadcasting, analog TV, early cellular networks. |
📝 Common TDM Applications & Standards
TDM has been the backbone of digital networks for decades. Key applications and standards include:
Telephone Networks: The classic example. A T1 line (1.544 Mbps) combines 24 digital voice channels using TDM. An E1 line (2.048 Mbps) is the European standard, carrying 32 channels.
SONET/SDH: The Synchronous Optical Network (SONET) and Synchronous Digital Hierarchy (SDH) are the dominant protocols for high-speed fiber optic transmission over long distances. They use TDM principles to aggregate thousands of voice and data channels.
Digital Circuit Switching: TDM is inherently a circuit-switching technology, making it ideal for applications requiring constant, low-latency connections, like traditional voice calls.
📝 TDM in the Modern Age: Is It Still Relevant?
With the rise of the internet and Ethernet, packet-switching technologies (like IP) have become dominant for data traffic due to their superior flexibility and efficiency in handling bursty data.
However, TDM is far from obsolete. Its strengths in predictable latency and reliability make it irreplaceable for:
Mobile Backhaul: Connecting cell towers to the core network.
Enterprise Connectivity: Dedicated leased lines for businesses.
Legacy System Support: Many critical systems still rely on TDM infrastructure.
Furthermore, modern technologies often use hybrid models. For instance, LINK-PP's 10G CWDM and DWDM optical transceivers are designed to carry both native TDM traffic (like SONET/SDH) and packet-based IP traffic simultaneously over the same fiber, maximizing infrastructure investment. For a robust and reliable fiber optic deployment supporting mixed traffic types, the LINK-PP 10G-ER DWDM SFP+ module is an industry-leading choice.
📝 Conclusion: The Enduring Legacy of TDM
Time-Division Multiplexing is a foundational technology that revolutionized telecommunications by enabling efficient, high-capacity digital transmission. While newer packet-based methods dominate data networks, TDM's legacy lives on in the underlying infrastructure that powers our connected world. Understanding TDM is crucial for anyone working in network engineering, telecommunications, or IT.
