1️⃣ Introduction: What is a Capacitor?
A capacitor is a passive electronic component that stores electrical energy in an electric field. Unlike resistors, which dissipate energy, capacitors temporarily hold and release energy, making them essential for power management, filtering, and signal processing.
Measured in farads (F), capacitors are indispensable in modern electronics, ranging from consumer devices and industrial automation to networking equipment and automotive electronics.
2️⃣ How Do Capacitors Work?
Capacitors consist of two conductive plates separated by a dielectric material. When voltage is applied:
Positive charge accumulates on one plate.
Negative charge accumulates on the other.
The dielectric prevents direct current (DC) flow but allows alternating current (AC) signals and transient energy storage.
This property makes capacitors effective in smoothing voltage, coupling signals, and providing temporary backup power.

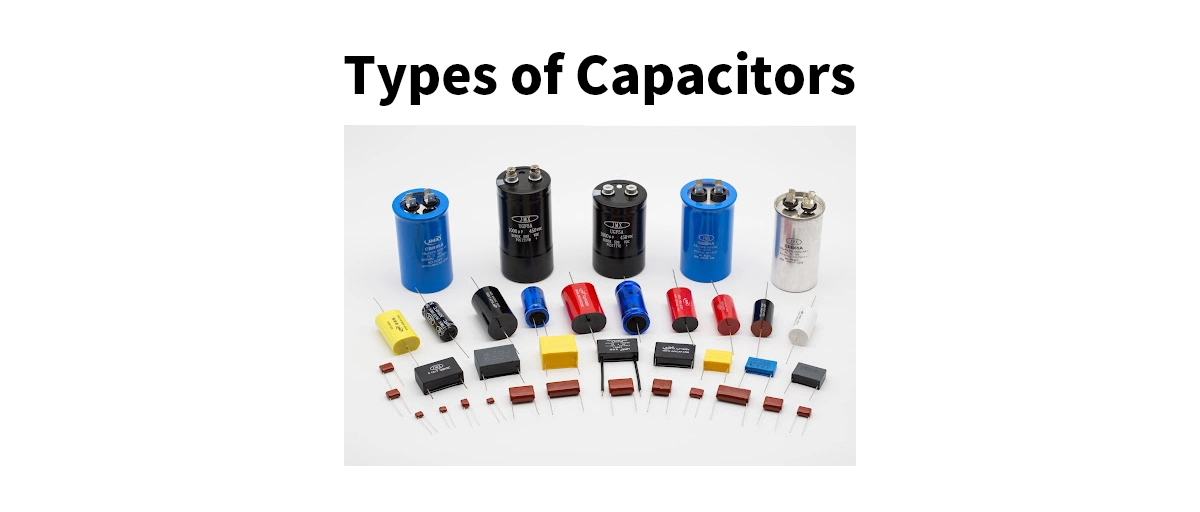

3️⃣Types of Capacitors
♦ Ceramic Capacitors
Widely used in high-frequency and general-purpose circuits.
Offer low inductance and stable performance.
Common in telecom and networking equipment.
♦ Electrolytic Capacitors
High capacitance values, ideal for power supply filtering and energy storage.
Polarized, suitable for DC applications.
Common in industrial and automotive power systems.
♦ Film Capacitors
Excellent stability and reliability.
Suitable for high-voltage and high-frequency applications.
Used in power electronics and motor drives.
♦ Tantalum Capacitors
Compact with high capacitance-to-volume ratio.
Stable across a wide temperature range.
Preferred in aerospace, medical, and portable electronics.
♦ Supercapacitors (Ultracapacitors)
Extremely high capacitance.
Used for energy storage, backup power, and regenerative braking systems.
♦ Surface Mount Capacitors (SMD)
Compact, reliable, and optimized for modern PCB designs.
Essential in networking devices, IoT hardware, and telecom systems.
4️⃣ Key Specifications to Consider
When selecting capacitors, engineers and sourcing managers must evaluate:
Capacitance Value (F) – Determines the amount of charge stored.
Rated Voltage (V) – Maximum safe operating voltage.
Equivalent Series Resistance (ESR) – Affects efficiency and heat generation.
Tolerance (%) – Accuracy of capacitance value.
Temperature Coefficient – Stability across varying conditions.
Package Type (Through-Hole, SMD) – Compatibility with assembly methods.
Reliability and Certifications – Critical in networking, telecom, and automotive industries.
5️⃣ Applications of Capacitors
Capacitors play a vital role in diverse industries:
Power Supply Filtering – Stabilizing output in networking and industrial equipment.
Signal Coupling & Decoupling – Ensuring clean communication signals.
Timing Circuits – Used in oscillators and delay circuits.
Energy Storage & Backup – Supporting short-term power needs in servers and telecom systems.
Motor Drives & Inverters – Enhancing reliability in industrial automation.
Automotive Electronics – Supporting ECUs, sensors, and LED systems.
