The insatiable global demand for data, driven by AI, machine learning, and hyperscale computing, is pushing network infrastructure to its physical limits. For decades, the industry has relied on pluggable optics—those versatile, hot-swappable transceivers you slide into the front of a switch. But as we race toward 800G, 1.6T, and beyond, a new paradigm is emerging: Near-Packaged Optics (NPO).
This isn't just an incremental upgrade; it's a fundamental shift in how we design network hardware. In this deep dive, we’ll unpack what NPO is, how it differs from its cousins like CPO, and why it’s a critical solution for next-generation data centers and high-performance computing.
📝 Key Takeaways
Near-packaged optics (NPO) helps send data faster. It puts the optical engine close to the switching chip. This makes things work better.
NPO lets you upgrade easily. You do not have to redesign your whole system. This saves time and money.
This technology uses less power. It lowers energy costs. It also keeps systems cooler.
NPO gives more choices for network designs. It is easier to change for future needs. You do not need big changes.
NPO has many good points. You must plan well for scaling and deployment. This helps avoid space and training problems.
📝 The Challenge: Why Pluggables Are Hitting a Wall
Pluggable optical transceivers have been the workhorse of networking for good reason. They offer flexibility, interoperability, and simplified maintenance. However, at higher speeds, their inherent design creates bottlenecks:
Power Consumption: The electrical signals traveling from the switch's ASIC (the main brain) to the pluggable module on the front face significant signal loss, especially over the longer PCB traces. Compensating for this loss requires more power, leading to inefficient systems.
Density: As we move to higher port counts and speeds (e.g., 128x 800G ports), the physical space required for pluggable cages and the heat they generate becomes unmanageable.
Signal Integrity: At data rates of 1.6 Terabits per second and beyond, the signal degradation over the longer electrical path inside the switch becomes a major hurdle for clean data transmission.
This is where advanced optical connectivity solutions like NPO come into play, offering a more integrated and efficient path forward.
📝 The Solution: Unpacking Near-Packaged Optics (NPO)

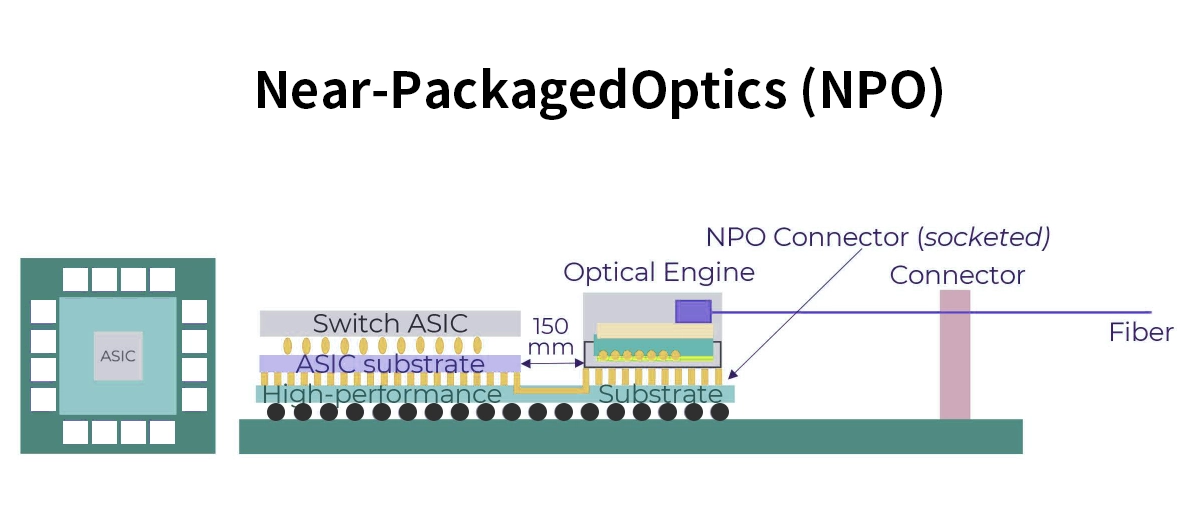

Near-Packaged Optics (NPO), sometimes referred to as NPO (Near Package Optics), is an architectural innovation where the optical engine is moved off the switch's main ASIC but is placed extremely close to it on the same board, typically within a few centimeters.
Think of it like this: instead of the ASIC having to "shout" a signal all the way to the front panel of the switch (as with pluggables), with NPO, the optical component is a "close neighbor" on the same street, allowing for a quiet, efficient conversation.
Key Characteristics of NPO:
The optical engine is separated from the ASIC but located on the same PCB substrate.
It connects to the ASIC via very short, high-speed electrical traces.
It is typically a soldered-down (non-pluggable) component.
The optical fiber connectors are on the faceplate, but the core electronics are integrated onto the board.
📝 NPO vs. CPO vs. Pluggable: A Clear-Cut Comparison
To truly understand NPO's role, it's best to see it in the context of other co-packaged optics technologies. The following table breaks down the key differences.
Feature | Traditional Pluggable Optics | Near-Packaged Optics (NPO) | Co-Packaged Optics (CPO) |
|---|---|---|---|
Integration Level | Low (Separate Module) | Medium (On-board, near ASIC) | High (Inside ASIC Package) |
Distance from ASIC | Farthest (~10-20cm) | Very Close (~1-5cm) | Integrated (0cm) |
Form Factor | Pluggable, Hot-swappable | Soldered, Fixed | Soldered, Fully Integrated |
Power Efficiency | Lower | Higher | Highest |
Thermal Management | Per-module cooling | Centralized board cooling | Complex, co-designed cooling |
Upgradability | Excellent | Limited | Very Difficult |
Manufacturing Complexity | Low (Standardized) | Medium | Very High |
Best For | General Data Centers, Flexibility | AI/ML Clusters, HPC, Hyperscale | Future-generation systems ( post-3.2T) |
As the table illustrates, NPO strikes a crucial balance between performance and practicality. It offers a significant leap in power efficiency and density over pluggables without the extreme manufacturing complexity and vendor lock-in of CPO.
📝 The Tangible Benefits: Why the Industry is Moving to NPO
Adopting NPO architecture brings several compelling advantages for high-density network switch deployments:
✅ Dramatically Improved Power Efficiency: By drastically reducing the electrical path length, NPO can cut the power consumption associated with the drive circuitry by up to 30-50% compared to pluggables. This is a game-changer for building sustainable data centers.
✅ Enhanced Signal Integrity: Shorter electrical links mean less signal attenuation and distortion, enabling cleaner data transmission at speeds of 800G, 1.6T, and beyond.
✅ Increased System Density: By eliminating bulky pluggable cages, NPO allows switch manufacturers to pack more ports into a single system, a critical factor for AI/ML workload optimization and large-scale fabric builders.
✅ Reduced System Cost: While the initial component cost might be higher, the overall system cost can be lower due to a simpler PCB design, reduced cooling requirements, and lower operational power costs.
📝 NPO in Action: The Critical Role of Optical Modules
It's a common misconception that NPO eliminates the optical transceiver. In reality, the function of the module is simply repackaged. The laser, modulator, and photodetector components are integrated into a compact, onboard optical engine.
This is where expertise in optical design becomes paramount. Companies like LINK-PP are at the forefront, developing integrated optical engines specifically designed for NPO architectures. These engines are engineered for high performance and reliability in a soldered-down environment.
For instance, the 800G-DR8 NPO Engine is a prime example, offering a robust and power-efficient solution for next-generation top-of-rack (ToR) switches and AI training clusters. This specific model demonstrates how LINK-PP's commitment to innovation is directly addressing the core challenges of modern data center interconnects (DCI).
📝 The Challenges and Future of NPO
No technology is without its hurdles. The primary challenges for NPO adoption include:
Supply Chain and Interoperability: The ecosystem is still maturing, moving away from the multi-source agreements (MSAs) that made pluggables so universal.
Repairability: A soldered-down component is harder to replace than a pluggable one, requiring a shift in operational and maintenance thinking.
Thermal Design: Concentrating more power on the main board requires sophisticated and centralized thermal management solutions.
Despite these challenges, the trajectory is clear. As data rates continue to climb, the industry will inevitably move towards greater integration. NPO is not the final destination but a crucial and pragmatic stepping stone on the path from pluggables to fully co-packaged optics, perfectly positioned to serve the exploding market for high-speed data center interconnects.
📝 Conclusion: NPO - The Pragmatic Path Forward
Near-Packaged Optics represents the smart, evolutionary step in the optics roadmap. It delivers the substantial power and performance gains needed for the AI era without the radical risks of full co-packaging. By balancing high efficiency with manageable complexity, NPO is set to become the dominant architecture for high-performance switches in hyperscale data centers and HPC environments.
For network architects and data center operators, understanding and planning for this transition is no longer optional—it's essential for staying competitive. As leaders in this space, LINK-PP continues to drive the NPO ecosystem forward, providing the critical components needed to build the faster, greener, and more efficient networks of tomorrow.
📝 FAQ
What is the main purpose of near-packaged optics?
Near-packaged optics helps you send data faster and use less power. You place the optical engine close to the switching chip. This setup makes your network work better without big changes.
What makes NPO different from co-packaged optics?
You keep the optical engine and switching chip separate with NPO. Co-packaged optics puts them together in one package. NPO gives you more flexibility for upgrades and repairs.
What benefits do you get from using NPO?
You save money and energy. You upgrade your network easily. You use standard tools for installation. NPO helps you keep your system simple and efficient.
What challenges might you face with NPO?
You need enough space on your board for more optics. Your team may need training for new parts. Planning helps you avoid problems as your network grows.
What types of networks use near-packaged optics?
You find NPO in data centers, cloud services, and high-performance computing. Many companies use it to move large amounts of data quickly and save energy.
