Before PTP, the Network Time Protocol (NTP) was the standard for synchronizing clocks over a network. While NTP is excellent for synchronizing to within milliseconds, which is fine for many IT applications, modern industrial and financial systems demand far greater accuracy.
Precision Time Protocol, defined by the IEEE 1588 standard, was developed to fill this gap. It is designed to synchronize clocks in a distributed system with sub-microsecond precision over a local area network (LAN). This makes it indispensable for sectors where timing is not just convenient but crucial.
📜 What is Precision Time Protocol (PTP)? A Technical Deep Dive
At its core, PTP is a protocol that allows for the precise synchronization of clocks across a network. Unlike NTP, which typically operates in a client-server hierarchy, PTP uses a more sophisticated master-slave architecture and relies on hardware timestamping to achieve its remarkable accuracy.
The primary goal of PTP is to measure and counteract the network delays that cause clocks to drift apart. It does this by exchanging a series of timed messages between a master clock (the most accurate time source) and slave clocks (the clocks to be synchronized).
The Key Steps in PTP Synchronization:
Sync and Follow-Up Messages: The master sends a Sync message, noting the precise time (t1) it was sent. If the hardware supports it, it immediately sends a Follow_Up message containing the exact timestamp t1.
Delay Request and Response: The slave then sends a Delay_Req message back to the master, noting the time (t3) it was sent. The master receives it at time t4 and sends a Delay_Resp message back with the timestamp t4.
With these four timestamps (t1, t2, t3, t4), the slave clock can calculate both the offset from the master clock and the network delay, allowing it to adjust itself with extreme precision.
📜 PTP vs. NTP: A Head-to-Head Comparison
Why choose PTP over the more well-known NTP? The following table breaks down the key differences, which is essential for anyone planning a high-accuracy network synchronization project.
Feature | Precision Time Protocol (PTP) | Network Time Protocol (NTP) |
|---|---|---|
Precision | Sub-microsecond to nanosecond | Milliseconds |
Architecture | Master-Slave (Hierarchical) | Client-Server |
Timestamping | Hardware-based (in switches and NICs) | Software-based |
Primary Use Case | Industrial Automation, Finance, Telecom | IT Networks, General Computing |
Network Dependency | Requires PTP-aware network hardware | Works on standard IP networks |
Standard | IEEE 1588 | RFC 5905 |
As you can see, for applications where every nanosecond counts, PTP is the undisputed winner. Implementing a robust PTP infrastructure often requires specialized components, including PTP-grandmaster clocks and network equipment that supports hardware timestamping.
📜 Where is PTP Used? Key Applications
The unparalleled accuracy of PTP has made it a cornerstone technology in several high-stakes industries. When searching for "PTP for industrial automation" or "financial trading timestamping requirements," you'll find PTP at the heart of the solution.
Telecommunications (5G Mobile Networks): 5G technology relies on precise timing for coordinating radio signals between cell towers. PTP is fundamental to the functionality of 5G networks, ensuring seamless handovers and low latency.
Financial Services & Algorithmic Trading: In stock exchanges and high-frequency trading, the exact sequence of transactions is legally binding. PTP provides the nanosecond timestamping needed to maintain a fair and auditable market.
Industrial IoT & Industry 4.0: In automated manufacturing and process control, robots and sensors must operate in perfect unison. PTP synchronization ensures coordinated motion and data collection.
Power Utilities & Smart Grids: Phasor Measurement Units (PMUs) in the power grid use PTP to synchronize measurements across vast distances, allowing for real-time monitoring and stability control.
Audio/Video Broadcasting: For live broadcasts involving multiple cameras and audio sources from different locations, PTP ensures perfect lip-sync and frame alignment.
📜 The Critical Role of Optical Modules in PTP Networks

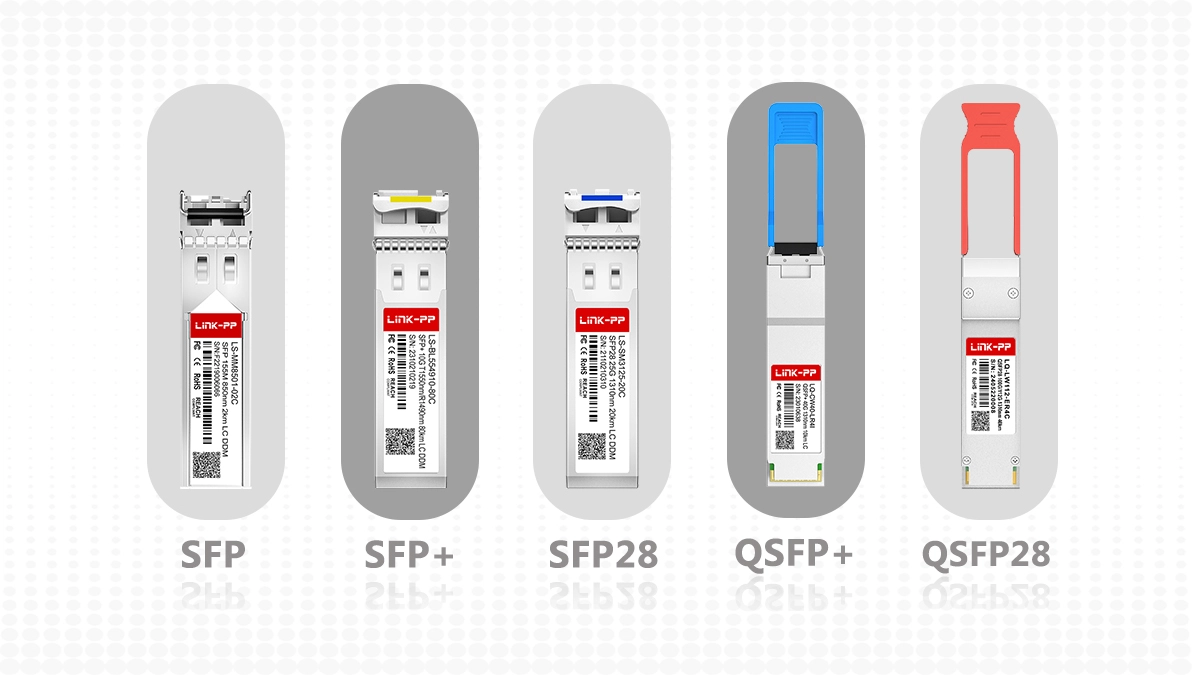

When designing a PTP-aware network, every component must be optimized for low latency and high reliability. This is where optical transceivers, become a vital piece of the puzzle. These devices convert electrical signals to optical light and back, facilitating high-speed data transmission over fiber optic cables.
In a PTP context, the quality of your optical modules directly impacts timing accuracy. Inferior modules can introduce jitter and latency variations, which undermine the sub-microsecond precision PTP is designed to achieve. For a flawless PTP implementation best practices, it's crucial to use high-quality, compliant components.
This is where choosing a reliable supplier makes all the difference. For instance, the LINK-PP SFP28-10G-LR optical module is engineered for high-performance applications requiring stable, low-jitter data links. Its robust design ensures consistent performance, making it an excellent choice for integrating into time-sensitive network backbones that rely on PTP. By using dependable hardware like LINK-PP's products, network architects can minimize potential points of failure and ensure their timing infrastructure is built on a solid foundation.
💡 Pro Tip: Always verify that your optical modules, such as the LINK-PP SFP28-10G-LR or other LINK-PP models compatible with your switches, are certified for PTP-enabled hardware to guarantee optimal performance.
📜 Conclusion: Is PTP Right for Your Network?
Precision Time Protocol is more than just an incremental upgrade to NTP; it's a paradigm shift for applications where time is a critical resource. From enabling the next generation of wireless communication to ensuring the integrity of global financial markets, PTP's impact is profound and growing.
Understanding the protocol's mechanics, its hardware requirements—including the strategic selection of optical modules—is the first step toward building a faster, more precise, and more reliable networked system.
📜 FAQ
What is the main purpose of Precision Time Protocol?
Precision Time Protocol keeps clocks on devices matching. This helps your network work well. It makes sure events happen in the right order.
What hardware do you need for PTP?
You need network devices that use hardware time stamping. Switches and routers with PTP features give you better accuracy.
What problems can PTP help you solve?
PTP stops data loss and timing errors. It also helps machines talk to each other. You see fewer mistakes when all devices share the same time.
What industries use PTP the most?
PTP is used in telecommunications, power utilities, factories, finance, and broadcasting. These jobs need very accurate timing for their systems.
What is the difference between PTP and NTP?
PTP gives you higher accuracy than NTP. NTP keeps clocks close, but PTP keeps them even closer. Use PTP when you need exact timing.
