ASK vs FSK vs PSK: Unlocking the Secrets of Digital Modulation

In the invisible world of digital communication, data doesn't just magically float through the air or zip through fiber optic cables. It needs to be carefully imprinted onto a carrier signal to travel vast distances. This process is called digital modulation, and it's the fundamental language of modern connectivity, from your Wi-Fi router to transcontinental undersea cables.

Three foundational techniques form the bedrock of this language: Amplitude Shift Keying (ASK), Frequency Shift Keying (FSK), and Phase Shift Keying (PSK). Understanding their differences is key to grasping how our digital world operates. Let's dive in and decode these essential technologies.

💡 Amplitude Shift Keying (ASK): The Simple Switch

What it is: ASK modulates data by varying the amplitude (i.e., the strength or height) of the carrier wave. The simplest form, On-Off Keying (OOK), uses the presence of a carrier wave to represent a binary '1' and its absence to represent a binary '0'.

How it works:

• Binary '1': High amplitude carrier wave.

• Binary '0': Low or zero amplitude carrier wave.

Pros & Cons:

Applications: ASK is often used in low-cost, short-range RF applications like garage door openers, RFID tags, and early fiber optic transmitters. Its simplicity makes it cheap but limits its performance in noisy environments.

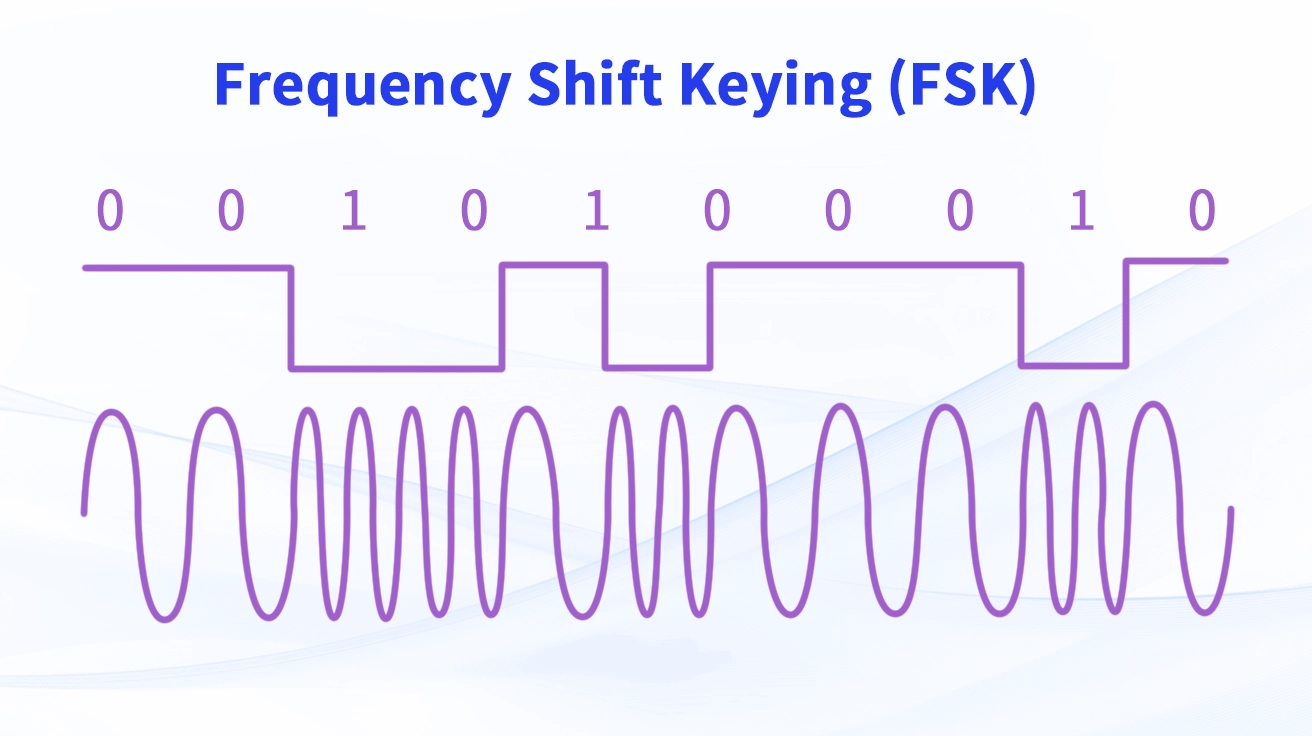

💡 Frequency Shift Keying (FSK): Tuning Between Frequencies

What it is: FSK encodes data by shifting the frequency of the carrier wave between two predefined values. A binary '1' is represented by one frequency, and a binary '0' by another.

How it works:

• Binary '1': Carrier wave at frequency f₁.

• Binary '0': Carrier wave at frequency f₂.

Pros & Cons:

Applications: FSK is renowned for its robustness. It's widely used in telemetry, modem communications, Bluetooth (using a variant called GFSK), and emergency broadcast systems where signal integrity is crucial.

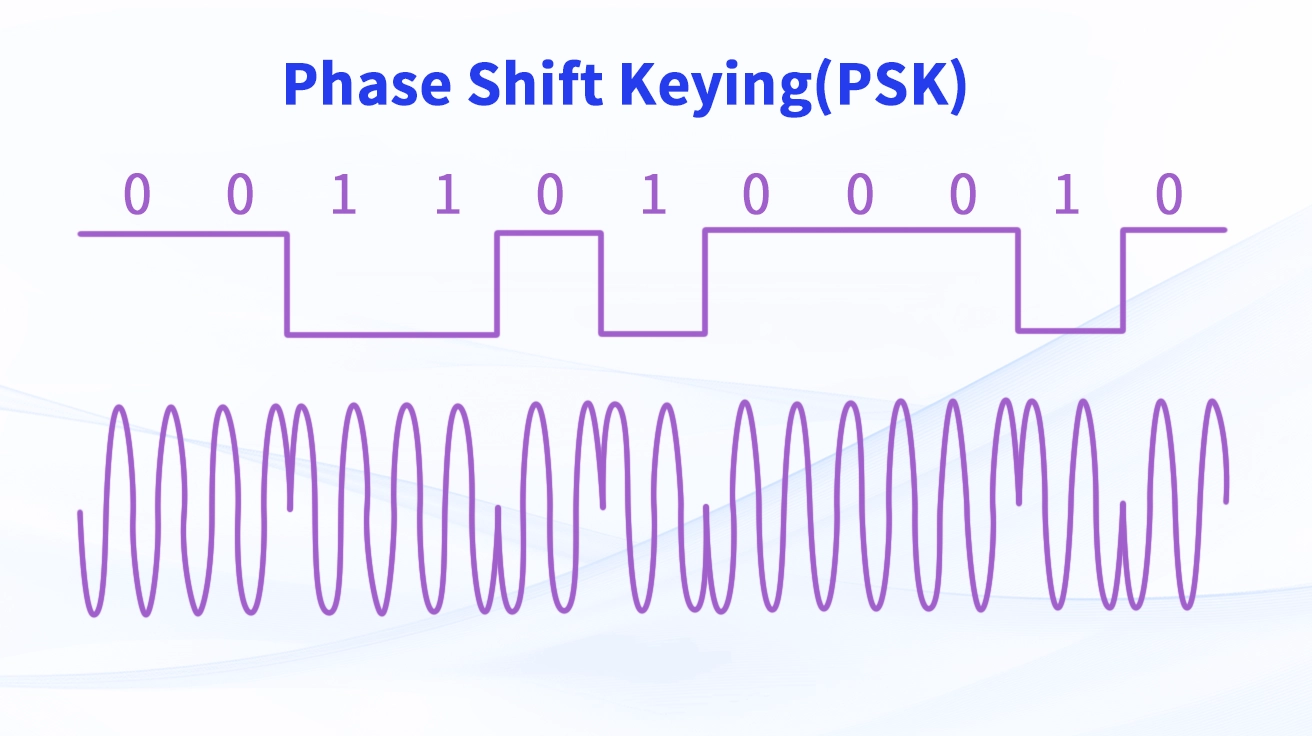

💡 Phase Shift Keying (PSK): The Master of Phase Shifts

What it is: PSK conveys data by changing the phase of the carrier wave. A phase shift (e.g., 0° or 180°) represents a different binary symbol. Its most advanced forms pack multiple bits per symbol, making it highly efficient.

How it works (BPSK - simplest form):

• Binary '0': Carrier wave with 0° phase shift.

• Binary '1': Carrier wave with 180° phase shift.

Advanced versions like Quadrature PSK (QPSK) use four phase shifts to encode two bits per symbol (00, 01, 10, 11), effectively doubling the data rate.

Pros & Cons:

Applications: PSK is the powerhouse behind modern high-speed communications. It's used in Wi-Fi standards, satellite TV, broadband internet (DSL/cable modems), and crucially, in optical communication systems for high-speed data centers and telecommunications networks.

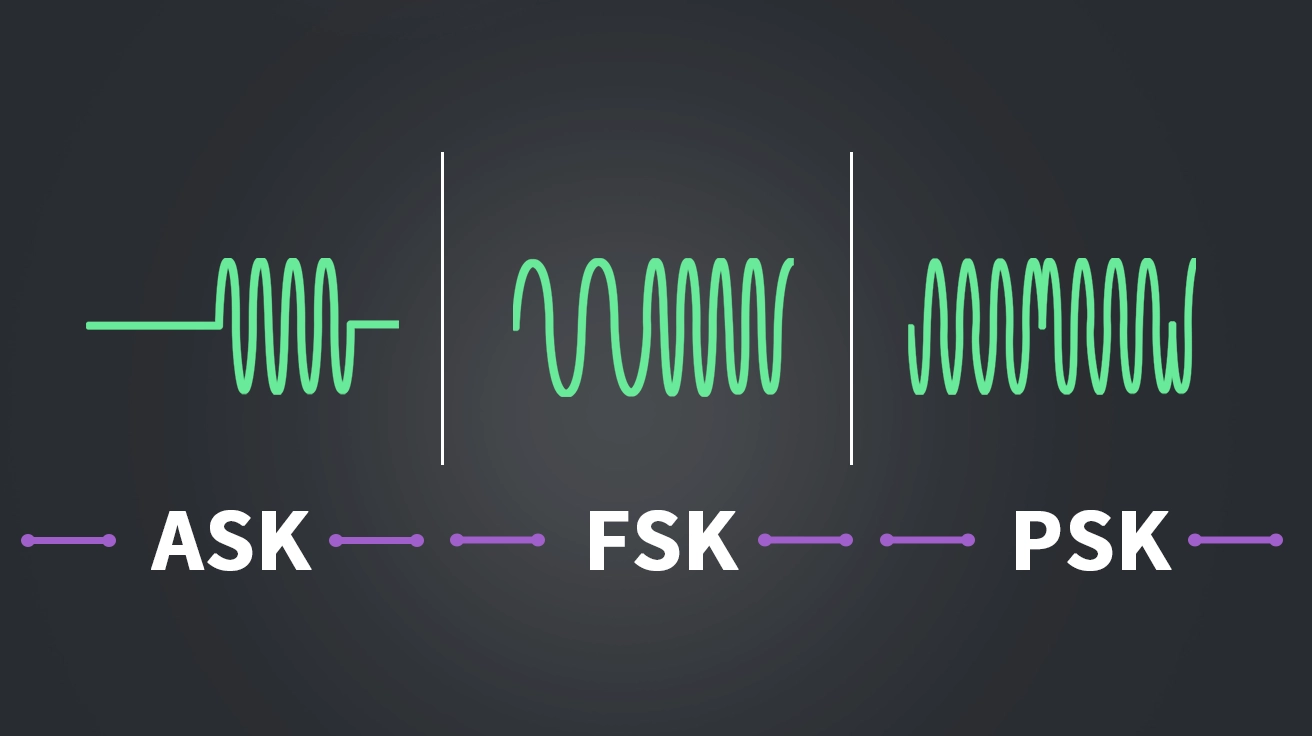

💡 Head-to-Head Comparison: ASK vs FSK vs PSK

💡 The Role in Modern Optical Communication & LINK-PP

In the realm of high-speed data center interconnects and fiber optic networks, efficiency and noise immunity are paramount. This is where advanced modulation formats like PSK and its derivatives (e.g., Differential Phase-Shift Keying - DPSK) truly shine. They allow optical transceivers to transmit massive amounts of data over incredibly long distances with minimal errors.

For network engineers building reliable infrastructure, choosing the right optical transceiver is critical. This is where a trusted brand like LINK-PP provides essential solutions. LINK-PP's optical modules are engineered to leverage these advanced modulation techniques, ensuring maximum performance and reliability for your high-bandwidth, low-latency network requirements.

For instance, the LINK-PP LS-SM3125-10C optical module utilizes sophisticated modulation to deliver 25Gbps data rates over single-mode fiber, perfect for 5G fronthaul and backend data center connectivity. Understanding the underlying modulation scheme helps in selecting the right component, like a LINK-PP QSFP-DD module for 400G applications, ensuring your infrastructure is built on a solid, high-performance foundation.

💡 Conclusion: Choosing the Right Tool for the Job

There is no single "best" modulation technique. Each has its place:

• Use ASK for simplicity and cost in benign environments.

• Choose FSK for reliable, noise-resistant low-to-medium speed links.

• Opt for PSK (and its variants like QAM) for high-speed, high-efficiency applications like modern networking and optical communication systems.

The evolution of these techniques continues to drive the capabilities of our global networks, pushing the boundaries of speed and reliability.

Ready to build a faster, more reliable network with precisely the right technology? Explore LINK-PP's full range of high-performance optical transceivers designed for the demands of tomorrow's data infrastructure.

➡️ Browse LINK-PP Optical Transceivers and find the perfect module for your application today!

💡 FAQ

What is the easiest modulation method to learn?

You can start with ASK. The circuits use simple parts. You do not need advanced tools. Many beginners choose ASK for their first wireless project.

Tip: Try ASK if you want to learn digital modulation quickly.

Which method works best in a noisy environment?

FSK gives you better noise immunity. The receiver can separate your signal from interference. You can use FSK in factories or places with lots of electrical noise.

Can I use these methods for battery-powered devices?

You can use ASK for battery-powered devices. ASK uses less power than FSK or PSK. You save energy and extend battery life.

Note: Choose ASK if you want your device to run longer on batteries.

Which modulation method sends data the fastest?

PSK sends data the fastest. You can fit more information in the same channel. PSK works well for Wi-Fi, satellites, and high-speed links.

• PSK: High data rate

• FSK: Medium data rate

• ASK: Low data rate
