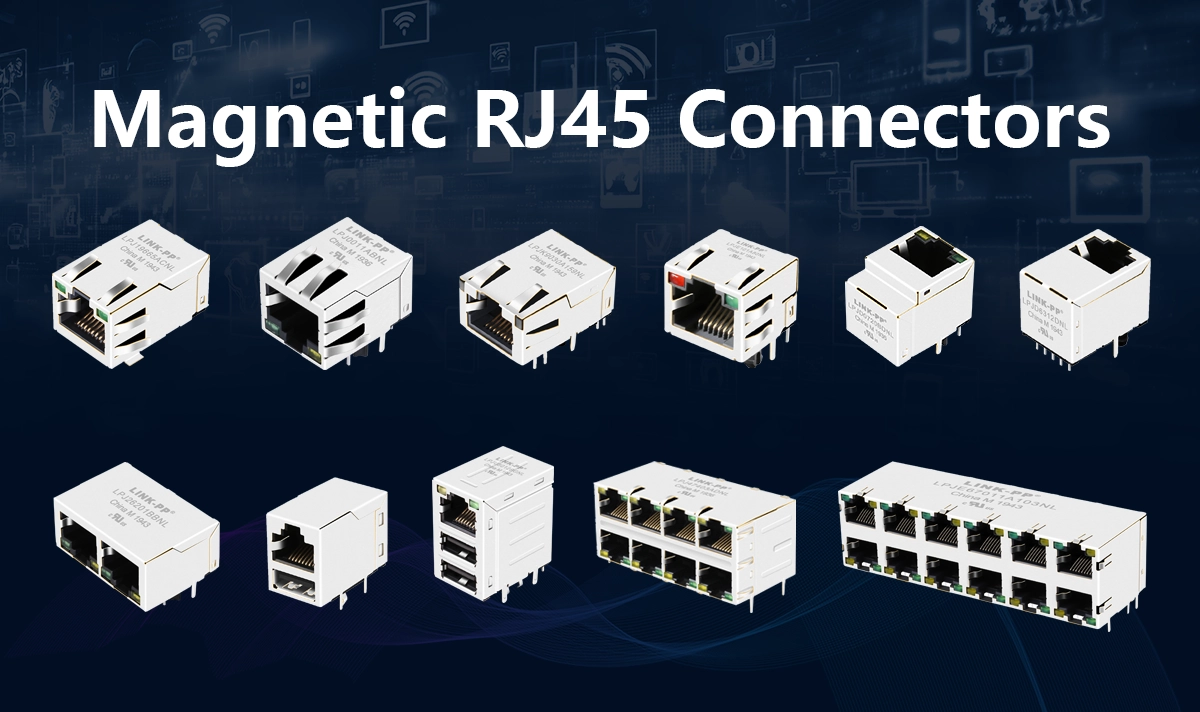

RJ45 Connectors with Magnetics: Smaller, Faster, More Reliable Networks

As modern networks evolve toward higher performance, compact form factors, and power-over-Ethernet (PoE) applications, RJ45 connectors with integrated Ethernet transformers (also called Magnetic RJ45 or MagJack) have become the preferred choice for engineers and device manufacturers.

These components combine the mechanical RJ45 interface with built-in magnetic circuitry, giving networking equipment higher reliability, improved EMI performance, and simplified PCB design.

In this article, we explain the key advantages of Magnetic RJ45 connectors and why they are widely used in industrial automation, smart buildings, PoE devices, routers, IP cameras, IoT gateways, and network switches.

⭐What Is an Integrated RJ45 Connector?

RJ45 connectors with integrated magnetics combine:

• RJ45 Ethernet port

• Isolation transformer

• Common-mode choke

• EMI filter network (depending on model)

• PoE magnetics (optional)

This design simplifies hardware architecture by removing the need for external magnetic modules.

Common names:

⭐ Key Advantages of Magnetic RJ45 Connectors

1. Space-Saving & High-Density Design

With integrated transformers, designers can free PCB space and support:

• Multi-port Ethernet switches

• Compact IoT devices

• Industrial controllers and HMI systems

This is especially valuable in layer-2/3 switches, embedded boards, network appliances, and edge devices.

2. Simplified PCB Layout & Faster Development

Traditional Ethernet designs require external magnetics and precise signal routing.

Magnetic RJ45 modules eliminate:

• Extra transformer components

• Matching and EMI tuning challenges

• Complex layout constraints

Engineers benefit from faster design cycles and fewer signal-integrity issues.

3. Superior EMC/EMI Performance

Since the isolation and filtering circuit is factory-tuned, magnetic RJ45 modules offer:

• Strong common-mode noise suppression

• Consistent impedance control

• Improved EMC test pass rates

This contributes to stable, low-noise communication in harsh environments.

4. Higher Reliability & Manufacturing Efficiency

With fewer external components, manufacturers gain:

• Reduced soldering and assembly steps

• Lower failure rate

• Improved quality consistency

• Easier supply-chain management

This is especially important for high-volume OEM production.

5. Built-In PoE Support

Many models support IEEE 802.3af/at/bt PoE standards, enabling:

• Power + data over the same cable

• Stable power delivery for powered devices (PD)

• Optimized thermal and insertion-loss performance

Popular applications include PoE:

• IP cameras

• Wireless APs

• VoIP phones

• Industrial sensors and controllers

⭐ Applications of RJ45 Magnetics

⭐ Why Engineers Prefer Integrated RJ45 Magnetics

⭐ Expert Tip

For industrial, telecom, and PoE designs, select magnetics that offer:

• 1500Vrms isolation or higher

• Industrial temperature range (-40°C to +85°C)

• IEEE 802.3 compliance (10/100/1000M/2.5G/10G)

• Integrated EMI shielding

This ensures high reliability and certification success (CE/FCC/UL/RoHS/REACH).

⭐ Conclusion

RJ45 connectors with built-in Ethernet transformers deliver:

✅ Smaller footprint
✅ Better EMC and signal integrity
✅ Reduced BOM and assembly cost
✅ Faster development cycles
✅ Higher reliability
✅ Strong PoE capability

For compact, high-performance, and industrial Ethernet products, magnetic RJ45 solutions are the smarter and more future-proof design choice.

⭐ FAQ

Q1: Are integrated RJ45 magnetics suitable for PoE?
Yes — many models support IEEE PoE standards up to 802.3bt (90W).

Q2: Do they improve EMC performance?
Yes — factory-matched magnetics and shielding provide better EMI suppression than discrete circuits.

Q3: What speeds are supported?
Options available for 10/100M, 1G, 2.5G, 5G, and 10G Ethernet.

Q4: Which industries use magnetic RJ45s?
Industrial automation, telecom, smart buildings, security, and IoT devices.
