In the high-stakes world of data transmission, efficiency is everything. How do we squeeze countless conversations, videos, and data streams down a single cable or fiber strand without them turning into a garbled mess? The answer lies in powerful techniques called multiplexing.
Two giants dominate this arena: Frequency Division Multiplexing (FDM) and Time Division Multiplexing (TDM). Choosing the right one is critical for network designers and engineers. This guide will break down TDM vs FDM, explaining how they work, their key differences, and where each shines in today's tech landscape.

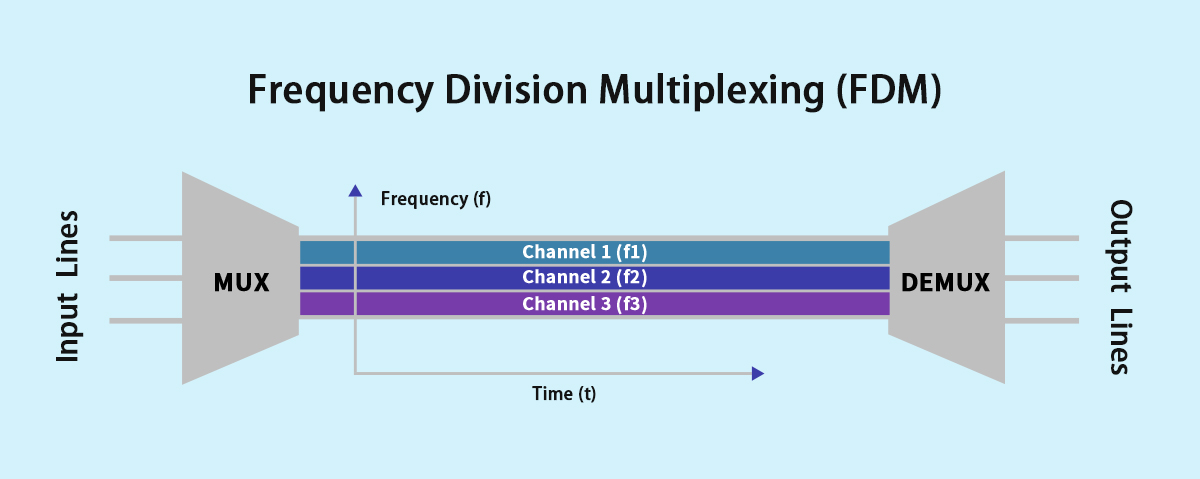

🚀 What is Frequency Division Multiplexing (FDM)?
FDM is the classic "roommate" approach to multiplexing. Imagine a highway where each car gets its own dedicated lane from start to finish. FDM divides the total bandwidth of a communication channel into multiple, non-overlapping frequency bands. Each signal is assigned its own unique frequency band (its own lane) and all signals travel simultaneously.
A classic example is FM/AM radio. Each station transmits its signal at a different frequency (e.g., 98.1 MHz, 101.5 MHz). Your radio's tuner acts as a filter, selecting only the frequency band you want to listen to, rejecting all others.

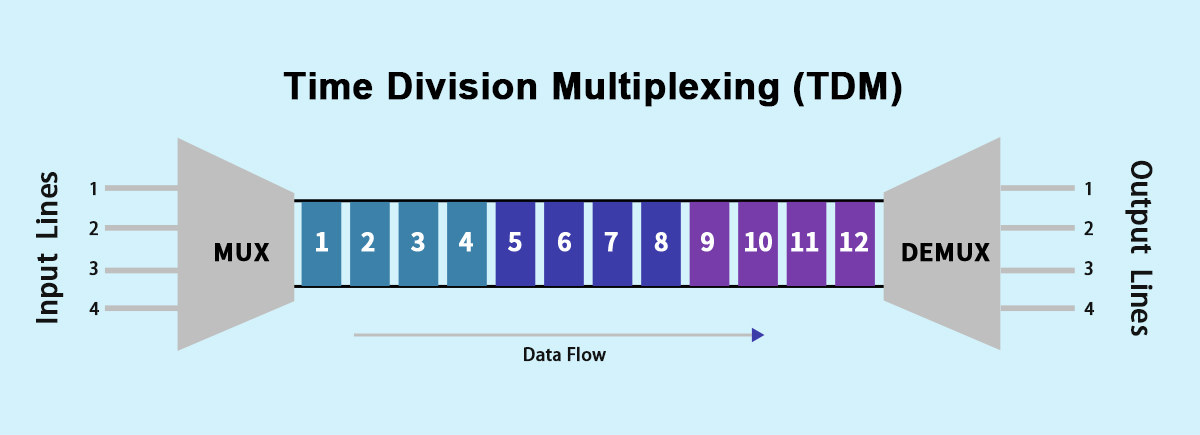

🚀 What is Time Division Multiplexing (TDM)?
TDM is the modern "time-share" model. Instead of dedicated lanes, all data shares one fast lane but gets exclusive, recurring time slots. The entire bandwidth is used by one signal at a time, but only for a fraction of a second.
Think of it like a high-speed conveyor belt serving multiple machines. Each machine (data stream) gets the entire belt for a tiny, fixed slice of time in a rotating cycle. TDM is digital in nature, making it a perfect fit for modern computing and fiber optic systems like those using LINK-PP optical transceivers.
🚀 TDM vs FDM: The Ultimate Comparison Table
Feature | Time Division Multiplexing (TDM) | Frequency Division Multiplexing (FDM) |
|---|---|---|
Core Principle | Shares time, dedicates bandwidth | Shares bandwidth, dedicates frequency |
Signal Type | Best for Digital Signals | Best for Analog Signals |
Synchronization | Requires precise synchronization | Not necessary |
Latency | Can introduce minimal latency | Generally lower latency for analog |
Efficiency | Highly efficient; no guard bands needed | Less efficient due to guard bands |
Complexity | More complex circuitry | Simpler to implement |
Primary Use Case | Digital networks, Telephony, Fiber Optics | Radio Broadcast, Cable TV, Early Cellular |
🚀 Modern Applications & The Role of High-Performance Optics
While pure FDM and TDM are foundational concepts, their principles are the building blocks for today's advanced technologies. Dense Wavelength Division Multiplexing (DWDM), the backbone of the internet, is essentially FDM applied to light waves, cramming dozens of signals onto a single fiber strand.
For TDM, its legacy is vital in synchronous digital hierarchies like SONET/SDH, which form the core of many metropolitan and long-haul networks. The efficiency of TDM is crucial for aggregating data streams before they are transmitted by high-capacity optical transceivers.
This is where the quality of your hardware becomes non-negotiable. A high-performance TDM-capable transceiver ensures precise timing and low jitter, which is critical for maintaining signal integrity. For instance, the LINK-PP SFP-10G-ZR optical module is engineered to handle high-speed, time-sensitive data traffic with exceptional reliability, making it an ideal choice for TDM-based network infrastructure and long-haul data transmission.
When planning your fiber optic network design, considering the multiplexing technique and choosing compatible, high-quality hardware is paramount for achieving optimal network performance and scalability.
🚀 Conclusion: Which One is Right For You?
The choice between TDM and FDM isn't often a direct one anymore; it's about understanding their principles within modern systems.
FDM's legacy lives on in wireless technologies like Wi-Fi and 5G (using OFDMA) and in the optical realm with DWDM.
TDM's efficiency makes it a workhorse for digital wired communications, from traditional T1 lines to the underlying structure of packet switching.
Ready to build a faster, more reliable network? The foundation starts with understanding these core principles and equipping your infrastructure with the right technology.
🚀 FAQ
What is the main difference between TDM and FDM?
You use TDM to share a channel by dividing time into slots. FDM splits the channel into different frequency bands. TDM works best for digital signals. FDM fits analog signals. Both methods help you send more data over one line.
Which method is better for digital communication?
You should choose TDM for digital communication. TDM handles digital signals with high efficiency. It works well in computer networks and modern phone systems. FDM usually supports analog signals, so it does not fit digital needs as well.
Can you use TDM and FDM together?
Yes, you can use both methods in one system. Some networks combine TDM and FDM to handle different types of signals. This approach lets you support both digital and analog data. You get more flexibility for complex multiplexing needs.
Which method is easier to set up and maintain?
You will find TDM easier to set up and maintain. TDM uses simple timing circuits. FDM needs special filters and careful planning for frequency bands. TDM systems often cost less and need less hardware.
How do TDM and FDM handle interference?
TDM avoids interference because only one signal uses the channel at a time. FDM needs guard bands to stop signals from mixing. If guard bands are too small, FDM can have more interference. TDM usually gives you a cleaner signal.
