Ever wonder how thousands of YouTube videos, Zoom calls, and massive file downloads can happen simultaneously over a single fiber optic cable? The answer lies in a fundamental concept of networking: multiplexing.
Multiplexing is the ingenious process of combining multiple signals or data streams into one signal over a shared medium. It's the ultimate carpool lane for data, allowing for efficient use of expensive infrastructure like undersea cables and data center links. Without it, our modern connected world would simply not be feasible.
In this guide, we'll break down the primary multiplexing techniques that form the backbone of global communications and explore the hardware, like LINK-PP's advanced optical transceivers, that make it all work.
➤ Why Multiplexing is a Networking Game-Changer
Before diving into the how, let's understand the why. Multiplexing provides critical benefits:
Cost Efficiency: Reduces the number of physical network components and links needed.
Maximized Bandwidth: Fully utilizes the inherent capacity of a transmission medium (like fiber optic cable).
Scalability: Allows networks to grow and handle more users without laying new cables for every connection.

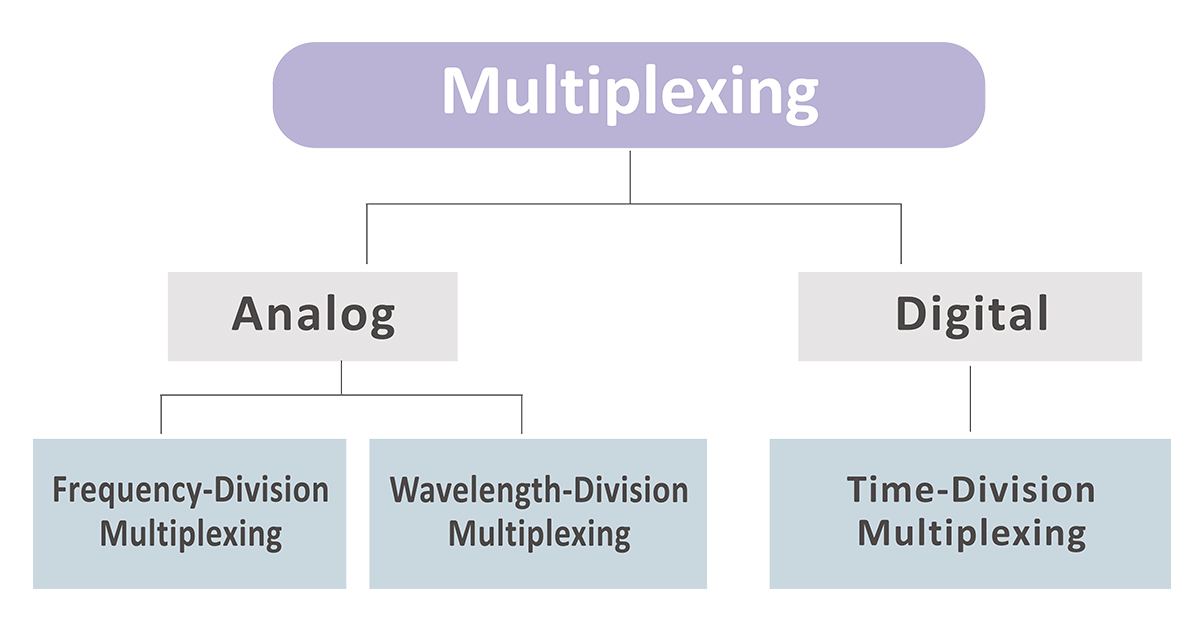

➤ Key Multiplexing Techniques Explained
There are several ways to multiplex signals, each with its own advantages and ideal use cases.

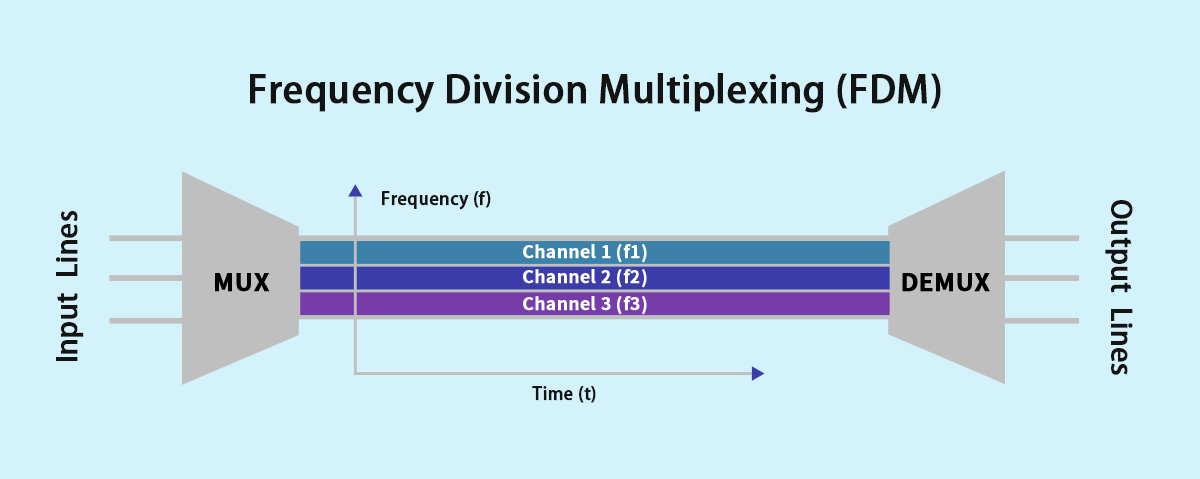

1. Frequency-Division Multiplexing (FDM) 📻
FDM divides the total bandwidth available in a communication channel into a series of non-overlapping frequency sub-bands. Each signal is assigned its own unique frequency range (or "channel").
Analogy: Think of a radio spectrum: different stations (signals) broadcast on different frequencies (95.1MHz, 102.5MHz, etc.). Your radio tuner (de-multiplexer) selects which one you want to listen to.
Common Use Cases: Traditional radio/TV broadcasting, early analog telephone systems.

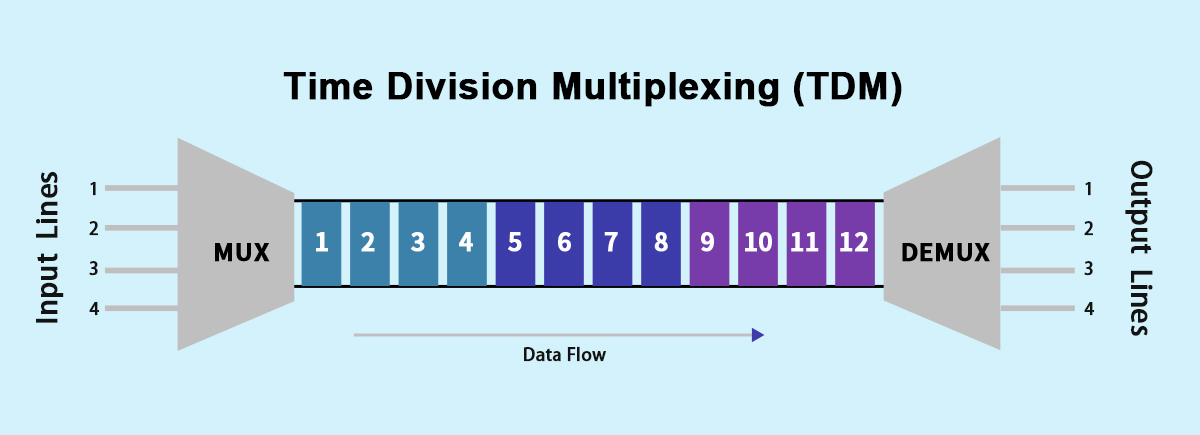

2. Time-Division Multiplexing (TDM) ⏱️
TDM divides the channel into fixed-length time slots. Each input signal gets the entire bandwidth of the channel, but only for a limited, repeating time interval.
Analogy: Imagine a conference call with a strict moderator. Each speaker gets 10 seconds to talk, one after the other, in a continuous rotation. Even if one person has nothing to say, their time slot remains empty.
Common Use Cases: Traditional digital telephone networks (SONET/SDH).

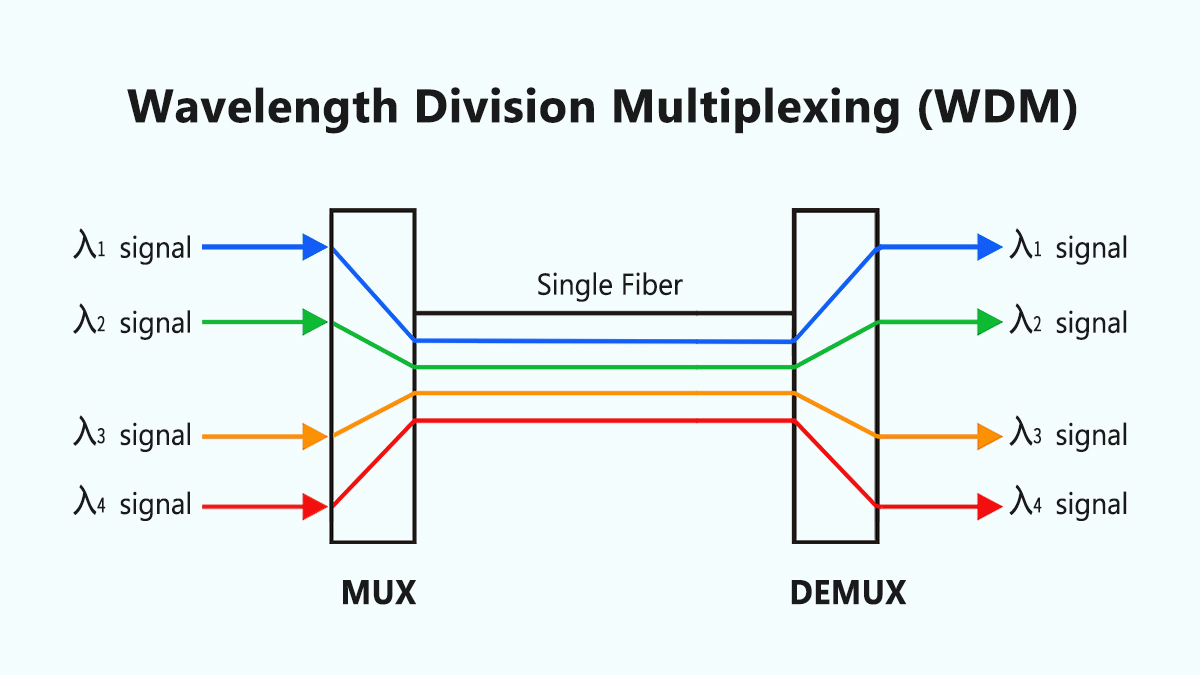

3. Wavelength-Division Multiplexing (WDM) 🌈
WDM is the superstar of fiber optic communication. It is conceptually similar to FDM but uses light wavelengths (colors) instead of radio frequencies. It combines multiple optical carrier signals onto a single optical fiber by using different wavelengths of laser light.
Dense Wavelength-Division Multiplexing (DWDM): Packs wavelengths very tightly together, allowing for an extremely high number of channels (80+ or even 160+) on a single fiber. This is the technology behind long-haul and submarine cables.
Coarse Wavelength-Division Multiplexing (CWDM): Uses wider spacing between wavelengths, supporting fewer channels (typically 18) but at a significantly lower cost. Ideal for shorter distances, like metropolitan area networks (MANs).
Common Use Cases: Internet backbone, core networking, data center interconnect (DCI), and cloud computing infrastructure.
➤ Comparing Multiplexing Techniques: A Quick Guide
The following table summarizes the key differences between these core techniques:
Technique | How it Works | Primary Medium | Key Advantage | Ideal For |
|---|---|---|---|---|
FDM | Divides by Frequency | Copper, Air (Radio) | Simple, mature | Radio/TV Broadcast |
TDM | Divides by Time Slots | Copper, Fiber | Efficient for constant-rate traffic | Legacy Voice Networks |
WDM | Divides by Light Wavelength | Fiber Optic | Massive bandwidth scalability | Data Centers, Internet Backbone |
DWDM | Dense Wavelength spacing | Fiber Optic | Maximum channel capacity | Long-Haul & Submarine Cables |
CWDM | Coarse Wavelength spacing | Fiber Optic | Cost-effective for shorter runs | Metro Networks, Enterprise |
➤ The Hardware That Powers Multiplexing: Optical Transceivers
The magic of WDM doesn't happen by itself. It's enabled by critical hardware called optical transceivers or optical modules. These are the components inserted into switches and routers that convert electrical signals to light and vice versa.
For WDM systems, specific types of transceivers are required:
DWDM Transceivers: These use precisely tuned lasers to emit light on specific, tightly-controlled ITU-standard wavelengths.
CWDM Transceivers: These use lasers designed for the wider-spaced CWDM wavelength grid, making them less complex and more affordable.
This is where high-performance manufacturers like LINK-PP come into play. Providing reliable, standards-compliant transceivers is crucial for building robust multiplexed networks.
For instance, a network engineer building a data center interconnect might choose the 100G QSFP28 DWDM transceiver. This module allows for the transmission of a 100G signal on a specific DWDM wavelength, enabling it to be combined with dozens of other 100G signals on a single fiber pair. This directly translates to massive bandwidth optimization and reduced fiber infrastructure costs.
Other relevant LINK-PP optical transceiver models for multiplexed applications include the 200G CFP2-DCO for coherent long-haul DWDM and the LINK-PP 10G SFP+ CWDM series for cost-effective access networks.
➤ Conclusion: The Future is Multiplexed
From the radio waves in the air to the pulses of light in fiber deep under the ocean, multiplexing techniques are the unsung heroes of connectivity. As the global demand for bandwidth continues to explode, especially with the rise of 5G, AI, and IoT, advanced techniques like DWDM will only become more critical.
Understanding these principles is key to designing the fast, reliable, and scalable networks of tomorrow.
Ready to optimize your network's bandwidth and scalability? 🚀
Explore LINK-PP's full range of high-performance DWDM and CWDM optical transceivers to find the perfect solution for your data center or network infrastructure needs. Contact our experts today for a free consultation!
