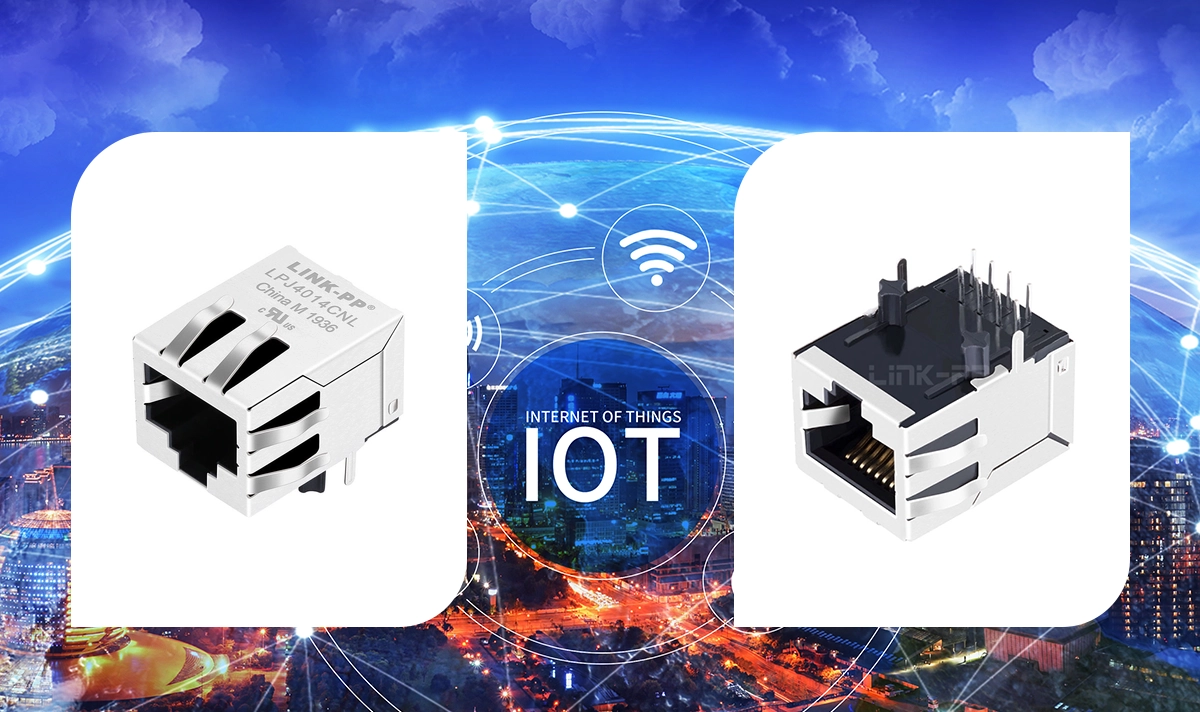

In today’s fast-evolving IoT ecosystem, connectivity is more than a requirement—it’s a critical factor in device performance, reliability, and longevity. For industrial-grade applications and embedded systems, the LPJ4014CNL Industrial RJ45 Magjack from LINK‑PP provides a robust solution that combines compact design, integrated magnetics, and industrial reliability. This blog explores why this connector is a top choice for IoT devices and how it simplifies design while ensuring durable network performance.
★ Why LPJ4014CNL is Ideal for IoT Applications
1. Wide Temperature Range for Industrial Reliability
IoT devices often operate in harsh or variable environments, from outdoor installations to industrial control rooms. The LPJ4014CNL supports an operating temperature range of -40 °C to +85 °C, ensuring reliable connectivity under extreme conditions. For designers of smart meters, industrial automation devices, or remote IoT sensors, this means fewer failures and reduced maintenance costs over the device lifetime.
2. Single-Port Ethernet Simplifies IoT Device Design
For many IoT endpoints, 10/100 Mbps Ethernet is sufficient for transmitting sensor data, control signals, and local analytics. By offering a single-port design, the LPJ4014CNL reduces PCB complexity, minimizes component count, and lowers production costs. The built-in magnetics eliminate the need for external isolation transformers, simplifying routing and reducing potential sources of electromagnetic interference (EMI)—a common challenge in dense, industrial environments.
3. Compact Form Factor Saves PCB Space
Space is always at a premium in IoT device design. The LPJ4014CNL’s small dimensions (approx. 21.25 mm × 15.93 mm × 13.3 mm) make it easy to integrate into embedded systems, edge gateways, and compact industrial devices. Designers can position it optimally alongside other components, even in tight enclosures or DIN-rail-mounted devices, without compromising mechanical stability or thermal performance.
4. Strong Compliance with International Standards
Compliance Standard | Description |
|---|---|
Ethernet networking standard | |
UL | Safety certification |
REACH | Hazardous substances regulation |
Restriction of hazardous substances | |
ISO 19001 | Quality management |
ISO 14001 | Environmental management |
★ Key Features and Benefits of LPJ4014CNL Magjack
▷ Integrated Magnetics Reduce Design Complexity
The LPJ4014CNL incorporates turn ratio RX/TX 1CT:1CT and built-in isolation, reducing the need for separate magnetics. This not only saves PCB space but also improves signal integrity and reduces EMI susceptibility—a critical factor for devices operating in noisy industrial or IoT environments.
▷ Compliance and Certifications for Industrial Use
The connector meets IEEE 802.3 standards for 10/100 Base-T Ethernet and complies with UL, RoHS, REACH, and ISO certifications (ISO9001/14001). These standards ensure safety, environmental compliance, and reliability, making it a preferred choice for industrial IoT devices that may require certification for deployment in energy, manufacturing, or outdoor systems.
▷ Durable Gold-Plated Contacts Ensure Long Life
Reliable connectivity is paramount for long-term IoT deployments. The LPJ4014CNL features gold-plated contact areas (6 µ″ / 15 µ″ / 30 µ″), providing excellent corrosion resistance and low contact resistance. This guarantees a stable connection over thousands of mating cycles, essential for devices that may be connected and disconnected during maintenance or upgrades.
Discover the LPJ4014CNL Now
Explore the features and benefits of the LINK-PP LPJ4014CNL for your networking needs.
★ Application Scenarios for IoT Devices
The LPJ4014CNL is particularly suited to a range of IoT applications:
IoT Gateways and Edge Nodes: Aggregates sensor data and communicates with cloud or local servers. Compact size and industrial-grade reliability make it ideal for smart factory or remote monitoring gateways.
Smart Metering and Energy Monitoring: Solar inverters, energy storage, and metering systems benefit from the LPJ4014CNL’s wide temperature tolerance and integrated magnetics for accurate, interference-free data transmission.
Industrial Automation and Control Systems: PLCs, I/O modules, and factory controllers need robust Ethernet connectivity, and this Magjack provides a reliable interface that survives vibration and harsh conditions.
Security and Surveillance Devices: IP cameras, access control panels, and intercom systems can leverage its compact, single-port design to simplify board layout and enclosure design.
★ How to Implement LPJ4014CNL in Your IoT Design
When integrating the LPJ4014CNL into an IoT device:
Consider Orientation and Layout: Its tab-down, side-entry configuration allows flexible placement, particularly when designing compact PCBs or fitting into metal enclosures.
Check Thermal Conditions: While rated for -40 °C to +85 °C, ensure surrounding components do not exceed these limits.
Optimize Board Space: Take advantage of the integrated magnetics to reduce external transformer placement.
Plan for Certification: Since the connector meets UL and RoHS standards, it simplifies device-level compliance testing.
Following these steps ensures a smooth integration process and reliable performance in real-world IoT deployments.
★ Summary: The Smart Choice for Industrial IoT Connectivity
For IoT devices requiring reliable Ethernet, the LINK‑PP LPJ4014CNL Industrial RJ45 Magjack offers a compelling combination of:
Industrial-grade reliability and wide temperature range
Compact, single-port design with integrated magnetics
Compliance with key certifications for easier deployment
Durable gold-plated contacts for long-term stability
Whether you are designing smart energy meters, industrial gateways, or embedded IoT modules, the LPJ4014CNL simplifies board design, enhances signal integrity, and ensures long-term network reliability. In a market where performance, size, and reliability matter, this Magjack is the perfect connector choice for industrial IoT devices.
★ FAQ
Q1. What makes the LPJ4014CNL suitable for harsh environments?
A: You get a connector with a wide operating temperature range from -40°C to +85°C. The robust housing and EMI shielding help protect your devices from dust, moisture, and electrical noise.
Q2. Can you use the LPJ4014CNL in outdoor iot applications?
A: Yes, you can install this connector in outdoor settings. The durable design and strong signal integrity support reliable data transmission for iot devices in changing weather conditions.
Q3.Does the LPJ4014CNL support Power over Ethernet (PoE)?
A: No, this connector does not support PoE. You use it for stable data transmission where separate power delivery is preferred.
Q4.What certifications does the LPJ4014CNL meet?
A: You get compliance with IEEE 802.3, UL, RoHS, Reach, ISO 9001, and ISO 14001. These certifications ensure safety, quality, and environmental responsibility.
Q5.How does gold plating improve performance?
A: Gold-plated contacts resist corrosion and maintain excellent conductivity. You benefit from consistent data transfer and long-lasting reliability.
