★ Introduction

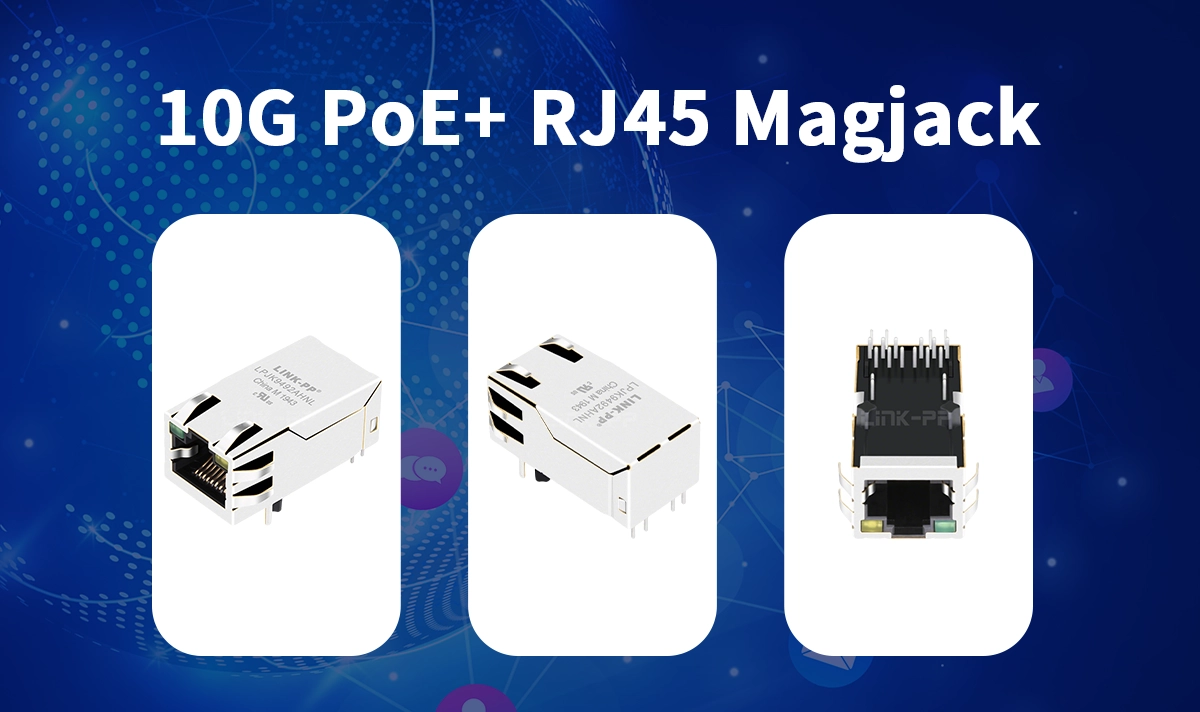

The LINK-PP LPJK9492AHNL is a high-performance 10GBASE-T PoE+ RJ45 magnetic jack designed to deliver exceptional speed, reliability, and integration flexibility for modern Ethernet networks.
It combines 10-Gigabit data transmission, Power over Ethernet Plus (PoE+) support, and a compact single-port design, making it ideal for next-generation network devices such as IP cameras, NVRs, embedded boards, and IoT gateways.
★ Key Takeaways
The 10G PoE+ RJ45 magnetics jack sends data and power together. You only need one cable, so setting up your network is easier.
This connector handles heat well and is very strong. It can be plugged in 10,000 times and keeps out dust and water.
Magnetics inside help keep signals clear. They lower noise and stop interference, so data moves better.
The jack works with many PoE standards. It gives enough power for things like cameras and screens. You do not need extra cords.
Its tough build lets it work in hot or cold places. This makes it great for data centers and factories.
★ Key Features and Advantages
1. 10G High-Speed Ethernet Performance
Supporting 10GBASE-T transmission, LPJK9492AHNL provides up to 10 Gbps data throughput. It ensures optimal bandwidth for demanding environments such as data centers, smart video systems, and industrial controllers, delivering both speed and stability for next-generation network infrastructure.
2. PoE+ (Power over Ethernet Plus) Support
The connector is fully compatible with IEEE 802.3at PoE+ standards, enabling power and data transfer through a single Cat5e/Cat6 cable. This reduces wiring complexity, lowers installation costs, and provides greater flexibility in powering remote devices such as IP cameras, access points, and IoT sensors.
3. Integrated LEDs for Status Indication
Equipped with green/yellow dual LEDs, this jack provides instant visual feedback on link activity and network speed, simplifying maintenance and troubleshooting in real-time network environments.
4. Industrial-Grade Reliability
Wide operating temperature: -40 °C to +85 °C, suitable for harsh industrial applications.
Certified with UL, RoHS, and REACH compliance.
Manufactured under ISO9001 and ISO14001 quality systems.
Excellent mechanical durability ensures long-term stable connections.
5. Compact Single-Port Design (Tab Up)
The LPJK9492AHNL adopts a 1×1 port configuration with a Tab-Up orientation, supporting through-hole mounting for robust PCB integration. Its compact size — 32.5 mm × 16.6 mm × 13.5 mm — allows flexible board design even in space-constrained systems.
Discover the LPJK9492AHNL
Explore the features and benefits of the LINK-PP LPJK9492AHNL 10G Base-T RJ45 magnetics jack today!

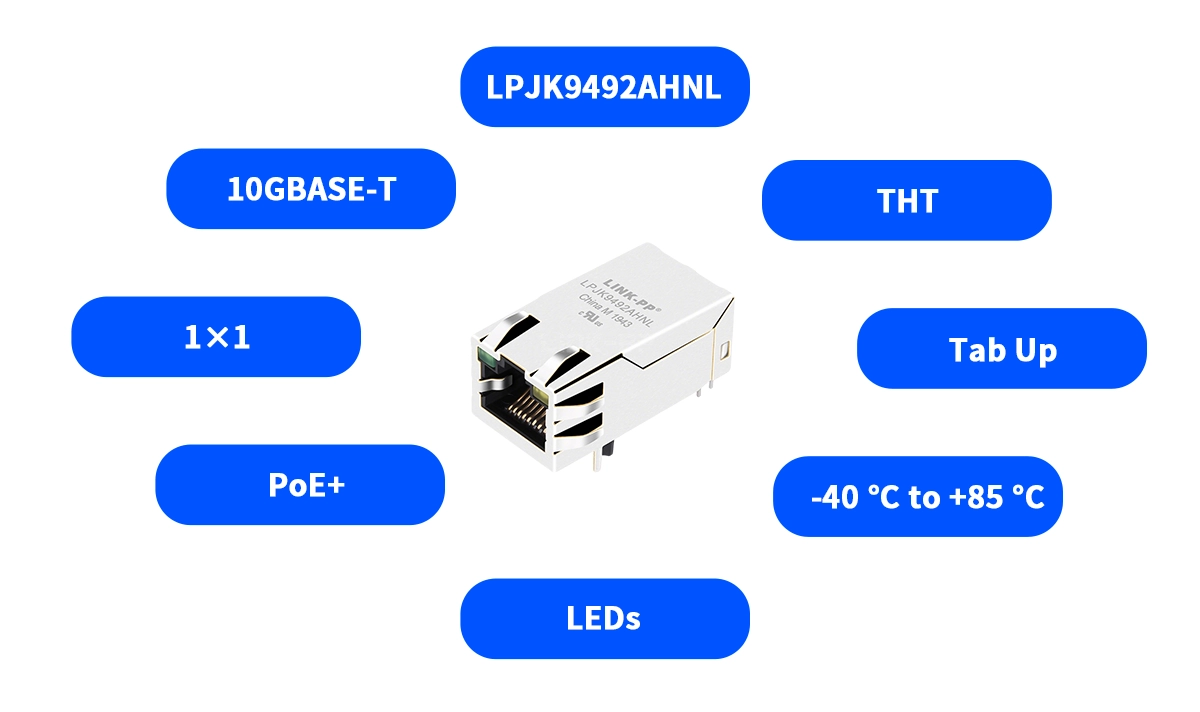

★ Technical Specifications
Parameter | Specification |
|---|---|
Part Number | LPJK9492AHNL |
Data Rate | 10GBASE-T (10 Gbps) |
Port Configuration | 1×1 single port |
PoE Capability | PoE+ (IEEE 802.3at) |
Mounting Type | Through-Hole, Tab Up |
Operating Temperature | -40 °C to +85 °C |
LEDs | Green/Yellow for Link & Activity |
Compliance | UL, RoHS, REACH, ISO9001, ISO14001 |
Gold Plating Options | 6 µ″ / 15 µ″ / 30 µ″ available |
Dimensions (L×W×H) | 32.5 × 16.6 × 13.5 mm |
Performance Differences
You want your network to be fast and steady. A Magnetic RJ45 Jack works better than a standard RJ45. The 10G PoE+ version can handle speeds up to 10 gigabits per second. Standard RJ45 connectors cannot reach this speed or send data as well. You get higher frequency, up to 500MHz, so your ethernet data moves faster and does not lose much.
A RJ45 with Magnetics can also handle more power. It supports PoE, so you can send both data and power in one cable. Standard RJ45 connectors need extra pieces to do this. The Magnetic RJ45 Jack keeps your signal strong, even with long cables or in busy places.
Feature | 10G PoE+ RJ45 Magnetics Jacks | Standard RJ45 Connectors |
|---|---|---|
Integrated Design | Yes | No |
Frequency Performance | Up to 500 MHz | Lower |
Current Handling Capabilities | Higher DC currents | Standard levels |
EMI Suppression | Enhanced | Needs external parts |
Isolation Requirements | Strict compliance | Less strict |
Thermal Performance Standards | High-power ready | Not applicable |
★ Applications
🖥️ Embedded Systems & Industrial Controllers
The wide temperature range and through-hole mounting make it perfect for embedded boards, industrial computers, and PLC modules that demand stable high-speed Ethernet and PoE+ functionality.
📹 Smart Surveillance & NVR Systems
Combining 10G bandwidth and PoE+ power delivery, LPJK9492AHNL simplifies cabling and ensures smooth, high-resolution video transmission for IP cameras and network video recorders.
🏢 IoT and Smart Building Infrastructure
With integrated magnetics and PoE+ power delivery, the connector enables smart lighting, environmental sensors, and IoT gateways to operate efficiently using a unified Ethernet network.
🧠 Data Centers and High-Speed Networking
Designed to handle massive data traffic, this 10GBASE-T jack offers excellent EMI suppression and signal integrity, making it ideal for servers, routers, and network switches.
★ Installation and Maintenance
Proper installation and maintenance ensure long-term reliability and network performance of the LPJK9492AHNL connector.
PCB Installation:
Ensure proper through-hole alignment and soldering according to the datasheet footprint.
Avoid excessive solder temperature or dwell time to protect the integrated magnetics.
Maintain a clean and static-free environment during assembly.
Cable and Connector Handling:
Use high-quality Cat6 or Cat6a Ethernet cables to achieve full 10G performance.
Avoid bending or twisting the cable near the connector housing to prevent stress on solder joints.
Cleaning and Inspection:
Periodically inspect the RJ45 contact area and LED operation during maintenance cycles.
Clean with isopropyl alcohol or compressed air to remove dust or oxidation from the contacts.
Environmental Protection:
For outdoor or high-humidity applications, pair the jack with protective enclosures or conformal coatings.
Ensure sufficient ventilation and temperature control within the device to stay within the -40 °C to +85 °C range.
Following these guidelines helps maximize the product’s lifetime and guarantees consistent signal integrity, PoE power delivery, and 10G transmission performance.
★ Why Choose LINK-PP
LINK-PP has been a trusted global manufacturer of magnetic integrated RJ45 connectors and Ethernet components for over 20 years.
Direct compatibility with major brands such as Pulse, Halo, Tyco, and WE.
Proven quality control and fast delivery.
Extensive OEM/ODM customization available.
By choosing LPJK9492AHNL, you’re investing in high-speed, energy-efficient, and future-ready Ethernet connectivity backed by LINK-PP’s engineering expertise and reliable global support.
