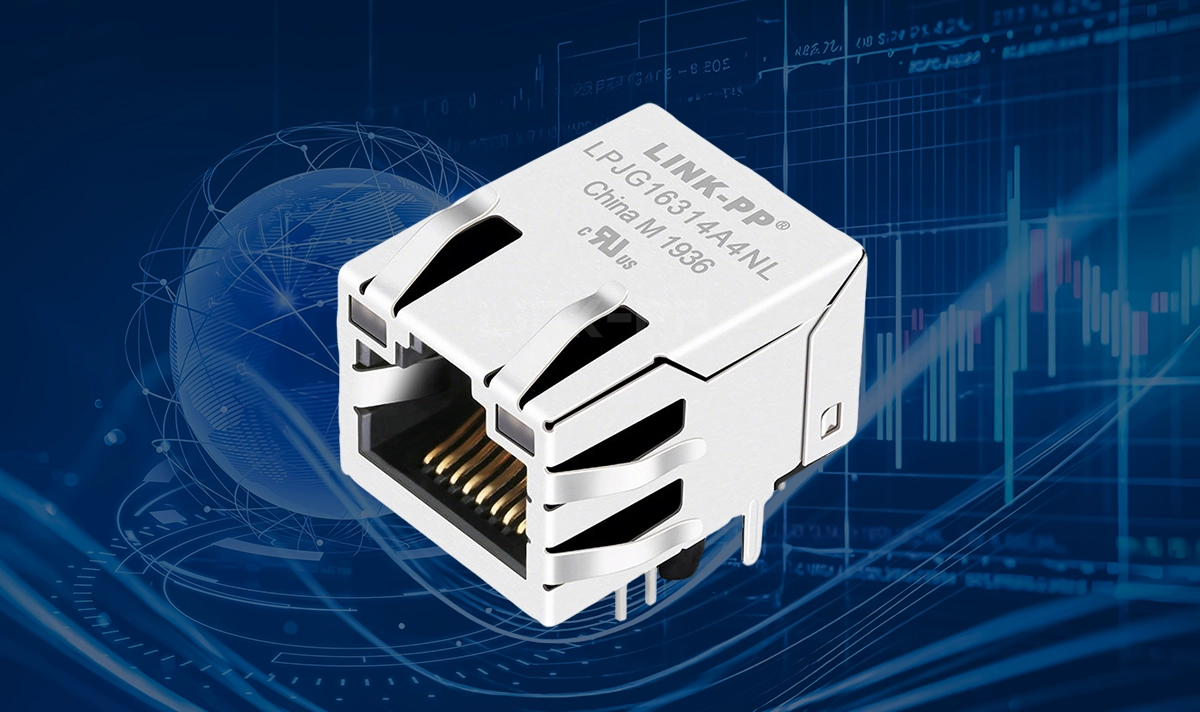

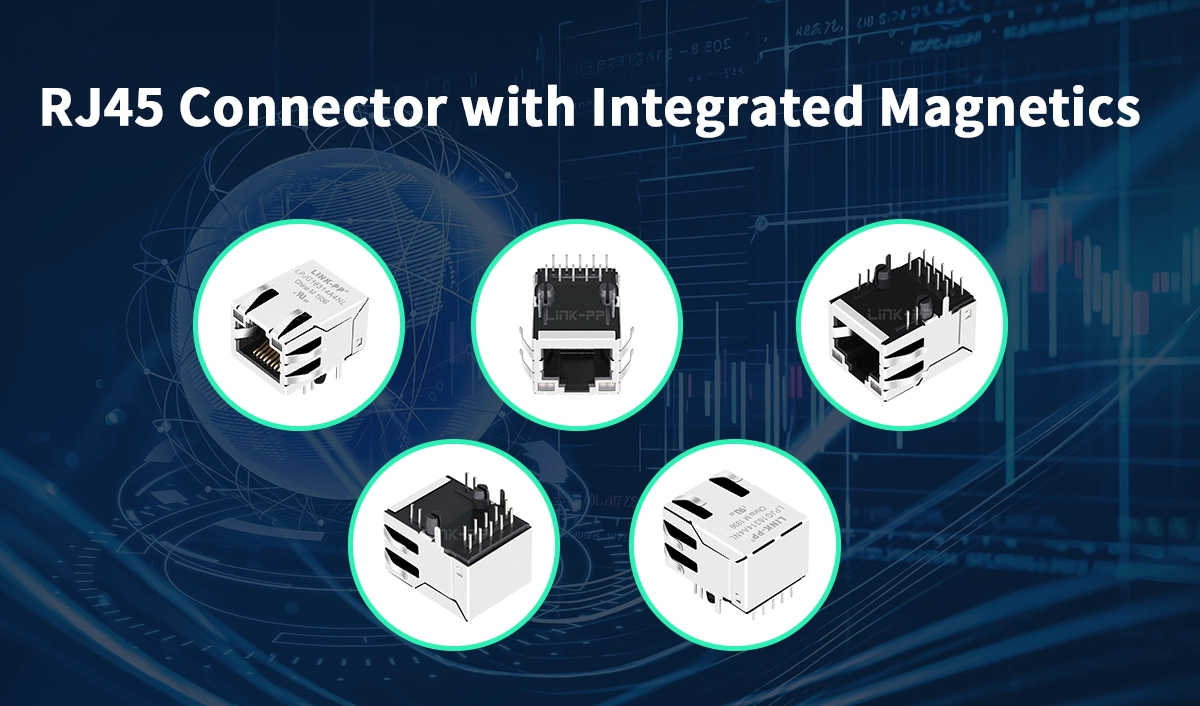

LPJG16314A4NL Single Port RJ45 Connector for 10/100/1000 Base-T Ethernet

When designing modern Ethernet-enabled devices, choosing the right network connector is crucial for stable transmission, EMI suppression, and long-term reliability. The LINK-PP LPJG16314A4NL is a single-port RJ45 connector with integrated 10/100/1000 Base-T magnetics, specifically engineered for applications that require compact form factors without compromising performance.

This connector integrates a magnetic module directly into the RJ45 jack, reducing the need for separate LAN transformers and lowering PCB component count. With Green/Yellow LED indicators, Tab-Up orientation, and RoHS compliance, the LPJG16314A4NL is ideal for Ethernet switches, routers, IP cameras, industrial control systems, and embedded network devices.

◆ Key Takeaways

• The LPJG16314A4NL RJ45 connector offers high-speed data transfer for 10/100/1000 Base-T Ethernet, ensuring reliable network performance.

• Integrated magnetics in the connector enhance signal integrity and protect against electrical disturbances, making your network safer and more efficient.

• LED indicators provide instant feedback on connection status and data activity, simplifying troubleshooting and monitoring of your network.

◆ Key Features of LPJG16314A4NL Single Port RJ45 Connector

• Single-port RJ45 female connector with built-in magnetics for 10/100/1000 Base-T Ethernet

• Integrated EMI suppression and signal integrity optimization

• LED indicators (Green/Yellow & Green/Yellow) for link and activity status monitoring

• Tab Up orientation for flexible PCB design integration

• RoHS compliant, meeting global environmental standards

• Optimized for space-saving PCB layouts by eliminating external transformers

◆ Electrical Performance (at 25 °C)

The LPJG16314A4NL is engineered to meet IEEE 802.3 Ethernet standards with the following electrical characteristics:

• Impedance: 100 ohms

• OCL: 350 µH min @100 kHz, 0.1 Vrms, 8 mADC bias

• Turns Ratio: 1:1

• Insertion Loss: –1.1 dB max (0.5–100 MHz)

• Return Loss (dB min):

  • 0.5–40 MHz: –18

  • 40.1–100 MHz: –12 – 20 log(f/50)

• Crosstalk (dB min):

  • 0.5–40 MHz: –35

  • 40.1–100 MHz: –33 – 20 log(f/50)

• Common Mode Rejection Ratio: –30 dB min (0.5–100 MHz)

• Isolation Voltage: 1500 Vrms min

• Operating Temperature Range: 0 °C ~ 70 °C

These parameters ensure signal integrity, low EMI, and strong isolation, making the LPJG16314A4NL a robust choice for gigabit Ethernet applications.

◆ Applications

The LPJG16314A4NL is widely adopted in networking and IoT equipment that demand stable high-speed Ethernet connectivity:

• Enterprise networking equipment — switches, routers, and gateways

• Surveillance systems — IP cameras with PoE or standard Ethernet connectivity

• Industrial automation — controllers, PLCs, and monitoring systems

• Consumer electronics — smart TVs, set-top boxes, and media hubs

• Embedded systems — SBCs, development boards, and IoT gateways

By integrating magnetics directly into the connector, it simplifies BOM design and reduces production costs, while maintaining compliance with international Ethernet standards.

◆ Why Choose LINK-PP RJ45 Solutions?

LINK-PP is a global supplier of Ethernet connectivity solutions trusted by OEMs and ODMs worldwide. With ISO-certified manufacturing, strict quality control, and compatibility with major brands (such as Tyco, XFMRS, and Halo), LINK-PP provides reliable RJ45 connectors and LAN transformers optimized for high-speed networking.

👉 View LPJG16314A4NL Product Page
👉 Download Datasheet (PDF)
