In our hyper-connected world, the demand for faster, more reliable data transmission is relentless. At the heart of this digital revolution lies fiber optic communication, a technology that uses light to carry vast amounts of information over long distances. However, even light isn't perfect. As it travels through an optical fiber, it can get "blurred," a phenomenon known as dispersion.
This blog post will serve as your comprehensive guide to dispersion compensation—a critical technology that cleans up this blurring and ensures your data arrives intact. We'll break down the complex science into understandable concepts, explore the different compensation methods, and highlight the pivotal role of modern optical transceivers.
If you do not fix chromatic dispersion, your signal gets blurry and less correct.
⚙️ Key Takeaways
Dispersion compensation helps keep optical signals clear. It controls chromatic dispersion, which can make signals blurry.
Special fibers, fiber Bragg gratings, or digital tools can fix chromatic dispersion. These methods help make signals better.
You should check for chromatic dispersion often in your optical systems. This helps stop signals from mixing and causing mistakes in data.
Pick the best compensation method for your system’s needs. This helps your system work well and keeps communication clear.
Good dispersion compensation helps with long-distance communication and ultrafast laser systems. It means fewer mistakes and better results.
⚙️ Understanding the Problem: What is Optical Dispersion?
Imagine a marathon where all runners start at the same time. Over a long distance, faster runners pull ahead, and slower ones fall behind, causing the group to spread out. A similar thing happens to light pulses in an optical fiber.
Optical Dispersion is the broadening of a light pulse as it travels along the fiber. This spreading causes adjacent pulses to overlap, making it difficult for the receiver to distinguish between a '1' and a '0'. The result? Signal degradation, errors, and a hard limit on both transmission distance and data rate.
There are two primary types of dispersion that network engineers must combat:
Chromatic Dispersion (CD): This is the most common form. Since white light is composed of different colors (wavelengths), and each wavelength travels at a slightly different speed through the glass, the pulse spreads out in time. It's like a prism splitting white light into a rainbow.
Polarization Mode Dispersion (PMD): A more complex effect where the two polarization states of light travel at different speeds due to imperfections and asymmetries in the fiber core. PMD becomes increasingly significant at high data rates (40G, 100G, and beyond).
⚙️ The Solution: How Dispersion Compensation Works

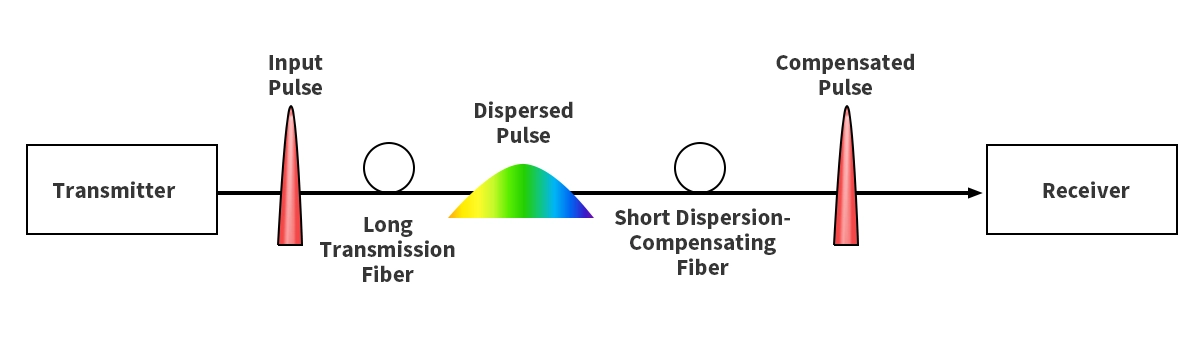

Dispersion compensation is the deliberate process of reversing the pulse-broadening effects of dispersion. The goal is to introduce an equal but opposite amount of dispersion, effectively "re-compressing" the light pulse back to its original, clean shape before it reaches the receiver.
Think of it as using a corrective lens for your fiber optic system. If the fiber spreads the light, the compensator brings it back into focus.
Several effective methods are used for this purpose:
Common Dispersion Compensation Techniques
Method | How It Works | Pros & Cons |
|---|---|---|
Dispersion Compensating Fiber (DCF) | A special fiber with a large, negative dispersion coefficient. It is spliced into the line to counteract the positive dispersion of the standard fiber. | ✅ Pros: High compensation capability, mature technology. |
Fiber Bragg Grating (FBG) | A short segment of fiber with a periodic variation in its refractive index. It reflects specific wavelengths at different times, effectively realigning the pulse. | ✅ Pros: Low loss, compact size, passive operation. |
An electronic method. The distorted optical signal is converted to an electrical one, and advanced algorithms in the receiver's DSP chip digitally reverse the dispersion. | ✅ Pros: Highly flexible, can adapt to different levels of dispersion, integrates with modern transceivers. | |
Tunable Dispersion Compensation | A dynamic version of FBG or other technologies that can adjust the amount of compensation in real-time, ideal for reconfigurable networks. | ✅ Pros: Adapts to changing network conditions. |
When planning a network, choosing the right dispersion compensation strategy is crucial for achieving optimal high-speed data transmission and minimizing bit-error rates (BER).
⚙️ The Heart of the Network: Optical Modules and Dispersion
This is where the theory meets practice. Optical modules (or transceivers) are the workhorses that convert electrical signals to light and vice versa. In high-speed networks, they are not just simple converters; they are intelligent devices packed with sophisticated electronics and optics to manage signal integrity—including dispersion.
Modern coherent optical modules, especially those used for long-haul and metro network applications, have dispersion compensation capabilities built directly into their DSP engines. This integration is a game-changer. Instead of relying on kilometers of bulky DCF in the outside plant, a significant portion of the compensation can be handled electronically within the module itself. This approach simplifies network design, reduces footprint and power consumption, and offers unparalleled flexibility.
For network architects looking for a reliable solution, selecting the right module is paramount. This is where the expertise of LINK-PP comes into play. LINK-PP's optical transceivers are engineered with advanced DSP technology that provides robust dispersion tolerance, ensuring stable performance even in challenging, dispersion-prone environments.
For instance, the CFP2-DCO-400G coherent transceiver is a prime example of this technology in action. Designed for 400G applications, it features a powerful, proprietary DSP ASIC that performs real-time compensation for both Chromatic Dispersion and Polarization Mode Dispersion. This allows the module to operate over existing fiber infrastructure without the need for extensive external compensation units, making your network upgrade both cost-effective and future-proof.
Pro Tip: When evaluating optical modules for high-speed networks, always check the specifications for dispersion tolerance. A higher tolerance value means the module can handle more dispersion without significant performance loss, offering greater design flexibility.
⚙️ Why It All Matters: Applications and Benefits
Implementing effective dispersion compensation is not an optional extra; it's a necessity for modern optical communication. Here’s why:
Enables Higher Data Rates: Compensation is essential for 100G, 400G, 800G, and beyond, where pulse broadening is more severe.
Extends Transmission Reach: It allows signals to travel hundreds or thousands of kilometers without degrading, vital for undersea cables and long-haul terrestrial networks.
Improves Signal Integrity: By reducing errors, it enhances the overall quality and reliability of the data connection.
Maximizes Existing Infrastructure: Advanced compensation in modules like the CFP2-DCO-400G allows operators to upgrade their networks on legacy fiber, saving massive capital expenditure.
Whether you are building a new data center interconnect (DCI) or upgrading a service provider backbone, understanding and managing dispersion is key to a successful deployment.
⚙️ Conclusion
Dispersion is a fundamental physical challenge in optical communication, but it is not an insurmountable one. Through various dispersion compensation techniques—from specialized fibers to intelligent electronic processing—we can overcome this limitation. The integration of these capabilities directly into advanced optical transceivers represents the cutting edge, simplifying network design while pushing the boundaries of speed and distance.
Staying ahead in the fast-paced world of optical networking requires reliable technology and expert partners. By leveraging sophisticated solutions like those from LINK-PP, you can ensure your network is built for the demands of tomorrow.
⚙️ FAQ
What is the main goal of dispersion compensation?
Dispersion compensation helps keep signals clear. It stops light pulses from spreading out. This makes images better and data more correct.
What happens if you do not use dispersion compensation in high-speed data communications?
Signals can mix together. This causes more mistakes in your data. Your data might not get where it should go. Dispersion compensation keeps your messages fast and safe.
What is a dispersion compensation algorithm?
A dispersion compensation algorithm is a group of steps in software. It fixes signal spreading after you get the data. You use it in digital systems to make signals clearer.
What types of systems need dispersion compensation?
Dispersion compensation is needed in systems that send light far. These are fiber optic networks, medical imaging, and fast data systems. Laser systems for science also use it.
How do you choose the right dispersion compensation method?
You think about what your system needs. You check the fiber type, how far signals go, and how fast they move. You might use special fibers, gratings, or an algorithm. Each way works best for different jobs.
