You might ask how fiber optic networks handle more data today. Space division multiplexing, or SDM, lets you send more data at the same time. It does this by using different paths inside one fiber. This technology helps you increase network size without adding new cables. SDM lets you move data faster and in larger amounts every day.
➣ Key Takeaways
Space Division Multiplexing (SDM) lets more data move in one fiber. It uses different paths, like adding more lanes to a road.
SDM helps networks get bigger without new cables. This saves time and money. It also gets ready for more data in the future.
With multicore and few-mode fibers, SDM boosts data capacity and flexibility. It makes upgrades easy as technology gets better.
Spatial multiplexers are important for SDM. They keep signals apart and neat. This helps manage data and lowers delays.
SDM can work with other methods, like wavelength division multiplexing. This can make data faster and more efficient. It helps meet users’ growing needs.
➣ What Exactly is Space Division Multiplexing (SDM)?
At its core, Space Division Multiplexing (SDM) is a technique that increases the data-carrying capacity of an optical fiber by creating multiple, distinct spatial paths for light to travel. Think of it like transforming a single-lane country road into a multi-lane superhighway. Instead of just one "lane" of light, SDM creates several parallel lanes within a single fiber cable, each carrying its own independent data stream.
This is a paradigm shift from traditional methods like Time-Division Multiplexing (TDM) or Wavelength-Division Multiplexing (WDM), which send more data through a single core by using time slots or different colors of light. SDM goes further by utilizing space itself as a new dimension for multiplexing.
➣ How Does SDM Work? The Core Principles

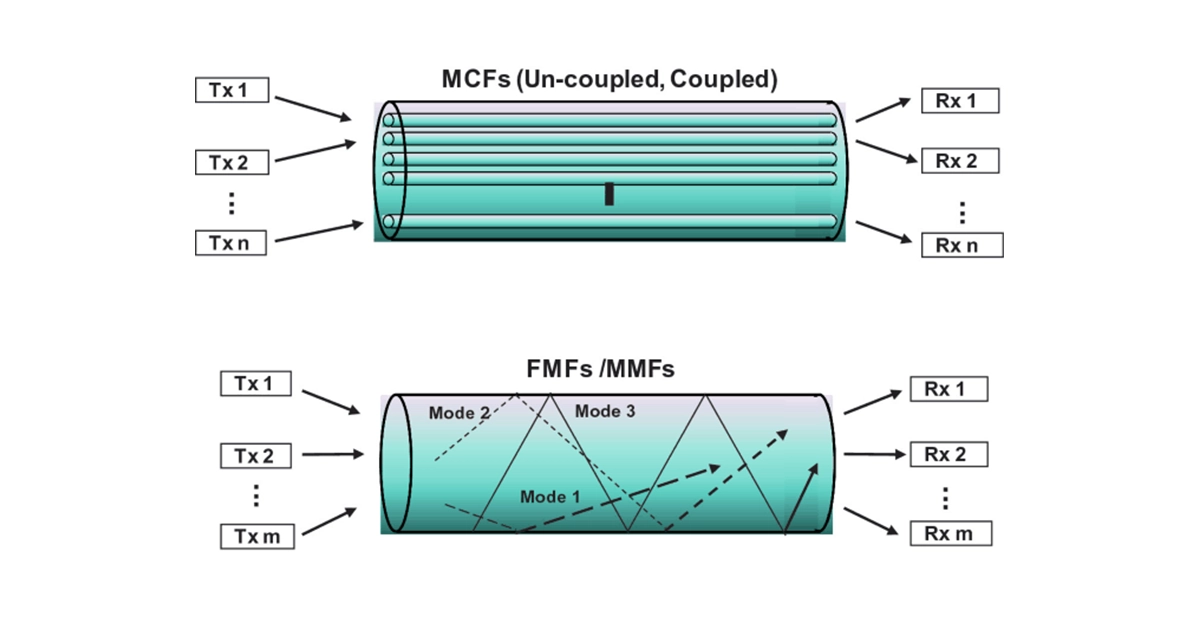

SDM leverages two primary strategies to create these spatial paths:
Multi-Core Fiber (MCF): This fiber has multiple independent cores embedded within a single cladding. Each core functions as a separate optical waveguide, effectively allowing multiple traditional fibers to exist in the same physical cable footprint. Data is transmitted simultaneously through all cores.
Few-Mode Fiber (FMF) / Multi-Mode Fiber (MMF): This approach uses a single, larger core but excites specific, discrete "modes" or paths that light can travel within that core. Sophisticated signal processing (Multiple-Input Multiple-Output, or MIMO) at the transceiver is required to untangle the data streams at the receiving end.
➣ SDM vs. Traditional Multiplexing: A Quick Comparison
Feature | Space Division Multiplexing (SDM) | |
|---|---|---|
Core Principle | Uses different colors (wavelengths) of light | Uses separate physical paths (cores or modes) |
Analogy | Adding more cars to a single lane using different colors | Adding more lanes to the highway |
Scalability | Limited by fiber nonlinearities and spectrum | Highly scalable by adding more cores/modes |
Complexity | Lower (mature technology) | Higher (requires advanced DSP & MIMO) |
Key Benefit | Efficient spectrum usage | Massive multiplicative capacity increase |
➣ Why is SDM a Game-Changer? Key Benefits
Exponential Capacity Boost: SDM offers a direct multiplicative effect on capacity. A 7-core fiber can, in theory, increase capacity by 7x compared to a single-core fiber.
Saves Physical Space & Cost: Deploying one SDM cable is far more efficient than laying multiple separate cables, reducing duct congestion, installation time, and overall cost per bit.
Energy Efficiency: Transmitting more data through a single fiber reduces the energy required per transmitted bit, contributing to greener data centers and networks.
Future-Proofing Infrastructure: SDM provides the foundational technology needed to support future bandwidth-hungry applications like 6G, metaverse, and advanced AI networks.
➣ Real-World Applications & The Role of Advanced Optics
SDM isn't just a lab experiment; it's moving into practical deployment in:
Long-Haul and Submarine Cables: Where maximizing capacity per cable is paramount.
Data Center Interconnects (DCI): Linking data centers over short distances with massive bandwidth needs.
5G/6G Fronthaul/Backhaul: Supporting the dense network of small cells required for next-gen mobile networks.
Implementing SDM requires specialized optical transceivers designed to interface with Multi-Core or Few-Mode Fibers. This is where cutting-edge technology from providers like LINK-PP becomes critical. For instance, the 400G QSFP-DD SR8 MCF Transceiver is engineered specifically to leverage multi-core fiber technology, delivering high-density, high-speed connectivity for next-gen data centers.
➣ The Future is Multi-Dimensional
Space Division Multiplexing is a revolutionary step in optical communication. By harnessing the spatial dimension, it provides a clear path to overcome the capacity crunch and build the ultra-high-capacity networks of tomorrow. While challenges in manufacturing and signal processing remain, the potential of SDM is undeniable.
Ready to explore how SDM technology can future-proof your network infrastructure?
LINK-PP is at the forefront of developing high-performance optical transceivers, including SDM-compatible solutions.
➡️ For a consultation on your specific needs? Contact our experts today!
➣ FAQ
What is space division multiplexing used for in fiber networks?
You use space division multiplexing to send more data in one fiber. It helps you make your network bigger without new cables. You can support more users and devices with the same setup.
What makes multicore fibers different from regular fibers?
Multicore fibers have many cores inside one cable. Each core carries its own signal. Regular fibers have just one core. Multicore fibers give you more lanes for data. This makes your network faster and more efficient.
What challenges do you face when using SDM?
You need special equipment to keep signals apart. Sometimes signals mix between cores. Workers must learn how to use new technology. Advanced tools can cost more money. Good planning helps you solve these problems.
What role does SDM play in a sensing system?
You use SDM to make a sensing system better. It sends many signals through different paths. You can collect more data at the same time. You can watch many places or things with one fiber. This makes your system work better.
What are the benefits of combining SDM with other multiplexing methods?
You get faster data speeds and more choices. Using SDM with wavelength division multiplexing lets you use space and color. This helps you get the most from your fiber and get ready for the future.
