● What Is OTN?
Optical Transport Network (OTN) is an international standard for transmitting, multiplexing, switching, and managing different types of client signals over optical fiber. It was defined by the International Telecommunication Union (ITU-T G.709 series) as the next-generation transport technology after SDH/SONET.
The primary goal of OTN is to create a unified and efficient framework for high-capacity, long-distance, and error-protected optical transmission. It provides a digital wrapper around client data, ensuring service transparency while adding monitoring and management capabilities.
● Key Features of OTN
Service Transparency
OTN encapsulates diverse client signals—such as Ethernet, SDH/SONET, Fibre Channel, and IP—without altering their native structure.Hierarchical Multiplexing
OTN introduces containers known as Optical Data Units (ODUs), which enable flexible aggregation of lower-speed channels into higher-speed optical paths.Forward Error Correction (FEC)
OTN employs advanced error correction, reducing the bit error rate (BER) to levels suitable for reliable long-haul communication.Operations, Administration, and Maintenance (OAM)
Built-in monitoring, performance measurement, and fault management functions make OTN carrier-grade and operationally efficient.Scalability
Supporting line rates from 2.5G (OTU1) to 400G (OTUC4) and beyond, OTN adapts to growing bandwidth demand in data centers and telecom networks.

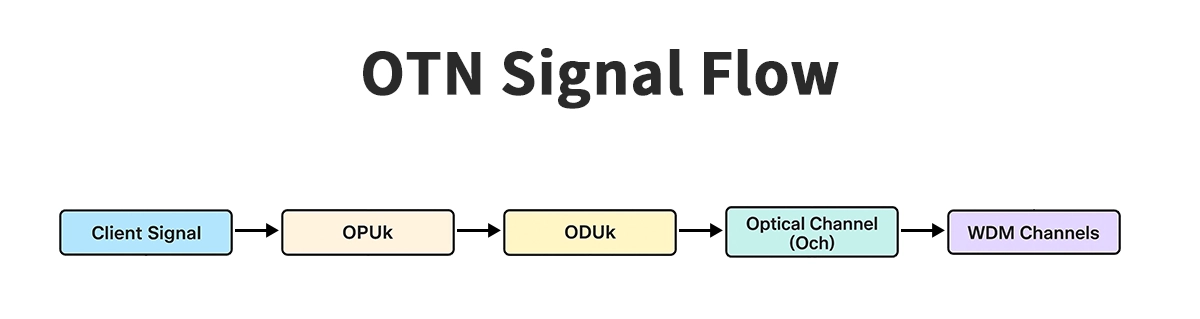

● OTN Layered Structure
OTN is organized into several logical layers, each responsible for different functions:
OPUk (Optical Payload Unit): The payload area where client signals are mapped.
ODUk (Optical Data Unit): Provides path-level monitoring and multiplexing of OPU payloads.
OTUk (Optical Transport Unit): Adds frame structure, synchronization, and section-level overhead.
Optical Channel Layer (Och): Transports the OTU signals over WDM channels.
This layered architecture allows OTN to achieve efficient multiplexing, robust management, and long-distance transmission.
● Why OTN Is Important
Backbone Networks: Supports ultra-high-capacity transmission across cities, countries, and continents.
Data Center Interconnect (DCI): Enables scalable, low-latency links between cloud data centers.
5G and Mobile Transport: Provides stable, high-bandwidth paths for fronthaul and backhaul.
Future-Proofing: OTN is compatible with DWDM, ensuring networks can evolve toward 400G and 800G without infrastructure replacement.
● OTN and Optical Transceivers
While OTN defines the digital transmission framework, optical transceivers are the hardware components that enable real deployment. They convert electrical signals into optical signals and back, carrying OTN frames across fiber links.

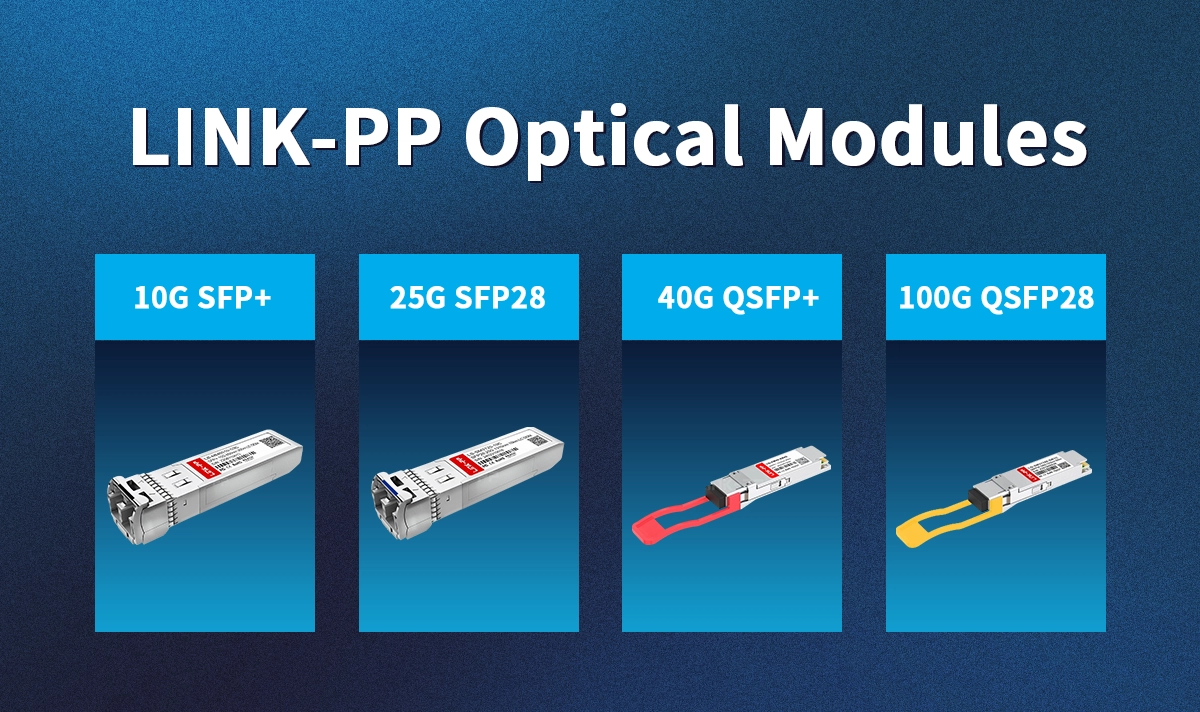

LINK-PP offers a comprehensive portfolio of optical modules—such as 10G SFP+, 25G SFP28, 40G QSFP+, and 100G QSFP28 transceivers—that are fully compliant with OTN applications. These modules support critical use cases including:
High-capacity backbone networks
Long-haul DWDM transmission
Cloud and enterprise data center interconnects
Telecom and 5G infrastructure
👉 Learn more: LINK-PP Optical Transceivers
● Conclusion
OTN (Optical Transport Network) is the foundation of modern optical communication, offering scalable bandwidth, robust error protection, and unified transport for multiple services. By combining OTN standards with high-quality optical transceivers, operators can build networks that are future-ready, reliable, and cost-effective.
As a trusted manufacturer, LINK-PP provides optical transceivers optimized for OTN deployment, enabling customers worldwide to achieve high-speed, long-distance, and efficient connectivity.
