In our hyper-connected world, we demand flawless data transmission—from streaming 4K video to executing high-frequency trades. But have you ever wondered how your devices reliably decipher the faint whispers of data amidst a cacophony of electronic noise? The unsung hero in this process is Receiver Sensitivity.
This crucial parameter is the cornerstone of any communication system, especially in the realm of high-speed data centers and telecommunications. A deep understanding of receiver sensitivity is not just for engineers; it's essential for anyone making informed decisions about their network infrastructure. In this article, we'll explore what it is, why it matters, and its pivotal role in optical transceiver modules.
⚡ Key Takeaways
Receiver sensitivity shows the weakest signal your device can find. Good sensitivity gives stronger connections, even with weak signals.
Always look at the dBm value in product details. A lower dBm means better receiver sensitivity. This helps you pick the best device.
Think about things like noise, bandwidth, and hardware quality. Less noise and better settings can make your device work better.
Change your device's hardware if you need to. A better antenna or low-noise amplifier can help your device get signals and improve sensitivity.
Use receiver sensitivity to stop connection problems. Knowing this helps you choose devices that work well where you use them.
⚡ What Exactly is Receiver Sensitivity?
In simple terms, Receiver Sensitivity is the minimum received optical power required at the input of a receiver for the system to achieve a specified performance level, typically defined by a maximum Bit Error Rate (BER).
Think of it like listening to a distant radio station. If the signal is too weak (below the receiver's sensitivity), you'll only hear static. The receiver sensitivity is the faintest signal strength your "radio" (or optical receiver) can clearly understand.
Unit of Measurement: It is measured in decibels relative to one milliwatt (dBm). A more negative dBm value indicates a better (more sensitive) receiver. For example, a sensitivity of -28dBm is superior to -24dBm.
The BER Connection: The specified performance is almost always tied to the Bit Error Rate, which is the ratio of bit errors to the total number of transferred bits. A common benchmark is a BER of 10⁻¹², meaning one error in every trillion bits.
⚡ Why Receiver Sensitivity is a Non-Negotiable Performance Metric
Ignoring receiver sensitivity is like building a sports car with a weak engine. Its impact is profound:
Extends Network Reach: Higher sensitivity (more negative dBm) allows signals to travel longer distances over fiber before needing regeneration or amplification. This directly reduces infrastructure costs.
Improves Signal Integrity & Reduces Errors: A sensitive receiver can accurately detect weaker signals, leading to a lower BER and more reliable data transfer.
Enhances Power Budget: It is a key component of the system's optical power budget. A better receiver sensitivity provides more headroom for other losses in the system, such as connector loss and fiber attenuation.
Future-Proofs Your Network: As data rates increase (from 10G to 100G, 400G, and beyond), signals inherently become weaker. High-sensitivity receivers are essential for supporting next-generation applications.
⚡ Key Factors Influencing Receiver Sensitivity
Several elements determine how sensitive a receiver can be:
Noise Figure: The internal noise generated by the receiver's components. Lower noise is better.
Photodetector Type: The efficiency of the photodiode (e.g., PIN vs. APD) in converting light to electrical current. Avalanche Photodiodes (APDs) are renowned for their high sensitivity.
Transimpedance Amplifier (TIA): The quality of this amplifier, which converts the photodetector's current into a voltage signal, is critical.
Data Rate: Generally, higher data rates result in a less sensitive receiver (a higher, less negative dBm value) due to broader bandwidth and increased noise.
The table below summarizes the typical relationship between data rate and sensitivity for a standard optical receiver:
Data Rate | Typical Receiver Sensitivity (at BER of 10⁻¹²) | Common Application |
|---|---|---|
1Gbps | -24dBm | Gigabit Ethernet, SDH/SONET |
10Gbps | -21dBm | 10G Ethernet, Fiber Channel |
25Gbps | -18dBm | 25G Ethernet, 5G Fronthaul |
100Gbps | -15dBm | Data Center Interconnects, CFPs |
Table: Illustrative examples of how sensitivity changes with data rate. Actual values vary by technology and manufacturer.
⚡ The Critical Role of Receiver Sensitivity in Optical Modules

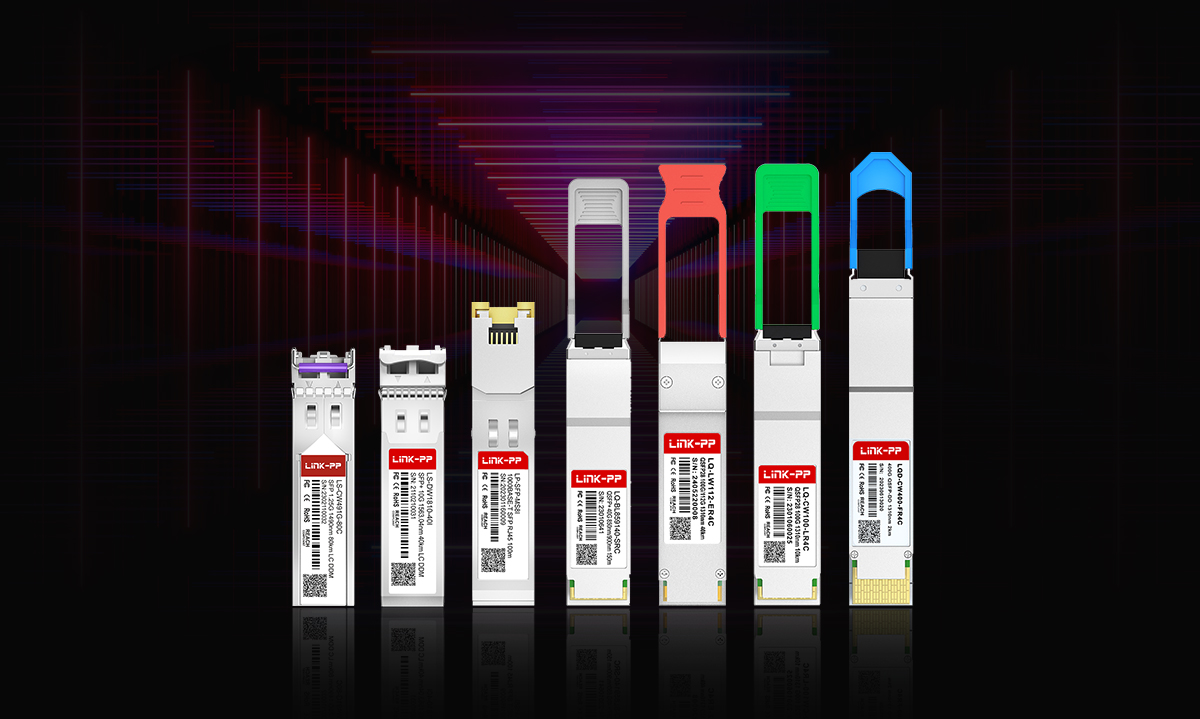

When we talk about practical applications, optical transceiver modules are where the rubber meets the road. These hot-pluggable devices are the workhorses of modern networking, handling the conversion between electrical signals and light pulses.
The receiver sensitivity of an optical module is arguably one of its most critical specifications. It determines the module's ability to function effectively in challenging, real-world conditions—especially in long-haul transmission or dense wavelength-division multiplexing (DWDM) systems where signals are attenuated over vast distances.
For network architects, selecting high-sensitivity optical transceivers is a strategic decision that directly impacts network reliability and total cost of ownership. This is where choosing a partner with advanced design and manufacturing capabilities becomes paramount.
LINK-PP: Engineering Excellence in Optical Sensitivity
At LINK-PP, we specialize in pushing the boundaries of optical performance. Our R&D focus is on designing optical transceiver modules that deliver industry-leading receiver sensitivity, ensuring your network operates with maximum efficiency and minimal downtime.
Our modules incorporate low-noise TIAs and high-quality APDs to achieve exceptional sensitivity figures. This makes them ideal for applications requiring robust performance over extended reaches, such as metropolitan area network connectivity and high-density data center interconnects.
A prime example of this engineering prowess is our LINK-PP 100G QSFP28 ER4 module. This module is engineered for extended reach applications and boasts an outstanding receiver sensitivity of -16dBm, a significant advantage over many competing models. This superior performance ensures a robust optical link budget and greater deployment flexibility for your 100G network, effectively answering the demand for high-performance long-range optical transceivers.
⚡ How to Test and Verify Receiver Sensitivity
Ensuring your modules meet their specifications is crucial. Receiver sensitivity is typically verified using a Bit Error Rate Test (BERT) system. The test involves:
Attenuating a known, good optical signal to a very low power level.
Feeding this weak signal into the receiver under test.
Measuring the BER at that specific input power.
The sensitivity is the power level where the BER crosses the predefined threshold (e.g., 10⁻¹²).
⚡ Conclusion: Don't Let a Weak Signal Be Your Weak Link
Receiver sensitivity is far more than just a technical spec sheet entry. It is a fundamental determinant of network reach, reliability, and performance. In an era driven by data, compromising on this parameter can lead to increased errors, limited scalability, and higher operational costs.
By prioritizing high-sensitivity components, especially in your optical module selection, you invest in a stronger, more resilient network foundation.
Ready to eliminate signal uncertainty and future-proof your infrastructure?
Explore LINK-PP's comprehensive portfolio of high-sensitivity optical transceivers. Our experts are ready to help you select the perfect module for your specific optical power budget and application needs.
Contact LINK-PP Today to Request a Datasheet or Schedule a Consultation!
⚡ FAQ
What does receiver sensitivity mean for your device?
Receiver sensitivity tells you the smallest signal your device can find. This value helps you know if your device works well with weak signals.
What happens if your device has poor receiver sensitivity?
If your device has poor receiver sensitivity, it misses weak signals. You might lose your connection, have slow data, or lose information when the signal is low.
What can you check to compare receiver sensitivity between devices?
Check the dBm number in the product details. A lower dBm number means better sensitivity. You should also look at packet error rate or bit error rate to see how well the device really works.
What steps help you improve receiver sensitivity?
You can lower noise, change your device settings, or get better hardware. Try a better antenna or a low-noise amplifier. These things help your device find weaker signals.
