When planning a 100G network upgrade, you'll quickly encounter two crucial protocols: OTU4 and 100GE (100 Gigabit Ethernet). While they both operate at the same nominal speed, they serve fundamentally different purposes in the networking world. Choosing the wrong one can lead to inefficiency, incompatibility, and unnecessary cost.
Understanding the distinction between the transport-oriented OTU4 and the data-centric 100GE is key to building a robust, scalable, and cost-effective network. This article will demystify these protocols, compare them head-to-head, and guide you toward the right choice for your specific use case.
➤ Core Concepts: The Definition Behind Each Protocol
What is 100 Gigabit Ethernet (100GE)?
100GE, defined by the IEEE 802.3ba standard, is the workhorse of modern data centers and enterprise networks. It's designed for switching and routing packetized data—the kind of traffic generated by servers, storage, and internet applications. Its primary goal is to provide high-bandwidth connectivity for LAN, data center interconnects (DCI), and internet access. Think of it as the universal language for data traffic.
What is OTU4?
OTU4 (Optical Channel Transport Unit 4) is a standard from the ITU-T G.709 specification, often called "Digital Wrapper" technology. It's the backbone of Optical Transport Networks (OTN). OTU4's job is to provide a robust, telco-grade, and fault-managed way to transport diverse client signals (like 100GE, 40GbE, or even legacy SAN protocols) over long distances on DWDM networks. It adds forward error correction (FEC) and management overhead, making it the "long-haul trucker" of data.
➤ Head-to-Head: OTU4 vs 100GE - A Technical Showdown
The key difference lies in their layer in the network stack and their inherent capabilities. The following table summarizes the critical distinctions:
Feature | 100 Gigabit Ethernet (100GE) | OTU4 (G.709) |
|---|---|---|
Standard Body | IEEE (802.3ba) | ITU-T (G.709) |
Primary Purpose | Data Networking & Packet Switching | Transport & Aggregation |
Typical Use Case | Data Center, Enterprise Core | Metropolitan/Long-Haul DWDM Links |
Frame Structure | Ethernet Frames | Digitally Wrapped OTN Frames |
Forward Error Correction (FEC) | Optional (e.g., RS-FEC) | Mandatory (Stronger SD-FEC) |
Performance Monitoring | Limited (Ethernet OAM) | Advanced (TCM, PM, BER) |
Client Signal Transparency | No | Yes (Can carry 100GE, FC, etc.) |
Latency | Lower | Slightly Higher (due to FEC & wrapping) |
➤ Choosing the Right Protocol: A Practical Guide
Your choice isn't about which is "better," but which is right for the job.
✅ Choose 100 Gigabit Ethernet (100GE) if:
You are building or upgrading a data center network (e.g., connecting switches to servers or other switches).
Your primary traffic is Ethernet/IP.
You need the lowest possible latency for financial trading or HPC clusters.
Your links are relatively short (intra-data center or campus).

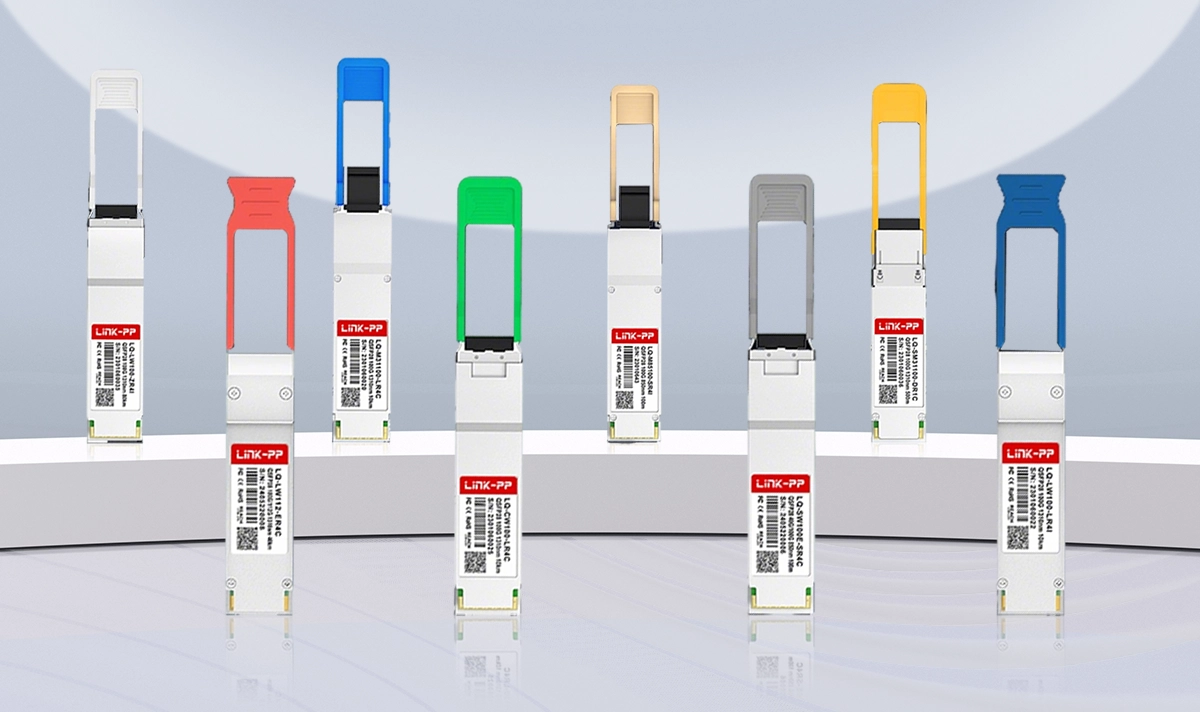

For these scenarios, a standard 100G QSFP28 transceiver like the LINK-PP LQ-M85100-SR4C for multimode or the LINK-PP QSFP-100G-LR4 for single-mode up to 10km is the perfect, cost-effective solution.
✅ Choose OTU4 if:
You are a service provider or large enterprise building a DWDM network.
You need to transport a 100G client signal over long distances with maximum reliability.
You require advanced performance monitoring and fault isolation across multiple network domains.
You need to aggregate and transparently carry multiple client protocols over a single wavelength.
This is where a purpose-built OTU4 CFP2 or CFP4 optical module is essential. For instance, the CFP2-100G-OTU4-LR module is engineered specifically for high-performance, long-reach OTU4 applications, providing the necessary G.709 compliance and robust FEC.
➤ The Bridge: How 100GE and OTU4 Work Together
It's not always an either/or situation. Often, they work in tandem. A common architecture involves:
A data center generates native 100GE traffic.
This traffic is handed off to a service provider.
The provider maps the 100GE signal into an OTU4 frame for transport across their robust, managed DWDM backbone.
At the destination, the OTU4 frame is terminated, and the original 100GE client signal is extracted and delivered.
This process allows carriers to offer secure, reliable 100G Wavelength services to their enterprise customers.
➤ Conclusion and Key Takeaways
100GE is for networking data within and between data centers. It's about switching.
OTU4 is for transporting that data (and other data types) over long distances on optical networks. It's about hauling.
100GE prioritizes simplicity and low latency.
OTU4 prioritizes robustness, management, and transparency.
Selecting the correct optical transceiver, whether for native 100GE or OTU4 transport, is critical for network performance and compatibility.
Still unsure about the best path for your 100G deployment? 🔍
Our experts at LINK-PP are here to help you navigate these choices. We provide a wide range of compatible, high-quality, and reliable 100G optical transceivers for both Ethernet and OTN applications.
➡️ [Contact our team today] for a personalized consultation and to explore our products
➤ FAQ
What is the main difference between OTU4 and 100GE?
You will notice OTU4 works best for long distances and strong error correction. 100GE gives you fast speeds for short or medium distances. Each protocol fits different network needs.
Can I use OTU4 and 100GE together in one network?
Yes, you can. Many networks use OTU4 to carry 100GE signals over long distances. This setup gives you both speed and reliability.
Which protocol should I choose for a data center?
You should pick 100GE for most data centers. It offers high speed, easy upgrades, and works well with common hardware. OTU4 is better for long-haul links.
Does OTU4 cost more than 100GE?
OTU4 equipment usually costs more because it handles long distances and strong error correction. 100GE hardware is more affordable and easier to install for short links.
How do I decide which protocol fits my network?
Check your network’s size, distance, and reliability needs. Use OTU4 for long-haul, carrier-grade links. Choose 100GE for fast, flexible connections in data centers or offices.
