In the high-speed digital world, data races from point A to point B as a series of electrical or optical pulses. Ideally, the receiver gets a clean, unmistakable signal: a "1" is a high pulse, and a "0" is a low pulse. But in reality, the journey is messy. Signals get distorted, smeared, and blurred. This phenomenon, a primary bottleneck in high-speed communication, is known as Intersymbol Interference (ISI).
If you're designing systems for data centers, telecommunications, or any high-speed digital interface, understanding ISI is not optional—it's essential. This guide will break down what ISI is, why it happens, how we combat it, and the critical role of advanced optical modules in this battle.
✅ Key Takeaways
Intersymbol interference (ISI) happens when signals from different bits mix together. This makes it hard for devices to read data the right way.
Pulse spreading, channel imperfections, and impedance mismatch are common causes of ISI. These problems can make mistakes happen when sending messages.
You can lower ISI by using equalization techniques, filtering, and better synchronization. These steps help make signals clearer and reduce errors.
Knowing about ISI helps you see why clear signals matter for good communication in things like phones and computers.
Handling ISI well can give you better call quality, faster internet, and safer data transfer.
✅ Defining the Problem: What Exactly is ISI?

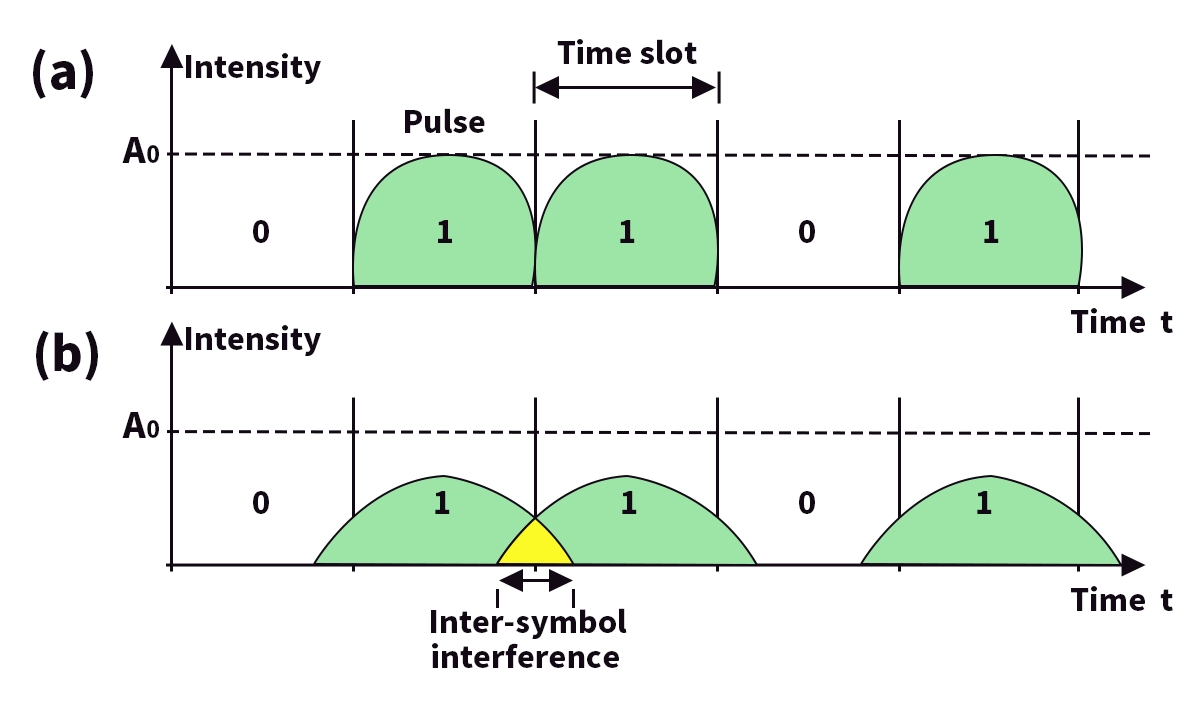

Intersymbol Interference (ISI) is a form of signal distortion where one symbol (or bit) interferes with subsequent symbols. This "smearing" effect makes it difficult for the receiver to correctly interpret whether a transmitted bit was a 1 or a 0.
Imagine you're in a large, echoey hall. Someone shouts the words "CAT" and "DOG" in quick succession. You might hear "CAA-DOG-T," where the trailing 'A' sound from "CAT" interferes with the beginning of "DOG." In data terms, a long, trailing pulse representing a "1" might spill over into the time slot reserved for the next "0," potentially making the receiver mistake it for another "1."
➡️ The ultimate consequence? Bit errors, corrupted data, reduced throughput, and a system that is far from reliable.
✅ The Main Culprits: What Causes Intersymbol Interference?
Three primary factors conspire to create ISI in communication channels:
Bandwidth Limitation (Channel Imperfection): No physical channel (like a copper wire or fiber) has infinite bandwidth. This limitation acts like a low-pass filter, smoothing out sharp, square pulses. This smoothing causes the pulses to spread out in time, overlapping with their neighbors.
Multipath Propagation: In wireless communication, a signal can take multiple paths to the receiver (e.g., by bouncing off buildings). These delayed copies of the signal arrive at different times and interfere with the main signal.
Dispersion in Optical Fibers: This is a critical factor in high-speed optics. It occurs when different components of a light signal (different wavelengths or modes) travel at slightly different speeds down the fiber, causing the pulse to broaden as it travels. Managing chromatic and modal dispersion is a key challenge for achieving high data rates over long distances.
✅ Fighting Back: Key Techniques to Mitigate ISI
Engineers have developed several powerful strategies to combat ISI and ensure data integrity. Here’s a look at the most common ones:
Technique | How It Works | Best Suited For |
|---|---|---|
Equalization | Uses a filter (an equalizer) at the receiver to reverse the distortion effects of the channel. It "reshapes" the signal. | Wired communications (Ethernet, Backplanes), Optical Receivers. |
Adds redundant data (error-correcting codes) to the transmitted signal, allowing the receiver to detect and correct a limited number of errors without retransmission. | Essential for modern high-speed standards like 400GbE and 800GbE. | |
Advanced Modulation Formats | Instead of just On-Off Keying (OOK), schemes like PAM4 (Pulse Amplitude Modulation 4-level) transmit more bits per symbol, effectively slowing down the symbol rate for a given data rate, which reduces susceptibility to ISI. | High-speed data centers, DDR5 memory, 400G+ optics. |
**Choosing the Right Components ** | Using high-quality, dispersion-tolerant optical modules is a fundamental step. A superior module is designed from the ground up to minimize the factors that cause ISI. | All high-speed fiber optic links. |
When you're looking to optimize signal integrity in data centers, a combination of strong FEC and high-performance optical modules is often the most effective strategy.
✅ The Optical Module: Your First Line of Defense Against ISI
The optical transceiver module is the heart of any fiber optic link, converting electrical signals to light and vice versa. Its design plays a pivotal role in determining a system's resilience to ISI, especially as we push towards speeds of 400G, 800G, and beyond.
At higher data rates, the impacts of chromatic dispersion become more severe. A pulse that was neatly defined at 10Gbps can become hopelessly smeared at 100Gbps over the same fiber distance. This is where the quality of your optical components makes all the difference.
Key features in a modern high-speed optical module that combat ISI include:
High-Performance DSPs: Advanced Digital Signal Processors (DSPs) are now standard in high-speed modules. They perform critical functions like electronic dispersion compensation (EDC), which actively reverses the dispersion-induced ISI, along with equalization and FEC decoding.
Dispersion-Tolerant Lasers: The use of highly coherent lasers, like those used in coherent optical systems, inherently resists dispersion.
Precise Wavelength Control: For Dense Wavelength Division Multiplexing (DWDM) systems, precise wavelength stability is crucial to minimize dispersion effects across the entire spectrum.
For network architects who need reliable, high-performance solutions, specifying the right optical module is the most critical decision. This is where LINK-PP demonstrates its expertise.
A Perfect Fit: The LINK-PP 400G-ZR+ Coherent Module
Designed for the demands of modern data center interconnects (DCI) and metro networks, the LINK-PP 400G-ZR+ coherent optical module is a prime example of ISI mitigation engineered into hardware. It leverages a powerful DSP to perform sophisticated electronic dispersion compensation, effectively canceling out the ISI caused by chromatic dispersion over distances up to 80km. By choosing a component like the LINK-PP 400G-ZR+, you are not just buying a transceiver; you are building a more robust and error-resistant network foundation.
✅ Conclusion: Taming the Signal for a Faster Future
Intersymbol Interference is a fundamental physical challenge in high-speed communications, but it is not an insurmountable one. Through a deep understanding of its causes and a strategic application of mitigation techniques—especially the deployment of intelligent optical modules—we can continue to push the boundaries of speed and reliability.
As data rates climb, the partnership between sophisticated signal processing (like FEC and equalization) and high-quality hardware (like dispersion-managed optical modules) will only become more critical.
✅ FAQ
What does intersymbol interference mean in digital communication?
Intersymbol interference happens when signals from different bits mix. This makes it hard for your device to know each bit. ISI can cause mistakes in your messages.
What causes intersymbol interference to happen?
Intersymbol interference happens when pulses overlap or channels are not perfect. Slow hardware can also cause this problem. These things make signals blend and lose their clear shape.
What problems can ISI create for your devices?
ISI can make your device read bits the wrong way. You might have dropped calls, slow internet, or message errors. Your data may not be safe when ISI is a problem.
What can you do to reduce intersymbol interference?
You can use equalizers, filters, and better timing to help. These tools help your device keep signals apart. They make your messages clearer and help stop mistakes.
