1G SX SFP Module Specifications and Compatibility Guide

The 1G SX SFP Module is a key component in modern enterprise networks, data centers, and campus LANs, providing reliable 1 Gbps connectivity over multimode fiber. Designed for short-range data transmission, SX SFP modules operate at an 850 nm wavelength, making them ideal for distances between 220 meters and 550 meters, depending on the fiber type and quality. These compact, hot-swappable transceivers are widely compatible with switches, routers, and optical devices, offering both flexibility and performance for network deployments.

Understanding the differences between SX and LX SFP modules is essential for proper network design. While SX modules are optimized for short-distance multimode fiber, LX modules use 1310 nm light over single-mode fiber for longer links up to 10 kilometers. Choosing the wrong module or fiber type can lead to link failures or degraded performance, making careful selection and deployment critical.

Beyond specifications, practical considerations like fiber type, connector cleanliness, and proper cabling directly impact network reliability. Real-world feedback from networking communities highlights common issues such as using SX modules on single-mode fiber or expecting 1G SX SFPs to operate at lower speeds.

This guide provides a complete overview of 1G SX SFP Modules, covering technical specs, compatibility, deployment best practices, and answers to frequently asked questions. By reading this article, network professionals can confidently select and implement SX SFP modules to ensure high-performance, short-range optical connections.

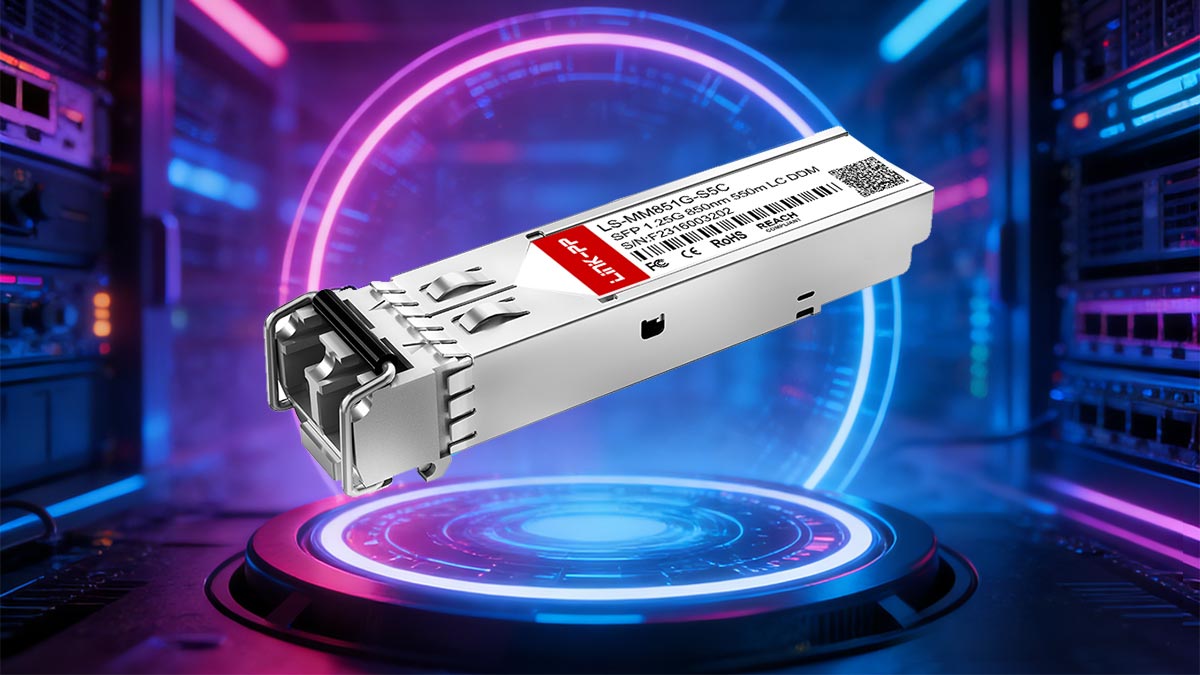

✅ What is 1000BASE‑SX: Definition and Core Features

The 1000BASE‑SX standard represents a widely used optical fiber technology designed for short-distance, high-speed networking. It is primarily used in local area networks (LANs) and supports 1 Gbps data transmission over multimode fiber (MMF). The "SX" in 1000BASE‑SX stands for Short Wavelength, indicating that these modules operate at 850 nm, making them ideal for transmitting data efficiently over short distances, typically ranging from 220 meters to 550 meters, depending on the fiber type. Engineers and network professionals often choose 1000BASE‑SX modules for cost-effective, high-performance networking where multimode fiber infrastructure is already in place.

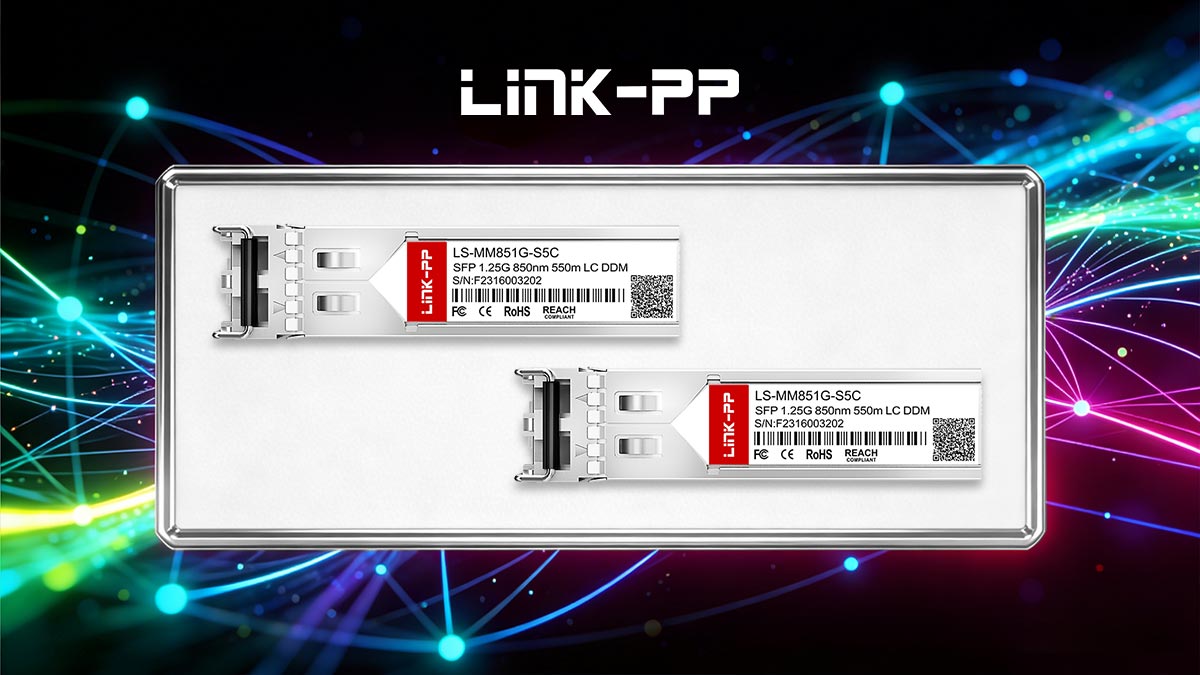

What is a 1G SX SFP Module?

A 1G SX SFP Module is a small form-factor pluggable transceiver that complies with the 1000BASE‑SX standard, enabling 1 Gbps optical connections over multimode fiber. These modules are compact, hot-swappable, and compatible with a variety of switches, routers, and fiber optic networking devices. The SX SFP is specifically optimized for short-range data transmission using 850 nm wavelength light, making it highly suitable for campus networks, data centers, and enterprise LANs. Key technical features of a 1G SX SFP module include its support for 1 Gbps data rates, multimode fiber connectivity, and compliance with industry standards, ensuring interoperability across multiple vendors. Proper installation, including correct fiber type, clean connectors, and avoiding excessive bending, is crucial to maintain optimal performance.

SX vs. LX SFP Modules: Key Differences

When selecting an SFP module, it is essential to understand the differences between SX and LX SFP modules. While SX modules are designed for short-range multimode fiber connections using 850 nm light, LX modules are intended for longer distances over single-mode fiber (SMF), typically operating at 1310 nm. The practical implications of these differences include: SX modules are ideal for intra-building links and campus networks, whereas LX modules can cover inter-building or metro network distances up to 10 kilometers or more. Table below summarizes the key distinctions:

Understanding these differences ensures that network engineers select the correct SFP module for their deployment requirements, avoiding compatibility issues and maximizing network reliability.

Understanding Multimode Fiber for SX SFP

Multimode fiber (MMF) is the primary medium for 1G SX SFP modules. MMF supports multiple light paths, allowing high-speed data transmission over shorter distances. Common MMF types include OM1, OM2, OM3, and OM4, with OM3 and OM4 providing the highest performance for 1G SX SFP modules. Engineers must consider the fiber grade, link length, and installation quality, as improper handling or connector contamination can degrade performance. SX SFP modules achieve optimal results when paired with high-quality MMF, properly cleaned connectors, and careful cable management, minimizing signal loss and ensuring consistent 1 Gbps network throughput. These modules are widely favored for enterprise LANs and data centers, where short-range, high-speed connectivity is critical.

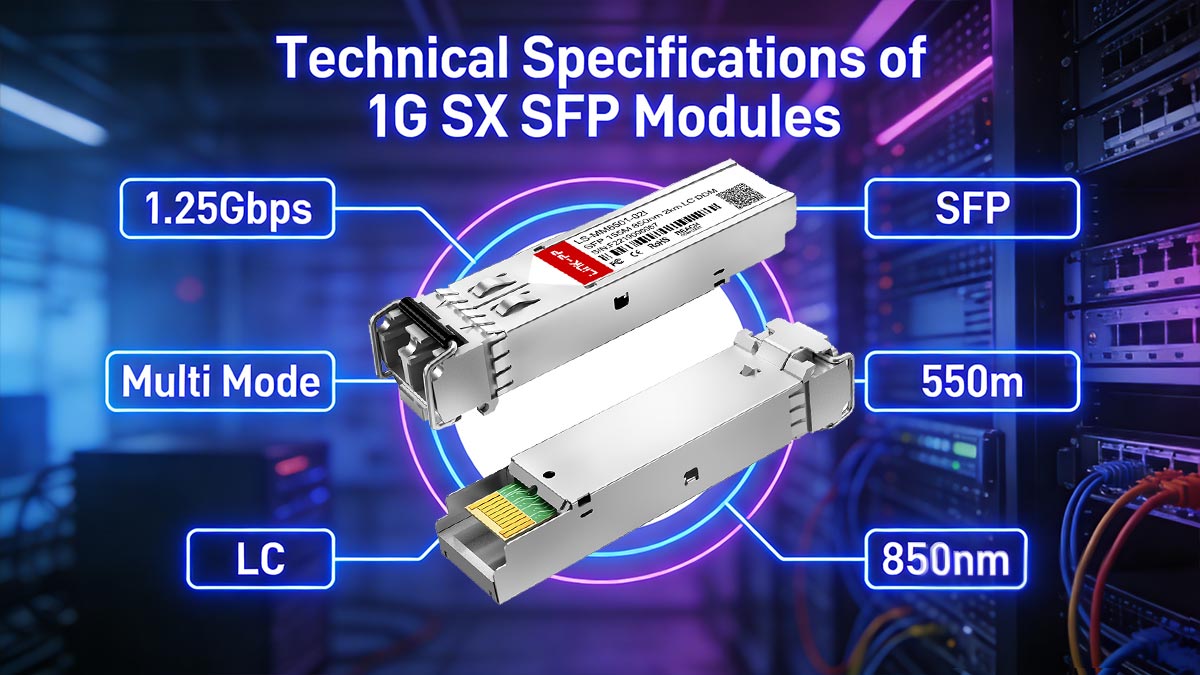

✅ Technical Specifications of 1G SX SFP Modules

Understanding the technical specifications of 1G SX SFP modules is critical for network engineers, IT professionals, and system integrators. These small form-factor pluggable transceivers are designed to deliver high-performance 1 Gbps connectivity over multimode fiber while maintaining broad compatibility across networking devices. By examining their wave length, data rates, and transmission limits, professionals can ensure optimal deployment and avoid common compatibility issues.

Wave Length and Fiber Type (850nm MMF)

The defining characteristic of a 1G SX SFP module is its use of 850 nm short-wavelength light for data transmission. This wavelength is optimized for multimode fiber (MMF), making SX SFP modules ideal for short-distance network links within buildings or campuses. Multimode fiber types commonly used with these modules include OM1, OM2, OM3, and OM4, with OM3 and OM4 offering higher performance for longer distances at 1 Gbps. Using the correct fiber type is crucial, as mismatched fibers or connectors can result in signal loss, link instability, or complete connection failure. Proper installation practices, such as maintaining clean connectors and avoiding sharp bends, help maintain consistent network throughput.

Supported Data Rates and Compatibility

1G SX SFP modules are specifically engineered for 1 Gbps data rates, adhering to the 1000BASE-SX standard. While some users may assume these modules can support lower speeds, most SX modules do not natively operate at 100 Mbps, which can cause connectivity issues if not properly planned. These modules are compatible with a wide variety of network switches, routers, and fiber media converters, but it is essential to verify vendor compatibility lists to avoid vendor lock or EEPROM mismatch issues. Correct selection ensures a reliable, high-speed optical link across different networking hardware.

Typical Transmission Distance and Limitations

The maximum transmission distance of a 1G SX SFP module depends on both the fiber type and network environment. With standard OM1 multimode fiber, typical distances range from 220 to 275 meters, while OM3 or OM4 fibers can extend the range up to 550 meters. It is important to note that these modules are designed strictly for short-range applications, and exceeding recommended distances can result in attenuation, errors, or link failure. Network designers should also consider other factors such as cable quality, connector type, and network topology to achieve optimal performance.

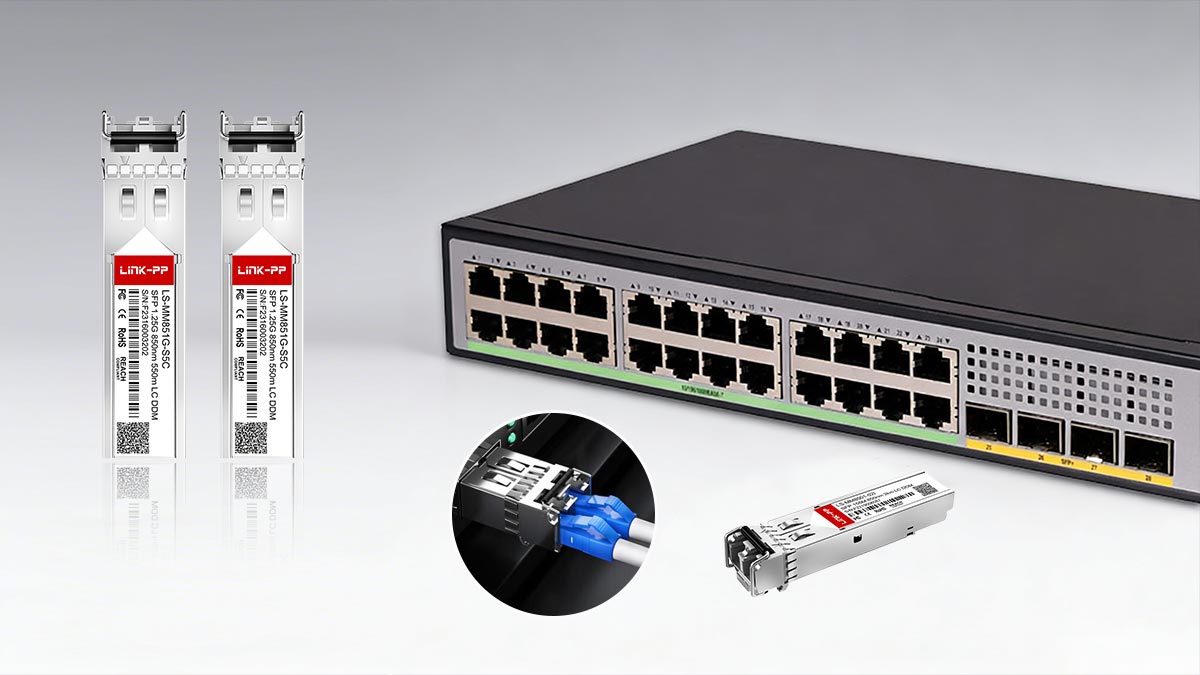

✅ 1G SX SFP Deployment and Installation Best Practices

Deploying 1G SX SFP modules correctly is crucial to ensure stable, high-performance optical connections. While these modules are designed to be compact and hot-swappable, improper installation or overlooking compatibility issues can lead to link failures, degraded throughput, or equipment errors. By following established best practices, network engineers can maximize performance and minimize downtime across enterprise LANs and data center environments.

How to Install SX SFP in Switches and Routers

Installing a 1G SX SFP module is straightforward but requires careful attention to detail. First, ensure that the device supports SX SFP modules and that the module matches the intended fiber type (MMF) and wavelength (850 nm). Insert the module gently into the SFP port until it clicks into place, ensuring it is fully seated. Once installed, connect the multimode fiber patch cable, maintaining proper polarity and avoiding excessive bending. Always verify link lights or device indicators to confirm a successful connection. Proper handling and correct insertion are key to preventing physical damage and maintaining optimal 1 Gbps performance.

Ensuring Compatibility and Avoiding Vendor Lock Issues

While many SX SFP modules are designed to be compatible with multiple vendors, some switches and routers implement EEPROM checks or vendor-specific authentication that can prevent third-party modules from functioning correctly. To avoid vendor lock or unexpected compatibility issues, review the device compatibility list, verify firmware versions, and choose modules known to work reliably with your equipment. Following these steps reduces the risk of link failure or operational instability and ensures predictable network performance.

Real-world Deployment Tips from Network Engineers

Experienced network engineers recommend several practical tips for deploying SX SFP modules:

• Always clean fiber connectors before insertion to prevent signal loss.

• Avoid tight cable bends or excessive tension, which can degrade optical performance.

• Test each link after installation using network diagnostic tools to verify throughput and error rates.

• Label fibers and modules clearly to simplify troubleshooting and future maintenance.

• Consider environmental factors such as temperature and electromagnetic interference, which can affect short-range multimode links.

By combining proper installation techniques, compatibility verification, and lessons from real-world deployments, network professionals can ensure that 1G SX SFP modules operate reliably, providing consistent 1 Gbps connectivity across campus and data center networks.

✅ SX SFP Troubleshooting and Performance Optimization

Even when 1G SX SFP modules are installed correctly, network engineers may encounter occasional performance issues or link failures. Understanding common problems and applying best practices for troubleshooting and optimization can help maintain stable 1 Gbps connectivity and prevent costly downtime. This section provides practical guidance for diagnosing and resolving issues, optimizing multimode fiber installations, and leveraging insights from real-world user experiences.

Diagnosing Link Failures on SX SFP Modules

Link failures with SX SFP modules often result from fiber mismatches, incorrect insertion, or connector contamination. To diagnose a failure:

1. Verify the SFP module type, fiber type (MMF), and wavelength (850 nm) match the network design.

2. Inspect fiber connectors for dust, dirt, or scratches, and clean them with appropriate fiber cleaning tools.

3. Confirm the SFP module is fully seated in the switch or router port and that link lights indicate activity.

4. Test the fiber link using a light source or optical power meter to detect signal loss or attenuation.

Proper diagnostics ensure that physical layer issues are identified quickly, reducing unnecessary downtime and avoiding misinterpretation of higher-layer network problems.

Optimizing Multimode Fiber Installation for Maximum Performance

Multimode fiber installation plays a critical role in SX SFP performance. Key optimization tips include:

• Use OM3 or OM4 fiber for longer distances within the SX SFP range.

• Avoid tight bends and excessive cable tension that can cause attenuation or modal dispersion.

• Maintain consistent polarity and labeling for easier troubleshooting.

• Implement structured cable management to minimize interference and simplify future upgrades.

By following these installation best practices, engineers can ensure stable and high-throughput connections across campus or data center networks.

Tips from Real User Experiences and Forum Discussions

Networking communities such as Reddit, Cisco forums, and specialized fiber optics groups provide valuable insights from engineers who have deployed SX SFP modules in real-world scenarios:

• Some users report compatibility issues with third-party SFP Modules, highlighting the importance of checking vendor compatibility lists.

• Several posts emphasize that dust and connector contamination are the leading cause of intermittent connectivity.

• Experienced engineers recommend testing each module and fiber link before final deployment to catch issues early and avoid network downtime.

Incorporating lessons from these real-world experiences, combined with proper installation and diagnostic practices, ensures that 1G SX SFP modules deliver optimal performance, supporting reliable and efficient short-range optical networks.

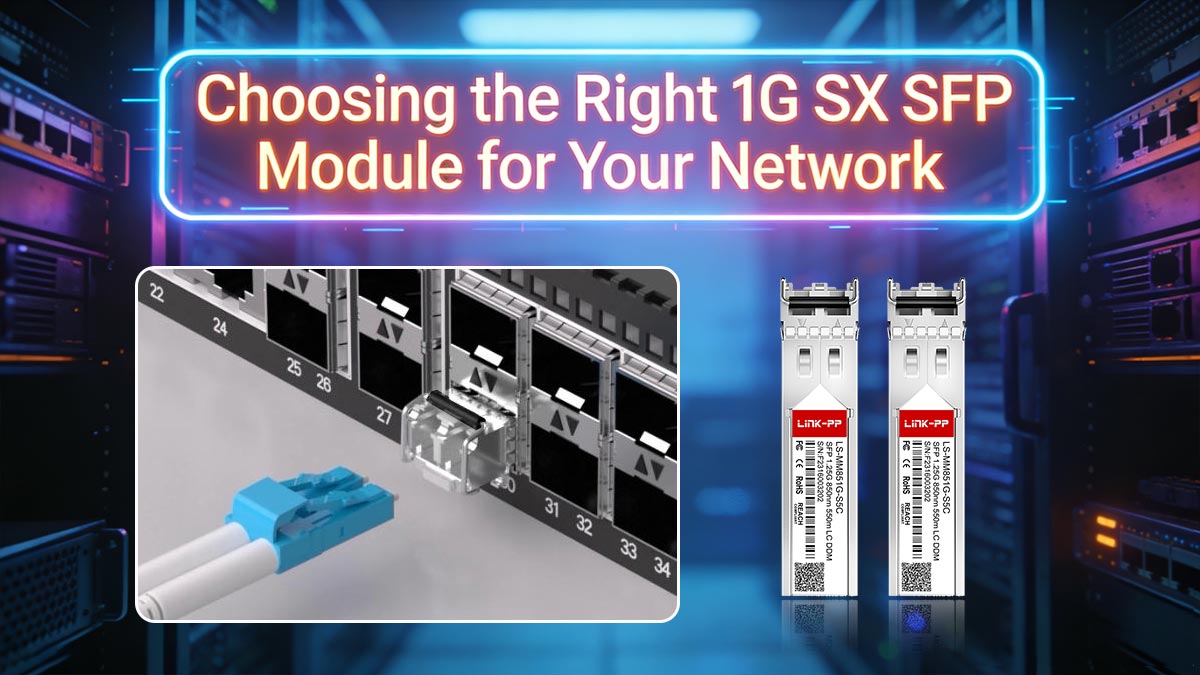

✅ Choosing the Right 1G SX SFP Module for Your Network

Selecting the appropriate 1G SX SFP module is essential for ensuring stable 1 Gbps connectivity and long-term network reliability. With multiple module types, fiber grades, and vendor options available, engineers must consider several key factors to make the best choice for their specific network requirements.

Factors to Consider (Distance, Fiber Type, Vendor Compatibility)

When choosing an SX SFP module, the most critical factors include:

• Transmission Distance: SX SFP modules are designed for short-range links, typically between 220 and 550 meters, depending on the multimode fiber type (OM1–OM4). Accurate distance calculations prevent signal degradation.

• Fiber Type: Ensure that the module’s 850 nm wavelength is compatible with the deployed multimode fiber, and select OM3 or OM4 fibers for higher performance or longer short-range links.

• Vendor Compatibility: Some switches or routers may implement EEPROM checks or firmware restrictions that limit the use of third-party SFPs. Always verify compatibility lists and confirm that the module works with your hardware to avoid link failures or operational issues.

Recommended Modules and OEM vs Third-party Options

Both OEM and third-party SX SFP modules can offer reliable performance, but considerations vary:

• OEM Modules: Typically guaranteed to work with vendor equipment and may include full support, warranty, and firmware compatibility.

• Third-party Modules: Often more cost-effective, widely available, and fully compliant with 1000BASE-SX standards, but may require careful verification for vendor compatibility.

Selecting between OEM and third-party modules depends on network criticality, vendor policies, and budget constraints.

Cost vs. Performance Trade-offs

Network professionals should balance cost, performance, and reliability when selecting SX SFP modules:

• High-end OEM modules may provide better guaranteed interoperability and longer warranty coverage.

• Third-party modules offer lower upfront cost but may require more thorough testing before deployment to ensure stable performance.

• In most enterprise LAN scenarios, properly tested third-party modules deliver equivalent performance at reduced cost, especially when used in short-range multimode fiber links.

By carefully evaluating these factors, network engineers can confidently select the right 1G SX SFP module to meet their network’s performance, compatibility, and budgetary requirements, ensuring stable, high-speed connections across short-range optical networks.

✅ Common FAQs About 1G SX SFP Module

Network engineers, IT professionals, and enterprise users often have similar questions when working with 1G SX SFP modules. These frequently asked questions address module definitions, compatibility, and real-world deployment insights, helping users make informed decisions. Insights from Reddit, Cisco forums, and other professional networking communities are included to provide practical guidance alongside technical definitions.

Q1: What is the SX on SFP? / What Does SX Mean on SFP?

The term SX in an SFP module stands for Short Wavelength. SX SFP modules use 850 nm light for short-range data transmission over multimode fiber (MMF). Users on Reddit and networking forums often ask whether SX modules can be used over longer distances; the consensus is that they are strictly for short-range connections, typically under 550 meters, depending on fiber type.

Q2: What is SX and LX?

SX and LX SFP modules are distinguished by their wavelength and fiber type. SX modules operate at 850 nm over multimode fiber for short distances, while LX modules use 1310 nm over single-mode fiber for long-distance links (up to 10 km or more). Real-world engineers emphasize verifying fiber type and distance requirements before installation to prevent link failure.

Q3: Is SX Single-mode or Multimode?

SX SFP modules are exclusively designed for multimode fiber (MMF). Single-mode fiber (SMF) requires LX, ZX, or other single-mode SFPs. Forum discussions frequently highlight issues when users mistakenly connect SX modules to SMF, leading to link failures or optical errors.

Q4: What Does 1G SFP Mean?

A 1G SFP refers to a small form-factor pluggable module capable of 1 Gbps (1000BASE) data transmission. In the case of SX SFPs, this means short-range 1 Gbps over multimode fiber. This distinction is important because some SFPs, such as certain GLC-SX-MMD modules, are strictly 1G and not 10G.

Q5: Is GLC-SX-MMD 1G or 10G?

The GLC-SX-MMD module is a 1G SX SFP, designed for 1000BASE-SX multimode fiber links. It cannot operate at 10 Gbps, unlike SFP+ modules used for 10G networks. Reddit threads and professional forums confirm that attempting to use 1G modules in 10G ports will either fail or auto-negotiate to 1G if supported.

Q6: What is the Difference Between SX and SR SFP?

While both SX and SR SFP modules support short-range data, SX is specifically 1000BASE-SX at 850 nm, whereas SR can refer to 10GBASE-SR modules operating at the same wavelength but supporting 10 Gbps speeds. Users in community discussions emphasize checking both speed and distance ratings to ensure compatibility.

Q7: What is the Difference Between FX and SX SFP?

FX SFP modules use 1310 nm over multimode fiber and were common in older Fast Ethernet networks (100 Mbps). SX SFP modules, on the other hand, support 1 Gbps (1000BASE-SX) over multimode fiber at 850 nm. Engineers note that FX is largely obsolete, and SX is preferred for modern 1G deployments.

Q8: Can SX SFP Run at 100Mbps?

Most 1G SX SFP modules cannot operate at 100 Mbps. While some switches may attempt to auto-negotiate, SX modules are optimized for 1 Gbps, and running them at lower speeds may result in link instability or failure.

Q9: Differences Between SX, SR, and FX SFP Modules

• SX: 1G, 850 nm, multimode fiber, short-range (220–550 m)

• SR: 10G, 850 nm, multimode fiber, short-range (up to 300 m for OM3/OM4)

• FX: 100 Mbps, 1310 nm, multimode fiber, legacy Fast Ethernet
  This table helps engineers select the correct module for both speed and distance requirements.

Q10: How to Identify 1G SX SFP Module Models (GLC-SX-MMD, etc.)

Identification involves checking:

• Model number printed on the module (e.g., GLC-SX-MMD, GLC-SX-MM)

• Data rate (1G for SX, 10G for SFP+)

• Wavelength (850 nm for SX, 1310 nm for LX/FX)

• Fiber type compatibility (multimode fiber for SX)
  Community discussions recommend confirming vendor compatibility and cross-checking the module against device support lists before deployment.

✅ 1G SX SFP Module Summary

Concluding the guide, this section highlights key insights for network engineers and provides actionable steps to select, deploy, and purchase 1G SX SFP modules efficiently.

Key Takeaways on 1G SX SFP Module Selection

• Module Type: SX SFP modules are designed for 1 Gbps short-range multimode fiber links at 850 nm.

• Distance & Fiber: Typical links range from 220 m to 550 m, depending on fiber type (OM1–OM4).

• Compatibility: Always verify vendor support and firmware compatibility to avoid link failures or EEPROM mismatches.

• Deployment Best Practices: Ensure clean connectors, proper polarity, and cable management for stable optical performance.

• Real-world Insights: Forum and Reddit discussions emphasize testing each link, verifying module specs, and confirming distance requirements.

By keeping these points in mind, engineers can confidently design and maintain reliable 1G SX SFP networks.

Links to 1G SX Datasheets and Compatibility Matrices

For further reference and to ensure proper selection of SX SFP modules, engineers can access:

• Product datasheets for technical specifications

• Compatibility matrices to verify device support

• Purchase guides and verified modules

Explore all official resources and secure genuine, high-quality SX SFP modules at the LINK-PP Official Store.
